L-7104SRD-14V datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> L-7104SRD-14V

L-7104SRD-14V: DescriptionSingle Color LED, Super Bright Red, Diffused Red, T-1, 3mm, ROHS COMPLIANT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size65KB，3 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

L-7104SRD-14V Overview

Single Color LED, Super Bright Red, Diffused Red, T-1, 3mm, ROHS COMPLIANT PACKAGE-2

L-7104SRD-14V Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
color	SUPER BRIGHT RED
color@wavelength	Orange-Red
Configuration	SINGLE WITH BUILT-IN RESISTOR
Maximum forward current	0.0135 A
Maximum forward voltage	16 V
Lens type	DIFFUSED RED
minimum luminous intensity	40 cd
Nominal luminous intensity	90.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	4.6 mm
method of packing	BULK
peak wavelength	660 nm
Maximum reverse voltage	5 V
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal pitch	2.54 mm
perspective	40 deg

Preview

Download Datasheet

View All

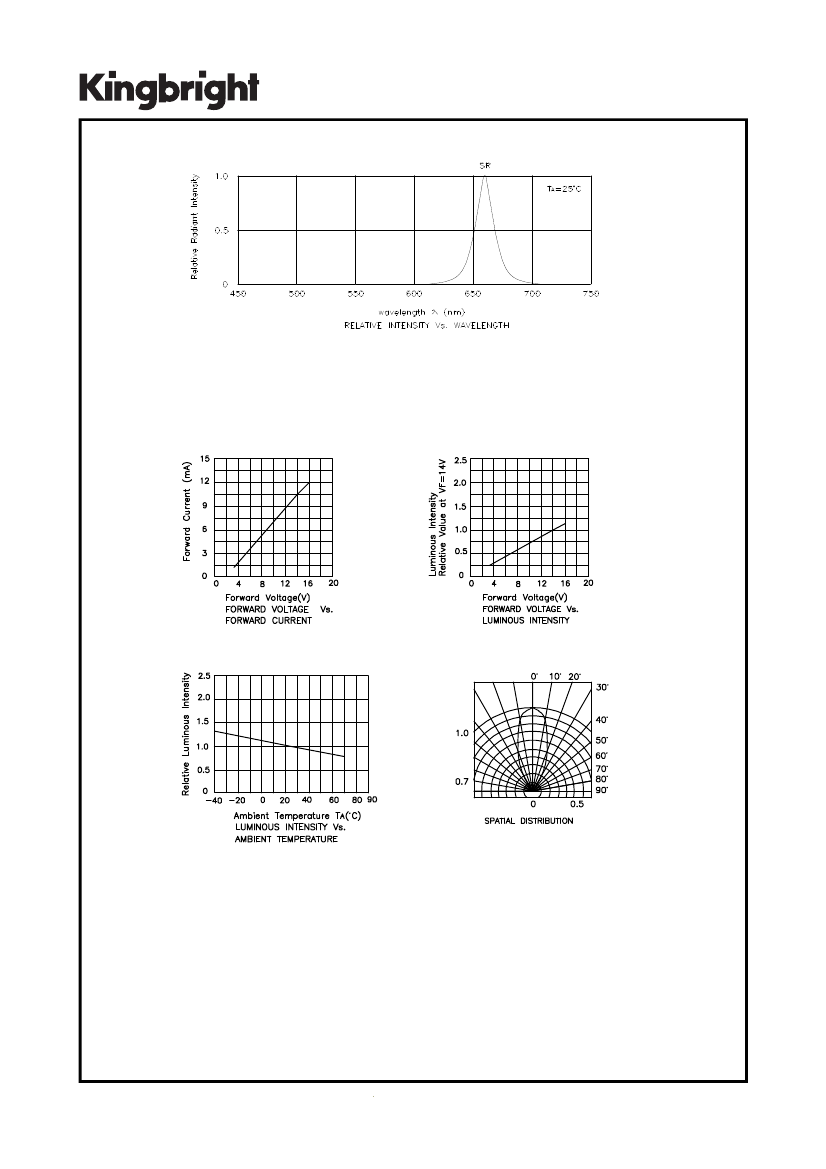

T-1 (3mm) SOLID STATE LAMP

L-7104SRD-14V

SUPER BRIGHT RED

Features

zLOW

POWER CONSUMPTION.

zGENERAL

PURPOSE LEADS.

zRELIABLE

AND RUGGED.

Description

The Super Bright Red source color devices are made

with Gallium Aluminum Arsenide Red Light Emitting

Diode.

zPOPULAR

T-1 DIAMETER PACKAGE.

zLONG

LIFE - SOLID STATE RELIABILITY.

zAVAILABLE

ON TAPE AND REEL.

z14V

INTERNAL RESISTOR.

zRoHS

COMPLIANT.

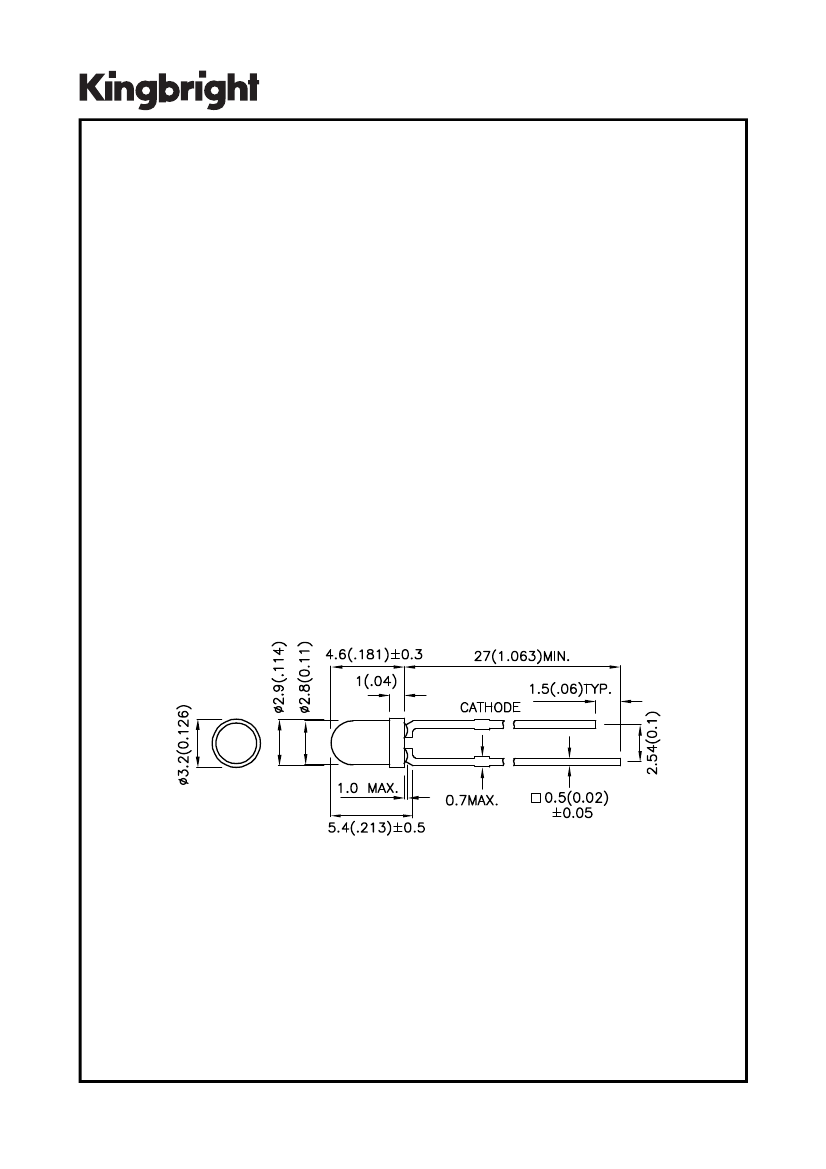

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.25(0.01")

unless otherwise noted.

3. Lead spacing is measured where the leads emerge from the package.

4. Specifications are subject to change without notice.

SPEC NO: DSAE8435

APPROVED: J. Lu

REV NO: V.2

CHECKED: Allen Liu

DATE: MAR/22/2005

DRAWN: H.Q.YUAN

PAGE: 1 OF 3
