REVISION Y
DO NOT
SCALE FROM
THIS PRINT
NOTES:
1. MINIMUM PUSHOUT FORCE: .5 LB.
2. NOTE DELETED.
3.
C
REPRESENTS A CRITICAL DIMENSION.
4. NOTE DELETED.
5. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE -LC OPTION
IS NOT COMPATIBLE WITH AUTO PLACEMENT. SAMTEC RECOMMENDS
MANUAL PLACEMENT FOR ALL ASSEMBLIES WITH THE -LC OPTION.
6. TO BE MEASURED FROM A DATUM LINE MADE BY THE INSULATOR.
SFMH-1XX-XX-XXX-D-XX-XX
No OF POSITIONS PER ROW
-05 THRU -50
LEAD STYLE
-02
OPTIONS
-LC: LOCKING CLIP (SEE FIG 1, SHT 1)
(NOT AVAILABLE W/ -WT OPTION)
(SEE NOTE 5)
* -SL: SOLDER LOCK (SEE FIG 2, SHT 2)
-WT: WELD TAB (SEE FIG. 3, SHT 2)
(NOT AVAILABLE W/ -LC OPTION)
(AVAILABLE ON POSITIONS -05 THRU -30)
ROW SPECIFICATION
-D: DOUBLE ROW
PACKAGING OPTIONS
-TR: TAPE & REEL

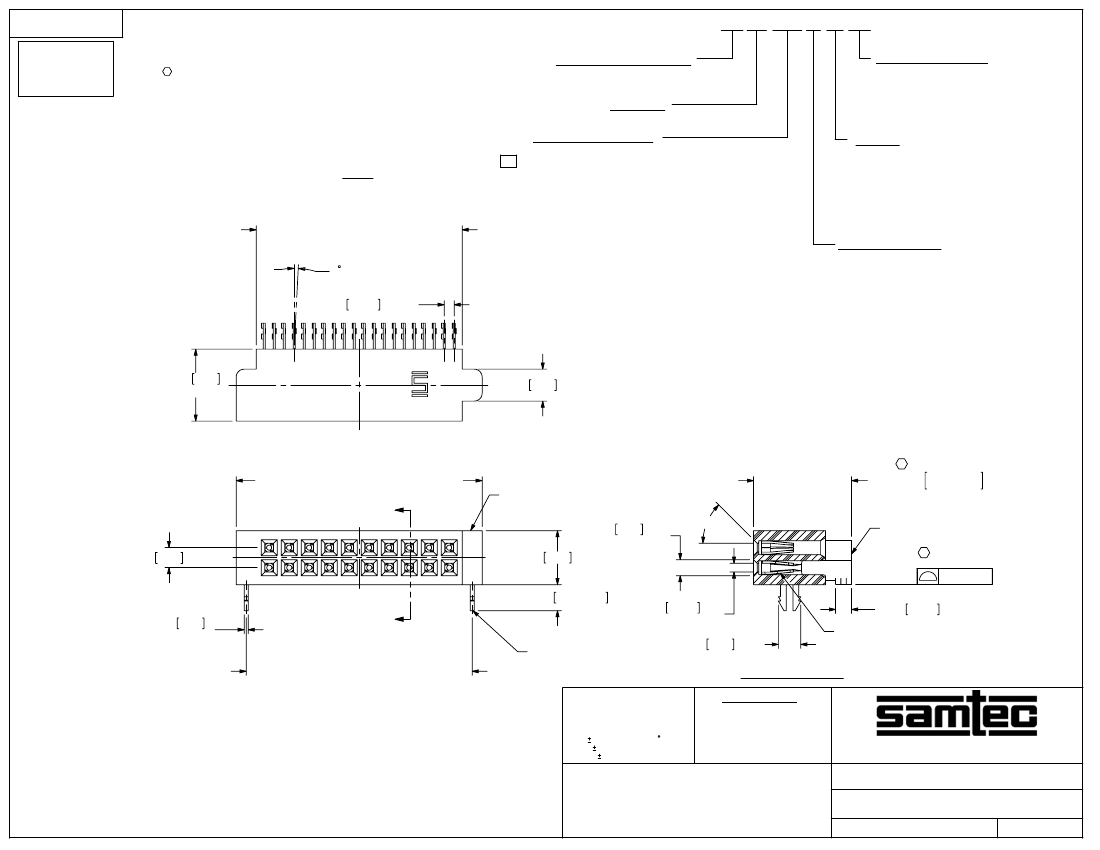

SFMH-110-02-XXX-D-LC SHOWN
((No. OF POS x .050[1.27]) + .015[.38] )
REF
2 MAX SWAY
(TYP)
.0250 0.635 (TYP)
FIG 1
Y
PLATING SPECIFICATION
(VALUES GIVEN ARE IN MICRO-INCHES)
-L: 10µ" GOLD IN CONTACT AREA, GOLD FLASH ON TAIL
(USE C-108-G & C-109-G)
-F: 3µ" GOLD IN CONTACT AREA, GOLD FLASH ON TAIL
(USE C-108-FG & C-109-FG)
-S: 30µ" GOLD IN CONTACT AREA, MATTE TIN ON TAIL
(USE C-108-S & C-109-S)
-LM: 10µ" GOLD IN CONTACT AREA, MATTE TIN ON TAIL
(USE C-108-LM & C-109-LM)
-STL: 30µ" GOLD IN CONTACT AREA,
TIN/LEAD ((90/10+/-5%)TAIL
(USE C-108-STL & C-109-STL)
-FTL: 3µ" GOLD IN CONTACT AREA,
TIN/LEAD (90/10+/-5%) TAIL (USE C-108-FTL & C-109-FTL)
-LTL: 10µ" GOLD IN CONTACT AREA,
TIN/LEAD (90/10+/-5%) TAIL (USE C-108-LTL & C-109-LTL)
SEE PP-C-108-XXX & PP-C-109-XXX FOR PLATING DETAILS.
* NOT TOOLED
.180 4.57
REF
C .080 2.03 REF
L
C
L
((No. OF POS x .050[1.27]) + .115[2.92])
REF
C
+.003
.2450
- .001
20 18
.050 1.27 REF
C
L
"A"
SFMH-XX-D
.040 1.02 SQ
REF
.135 3.43 REF
.065±.004 1.65±0.10
45° REF
6.223
- 0.025
+0.076
04 02
C
L
C-108-XXX
C
.004 [.10]
19 17
.010 0.25
REF (TYP)
03 01
"A"
LC-05-TM
((No. OF POS x .050[1.27]) + .065[1.65])
.0220 0.559 SQ
REF
.056 1.42 REF
.040 1.016 REF
C-109-XXX
SECTION "A"-"A"
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
±5
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
INSULATOR: LCP, UL 94 VO, COLOR: BLACK
CONTACT: PHOS BRONZE
.050 x .050 SOCKET STRIP ASSEMBLY
F:\DWG\MISC\MKTG\SFMH-1XX-XX-XXX-D-XX-XX-MKT.SLDDRW
BY:
J. BROWNING 12/07/2009
SHEET
1
OF
2
SFMH-1XX-XX-XXX-D-XX-XX
REVISION Y
SFMH-XX-D-SL

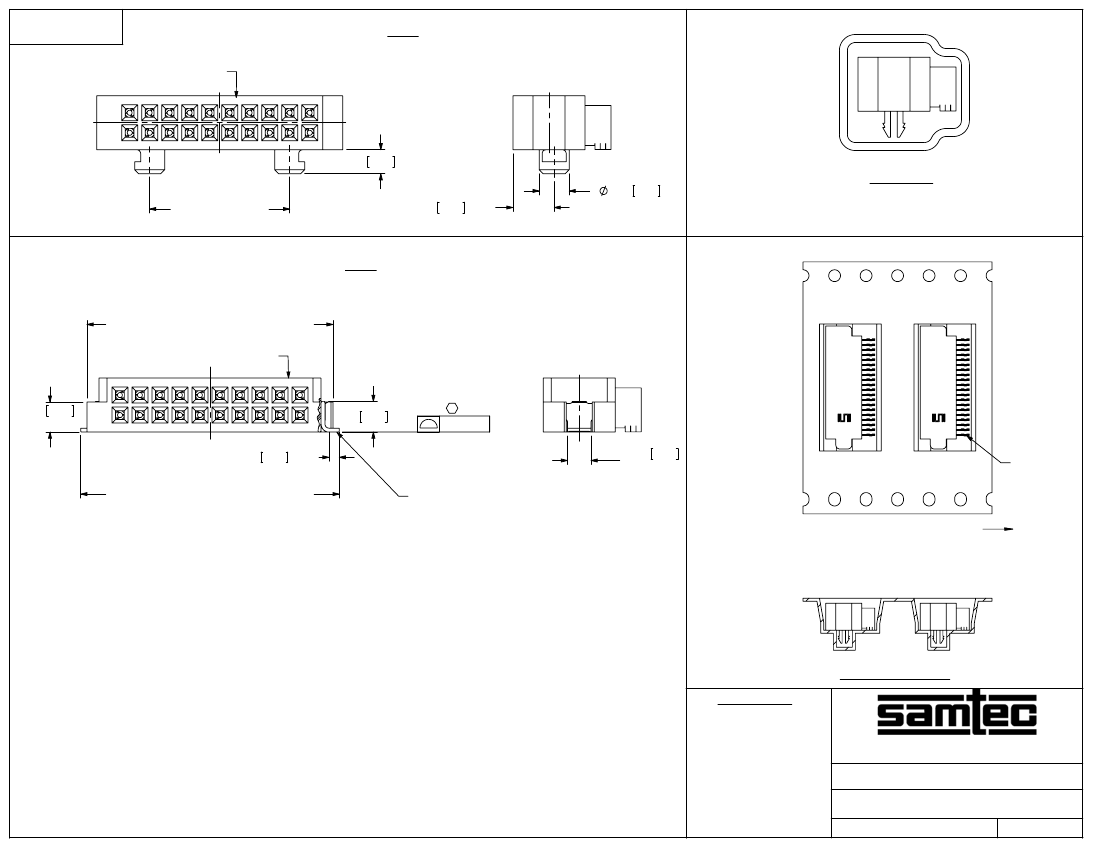

SFMH-110-02-XXX-D-SL SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
(*NOT TOOLED)
C
L
FIG 2
C
L
.060 1.52 REF
((No. OF POS - 3)
x .050[1.27])
.075 1.91 REF
C
L
.103 2.62 REF
C
L
TUBE VIEW
USE TUBE PT-1-24-01-38
USE PLUG TP-24 (2)
C
L
SFMH-110-02-XXX-D-WT SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
((No. OF POS x .050[1.27]) + .115[2.92])
REF
SFMH-XX-D-WT
FIG 3
.075 1.91
REF
C
L
.026 0.65 REF
.077 1.95 REF
C
.004[.10]
(SEE NOTE 6)
C
L
.059 1.50
REF
POS 01
((No. OF POS x .050[1.27]) + .147[3.73])
WT-20-01-T
USER DIRECTION OF UN-REELING
POCKET NOT DETAILED
TAPE & REEL VIEW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.050 x .050 SOCKET STRIP ASSEMBLY
F:\DWG\MISC\MKTG\SFMH-1XX-XX-XXX-D-XX-XX-MKT.SLDDRW
BY:
J. BROWNING 12/07/2009
SHEET
2
OF
2
SFMH-1XX-XX-XXX-D-XX-XX
