AMP Dynamic Series Connectors
D-3000 Series (Wire-to-Board, Wire-to-Panel and Wire-to-Wire)
List of Products by
Application

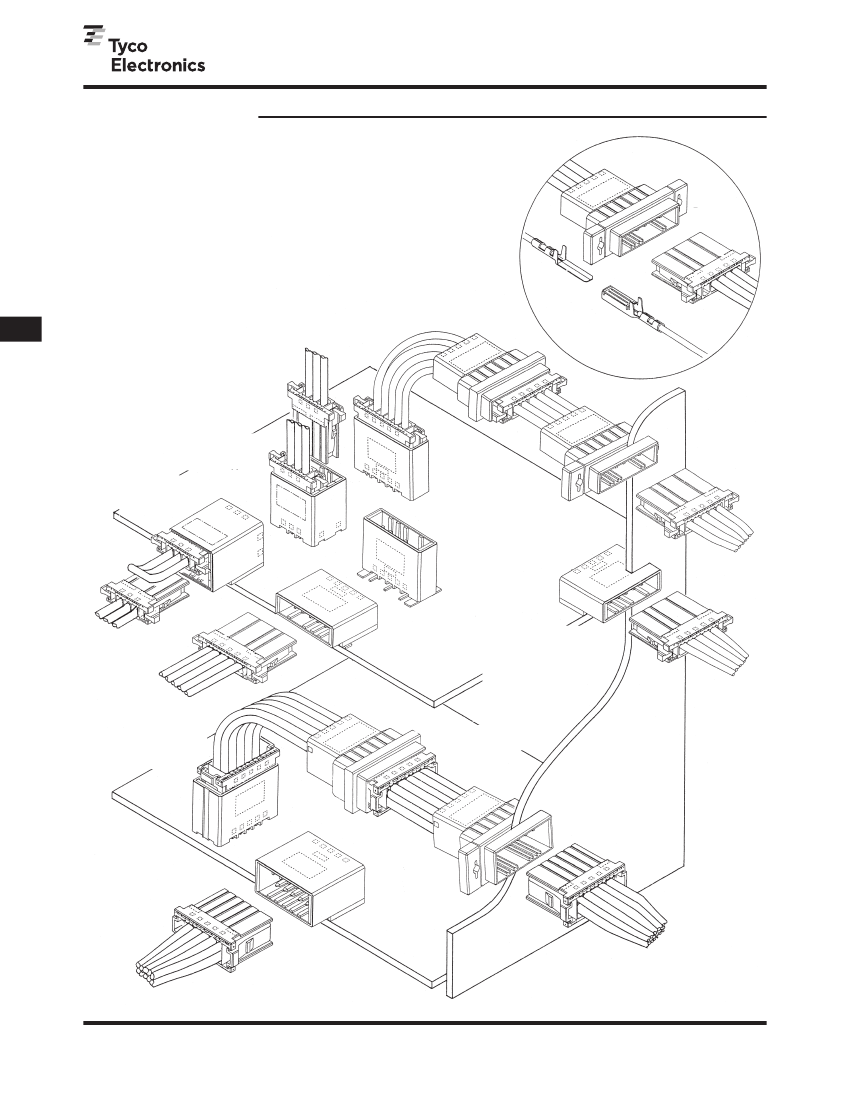

Tab Housing
Used for both signal circuit
and power/power supply
circuit applications.
Able to carry 15A max. of
current per position and are
available in a full range of
connector configurations
including wire-to-wire,
panel-mounting, free
hanging, and horizontal
and vertical wire-to-board
mounting.
D-3100S
Standard 1-Row Type
Tab
Contact
D-3100S
Free-Hanging Type
Receptacle
Contact
Receptacle
Housing
D-3000 Series
D-3100M
Standard Modular Type
D-3100M
Board-Mounting
Vertical Type
D-3100M
Board-Mounting
Horizontal Type
D-3100S
Board-Mounting
Vertical Type
D-3100S
Panel Type
D-3100S Board-Mounting
Horizontal Type
D-3100S SMT
Board-Mounting
Vertical Type
D-3100S SMT
Board-Mounting
Horizontal Type
Surface-mount type
with housing
material and the
shape of retention
legs changed.
D-3100D
Board-Mounting
Vertical Type
D-3100D
Free-Hanging Type
D-3100D Panel Type
All connector
configurations
available as with
the standard
one-row type line.
D-3100D Board-Mounting
Horizontal Type
D-3100D
Standard 2-Row Type
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
34
Catalog 1242132
Revised 5-07
www.tycoelectronics.com
Dimensions are in millimeters
unless otherwise specified.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
AMP Dynamic Series Connectors
D-3000 Series
(Continued)
List of Products by
Application
(Continued)

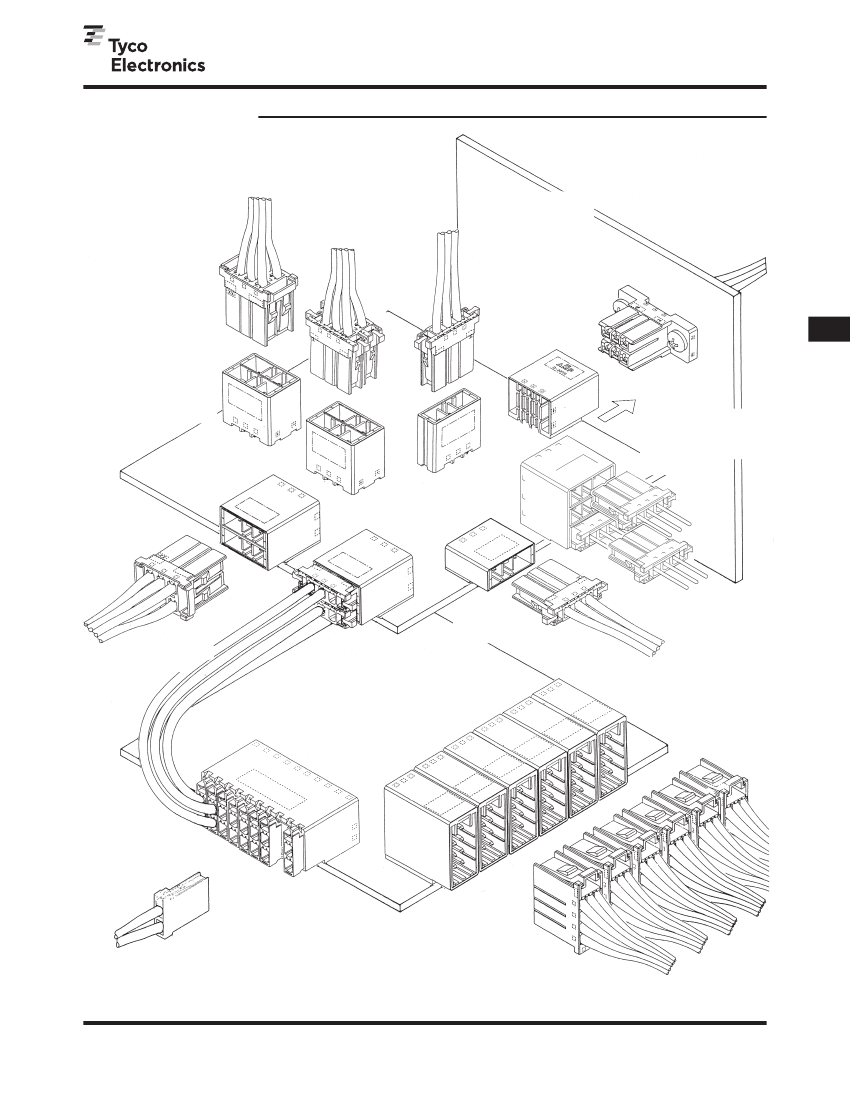

D-3200S
High Pressure
1-Row Type
D-3200M
High Pressure
Modular Type
Fit for high-voltage circuits.
Can be used in
rack-and-panel
application.
D-3200S
Drawer Type
D-3000 Series
D-3200M
Board-Mounting
Vertical Type
D-3200T
High Pressure
3-Row Type
D-3200S
Board-Mounting
Vertical Type
D-3200M
Board-Mounting
Horizontal Type
D-3200S
Board-Mounting
Horizontal Type
Used for top and bottom
(horizontal) modular
connections.
D-3500D
D-3400F
Many I/O circuits can
be drawn from one
header (board side),
making it possible to
save board-mount
space.
Many I/O circuits
can be drawn from
the board end.
D-3500D
Sensor Connector
Catalog 1242132
Revised 5-07
www.tycoelectronics.com
Dimensions are in millimeters
unless otherwise specified.
D-3400F
Skyscraper Connector
35
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
AMP Dynamic Series Connectors
D-3000 Series
(Continued)
Performance Specifications
Pitch
Item
Voltage Rating
150mil
(3.81mm)
250 V
1-position : 15A
3-position : 12A
Current Rating
6-position : 10A
16-position :
08A
(when using #16 AWG wire)
200mil
(5.08mm)
600 V
*
Generally, the current value of
connector is shown as per
position. The current rating of
this product is 15A as shown
in the table. Note that in all
circumstances it is the value
per position.
As the number of positions
increases, this value decreases.
This decrease can be calculated
from the table and the current
curve shown in the graph below.
Example:
• With a 6-position connector,
10A of current per position or
a total of 60A (max) can be
carried as shown in the table.
• With a 10-position connector,
8.5A of current per position
or a total of 85A (max) can be
carried as indicated by dotted
lines in the graph below.
D-3000 Series
Contact Resistance
Dielectric Withstanding Voltage
Operating Temperature
1,500 V
10mΩ max.
2,200 V (1 minute)
-55°~+105˚C
*
When connectors are used singly.
Number of Positions vs Current Curve (reference)
15
Material and Finish
Description
Receptacle contact
Tab contact
Tab post
Material
Copper alloy
Finish
Bright tin plating and gold plating
with underplated nickel (1.27µm)
Tin plating and gold plating
with underplated nickel (1.27µm)
Housing
Value of Current in Use
bBasic
data are as par
Basic data are as per
Certification Testing Report 501-5013
Certification Testing Report 501-5013
bTemperature
rise : 30˚C
Temperature rise : 30°C
•
•
Wire Size
10
(AWG)
#14, #16
#18
#20
5
#22
#24
#26
#28
0
5
10
15
20
No. of Positions
Copper alloy
UL94V-0 rated glass filled polyester (PBT)
and PPS (SMT Type), black color.
36
Catalog 1242132
Revised 5-07
www.tycoelectronics.com
Dimensions are in millimeters
unless otherwise specified.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
AMP Dynamic Series Connectors
D-3000 Series
(Continued)
Performance Specifications
(Continued)
Specifications and
Instruction Sheets
Specifications and Instruction Sheets
Product Specification
Testing Report
Application Specification
Instruction Sheet-Extraction Tool
108-5349
501-5013
114-5148
411-5726
Instruction Sheet-
Hand Tools
Instruction Sheet-Manual Tools
Tool No.
91565-1
91559-1
91558-1
91560-1
19561-1
IS No.
D-3000 Series
408-8547
obtain
*
Remember totools. Instruction Sheets when you choose
to use these
Safety Specifications
The safety specifications listed below are approved on specific part numbers. Contact our Technical
Support to check if the part numbers you use are approved or not. Keep in mind that there are instances
where values differ from those given by Tyco Electronics Specifications.
Series
D-3100, D-3400 Series (3.81mm pitch)
Voltage
Rating
250 V
Determined by
requirements
of equipment
in use.
250 V
Current
Rating
See
page 36
D-3200, D-3500 Series (5.08mm pitch)
Voltage
Rating
600 V
(Single conn.)
Specifications
Specifications
108-5349
UL File No. E28476
(Recognized
Component)
CSA Report No.
LR7189
TÜV License No.
R9151488 (VDE0627)
IP Protection IP-00
Overvoltage
Classification(II)
Number of Repeated
Insertions and
Withdrawals 50
Temperature
Rating
-55° to +105˚C
Current
Rating
See
page 36
Temperature
Rating
-55° to +105˚C
Determined by
requirements
of equipment
in use.
8A max.
#28 AWG=2A
#26 AWG=3A
#24 AWG=3A
#22 AWG=4A
#20 AWG=5A
#18 AWG=6A
#16 AWG=8A
#14 AWG=8A
—
Determined by
requirements
of equipment
in use.
250 V
Determined by
requirements
of equipment
in use.
8A max.
#28 AWG=2A
#26 AWG=3A
#24 AWG=3A
#22 AWG=4A
#20 AWG=5A
#18 AWG=6A
#16 AWG=8A
#14 AWG=8A
—
—
—
250 V
-20° to +105˚C
500 V
-20° to +105˚C
37
Catalog 1242132
Revised 5-07
www.tycoelectronics.com
Dimensions are in millimeters
unless otherwise specified.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
AMP Dynamic Series Connectors
D-3000 Series
(Continued)

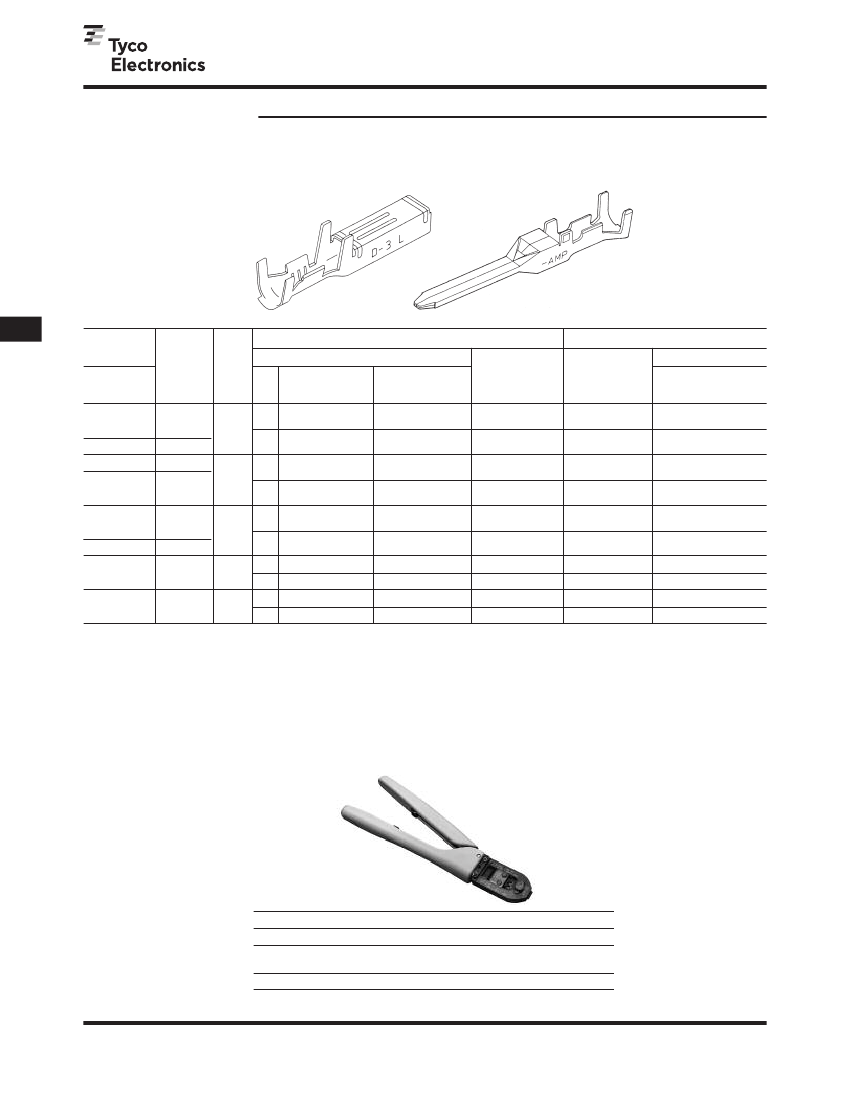

D-3 Contact and
Application Tooling
Crimp Type
Receptacle Contact
(Used on Receptacle Housing)
Tab Contact
(Used on Tab Housing)
Contact Part Number
1
Application Tooling Part Number
Hand Tool
Tab
Contact
175284-
J
175287-
J
175285-
J
175288-
J
175286-
J
175289-
J
917485-
J
917512-
J
353716-
J
353718-
J
Mini-
Applicator*
**
—
**
—
**
—
**
—
**
—
Standard
Type
—
91565-1
—
91559-1
—
91558-1
—
91560-1
—
91561-1
D-3000 Series
Wire Range
AWG
28
26
24
24
22
20
20
18
16
16
14
16
14
1
Wire
Ins.
Wire
Range
Receptacle Contact
Standard contact
(Only-2 & -3
available)
ST.
175194-
J
175216-
J
175195-
J
175217-
J
175196-
J
175218-
J
917484-
J
917511-
J
353715-
J
353717-
J
High contact
(pressure -2, -3,
&-5 available)
1-175194-
J
1-175216-
J
1-175195-
J
1-175217-
J
1-175196-
J
1-175218-
J
1-917484-
J
1-917511-
J
1-353715-
J
1-353717-
J
mm
2
Diameter Mark
0.08
0.12
0.20
0.20
0.30
0.50
0.50
0.85
1.25
1.25
2.20
1.25
2.20
0.8~1.2
1.0~1.4
1.2~1.6
1.7~2.6
1.8~2.8
2.2~2.8
2.2~2.8
3.1~3.3
3.3~3.4
2L
3L
M
LP.
ST.
L
LP.
ST.
LP.
ST.
LP.
S
LP.
ST.
Enter the following plating code in Part Number suffix-J :
-2 = 0.38µm thick gold plating
-3 = 0.76µm thick gold plating
-5 = Tin plating
Note: Solder-type Contact: We do not manufacture solder-type contacts for
this specific application.
Form contacts are for use with Mini-Applicators (automachines)
*
StripLoose-Piece contacts are for Hand Tools.
and
**
Mini-Applicators are for use with automachines. (See page 40. For Part
Numbers, contact Technical Support.)
Hand Tools
Standard Type
Uses
Can it be used for repairing?
Approximately how many cycles of
crimping can be performed?
What is Minimum Order Quantity?
For General Production
Yes
50,000
1
38
Catalog 1242132
Revised 5-07
www.tycoelectronics.com
Dimensions are in millimeters
unless otherwise specified.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
