DG509AAP/883 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> DG509AAP/883

DG509AAP/883: DescriptionIC 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, CDIP16, Multiplexer or Switch; CategoryAnalog mixed-signal IC The signal circuit; File Size327KB，10 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

DG509AAP/883 Overview

IC 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, CDIP16, Multiplexer or Switch

DG509AAP/883 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Vishay
package instruction	DIP,
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER
JESD-30 code	R-CDIP-T16
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	4
Number of functions	1
Number of terminals	16
Nominal off-state isolation	68 dB
On-state resistance matching specifications	14.4 Ω
Maximum on-state resistance (Ron)	400 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum supply current (Isup)	2.4 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	1000 ns
Maximum connection time	1500 ns
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

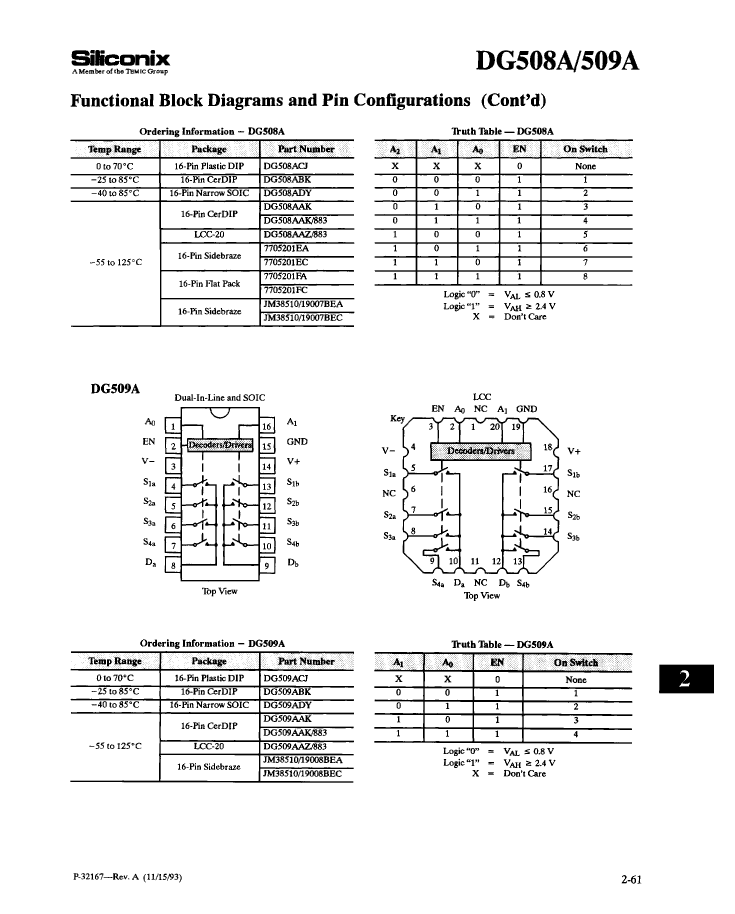

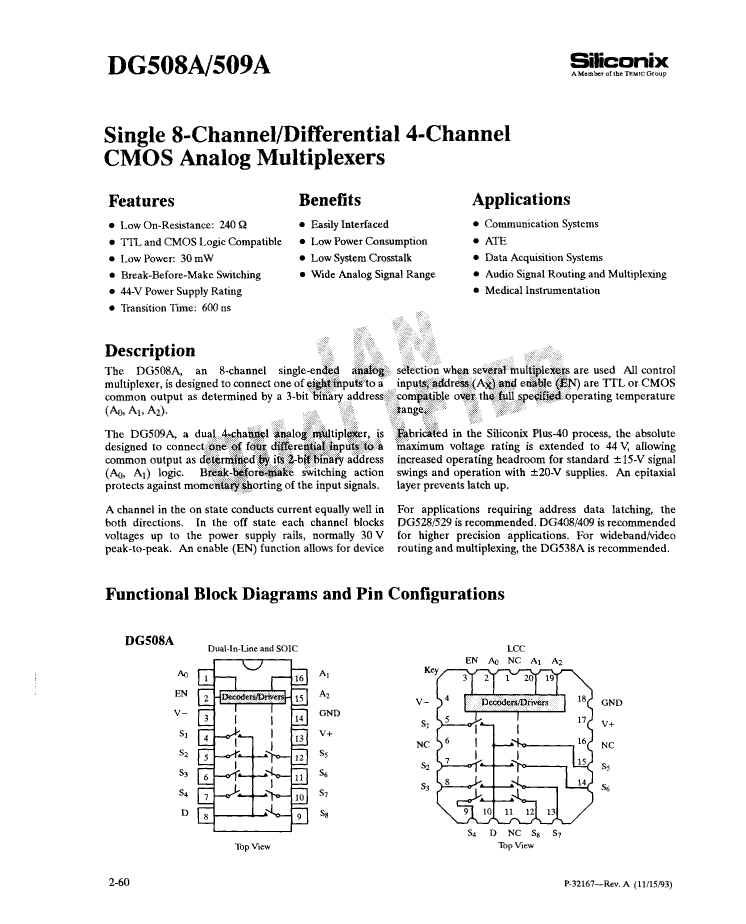

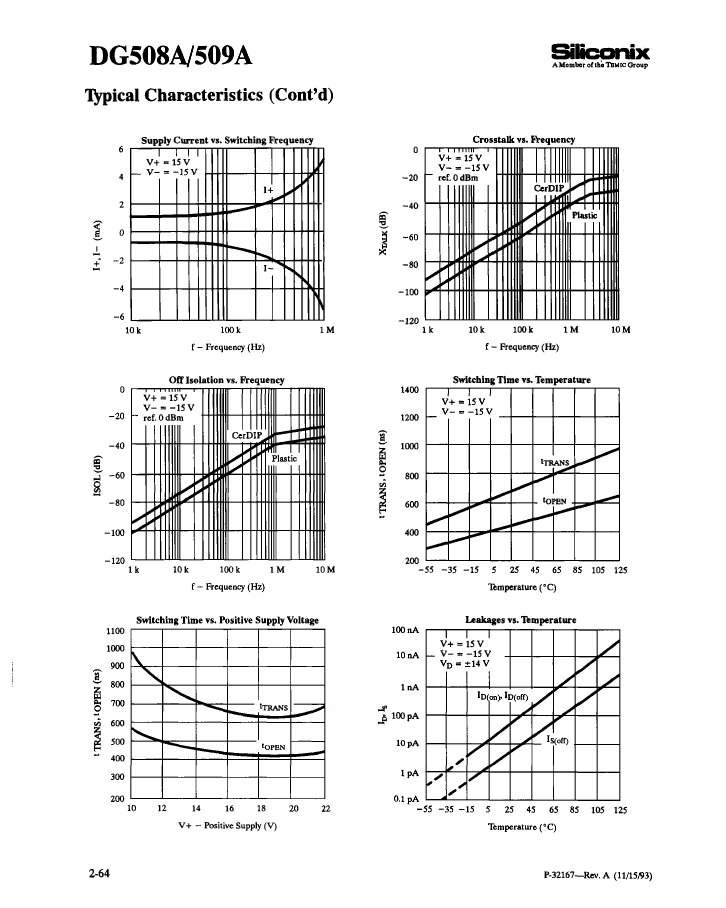

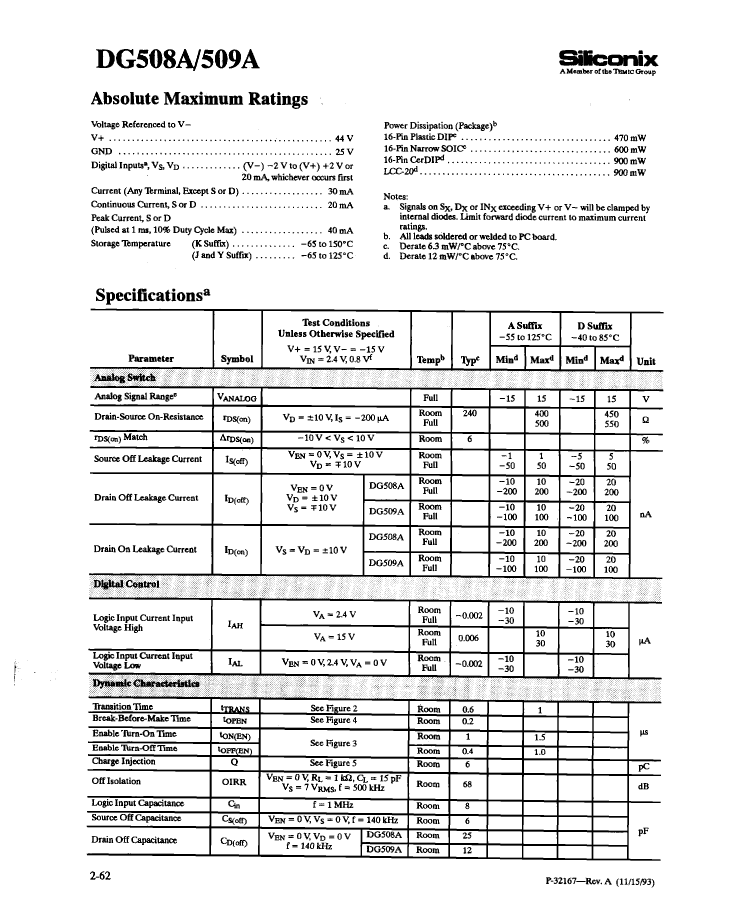

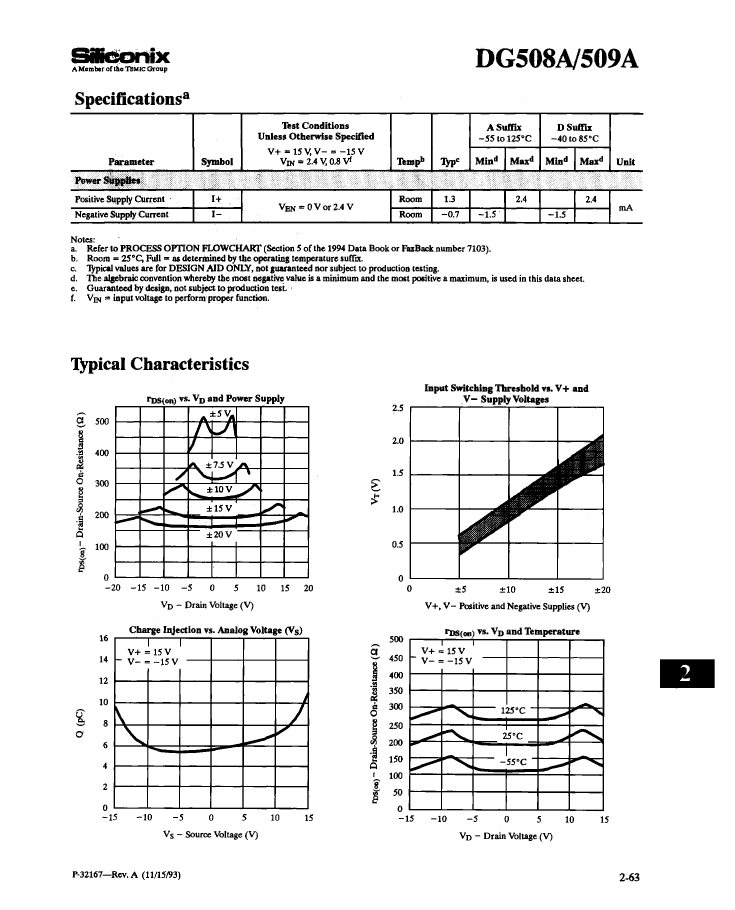

Preview

Download Datasheet

View All

DG509AAP/883 Related Products

	DG509AAP/883	DG508AAP/883{SOLDER-DIP}	DG508AAP/883(SOLDER-DIP)	DG508AAP/883(GOLD-PLATE)	DG508AAP/883{GOLD-PLATE}	DG508AAP	DG509ADY-T1	77052012A	DG508AAL	DG508AAL883B
Description	IC 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, CDIP16, Multiplexer or Switch	IC 8-CHANNEL, SGL ENDED MULTIPLEXER, CDIP16, Multiplexer or Switch	Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CDIP16	Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CDIP16	IC 8-CHANNEL, SGL ENDED MULTIPLEXER, CDIP16, Multiplexer or Switch	IC 8-CHANNEL, SGL ENDED MULTIPLEXER, CDIP16, Multiplexer or Switch	Differential Multiplexer, 1 Func, 4 Channel, CMOS, PDSO16, SOIC-16	Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CQCC20, CERAMIC, LCC-20	Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CDFP16,	IC 8-CHANNEL, SGL ENDED MULTIPLEXER, CDFP16, DFP-16, Multiplexer or Switch
package instruction	DIP,	DIP,	DIP,	DIP,	DIP,	DIP,	SOP,	,	DFP, FL16,.3	DFP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-CDIP-T16	R-CDIP-T16	R-CDIP-T16	R-CDIP-T16	R-CDIP-T16	R-CDIP-T16	R-PDSO-G16	S-CQCC-N20	R-XDFP-F16	R-CDFP-F16
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of channels	4	8	8	8	8	8	4	8	8	8
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16	16	20	16	16
Maximum on-state resistance (Ron)	400 Ω	400 Ω	400 Ω	400 Ω	400 Ω	400 Ω	450 Ω	300 Ω	500 Ω	400 Ω
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	85 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-40 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	CHIP CARRIER	FLATPACK	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO	NO	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	INDUSTRIAL	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	NO LEAD	FLAT	FLAT
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	QUAD	DUAL	DUAL
Maker	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay	-	Vishay	-	Vishay
Nominal off-state isolation	68 dB	68 dB	68 dB	68 dB	68 dB	68 dB	68 dB	50 dB	-	68 dB
On-state resistance matching specifications	14.4 Ω	14.4 Ω	14.4 Ω	14.4 Ω	14.4 Ω	14.4 Ω	14.4 Ω	-	-	14.4 Ω
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	SOP	-	DFP	DFP
Maximum supply current (Isup)	2.4 mA	2.4 mA	2.4 mA	2.4 mA	2.4 mA	2.4 mA	-	-	-	-
Maximum disconnect time	1000 ns	1000 ns	1000 ns	1000 ns	1000 ns	1000 ns	-	500 ns	-	1000 ns
Maximum connection time	1500 ns	1500 ns	1500 ns	1500 ns	1500 ns	1500 ns	-	500 ns	-	1500 ns
Base Number Matches	-	1	1	1	1	1	1	1	1	-
