ZF5-18-02-T-WT-TR datasheet, PDF

Datasheet> All Categories > The connector> The connector> ZF5-18-02-T-WT-TR

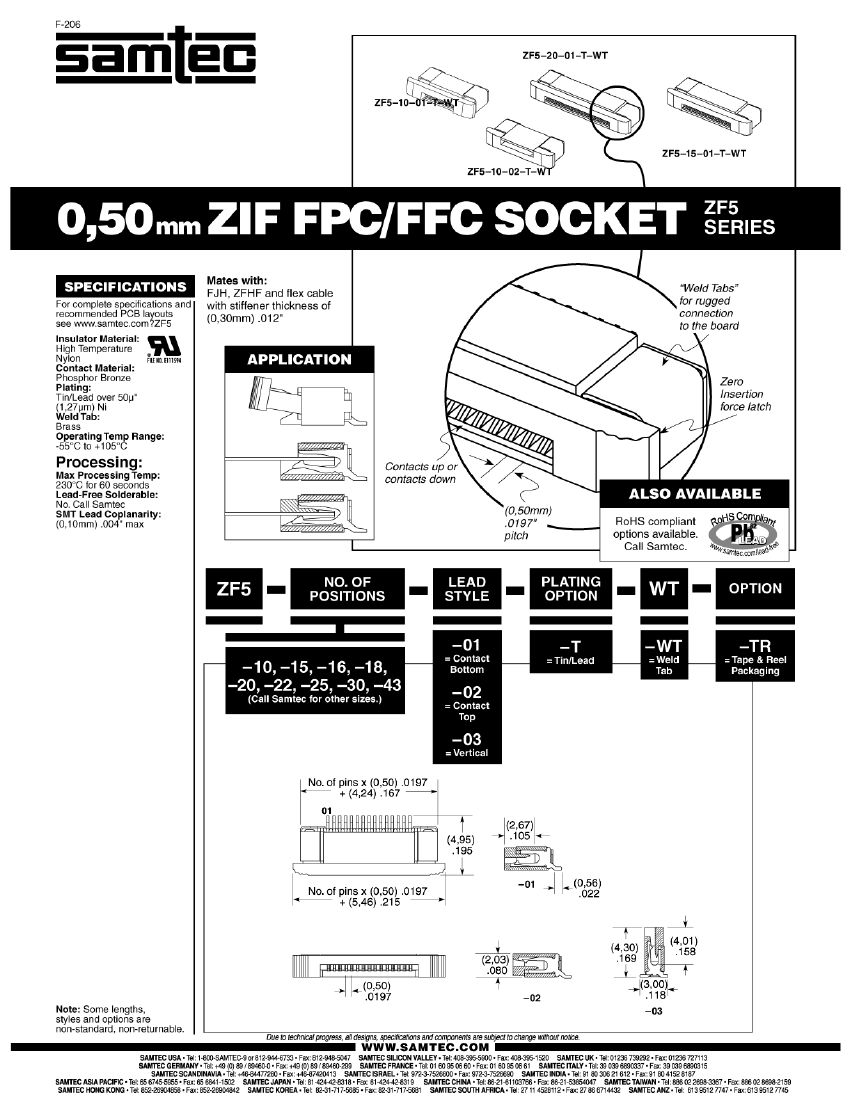

ZF5-18-02-T-WT-TR: DescriptionCard Edge Connector, 18 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Latch, Socket,; CategoryThe connector The connector; File Size142KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric Compare View All

ZF5-18-02-T-WT-TR Overview

Card Edge Connector, 18 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Latch, Socket,

ZF5-18-02-T-WT-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SAMTEC
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	3 weeks
Other features	STAGGERED CONFIGURATION
Board mount options	SOLDER HOLDING FLANGE
body width	0.08 inch
subject depth	0.173 inch
body length	0.57 inch
Body/casing type	SOCKET
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	5000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.02 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	18
Evacuation force-minimum value	ZIF N

Preview

Download Datasheet

View All

ZF5-18-02-T-WT-TR Related Products

	ZF5-18-02-T-WT-TR	ZF5-20-02-T-WT-TR	ZF5-10-03-T-WT	ZF5-15-02-T-WT	ZF5-18-03-T-WT-TR	ZF5-22-02-T-WT-TR	ZF5-22-03-T-WT-TR	ZF5-25-02-T-WT-TR	ZF5-25-03-T-WT-TR
Description	Card Edge Connector, 18 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Latch, Socket,	conn ffc 0.5mm 20pos R/A smd	conn ffc 0.5mm 10pos smd	conn ffc 0.5mm 15pos R/A smd	Card Edge Connector, 18 Contact(s), 1 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Latch, Socket,	Card Edge Connector, 22 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Latch, Socket,	Card Edge Connector, 22 Contact(s), 1 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Latch, Socket,	Card Edge Connector, 25 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Latch, Socket,	Card Edge Connector, 25 Contact(s), 1 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Latch, Socket,
Is it Rohs certified?	incompatible	incompatible	incompatible	-	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	SAMTEC	SAMTEC	SAMTEC	-	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC
Reach Compliance Code	compliant	compli	compli	-	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99	-	EAR99
Other features	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	NONE	-	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION
Board mount options	SOLDER HOLDING FLANGE	SOLDER HOLDING FLANGE	SOLDER HOLDING FLANGE	-	SOLDER HOLDING FLANGE	SOLDER HOLDING FLANGE	SOLDER HOLDING FLANGE	SOLDER HOLDING FLANGE	SOLDER HOLDING FLANGE
body width	0.08 inch	0.08 inch	0.08 inch	-	0.08 inch	0.08 inch	0.08 inch	0.08 inch	0.08 inch
subject depth	0.173 inch	0.173 inch	0.169 inch	-	0.169 inch	0.173 inch	0.169 inch	0.173 inch	0.169 inch
body length	0.57 inch	0.609 inch	0.412 inch	-	0.57 inch	0.648 inch	0.648 inch	0.707 inch	0.707 inch
Body/casing type	SOCKET	SOCKET	SOCKET	-	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	-	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN OVER NICKEL	TIN OVER NICKEL	MATTE TIN OVER NICKEL (50)	-	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrie	-	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE	FEMALE	FEMALE	-	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	-	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
DIN compliance	NO	NO	NO	-	NO	NO	NO	NO	NO
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	-	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Filter function	NO	NO	NO	-	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	-	NO	NO	NO	NO	NO
maximum insertion force	ZIF N	ZIF N	ZIF N	-	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	-	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	-	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3	e3	e3	-	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	-	NO	NO	NO	NO	NO
Plug contact pitch	0.02 inch	0.02 inch	0.02 inch	-	0.02 inch	0.02 inch	0.02 inch	0.02 inch	0.02 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	-	NO	NO	NO	NO	NO
Installation option 1	LATCH	LATCH	LATCH	-	LATCH	LATCH	LATCH	LATCH	LATCH
Installation option 2	LOCKING	LOCKING	LOCKING	-	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	-	STRAIGHT	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE	STRAIGHT
Installation type	BOARD	BOARD	BOARD	-	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	1	1	2	-	2	1	2	1	2
Number of rows loaded	1	1	1	-	1	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	-	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	STAGGERED	-	STAGGERED	RECTANGULAR	STAGGERED	RECTANGULAR	STAGGERED
Guideline	UL	UL	UL	-	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	-	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	18	20	10	-	18	22	22	25	25
Evacuation force-minimum value	ZIF N	ZIF N	ZIF N	-	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N
