DO3316H-472KLB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The sensor> DO3316H-472KLB

DO3316H-472KLB: Description1 ELEMENT, 1 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD; CategoryThe sensor; File Size269KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/

Download Datasheet Parametric Compare View All

DO3316H-472KLB Overview

1 ELEMENT, 1 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD

DO3316H-472KLB Parametric

Parameter Name	Attribute value
Rated inductance	1 µH
Number of functions	1
Number of terminals	2
Minimum operating temperature	-40 Cel
Maximum operating temperature	125 Cel
self resonant frequency	100 MHz
Processing package description	ROHS COMPLIANT
each_compli	Yes
EU RoHS regulations	Yes
state	Active
Inductor type	GENERAL PURPOSE INDUCTOR
case_size_code	5239
structure	Unshielded
core material	FERRITE
DC Resistance	0.0060 ohm
Inductor applications	POWER INDUCTOR
jesd_609_code	e2
Manufacturer Series	DO3316H
ckage_heigh	6.35 mm
ckage_length	13.21 mm
ckage_style__meter_	SMT
ckage_width	9.91 mm
cking_method	TR
Maximum rated current	11 A
series	DO3316H
Shape and size description	RECTANGULAR PACKAGE
isolation	NO
surface mount	YES
terminal coating	TIN SILVER OVER COPPER
Terminal layout	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1000 MHz
deviation	20 %

Preview

Download Datasheet

View All

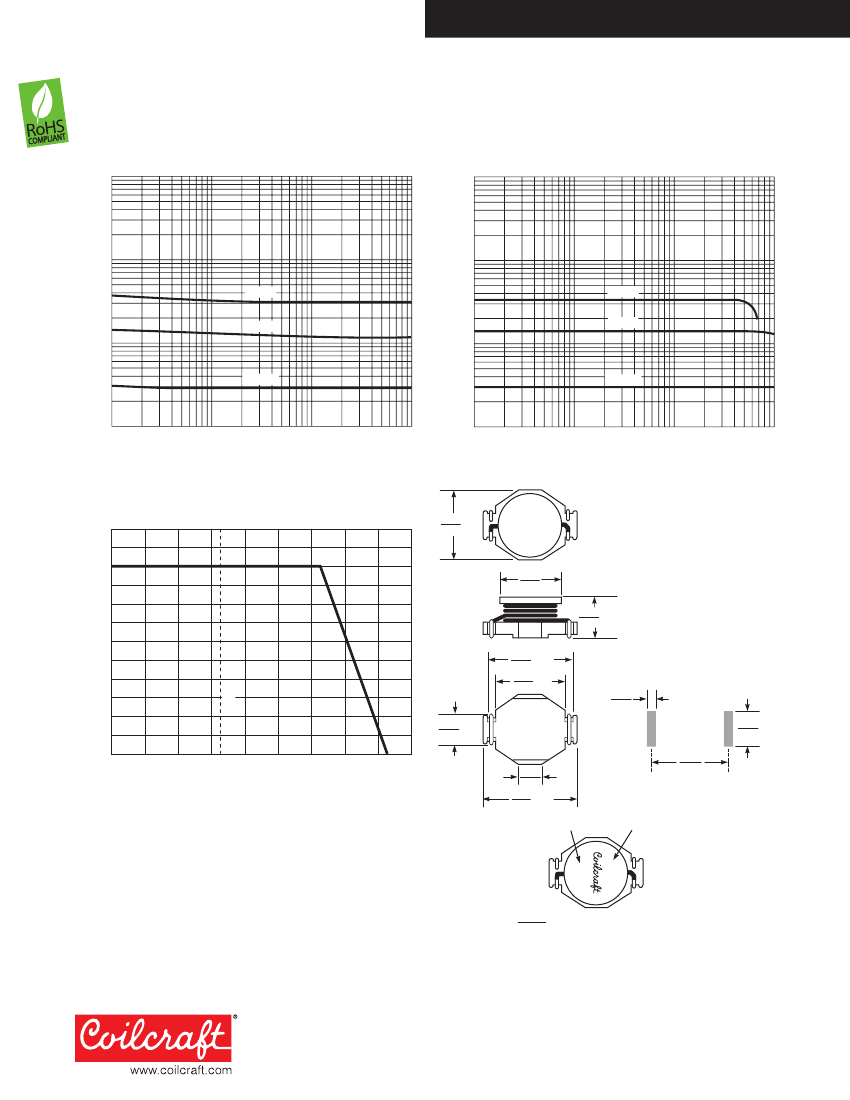

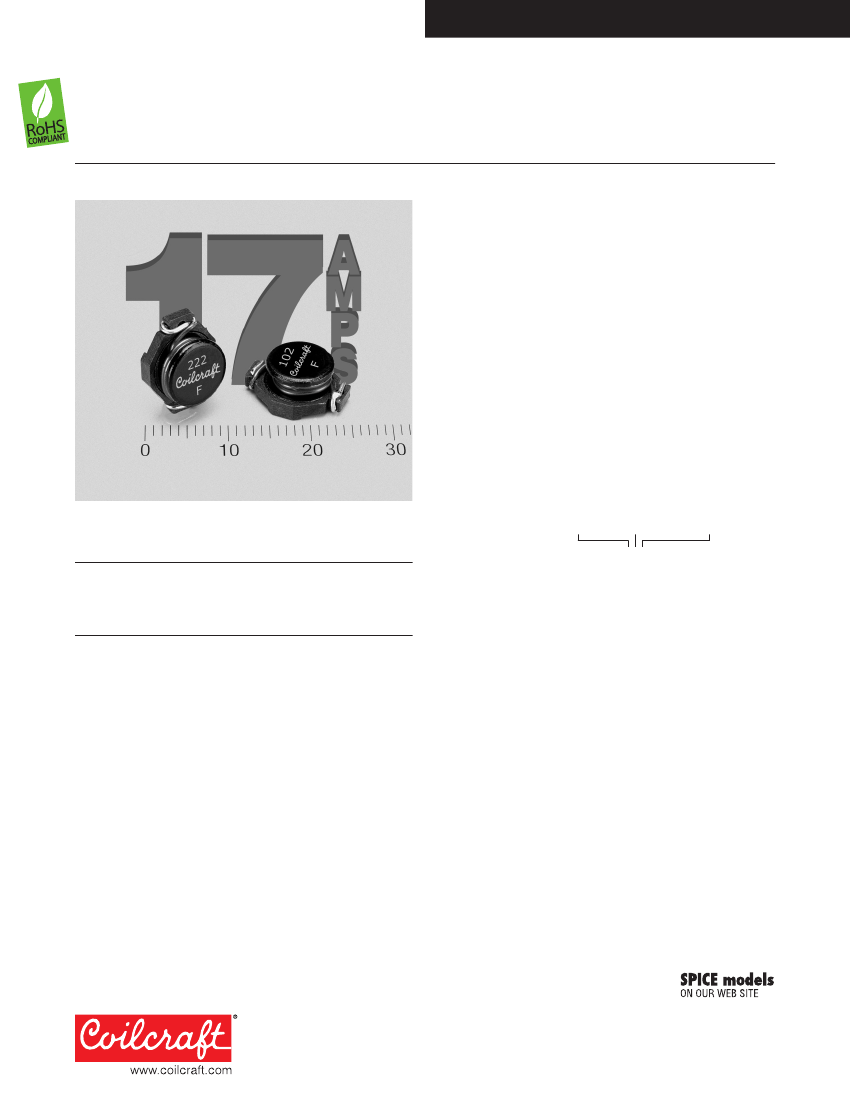

Document 196-1

SMT Power Inductors - DO3316H Series

• Soldered self-leaded construction for excellent solderability.

• Very low DCR values and excellent current handling

Designer’s Kit C326

contains 3 of each part

Core material

Ferrite

Core and winding loss

See www.coilcraft.com/coreloss

Terminations

RoHS compliant tin-silver-copper over copper. Other

terminations available at additional cost.

Weight

0.95 – 1.25 g

Ambient temperature

–40°C to +85°C with

Irms

current, +85°C to

+125°C with derated current

Storage temperature

Component: –40°C to +125°C.

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

Packaging

750 per 13″ reel Plastic tape: 24 mm wide,

0.35 mm thick, 12 mm pocket spacing, 6.4 mm pocket depth

PCB washing

Tested with pure water or alcohol only. For other solvents,

see Doc787_PCB_Washing.pdf.

Part number

DO3316H-121ML_

DO3316H-331ML_

DO3316H-681ML_

DO3316H-102ML_

DO3316H-152ML_

DO3316H-222_L_

DO3316H-272_L_

DO3316H-332_L_

DO3316H-392_L_

DO3316H-472_L_

(µH)

tol

0.12

0.33

0.68

1.0

1.5

2.2

20,10

2.7

20,10

3.3

20,10

3.9

20,10

4.7

20,10

DCR

SRF

max

typ

(Ohms) (MHz)

0.0015 200

0.002

200

0.005

200

0.006

100

0.008

0.011

0.012

0.014

0.015

0.018

Isat

(A)

9.0

7.8

7.0

6.4

5.9

5.4

Irms

(A)

9.0

7.4

6.6

5.9

5.3

4.8

1. When ordering, specify

tolerance, termination

and

packaging

codes:

DO3316H-472MLD

Tolerance: M

= 20%,

= 10% (Table shows stock tolerances in bold.)

Termination: L

= RoHS compliant tin-silver over copper.

Special order: T

= RoHS tin-silver-copper

(95.5/4/0.5) or

= non-RoHS tin-lead (63/37).

Packaging: D

= 13″ machine-ready reel. EIA-481 embossed plastic

tape (750 parts per full reel).

= Less than full reel. In tape, but not machine ready.

To have a leader and trailer added ($25 charge), use

code letter C instead.

2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc using an Agilent/HP

4263B LCR meter or equivalent.

3. Tolerances in bold are stocked for immediate shipment.

4. SRF measured using Agilent/HP 8753D network analyzer.

5. DC current at which the inductance drops 10% (typ) from its value with-

out current.

6. Current that causes a 40°C temperature rise from 25°C ambient.

7. Electrical specifications at 25°C.

Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

+1-847-639-6400 sales@coilcraft.com

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

Document 196-1

Revised 09/25/12

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.

DO3316H-472KLB Related Products

	DO3316H-472KLB	DO3316H-222KLB	DO3316H-272KLD	DO3316H-332KLB	DO3316H-392KLD
Description	1 ELEMENT, 1 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 1 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 1 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 1 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 1 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD
Rated inductance	1 µH	1 µH	1 µH	1 µH	1 µH
Number of functions	1	1	1	1	1
Number of terminals	2	2	2	2	2
Minimum operating temperature	-40 Cel	-40 Cel	-40 Cel	-40 Cel	-40 Cel
Maximum operating temperature	125 Cel	125 Cel	125 Cel	125 Cel	125 Cel
self resonant frequency	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz
Processing package description	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
each_compli	Yes	Yes	Yes	Yes	Yes
EU RoHS regulations	Yes	Yes	Yes	Yes	Yes
state	Active	Active	Active	Active	Active
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
case_size_code	5239	5239	5239	5239	5239
structure	Unshielded	Unshielded	Unshielded	Unshielded	Unshielded
core material	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE
DC Resistance	0.0060 ohm	0.0060 ohm	0.0060 ohm	0.0060 ohm	0.0060 ohm
Inductor applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
jesd_609_code	e2	e2	e2	e2	e2
Manufacturer Series	DO3316H	DO3316H	DO3316H	DO3316H	DO3316H
ckage_heigh	6.35 mm	6.35 mm	6.35 mm	6.35 mm	6.35 mm
ckage_length	13.21 mm	13.21 mm	13.21 mm	13.21 mm	13.21 mm
ckage_style__meter_	SMT	SMT	SMT	SMT	SMT
ckage_width	9.91 mm	9.91 mm	9.91 mm	9.91 mm	9.91 mm
cking_method	TR	TR	TR	TR	TR
Maximum rated current	11 A	11 A	11 A	11 A	11 A
series	DO3316H	DO3316H	DO3316H	DO3316H	DO3316H
Shape and size description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
isolation	NO	NO	NO	NO	NO
surface mount	YES	YES	YES	YES	YES
terminal coating	TIN SILVER OVER COPPER	TIN SILVER OVER COPPER	TIN SILVER OVER COPPER	TIN SILVER OVER COPPER	TIN SILVER OVER COPPER
Terminal layout	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE
Test frequency	0.1000 MHz	0.1000 MHz	0.1000 MHz	0.1000 MHz	0.1000 MHz
deviation	20 %	20 %	20 %	20 %	20 %
