GS5S-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> GS5S-1

GS5S-1: DescriptionRing Terminal, 1.5mm2; CategoryThe connector; File Size59KB，3 Pages; ManufacturerJST; Environmental Compliance

Download Datasheet Parametric View All

GS5S-1 Overview

Ring Terminal, 1.5mm2

GS5S-1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	JST
Objectid	1516697417
Reach Compliance Code	unknown
ECCN code	EAR99
compound_id	71126630
terminal gender	FEMALE
Terminal and terminal strip types	RING TERMINAL
Conductor cross section	1.5 mm2
Wire gauge	16 AWG

Preview

Download Datasheet

View All

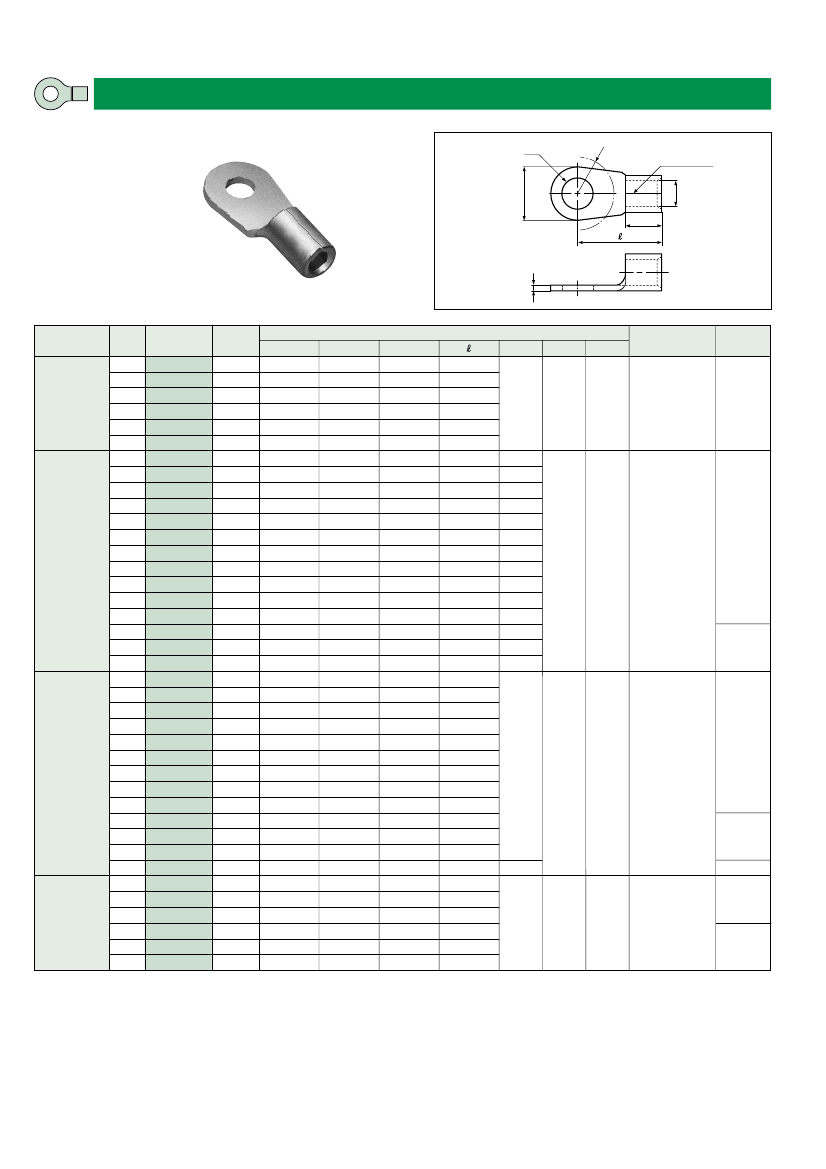

DIN terminals / splices

RING TONGUE

Non-insulated DIN 46234

ød

Brazed seam

ød

Applicable Wire

Stud Size

Metric

2.5

3.5

2.5

3.5

Part No.

GS2-0.5

GS2.5-0.5

GS3-0.5

GS3.5-0.5

GS4-0.5

GS5-0.5

GS2-1

GS2.5-1

GS3-1

GS3L-1

GS3.5-1

GS3.5L-1

GS4S-1

GS4M-1

GS4-1

GS5S-1

GS5-1

GS6S-1

GS6-1

GS8-1

GS3-2.5

GS3.5-2.5

GS3.5L-2.5

GS4S-2.5

GS4-2.5

GS5S-2.5

GS5-2.5

GS6S-2.5

GS6-2.5

GS8-2.5

GS10-2.5

GS12-2.5

GS16-2.5

GS4-6

GS5-6

GS6-6

GS8-6

GS10-6

GS12-6

Nominal Size

DIN46234

2-0.5

2.5-0.5

3-0.5

3.5-0.5

4-0.5

Dimensions mm (in.)

ød

2.2 (.087)

2.7 (.106)

3.2 (.126)

3.7 (.146)

4.3 (.169)

5.3 (.209)

2.2 (.087)

ød

5.0 (.197)

6.0 (.236)

6.5 (.256)

8.0 (.315)

6.0 (.236)

6.5 (.256)

6.0 (.236)

6.5 (.256)

7.0 (.276)

8.0 (.315)

10.0 (.394)

12.0 (.472)

6.0 (.236)

6.8 (.268)

8.0 (.315)

10.0 (.394)

11.0 (.433)

14.0 (.551)

18.0 (.709)

27.0(1.063)

8.0 (.315)

10.0 (.394)

11.0 (.433)

14.0 (.551)

18.0 (.709)

5.0 (.197)

6.0 (.236)

6.5 (.256)

4.5 (.177)

3.5 (.138)

4.5 (.177)

3.5 (.138)

5.5 (.217)

6.0 (.236)

6.5 (.256)

10.0 (.394)

4.5 (.177)

6.0 (.236)

6.5 (.256)

7.5 (.295)

10.0 (.394)

12.0 (.472)

16.0 (.630)

6.0 (.236)

6.5 (.256)

7.5 (.295)

10.0 (.394)

12.0 (.472)

9.8 (.386)

12.0 (.472)

11.7 (.461)

11.0 (.433)

8.0 (.315)

11.0 (.433)

8.0 (.315)

11.0 (.433)

12.0 (.472)

13.0 (.512)

17.0 (.669)

11.0 (.433)

12.0 (.472)

14.0 (.551)

16.0 (.630)

17.0 (.669)

20.0 (.787)

26.0(1.024)

14.0 (.551)

15.0 (.591)

16.0 (.630)

19.0 (.748)

21.0 (.827)

6.0

(.236)

3.6

(.142)

1.0

(.039)

4.8 (.189)

5.0

(.197)

2.3

(.091)

0.8

(.031)

5.0 (.197)

4.0 (.157)

5.0 (.197)

4.0 (.157)

5.0 (.197)

1.6

(.063)

0.8

(.031)

4.0

(.157)

1.0

(.039)

0.5

(.020)

ø d

Tool No.

Qty/box

0.1 to <0.5

WC-0510DIN

2,000

2.5-1

3-1

3.5-1

2.7 (.106)

3.2 (.126)

3.7 (.146)

4.3 (.169)

2,000

WC-0510DIN

0.5 to 1

3.5

4-1

5-1

4.3 (.169)

5.3 (.209)

6.5 (.256)

8.4 (.331)

1,000

3-2.5

3.5-2.5

3.2 (.126)

3.7 (.146)

4.3 (.169)

4-2.5

5-2.5

6-2.5

8-2.5

4.3 (.169)

5.3 (.209)

6.5 (.256)

8.4 (.331)

10.5 (.413)

13.0 (.512)

17.0 (.669)

2,000

WC-0510DIN

>1 to 2.5

1,000

500

1,000

WC-0510DIN

500

4-6

5-6

6-6

8-6

10-6

4.3 (.169)

5.3 (.209)

6.5 (.256)

8.4 (.331)

10.5 (.413)

13.0 (.512)

>2.5 to 6

Note:1) Contact J.S.T.(U.K.) Ltd for the above tools.

Delivery lead times may vary depending on the product. Contact JST for details.
