87246-3201 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> 87246-3201

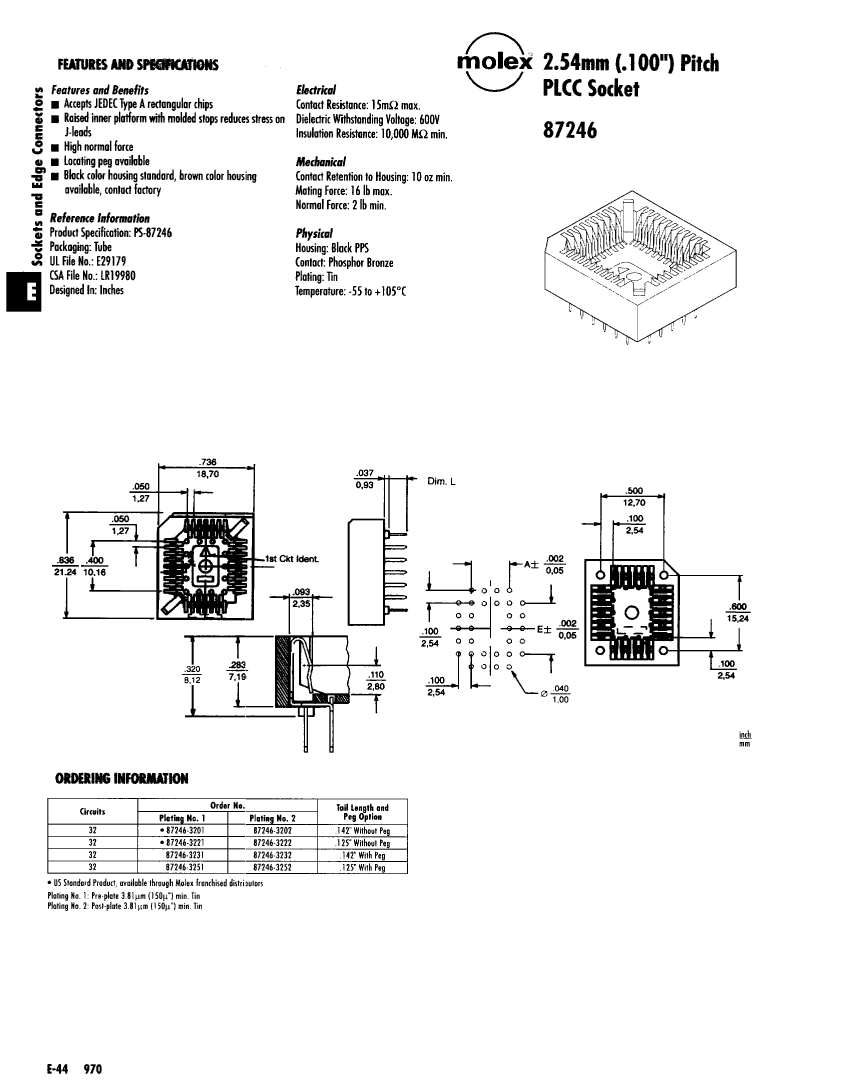

87246-3201: DescriptionIC Socket, PLCC32, 32 Contact(s), Solder; CategoryThe connector socket; File Size36KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

87246-3201 Overview

IC Socket, PLCC32, 32 Contact(s), Solder

87246-3201 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	WITHOUT PEG, PRE-PLATE
body width	0.736 inch
subject depth	0.32 inch
body length	0.836 inch
Contact structure	7X9
Contact to complete cooperation	SN
Contact completed and terminated	TIN OVER NICKEL
Contact material	P-CUSN
Contact style	BELLOWED TYPE
Device slot type	IC SOCKET
Type of equipment used	PLCC32
Dielectric withstand voltage	600VDC V
Shell material	POLYPHENYLENE SULFIDE
Insulation resistance	10000000000 Ω
Manufacturer's serial number	87246
Installation method	STRAIGHT
Number of contacts	32
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Termination type	SOLDER

Preview

Download Datasheet

View All

87246-3201 Related Products

	87246-3201	87246-3252	87246-3202	87246-3251	87246-3232	87246-3221	87246-3222	87246-3231
Description	IC Socket, PLCC32, 32 Contact(s), Solder	IC Socket, PLCC32, 32 Contact(s), Solder	IC Socket, PLCC32, 32 Contact(s), Solder	IC Socket, PLCC32, 32 Contact(s), Solder	IC Socket, PLCC32, 32 Contact(s), Solder	IC Socket, PLCC32, 32 Contact(s), Solder	IC Socket, PLCC32, 32 Contact(s), Solder	IC Socket, PLCC32, 32 Contact(s), Solder
Maker	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	WITHOUT PEG, PRE-PLATE	WITH PEG, POST-PLATE	WITHOUT PEG, POST_PLATE	WITH PEG, PRE-PLATE	WITH PEG, POST-PLATE	WITHOUT PEG, PRE-PLATE	WITHOUT PEG, POST_PLATE	WITH PEG, PRE-PLATE
body width	0.736 inch	0.736 inch	0.736 inch	0.736 inch	0.736 inch	0.736 inch	0.736 inch	0.736 inch
subject depth	0.32 inch	0.32 inch	0.32 inch	0.32 inch	0.32 inch	0.32 inch	0.32 inch	0.32 inch
body length	0.836 inch	0.836 inch	0.836 inch	0.836 inch	0.836 inch	0.836 inch	0.836 inch	0.836 inch
Contact structure	7X9	7X9	7X9	7X9	7X9	7X9	7X9	7X9
Contact to complete cooperation	SN	SN	NOT SPECIFIED	SN	SN	SN	SN	SN
Contact material	P-CUSN	P-CUSN	NOT SPECIFIED	P-CUSN	P-CUSN	P-CUSN	P-CUSN	P-CUSN
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	PLCC32	PLCC32	PLCC32	PLCC32	PLCC32	PLCC32	PLCC32	PLCC32
Dielectric withstand voltage	600VDC V	600VDC V	600VDC V	600VDC V	600VDC V	600VDC V	600VDC V	600VDC V
Shell material	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω
Manufacturer's serial number	87246	87246	87246	87246	87246	87246	87246	87246
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of contacts	32	32	32	32	32	32	32	32
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	-	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Base Number Matches	-	1	1	1	1	1	1	-
