LZ95D42 datasheet, PDF - EEWORLD Datasheet

LZ95D42: DescriptionConsumer Circuit, CMOS, PQFP48, 10 X 10 MM, PLASTIC, QFP-48; CategoryOther integrated circuit (IC) Consumption circuit; File Size669KB，14 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

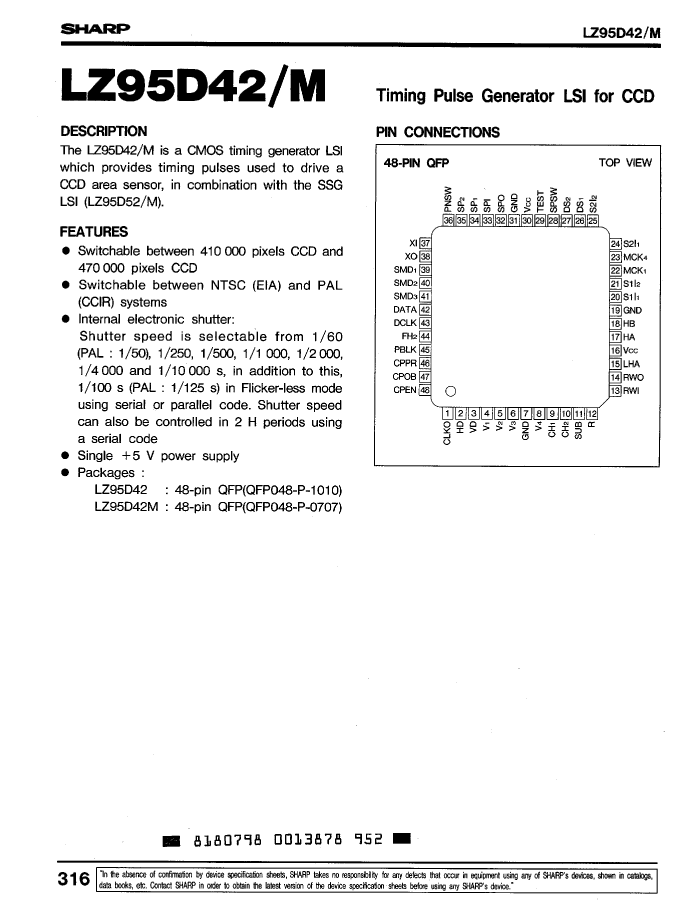

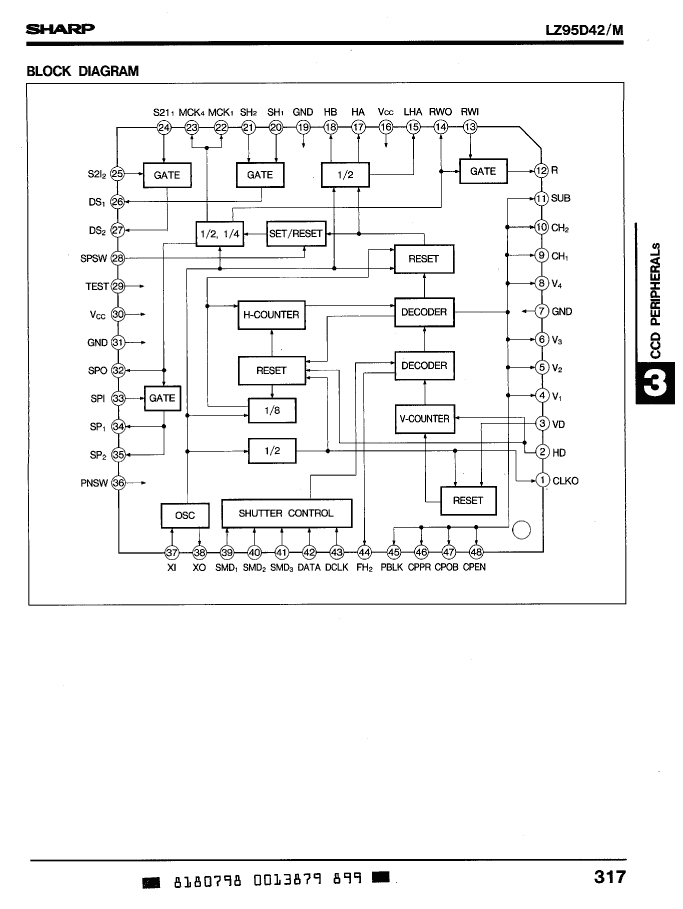

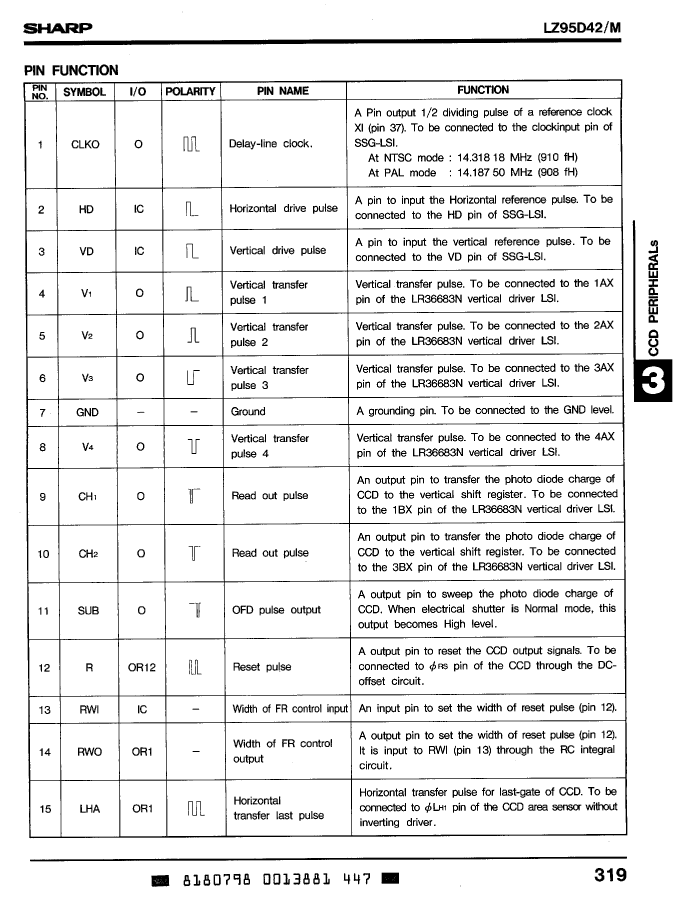

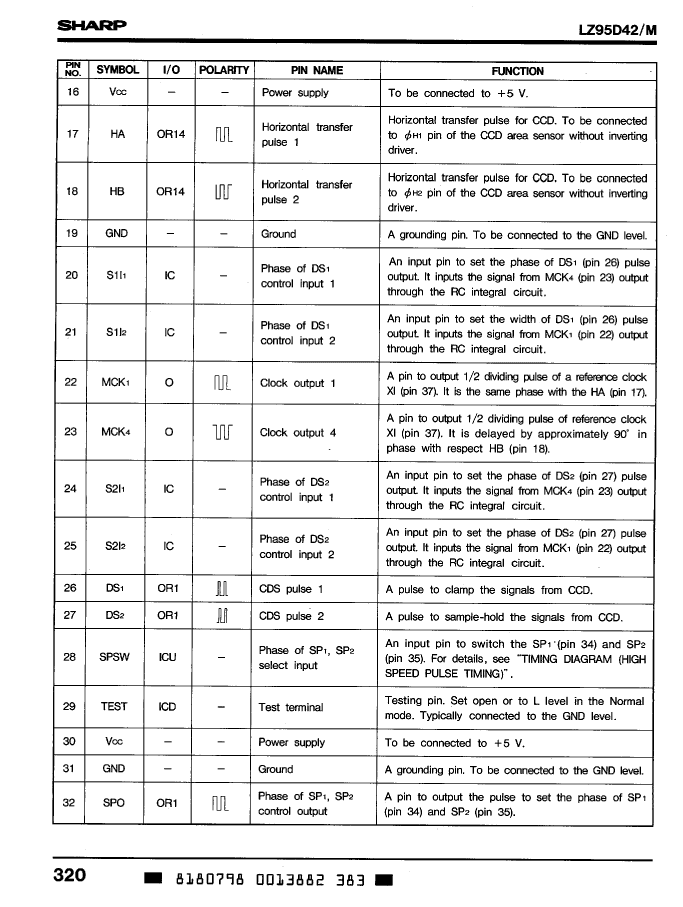

LZ95D42 Overview

Consumer Circuit, CMOS, PQFP48, 10 X 10 MM, PLASTIC, QFP-48

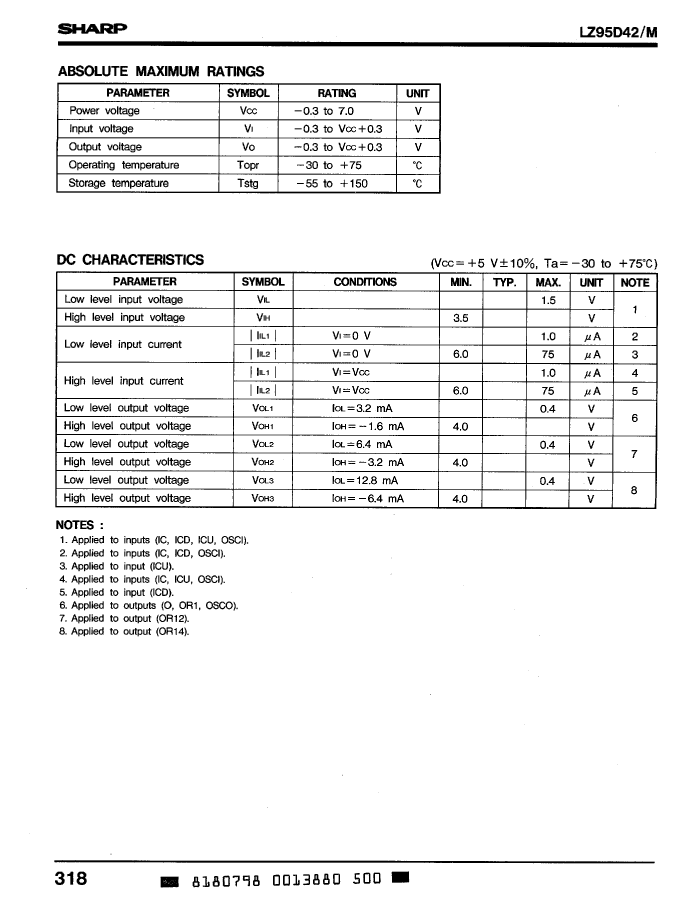

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SHARP
package instruction	10 X 10 MM, PLASTIC, QFP-48
Reach Compliance Code	unknown
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	S-PQFP-G48
JESD-609 code	e0
length	10 mm
Number of functions	1
Number of terminals	48
Maximum operating temperature	75 °C
Minimum operating temperature	-30 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	1.85 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.75 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10 mm

	LZ95D42	LZ95D42M
Description	Consumer Circuit, CMOS, PQFP48, 10 X 10 MM, PLASTIC, QFP-48	Consumer Circuit, CMOS, PQFP48, 7 X 7 MM, PLASTIC, QFP-48
Is it Rohs certified?	incompatible	incompatible
Maker	SHARP	SHARP
package instruction	10 X 10 MM, PLASTIC, QFP-48	7 X 7 MM, PLASTIC, QFP-48
Reach Compliance Code	unknown	unknown
Commercial integrated circuit types	CONSUMER CIRCUIT	CONSUMER CIRCUIT
JESD-30 code	S-PQFP-G48	S-PQFP-G48
JESD-609 code	e0	e0
length	10 mm	7 mm
Number of functions	1	1
Number of terminals	48	48
Maximum operating temperature	75 °C	75 °C
Minimum operating temperature	-30 °C	-30 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	FQFP
Package shape	SQUARE	SQUARE
Package form	FLATPACK	FLATPACK, FINE PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.85 mm	1.85 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal pitch	0.75 mm	0.5 mm
Terminal location	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	10 mm	7 mm
