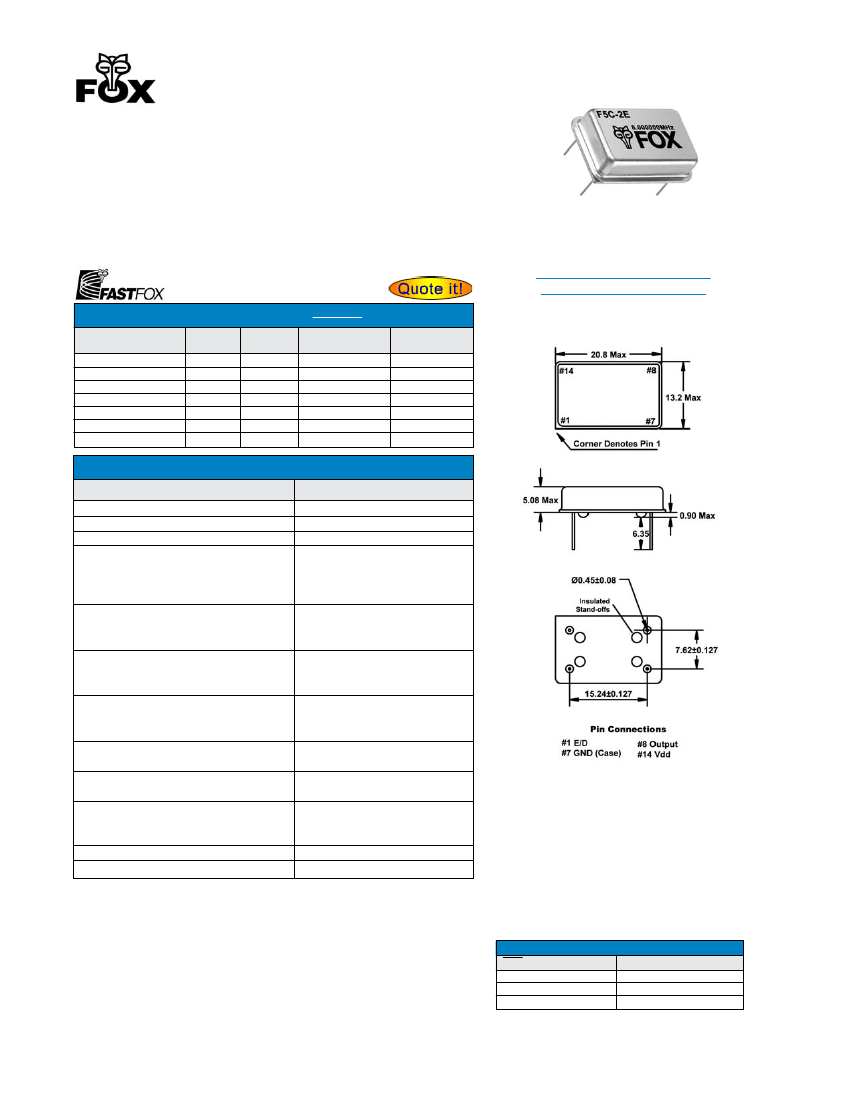

5.0V HCMOS TRI-STATE ENABLE/DISABLE OSCILLATORS
MODEL: F5C-2E
FEATURES
•
•
•
•
5.0V Operationg
HCMOS/TTL Output
Tri-State Enable/Disable
14-Pin DIP
OPTIONS
• 8-Pin DIP Available (H5C-2E)
Discontinued
Learn more about:
Part Marking Identification
Mechanical Specification
Internet required
• PART NUMBER SELECTION
Part Number
147-Frequency-xxxxx
326-Frequency-xxxxx
180-Frequency-xxxxx
181-Frequency-xxxxx
199-Frequency-xxxxx
330-Frequency-xxxxx
513-Frequency-xxxxx
Learn More - Internet Required
Operating
Model Frequency
1
Number Stability Temperature (ºC)
F5C-2E
±100PPM
0 ~ +70
F5C-2ER
±100PPM
-40 ~ +85
F6C-2E
±50PPM
0 ~ +70
F6C-2ER
±50PPM
-40 ~ +85
F7C-2E
±25PPM
0 ~ +70
F7C-2ER
±25PPM
-40 ~ +85
F8C-2E
±20PPM
0 ~ +70
Frequency
Range (MHz)
1.000 ~ 160.000
1.000 ~ 160.000
1.000 ~ 160.000
1.000 ~ 160.000
1.000 ~ 160.000
1.000 ~ 125.000
1.000 ~ 125.000
• ELECTRICAL CHARACTERISTICS
PARAMETERS
Frequency Range (F
o
)
Storage Temperature Range (T
stg
)
Supply Voltage
(V
dd
)
Input Current
(I
dd
)
1.000 ~ 40.000 MHz
40.000+ ~ 125.000 MHz
125.000+ ~ 160.000 MHz
Output Symmetry (50% V
dd
)
1.000 ~ 50.000 MHz
50.000+ ~ 160.000 MHz
Rise Time (10% ~ 90% V
dd
) (T
r
)
1.000 ~ 125.000 MHz
125.000+ ~ 160.000 MHz
Fall Time (90% ~ 10% V
dd
) (T
f
)
1.000 ~ 125.000 MHz
125.000+ ~ 160.000 MHz
Output Voltage
(V
ol
)
(V
oh
)
Output Current
(I
ol
)
(I
oh
)
Output Load
TTL
HCMOS
Start-up Time
(T
s
)
Output Enable/Disable Time
2
1
MAX
(unless otherwise noted)
1.000 ~ 160.000 MHz
-55ºC ~ +125ºC
5.0V ± 10%
40mA
60mA
100mA
45% ~ 55%
40% ~ 60%
10 nS
6 nS
10 nS
6 nS
10% V
dd
90% V
dd
Min
16mA Min
-16mA Min
10TTL
50pF
10mS
100nS
All dimensions are in millimeters.
Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load change, aging,
shock, and vibration.
2
An internal pullup resistor from pin 1 to V
DD
allows active output if pin 1 is left open.
All specifications subject to change without notice.
Rev. 6/1/04
• ENABLE / DISABLE FUNCTION
INH (Pin 1)
OUTPUT (Pin 8)
OPEN
2
ACTIVE
'1' Level V
ih
≥
2.2 V
ACTIVE
'0' Level V
il
≤
0.8 V
High Z
