DATA SHEET
SEMICONDUCTOR
MUR260
Power Rectifier
Designed for use in switching power supplies, inverters and as
free wheeling diodes, these state–of–the–art devices have the
following features:
Features
•Ultrafast
50 Nanosecond Recovery Times
•175°C
Operating Junction Temperature
•Low
Forward Voltage
•Low
Leakage Current
•High
Temperature Glass Passivated Junction
sivated Junction
•These
are Pb−Free Devices*
•
High temperature soldering : 260
O
C / 10 seconds at terminals
•
Pb free product at available : 99% Sn above meet RoHS environment
substance directive request
.300 (7.6)
.230 (5.8)
.140 (3.6)
.104 (2.6)
DIA.
1.0 (25.4)
MIN.
DO-15
Unit:inch(mm)
Mechanical Characteristics
•Case:
Epoxy, Molded
•Weight:
0.4 gram (approximately)
•Finish:
All External Surfaces Corrosion Resistant and Terminal
Leads are Readily Solderable
•Lead
and Mounting Surface Temperature for Soldering Purposes:
220°C Max. for 10 Seconds, 1/16, from case
•Shipped
in plastic bags, 1000 per bag
•Available
Tape and Reeled, 5000 per reel, by adding a “RL’’ suffix to
the part number
•Polarity:
Cathode Indicated by Polarity Band
•Marking:
MUR260
.034 (.86)
.028 (.71)
DIA.
1.0 (25.4)
MIN.
MAXIMUM RATINGS
Rating
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Forward Current (Note 1)
(Square Wave Mounting Method #3 Per Note 3)
Non-Repetitive Peak Surge Current
(Surge applied at rated load conditions,
halfwave, single phase, 60 Hz)
Operating Junction Temperature and Storage
Temperature Range
T
J
, T
stg
–55 to
+150
°C
I
FSM
60
Amps
Symbol
V
RRM
V
RWM
V
R
I
F(AV)
Value
600
—
2.0 @
T
A
= 60°C
Unit
Volts
Amps
1. Pulse Test: Pulse Width = 300 ms, Duty Cycle 3 2.0%.
http://www.yeashin.com
1
REV.02 20110725
MUR260
THERMAL CHARACTERISTICS
Characteristic
Maximum Thermal Resistance, Junction to Ambient
Symbol
RqJA
Value
See Note 3.
Unit
°C/W
ELECTRICAL CHARACTERISTICS
Maximum Instantaneous Forward Voltage (Note 2.)
(I
F
= 2.0 Amp, T
J
= 150°C)
(I
F
= 2.0 Amp, T
J
= 25°C)
Maximum Instantaneous Reverse Current (Note 2.)
(Rated dc Voltage, T
J
= 150°C)
(Rated dc Voltage, T
J
= 25°C)
Maximum Reverse Recovery Time
(I
F
= 0.5 Amp, I
R
= 1.0 Amp, I
REC
= 0.25 A)
Maximum Forward Recovery Time
(I
F
= 1.0 A, di/dt = 100 Aμs, IREC to 1.0 V)
trr
tfr
iR
vF
1.15
1.30
150
5
50
50
Volts
uA
ns
ns
2. Pulse Test: Pulse Width = 300 ms, Duty Cycle 3 2.0%.
10
10
I F , INSTANTANEOUS FORWARD CURRENT (AMPS)
i , INSTANTANEOUS FORWARD CURRENT (AMPS)
F
125°C
75°C
25°C
V
F
@ 150°C
1.0
V
F
@ 150°C
1.0
125°C
75°C
0.1
25°C
0.5
0.7
0.9
1.1
1.3
1.5
1.7
1.9
2.1
0.1
0.5
0.7
0.9
1.1
1.3
1.5
1.7
1.9
2.1
V
F
, INSTANTANEOUS VOLTAGE (VOLTS)
V
F,
INSTANTANEOUS VOLTAGE (VOLTS)

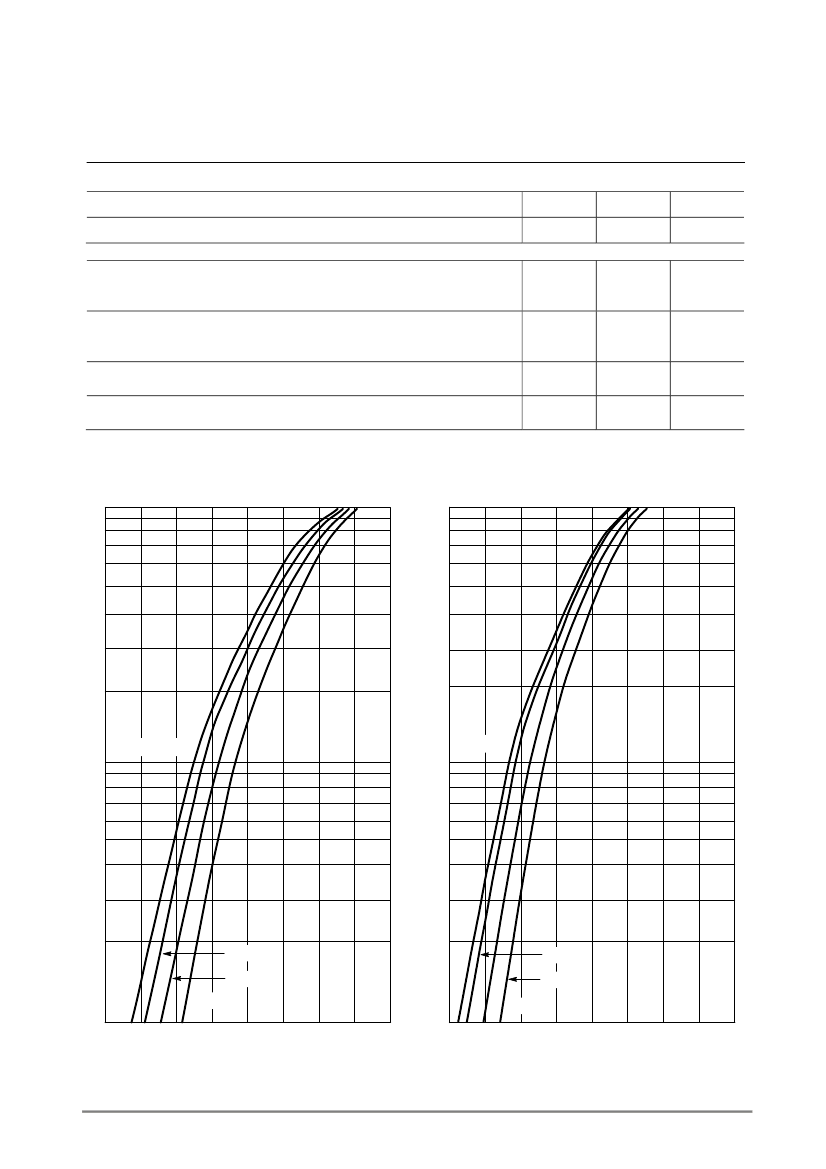

Figure 1. Maximum Forward Voltage
http://www.yeashin.com
2
Figure 2. Typical Forward Voltage
REV.02 20110725
RATING AND CHARACTERISTIC CURVES
MUR260
100
T
J
= 150°C
IR, REVERSE CURRENT (
m
A)
125°C
10
75°C
100
I
R
@ 150°C
10
1.0
0.1
0.01
125°C
IR, REVERSE CURRENT (
m
A)
75°C
25°C
1.0
25°C
0.1
0
20
40
60
80
100
120
140
160
180
200
0.001
0
75
150
225
300
375
450
525
600
V
R
, REVERSE VOLTAGE (VOLTS)
V
R
, REVERSE VOLTAGE (VOLTS)
Figure 3. Maximum Reverse Current
Figure 4. Typical Reverse Current
PF(AV) , AVERAGE POWER DISSIPATION (WATTS)
IF(AV) , AVERAGE FORWARD CURRENT (AMPS)
5.0
4.0
3.0
2.0
1.0
SQUARE WAVE
0
0
50
100
150
200
SQUARE WAVE
3.0
dc
2.0
dc
1.0
0
0
0.5
1.0
1.5
2.0
2.5
3.0
T
A
, AMBIENT TEMPERATURE (°C)
I
F(AV)
, AVERAGE FORWARD CURRENT (AMPS)
Figure 5. Current Derating
Figure 6. Power Dissipation
50
T
J
= 25°C
30
C, CAPACITANCE (pF)
20
10
7.0
5.0
0
10
20
30
40
50
V
R
, REVERSE VOLTAGE (VOLTS)
Figure 7. Typical Capacitance
http://www.yeashin.com
3
REV.02 20110725
