84688-307

Description
Board Connector, 36 Contact(s), 6 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle
CategoryThe connector    The connector
File Size196KB,2 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

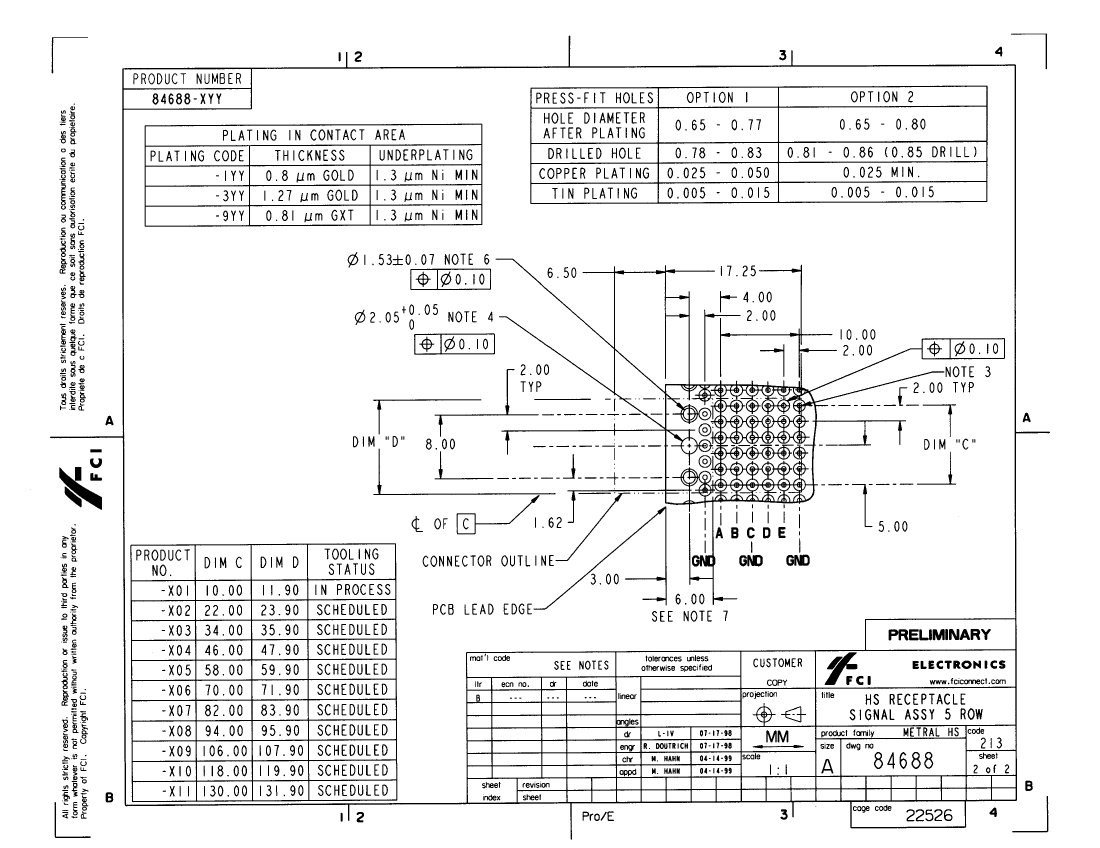

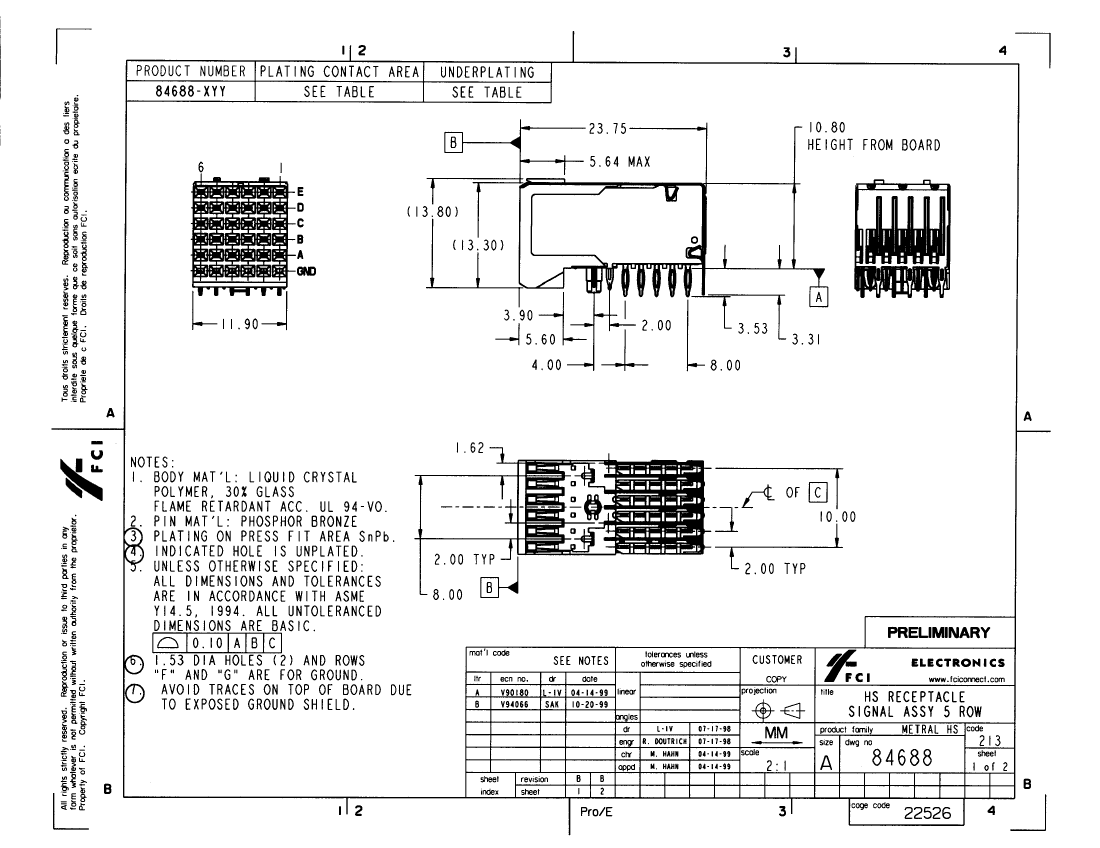

84688-307 Overview

Board Connector, 36 Contact(s), 6 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle

84688-307 Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codecompliant
Other features6 GROUND CONTACTS IN ONE ROW
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact completed and terminatedTIN LEAD
Contact point genderFEMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number84688
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded6
Terminal pitch2 mm
Termination typePRESS FIT
Total number of contacts36
UL Flammability Code94V-0
