2N5116G-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2N5116G-1

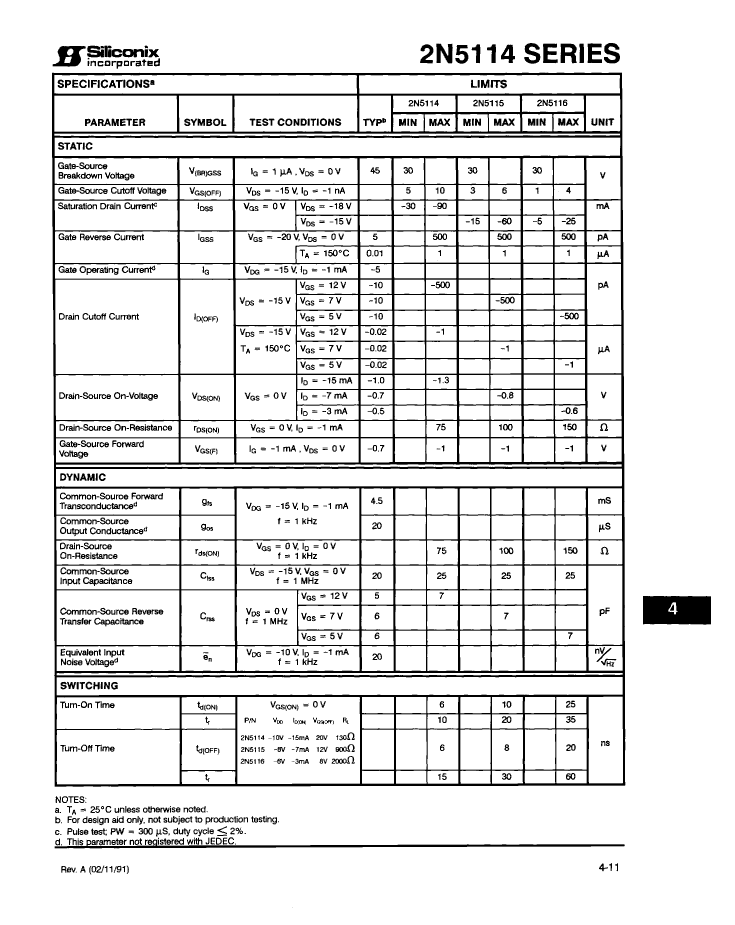

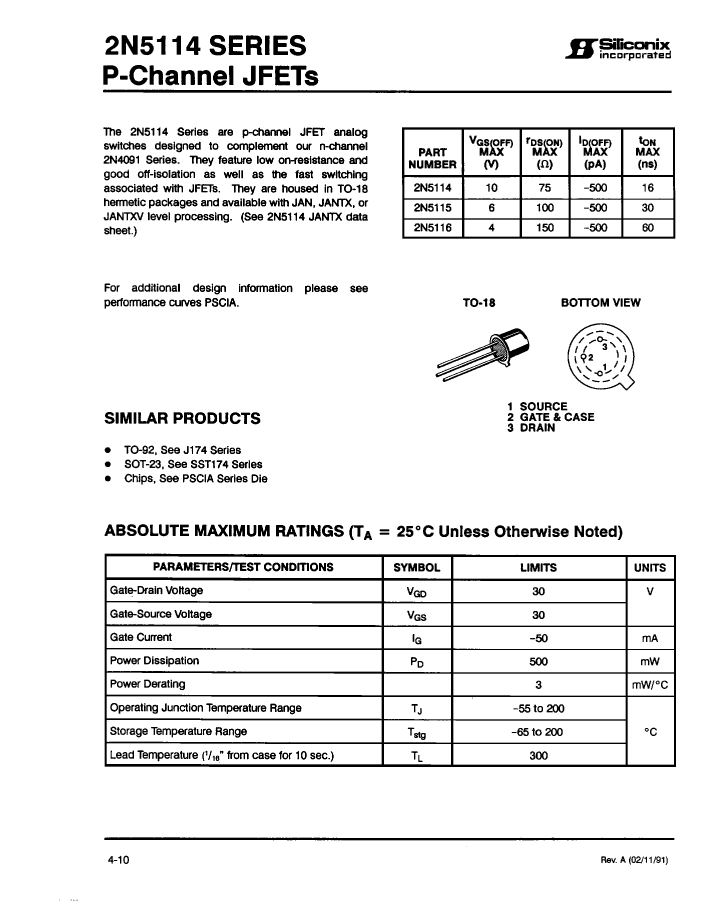

2N5116G-1: DescriptionSmall Signal Field-Effect Transistor, 1-Element, P-Channel, Silicon, Junction FET, TO-206AA; CategoryDiscrete semiconductor The transistor; File Size59KB，2 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

2N5116G-1 Overview

Small Signal Field-Effect Transistor, 1-Element, P-Channel, Silicon, Junction FET, TO-206AA

2N5116G-1 Parametric

Parameter Name	Attribute value
package instruction	CYLINDRICAL, O-MBCY-W3
Reach Compliance Code	unknow
Shell connection	GATE
Configuration	SINGLE
Maximum drain-source on-resistance	150 Ω
FET technology	JUNCTION
Maximum feedback capacitance (Crss)	7 pF
JEDEC-95 code	TO-206AA
JESD-30 code	O-MBCY-W3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Operating mode	DEPLETION MODE
Maximum operating temperature	200 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	P-CHANNEL
Certification status	Not Qualified
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	WIRE
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1

Preview

Download Datasheet

View All

2N5116G-1 Related Products

	2N5116G-1	2N5114G-2	2N5115G-2	2N5115G-1	2N5116G-2	2N5116G	2N5114G-1	2N5114G	2N5115G
Description	Small Signal Field-Effect Transistor, 1-Element, P-Channel, Silicon, Junction FET, TO-206AA	Small Signal Field-Effect Transistor, 1-Element, P-Channel, Silicon, Junction FET, TO-206AA	Small Signal Field-Effect Transistor, 1-Element, P-Channel, Silicon, Junction FET, TO-206AA	Small Signal Field-Effect Transistor, 1-Element, P-Channel, Silicon, Junction FET, TO-206AA	Small Signal Field-Effect Transistor, 1-Element, P-Channel, Silicon, Junction FET, TO-206AA	Small Signal Field-Effect Transistor, 1-Element, P-Channel, Silicon, Junction FET, TO-206AA	Small Signal Field-Effect Transistor, 1-Element, P-Channel, Silicon, Junction FET, TO-206AA	Small Signal Field-Effect Transistor, 1-Element, P-Channel, Silicon, Junction FET, TO-206AA	Small Signal Field-Effect Transistor, 1-Element, P-Channel, Silicon, Junction FET, TO-206AA
package instruction	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
Shell connection	GATE	GATE	GATE	GATE	GATE	GATE	GATE	GATE	GATE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum drain-source on-resistance	150 Ω	75 Ω	100 Ω	100 Ω	150 Ω	150 Ω	75 Ω	75 Ω	100 Ω
FET technology	JUNCTION	JUNCTION	JUNCTION	JUNCTION	JUNCTION	JUNCTION	JUNCTION	JUNCTION	JUNCTION
Maximum feedback capacitance (Crss)	7 pF	7 pF	7 pF	7 pF	7 pF	7 pF	7 pF	7 pF	7 pF
JEDEC-95 code	TO-206AA	TO-206AA	TO-206AA	TO-206AA	TO-206AA	TO-206AA	TO-206AA	TO-206AA	TO-206AA
JESD-30 code	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
Number of components	1	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3	3
Operating mode	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE
Maximum operating temperature	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	P-CHANNEL	P-CHANNEL	P-CHANNEL	P-CHANNEL	P-CHANNEL	P-CHANNEL	P-CHANNEL	P-CHANNEL	P-CHANNEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Base Number Matches	1	1	1	1	1	1	1	1	1
