REVISION G
DESIGNED & DIMENSIONED
IN MILLIMETERS[INCHES]
USBC-AM-BM-B-B-S-X-X
A MALE
USB A PLUG
B MALE
USB B PLUG
CONNECTOR COLOR
-B: BLACK
E I OPTION
-R: RoHS COMPLIANT
LENGTH
-1: 1M [39.37]
-2: 2M [78.74]
-3: 3M [118.11]
PLATING
-S: SELECTIVE
0.76um [30u"] GOLD ON
CONTACT AREA
OVERMOLD COLOR
-B: BLACK
P1
4
15.90 .626
1
44.25 1.742
C
C1-B-GR
"C" 7.397
(SEE TABLE 1 & NOTE 10)
P2
2
11.20 .441
3
SEE NOTE 3
UCA-03-01
45.10 1.776
1
4
7.80 .307
10.50 .413
5.00 .197 REF
NOTES:
C2-D-ET
C
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. THE CABLE SHALL NOT HAVE ANY OPENS, SHORTS, MISWIRING, OR INTERMITTENT FAILURES.
3. THE CABLE SHALL BE 100% ELECTRICAL TESTED FOR OPENS AND SHORTS, HIGH POT TESTED AT 200V.
AFTER FINAL ELECTRICAL TEST, LABEL ASSEMBLY WITH 1 LABEL-ET.
4. NOTE DELETED.
PROPRIETARY NOTE
UNLESS OTHERWISE SPECIFIED,
5. USB LOGO TO BE RAISED 0.25[.010].
THIS DOCUMENT CONTAINS INFORMATION
DIMENSIONS ARE IN MILLIMETERS.
6. NOTE DELETED.
CONFIDENTIAL AND PROPRIETARY TO
TOLERANCES ARE:
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
7. ALL IDENTIFICATION MARKS MUST NOT STAND GREATER THAN 0.051[.002] OFF THE SURFACE OF THE PART.
OR TRANSFERRED TO OTHER DOCUMENTS OR
DECIMALS
ANGLES
8. ALL EJECTOR PIN AND GATE LOCATIONS MUST BE APPROVED BY SAMTEC PRODUCT ENGINEERING.
DISCLOSED TO OTHERS OR USED FOR ANY
520 PARK EAST BLVD, NEW ALBANY, IN 47150
2
9. ANY ADDITIONAL VOIDING AND/OR MODIFICATIONS TO VOIDING MUST BE APPROVED BY SAMTEC PRODUCT
.X: 0.3 [.01]
PURPOSE OTHER THAN THAT WHICH IT WAS
PHONE: 812-944-6733
FAX: 812-948-5047
.XX: 0.13 [.005]
OBTAINED WITHOUT THE EXPRESSED WRITTEN
ENGINEERING.
CONSENT OF SAMTEC, INC.
.XXX: 0.051 [.0020]
e-Mail: info@SAMTEC.com
code: 55322
10. LENGTH TOLERANCE SHALL BE 2% OF LENGTH.
SHEET SCALE: 1:1
DESCRIPTION:
MATERIAL:
DO NOT SCALE DRAWING
11. THIS IS A COMPONENT OF USBP-A-01-G-B-01 (CALLED OUT ON THE BOM), BUT LABELLED INDIVIDUALLY FOR
ASSEMBLY PURPOSES.
INSULATOR: GLASS FILLED THERMOPLASTIC
MAX FLASH ALLOWED: 0.05[.002]

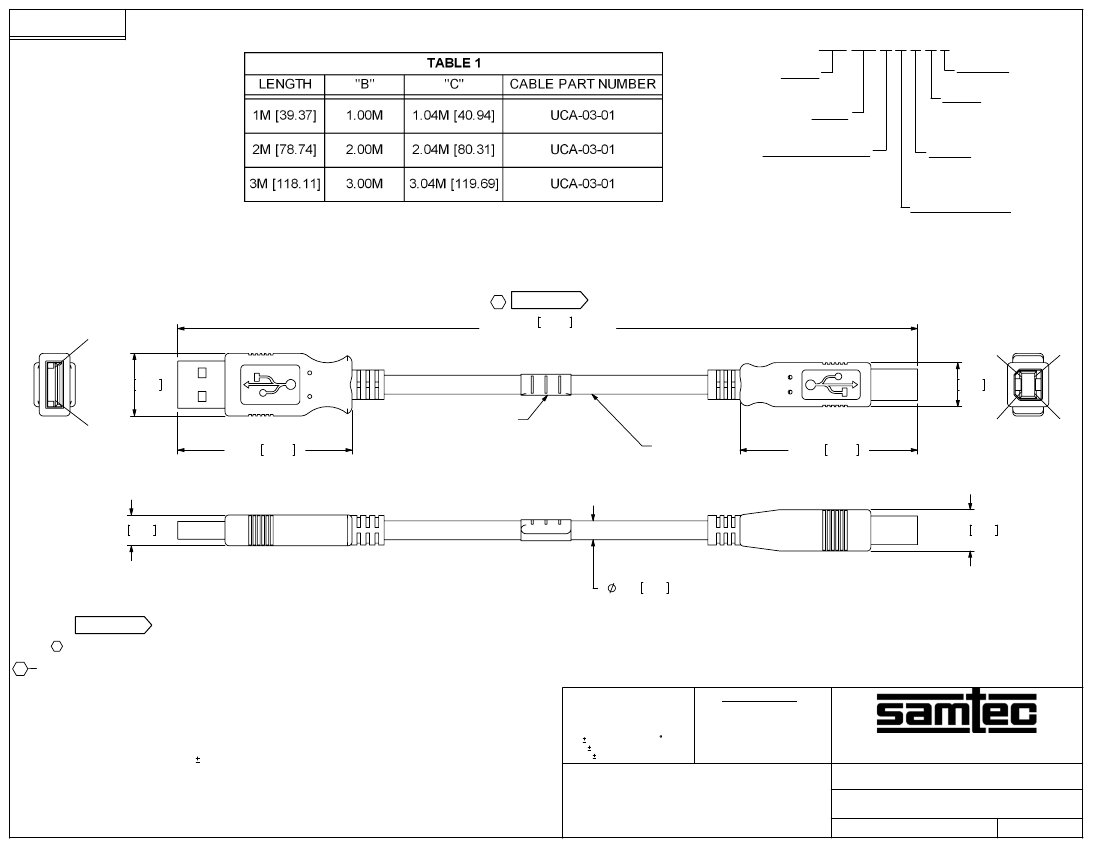

USB A PLUG TO USB B PLUG JUMPER CABLE
CONTACTS: COPPER ALLOY
MAX GATE VESTIGE: 0.05[.002]
12. THIS IS A COMPONENT OF USBP-B-01-G-B-01 (CALLED OUT ON THE BOM), BUT LABELLED INDIVIDUALLY FOR
SHIELDS: CRS
DWG. NO.
ASSEMBLY PURPOSES.
PREMOLD: LDPE
NONSEALED OVERMOLD: PVC; MAX REGRIND: 30%
13. ASSEMBLY TO BE PACKAGED IN BULK.
F:\DWG\MISC\Mktg\USBC-AM-BM-B-B-S-X-X-MKT.SLDDRW
USBC-AM-BM-B-B-S-X-X
11/1/2004
SHEET
1
OF
4
BY:
CHAD F
REVISION G

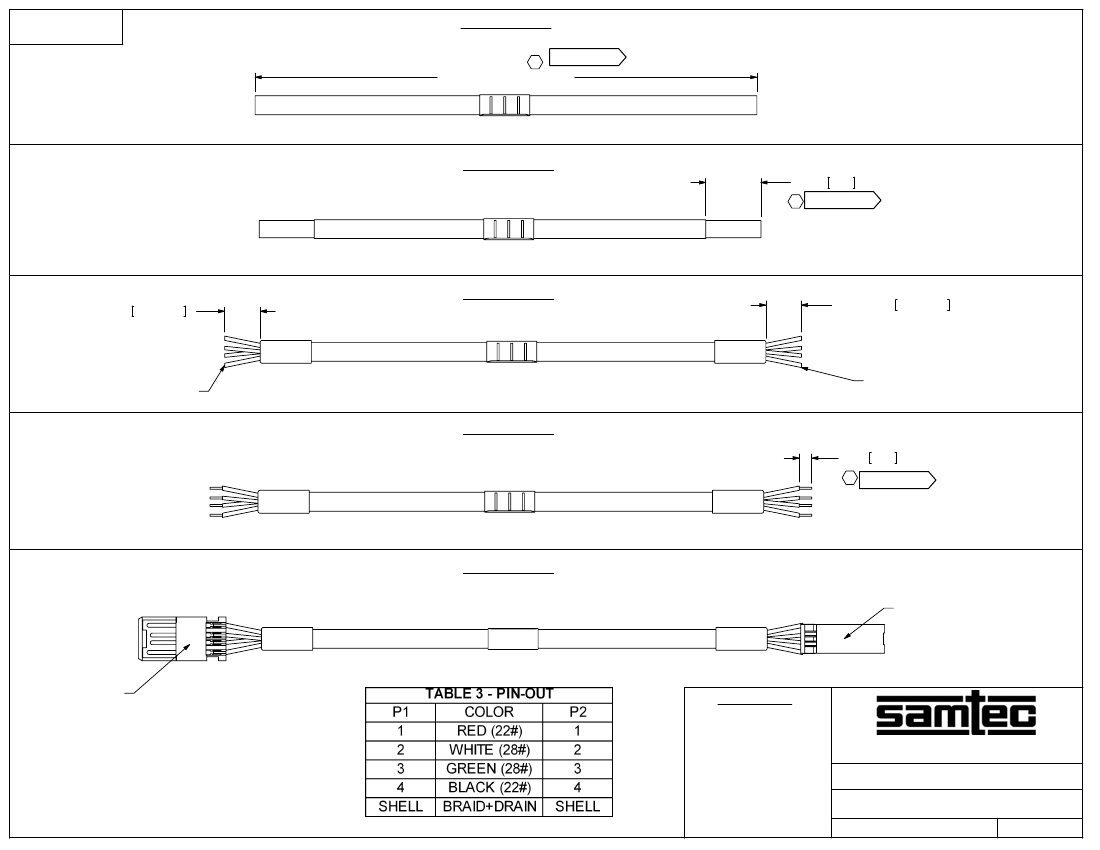

CUT CABLES TO LENGTH
C
C3-B-GR
"B"
(SEE TABLE 1 & NOTE 10)
IN-PROCESS 1
STRIP OUTER JACKETS TO DIMENSION SHOWN
IN-PROCESS 2
14.00 .551 (TYP)
C
C4-B-DC
12.00±1.00 .472±.039
FOLD SHIELD BACK, REMOVE FOIL AND TWIST SHIELD
IN-PROCESS 3
12.00±1.00 .472±.039
TRIM WIRES TO DIMENSION SHOWN
TRIM WIRES TO DIMENSION SHOWN
P1
STRIP INDIVIDUAL WIRES TO DIMENSION SHOWN AND DIP IN TIN
3.18 .125 (TYP)
IN-PROCESS 4
P2
C
C5-B-DC
P1
TERMINATE TO SUB-USB-A-G-B-01 AND SUB-USB-B-G-B-01
IN-PROCESS 5
P2
SUB-USB-B-G-B-01
(SEE NOTE 12)
SUB-USB-A-G-B-01
(SEE NOTE 11)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:2
USB A PLUG TO USB B PLUG JUMPER CABLE
USBC-AM-BM-B-B-S-X-X
11/1/2004
SHEET
2
OF
4
F:\DWG\MISC\Mktg\USBC-AM-BM-B-B-S-X-X-MKT.SLDDRW
BY:
CHAD F
REVISION G
ADD USBS-A-N-01-01 AND USBS-B-N-01-01
IN-PROCESS 6
P1
USBS-A-N-01-01
(SEE NOTE 11)
USBS-B-N-01-01
(SEE NOTE 12)
P2
IN-PROCESS 7
ADD USBS-A-N-02-01 AND USBS-B-N-02-01
P1
USBS-A-N-02-01
(SEE NOTE 11)
P2
USBS-B-N-02-01
(SEE NOTE 12)
P1
CRIMP SHELLS OVER BAND AND BRAID AND ADD SOLDER SHIELD TO SHELL
THEN FOLD GROUND WIRE "TWISTED SHIELD" OVER CRIMP AND SOLDER TO SHELL
IN-PROCESS 8
P2
SEE NOTE 3
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:2
USB A PLUG TO USB B PLUG JUMPER CABLE
USBC-AM-BM-B-B-S-X-X
11/1/2004
SHEET
3
OF
4
F:\DWG\MISC\Mktg\USBC-AM-BM-B-B-S-X-X-MKT.SLDDRW
BY:
CHAD F
REVISION G
8.28 .326
R10.00 .394
7.14 .281

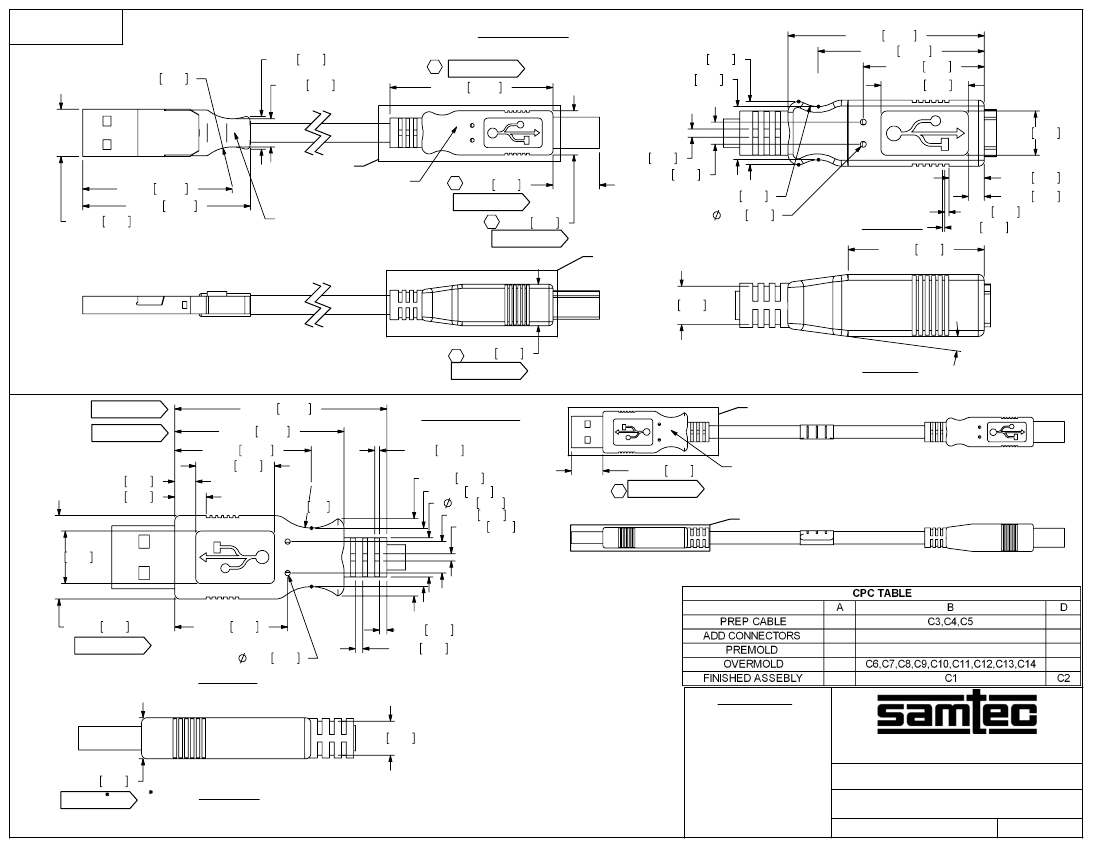

PREMOLD USB A END AND OVERMOLD USB B END
C
IN-PROCESS 9
C6-B-DC
10.70 .421
9.00 .354
33.25 1.309
28.15 1.108
20.50 .807
14.80 .583
41.40 1.630
7.50 .295
'A'
OVERMOLD
PREMOLD
1.40 .055
38.00 1.496
42.60 1.677
12.00 .472
C
11.85 .467
3.75 .148
R5.00 .197
1.00 .039
'B'
6.00 .236
2.70 .106
0.70 .028
0.40 .016
C7-B-DC
C
11.20 .441
C8-B-DC
DETAIL 'A'
23.03 .907
6.50 .256
8°
C
10.50 .413
C9-B-DC
DETAIL 'B'
'C'
C11-B-DC
C12-B-DC
40.40 1.591
32.25 1.270
26.00 1.024
15.00 .591
OVERMOLD USB A END
0.90 .035
14.75 .581
11.14 .439
7.50 .295
6.00 .236
1.40 .055
12.00 .472
OVERMOLD
IN-PROCESS 10
4.00 .157
6.00 .236
C
C10-B-DC
'D'
R8.0 .31
10.00 .394
15.90 .626
21.50 .846
1.00 .039
C13-B-DC
1.40 .055
1.40 .055
DETAIL 'C'
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
6.50 .256
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
7.80 .307
C14-B-DC
DETAIL 'D'
F:\DWG\MISC\Mktg\USBC-AM-BM-B-B-S-X-X-MKT.SLDDRW
DO NOT SCALE DRAWING
SHEET SCALE: 1:2
USB A PLUG TO USB B PLUG JUMPER CABLE
USBC-AM-BM-B-B-S-X-X
11/1/2004
SHEET
4
OF
4
BY:
CHAD F
