NOTE: All specifications are measured at an ambient temperature of 25°C, humidity<75%, nominal input voltage and at rated output load unless otherwise
specified.
Safety Specifications
Standards
Agency approvals
Safety
cULus (for 3000VDC Isolated models and 5 and 12 Vin models with 1000VDC Isolation),
CE (for 5 and 12 Vin single models)
IEC 60950-1 2001
Pin Out Specifications
1000VDC
Pin
1
2
3
4
5
6
7
8
3000VDC
Pin
1
2
3
4
5
6
7
8
9
10
11
12
Single
- V Input
+ V Input
N. C.
- V Output
.+V Output
N.C.
N.C.
N.C.
Single
- V Input
+ V Input
N.C.
Omitted
-V Output
N.C.
N.C.
+V Output
Omitted
N.C.
N.C.
N.C.
Dual
- V Input
+ V Input
N.C.
Omitted
Common
-V Output
N.C.
+V Output
Omitted
N.C.
N.C.
N.C.
Pin
1
2
3
4
5
6
7
8
9
10
Dual
- V Input
+ V Input
N. C.
Common
.-V Output
N.C.
+V Output
N.C.
N.C.
N.C.
External capacitor – Single output
Vin
(VDC)
5
12
24
-
External capacitor – Dual output
Vin
(VDC)
5
12
24
-
External
capacitor
(µF)
4.7
2.2
1
-
Vout
(VDC)
5
9
12
15
External
capacitor
(µF)
10
4.7
2.2
1
External
capacitor
(µF)
4.7
2.2
1
-
Vout
(VDC)
5
9
12
15
External
capacitor
(µF)
4.7
2.2
1
0.47
www.aimtec.com
F 051e R6.A
Tel: +1 514 620 2722
3 of 6
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM1L-NZ
1 Watt | DC-DC Converter

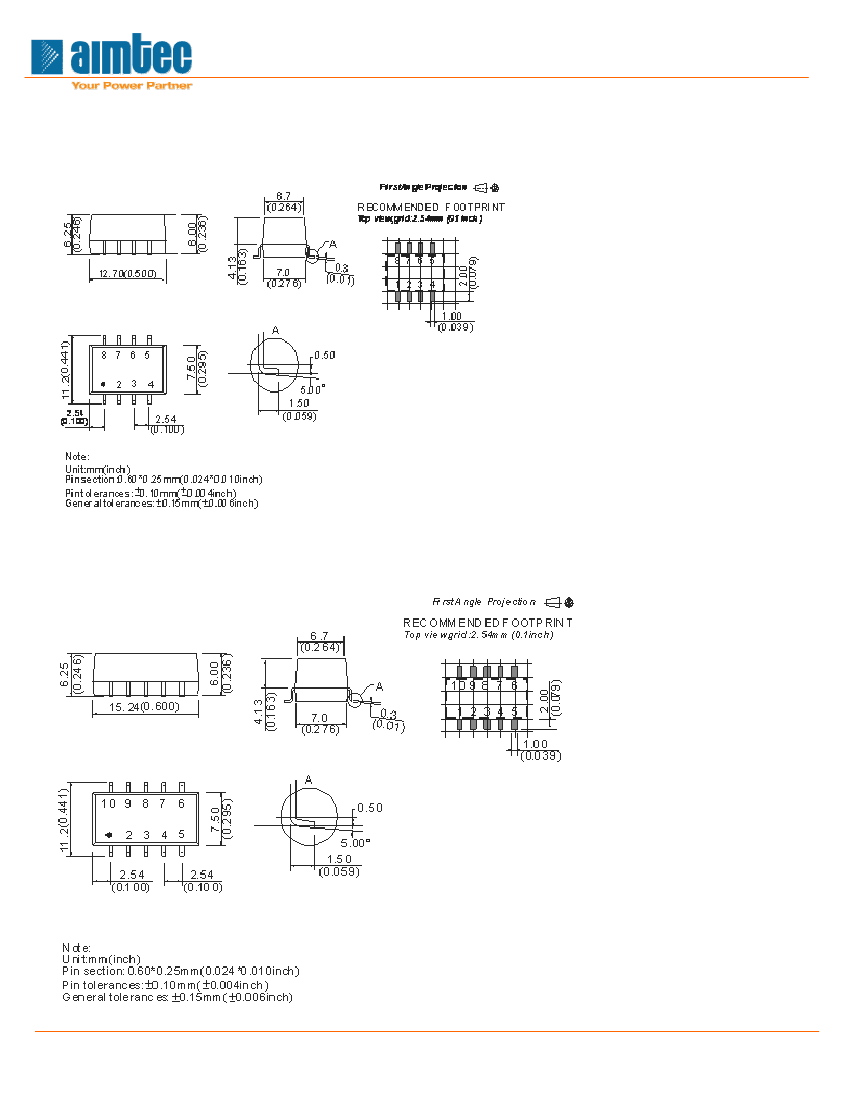

Dimensions Single 1000VDC
Dimensions Dual 1000VDC
www.aimtec.com
F 051e R6.A
Tel: +1 514 620 2722
4 of 6
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM1L-NZ
1 Watt | DC-DC Converter

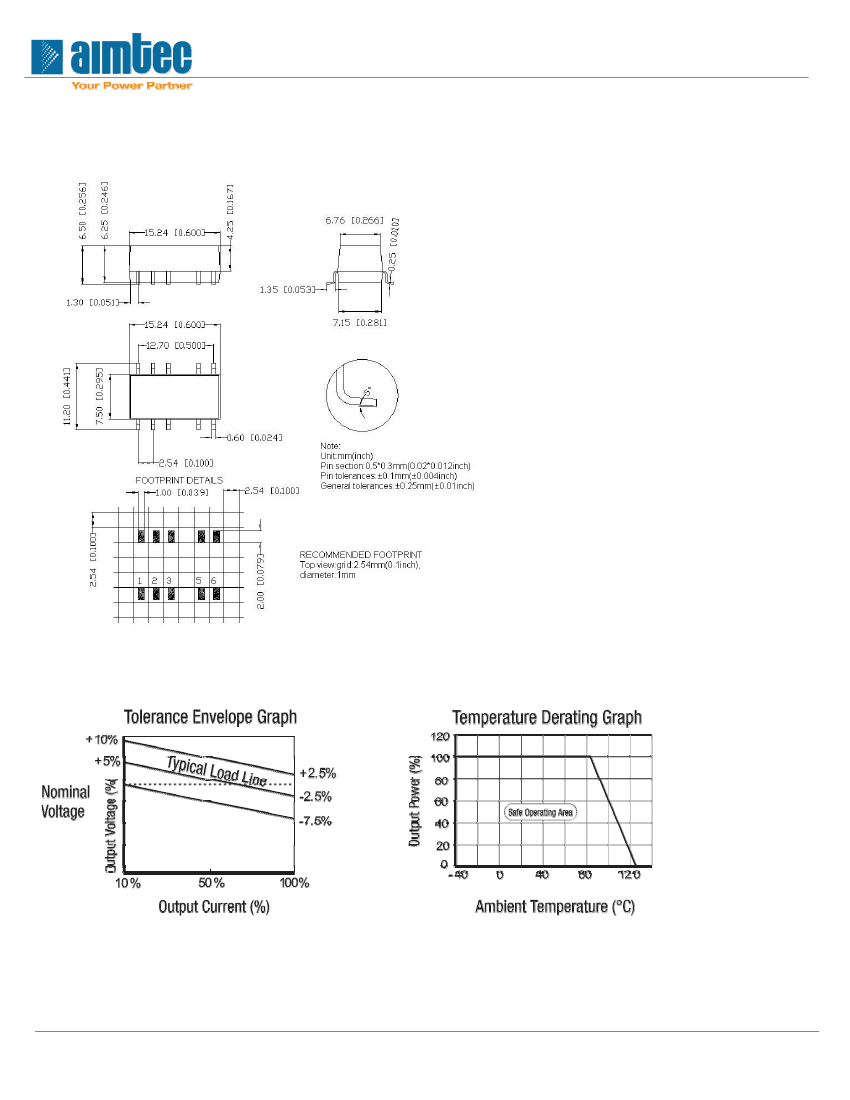

Dimensions Single and Dual 3000VDC
Tolerance Graph
Derating
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled
by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary based on the
date manufactured.
3.
Mechanical drawings and specifications are for reference only.
4.
Aimtec may not have conducted destructive testing or chemical analysis on all internal
components and chemicals at the time of publishing this document. CAS numbers and other limited information are considered proprietary and may not be available for release.
