BR231AC-C1-115V datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> relay> BR231AC-C1-115V

BR231AC-C1-115V: DescriptionPower/Signal Relay, 4PDT, Latched, 4600mW (Coil), 10A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Through Hole-Straight Mount; CategoryMechanical and electronic products relay; File Size194KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric View All

BR231AC-C1-115V Overview

Power/Signal Relay, 4PDT, Latched, 4600mW (Coil), 10A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Through Hole-Straight Mount

BR231AC-C1-115V Parametric

Parameter Name	Attribute value
Objectid	1810967823
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	COIL OPERATE VOLTAGE(AC): 72 V, COIL RELEASE VOLTAGE(AC): 72 V
body width	26.04 mm
body height	25.65 mm
Body length or diameter	26.04 mm
Coil current (AC) maximum value	0.04 A
Coil power	4600 mW
Maximum coil voltage (AC)	115 V
Coil/Input Power Type	AC
Contact (AC) maximum rated R load	10A@208VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated R load	10A@28VDC
Maximum contact voltage (AC)	208 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
JESD-609 code	e3
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	51 ms
Maximum operating temperature	125 °C
Minimum operating temperature	-70 °C
physical size	26.04mm X 26.04mm X 25.65mm
Guideline	MIL-PRF-83536
Relay action	LATCHED
Relay function	4PDT
Relay type	POWER/SIGNAL RELAY
release time	51 ms
surface mount	NO
Terminal surface	TIN
Termination type	SOLDER

Preview

Download Datasheet

View All

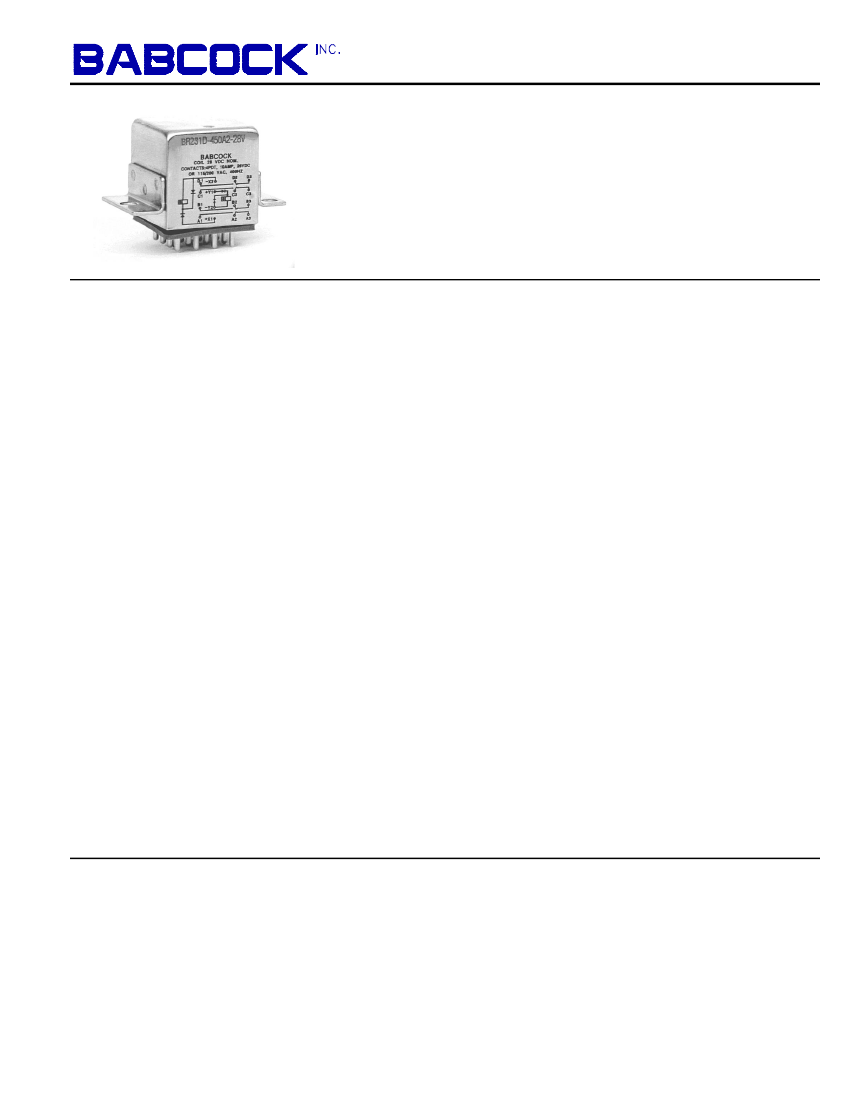

BR231

Miniature

10 Amps • 4PDT

Magnetic Latching

To MIL-PRF-83536

SPECIFICATIONS

GENERAL

Latch/Reset Time:

Contact Arrangement

.......................... 4PDT (4 Form C)

Magnetic Latching

Weight..........................................................2.2

oz approx.

Designed to meet the requirements of MIL-PRF-83536

PERFORMANCE

Contact Rating

(Note 1):

Resistive ................................... 10 Amps @ 28 VDC or

115/208V 400 Hz

(Case Grounded)

Inductive ..................................... 8 Amps @ 28 VDC or

115/208V 400 Hz

(Case Grounded)

2.5 Amps @ 115/208V 60 Hz

(Case Grounded)

Motor................................................ 4 Amps 28 VDC or

115/208V 400 Hz

(Case Grounded)

2 Amps @ 115/208V 60 Hz

(Case Grounded)

Lamp .......................................... 2 Amps @ 28 VDC or

115/208V 400 Hz

(Case Grounded)

1.5 Amps @ 115/208V 60 Hz

(Case Grounded)

.....................100,000 operations minimum @ rated

resistive load, 125 C

Latch/Reset Power..................................500

mw approx.

Life

DC Coil

AC Coil

15 ms max 50 ms max

Excluding bounce time at nominal coil voltage

Contact Bounce Time.......................................

1 ms max

@ rated contact load, 28 VDC

Contact Voltage Drop:

Before Life............................. 150 mv max @ 10 Amps

and 6 VDC

After Life ................................ 175 mv max @ 10 Amps

and 6 VDC

ENVIRONMENTAL

Temperature Range

............................... -70 C to +125 C

Vibration

(Note 2).............................. 0.12" DA 10 - 70 Hz

30 G's 70 - 3,000 Hz

Shock (Operating)(Note

2) ......................... 200 G's 6 ms

ELECTRICAL CHARACTERISTICS

Duty Cycle........................................................Continuous

Insulation Resistance

............................... 100 megohms

@ 500V 25 C

Dielectric Strength:

Sea Level:

Contact to Case ................................... 1,250 VRMS

Contact to Coil ..................................... 1,250 VRMS

Coil to Case ......................................... 1,000 VRMS

Across Open Contacts ........................ 1,250 VRMS

80,000 Feet:

All Points ................................................. 350 VRMS

MIL-PRF-83536/18 QUALIFIED to ER level L

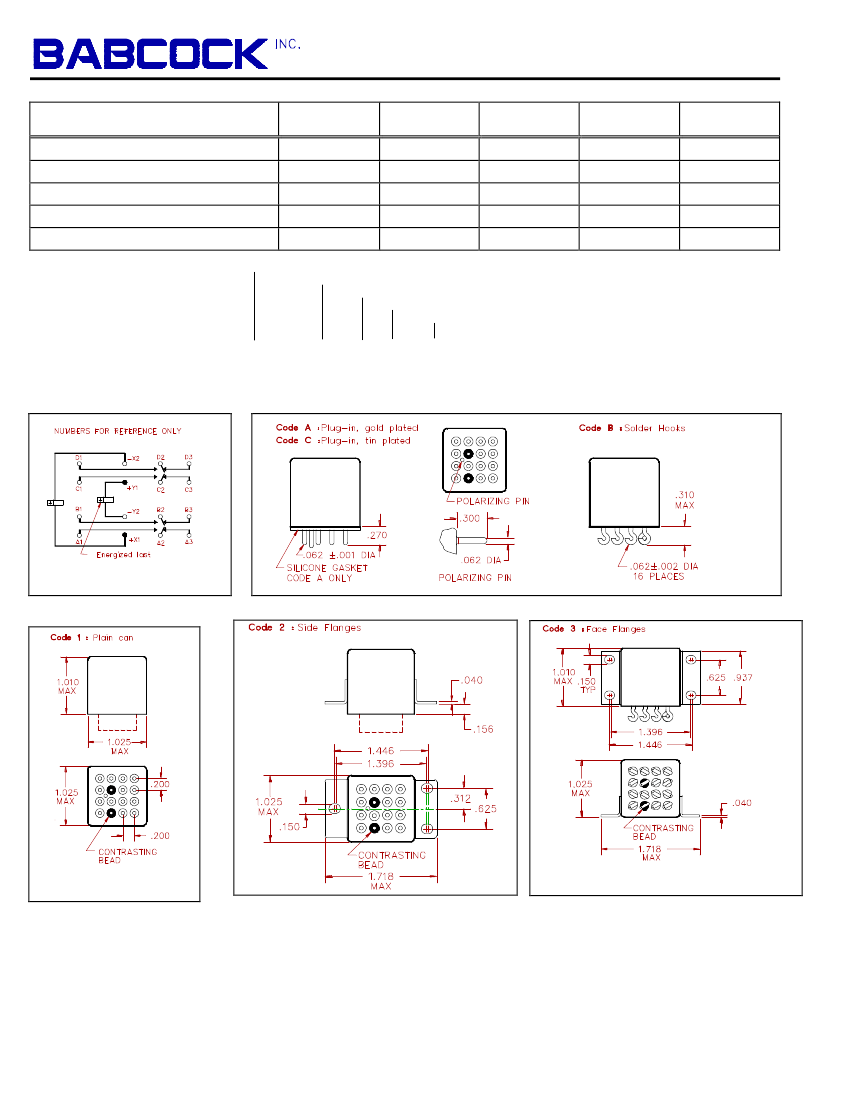

Notes:

1. For other ratings consult the factory.

For applications requiring higher shock and

vibration, consult the factory.

AC coil line frequency 50 to 400 Hz.

14930 E. Alondra Blvd., La Mirada, CA 90638-5752 (714) 994-6500 FAX (714) 994-3013

W:2000 Rev. 7
