ZX05-1MHW-S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZX05-1MHW-S

ZX05-1MHW-S: DescriptionDouble Balanced Mixer, 0.5MHz Min, 600MHz Max, 8dB Conversion Loss-Max, CASE FL905; CategoryWireless rf/communication Radio frequency and microwave; File Size134KB，2 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric View All

ZX05-1MHW-S Overview

Double Balanced Mixer, 0.5MHz Min, 600MHz Max, 8dB Conversion Loss-Max, CASE FL905

ZX05-1MHW-S Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
Reach Compliance Code	unknown
Other features	SMA
structure	COAXIAL
Maximum frequency conversion loss	8 dB
Maximum input power (CW)	23 dBm
JESD-609 code	e0
Maximum operating frequency	600 MHz
Minimum operating frequency	0.5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
RF/Microwave Device Types	DOUBLE BALANCED
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	2.72

Preview

Download Datasheet

View All

Coaxial

Frequency Mixer

Level 13 (LO Power +13 dBm)

Maximum Ratings

Operating Temperature

Storage Temperature

RF Power

IF Current

-40°C to 85°C

-55°C to 100°C

200mW

40mA

ZX05-1MHW

0.5 to 600 MHz

Features

• rugged construction

• small size

• low convesion loss

• high L-R isolation

• protected by US Patents 6,133,525 & 6,790,049

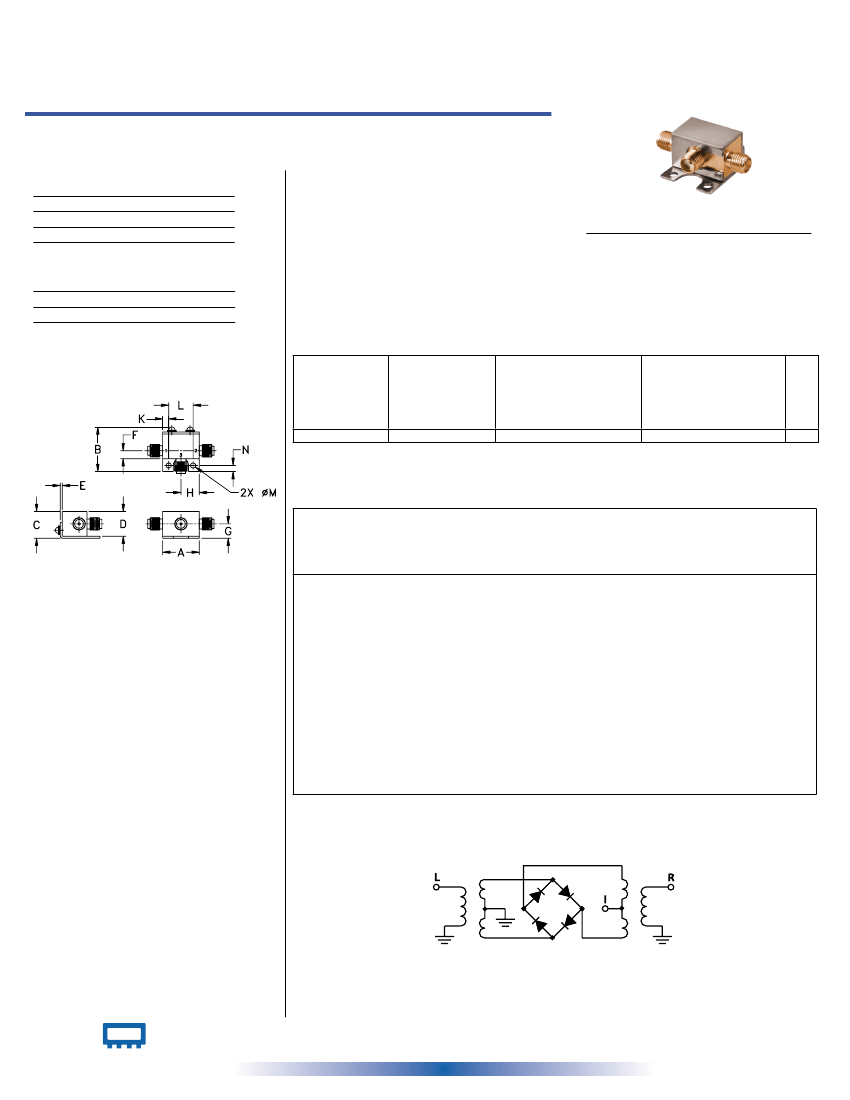

CASE STYLE: FL905

Connectors

SMA

Model

ZX05-1MHW-S

Price

Qty.

$39.95 ea. (1-24)

Coaxial Connections

Applications

• cellular

• PCS

• instrumentation

• satellite communication

Electrical Speciﬁcations (T

AMB

=25°C)

Outline Drawing

FREQUENCY

(MHz)

LO/RF

-f

0.5-600

DC-600

1 dB COMP.: +9 dBm typ.

CONVERSION LOSS

(dB)

Mid-Band

—

5.2

0.1

LO-RF ISOLATION

(dB)

Typ.

Min.

Typ.

Min.

Typ.

LO-IF ISOLATION

(dB)

Min.

Typ.

Min.

Typ. Min.

IP3

center

band

(dBm)

Typ.

Total

Range

Max. Max. Typ. Min.

6.9

8.0

L = low range [f

to 10 f

]

m= mid band [2f

to f

/2]

M = mid range [10 f

to f

/2]

U = upper range [f

/2 to f

]

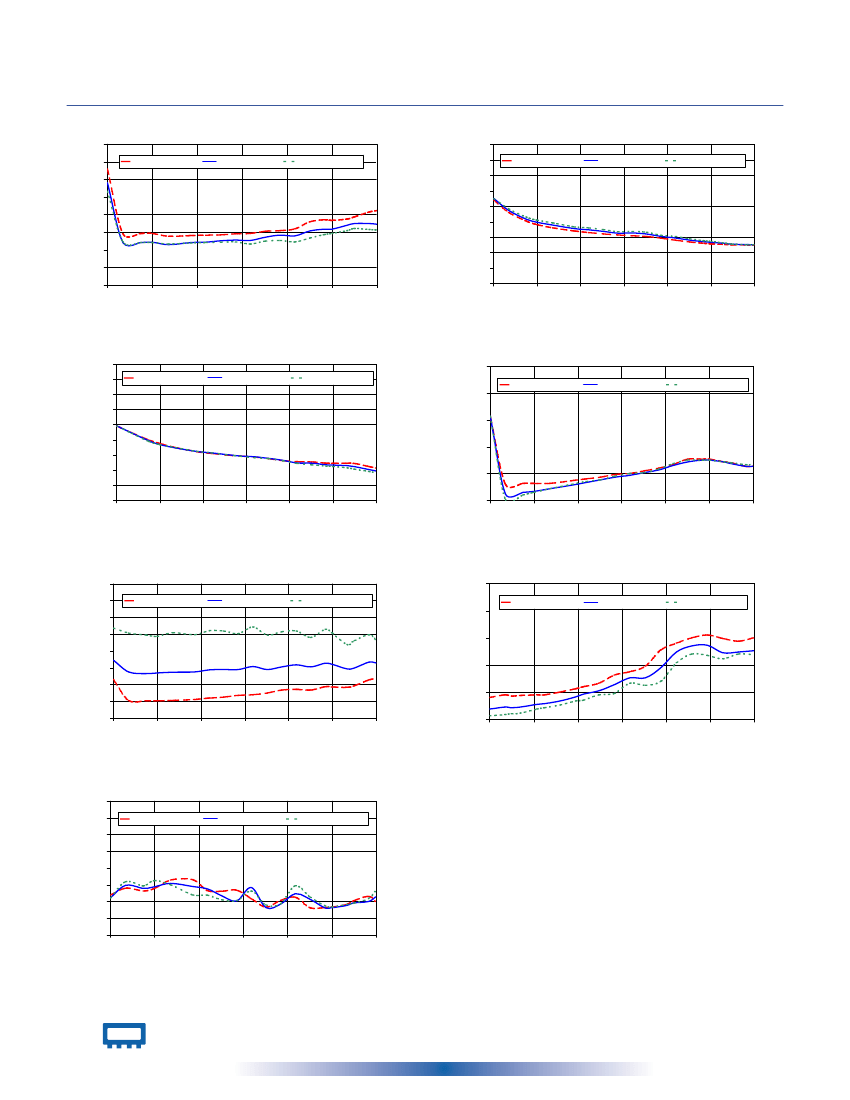

Typical Performance Data

Frequency

(MHz)

Conversion

Loss

(dB)

30.51

65.10

45.10

70.10

106.65

156.31

189.41

222.51

255.62

288.72

321.82

354.93

388.03

421.13

454.24

470.79

503.89

520.45

553.55

570.10

+13dBm

6.90

5.20

5.21

5.14

5.20

5.21

5.25

5.27

5.26

5.35

5.41

5.39

5.53

5.58

5.69

5.74

5.72

Isolation

L-R

(dB)

+13dBm

65.03

57.24

51.59

49.55

47.71

45.43

44.63

43.63

42.50

42.63

41.96

40.38

39.35

37.97

36.94

36.54

35.79

35.31

35.05

35.01

Isolation

L-I

(dB)

+13dBm

59.15

54.53

49.29

46.80

44.52

42.16

41.28

40.19

39.17

38.66

37.65

36.31

34.63

34.45

33.38

33.15

32.80

32.18

30.26

29.30

VSWR RF

Port

(:1)

+13dBm

1.94

1.07

1.09

1.10

1.13

1.17

1.20

1.23

1.26

1.28

1.31

1.34

1.39

1.43

1.45

1.43

1.41

1.38

VSWR LO

Port

(:1)

+13dBm

2.72

2.37

2.32

2.34

2.36

2.37

2.43

2.44

2.53

2.44

2.52

2.58

2.52

2.63

2.59

2.46

2.49

2.66

2.64

0.51

35.10

75.10

100.10

136.65

Outline Dimensions (

inch

)

.74

18.80

.37

9.40

.90

22.86

.54

13.72

.122

3.10

.50

12.70

.496

12.60

.04

1.02

.106

2.69

.16

4.06

.29

7.37

186.31

219.41

252.51

285.62

318.72

351.82

384.93

418.03

451.13

484.24

500.79

533.89

550.45

583.55

600.10

.122 grams

3.10

20.0

Electrical Schematic

Mini-Circuits

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

Mini-Circuits

ISO 9001 & ISO 14001

Certified

REV. B

M105396

ZX05-1MHW

RVN/TD/CP

060717

Page 1 of 2
