14A-5.0-28B32: DescriptionSPLIT BOBBIN POWER TRANSFORMER, 10 VA; CategoryPower/power management; File Size108KB，1 Pages; ManufacturerPulse A Technitrol Company; Websitehttp://www.pulseeng.com

Download Datasheet Parametric View All

14A-5.0-28B32 Overview

SPLIT BOBBIN POWER TRANSFORMER, 10 VA

14A-5.0-28B32 Parametric

Parameter Name	Attribute value
Secondary current 1	0.3600 A
state	ACTIVE
Installation features	Through holeMOUNTED
Dimensions	L47.62XB39.67XH34.92 (mm)/L1.875XB1.562XH1.375 (inch)
Manufacturer Series	14A-5.0-28B32
Center Tap Feature 1	0.0
Center tap feature 2	0.0
Isolation voltage	4.00E6 kV
Number of secondary coils	2
Rated coil	Dual 115V
Secondary current 2	0.3600 A
Secondary voltage 1	14 V
Secondary voltage 2	14 V
Transformer type	split coil
Rated VA	10 VA

Preview

Download Datasheet

View All

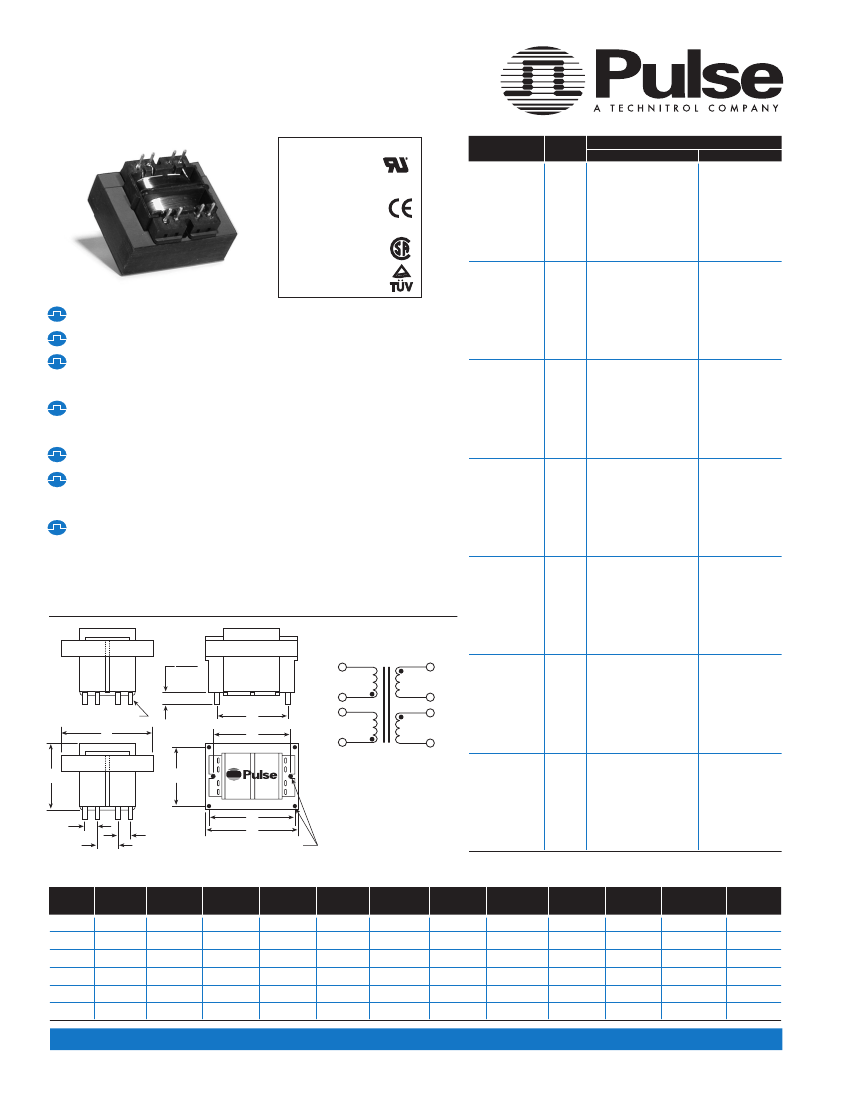

Laminated transformers

Low Frequency, Open-Style Laminated,

International PC Plug-In Series

AgENCy

APPROVALS

n

UL, 506, File E73539

n

UL Recognized

Class B

n

UL 1446, File E179499

n

CSA 22.2#66,

File LR68051-2

n

TUV, EN61558

Part No.

PC Mount

14A-2.5-10B1

14A-5.0-10B2

14A-10-10B3

14A-20-10B4

14A-30-10B5

14A-56-10B6

14A-2.5-12B7

14A-5.0-12B8

14A-10-12B9

14A-20-12B10

14A-30-12B11

14A-56-12B12

14A-2.5-16B13

14A-5.0-16B14

14A-10-16B15

14A-20-16B16

14A-30-16B17

14A-56-16B18

14A-2.5-20B19

14A-5.0-20B20

14A-10-20B21

14A-20-20B22

14A-30-20B23

14A-56-20B24

14A-2.5-24B25

14A-5.0-24B26

14A-10-24B27

14A-20-24B28

14A-30-24B29

14A-56-24B30

14A-2.5-28B31

14A-5.0-28B32

14A-10-28B33

14A-20-28B34

14A-30-28B35

14A-56-28B36

14A-2.5-36B37

14A-5.0-36B38

14A-10-36B39

14A-20-36B40

14A-30-36B41

14A-56-36B42

VA

(Size)

2.5

5

10

20

30

56

2.5

5

10

20

30

56

2.5

5

10

20

30

56

2.5

5

10

20

30

56

2.5

5

10

20

30

56

2.5

5

10

20

30

56

2.5

5

10

20

30

56

Secondary RMS Rating

Series

Parallel

10V C.T. @ 0.25A

5V @ 0.5A

10V C.T. @ 0.5A

5V @ 1.0A

10V C.T. @ 1.0A

5V @ 2.0A

10V C.T. @ 2.0A

5V @ 4.0A

10V C.T. @ 3.0A

5V @ 6.0A

10V C.T. @ 5.6A

5V @ 11.2A

12.6V C.T. @ 0.2A

6.3V @ 0.4A

12.6V C.T. @ 0.4A

6.3V @ 0.8A

12.6V C.T. @ 0.8A

6.3V @ 1.6A

12.6V C.T. @ 1.6A

6.3V @ 3.2A

12.6V C.T. @ 2.4A

6.3V @ 4.8A

12.6V C.T. @ 4.4A

6.3V @ 8.8A

16V C.T. @ 0.15A

8V @ 0.3A

16V C.T. @ 0.31A

8V @ 0.62A

16V C.T. @ 0.62A

8V @ 1.25A

16V C.T. @ 1.25A

8V @ 2.5A

16V C.T. @ 1.9A

8V @ 3.8A

16V C.T. @ 3.5A

8V @ 7.0A

20V C.T. @ 0.12A

10V @ 0.24A

20V C.T. @ 0.25A

10V @ 0.5A

20V C.T. @ 0.5A

10V @ 1.0A

20V C.T. @ 1.0A

10V @ 2.0A

20V C.T. @ 1.5A

10V @ 3.0A

20V C.T. @ 2.8A

10V @ 5.6A

24V C.T. @ 0.1A

12V@ 0.2A

24V C.T. @ 0.21A

12V @ 0.42A

24V C.T. @ 0.42A

12V @ 0.84A

24V C.T. @ 0.83A

12V @1.66A

24V C.T. @ 1.25A

12V @ 2.5A

24V C.T. @ 2.33A

12V @ 4.66A

28V C.T. @ 0.09A

14V @ 0.18A

28V C.T. @ 0.18A

14V @ 0.36A

28V C.T. @ 0.36A

14V @ 0.72A

28V C.T. @ 0.72A

14V @ 1.44A

28V C.T. @ 1.06A

14V @ 2.12A

28V C.T. @ 2.0A

14V @ 4.0A

36V C.T. @ 0.07A

18V @ 0.14A

36V C.T. @ 0.14A

18V @ 0.28A

36V C.T. @ 0.28A

18V @ 0.56A

36V C.T. @ 0.56A

18V @ 1.12A

36V C.T. @ 0.82A

18V @ 1.64A

36V C.T. @ 1.56A

18V @ 3.12A

PC board plug-in mounting

Double reinforced insulation

Dual bobbin; high (4000V) primary to

secondary isolation

Non-concentric design - eliminates ESS and

reduces primary to secondary capacitance

No crossover between primary/secondary leads

Vacuum impregnated - withstands board washing

systems and reduces audible noise

Baked resin provides an environmentally-

resistant finish

mechanical

½½½½

½½½

½

½½

½

½½½½½½½½½½½½½½½

schematic

½

½½

½½ ½½

½ ½

½½½½½½½½½½½½½½½½½½½

½

½ ½

½

½ ½

½

dimensions (inches)

VA

(size)

2.5

5

10

20

30

56

Wt.

(lb.)

0.25

0.37

0.53

0.90

1.15

1.70

L

1.625

1.875

2.25

2.625

3.000

W

1.312

1.562

1.875

2.187

2.500

H

1.125

1.375

1.625

1.562

1.812

A

0.20

0.40

0.55

0.60

B

0.250

0.400

0.275

0.300

C

1.00

1.14

1.46

1.68

1.90

D

—

2.18

2.50

E

—

1.75

2.00

F

1.062

1.250

1.500

—

Dim.

.025 SQ

.038 SQ

.045 SQ

E

#4

#6

USA 858 674 8100

●

Germany 49 7032 7806 0

●

Singapore 65 6287 8998

●

Shanghai

86 21 54643211 / 2

●

China 86 769 85538070

●

Taiwan 886 3 4641811

www.pulseeng.com

40

LT2007 (12/09)
