PLR3731: DescriptionRotary Switch, 3 Positions, 4P3T, Latched, 0.15A, 250VDC, Solder Terminal, Spindle Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size105KB，2 Pages; ManufacturerAPEM

Download Datasheet Parametric View All

PLR3731 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PLR3731	-	-	View	Buy Now

PLR3731 Overview

Rotary Switch, 3 Positions, 4P3T, Latched, 0.15A, 250VDC, Solder Terminal, Spindle Actuator, Panel Mount

PLR3731 Parametric

Parameter Name	Attribute value
Maker	APEM
Objectid	1804888144
Reach Compliance Code	compliant
ECCN code	EAR99
compound_id	70619614
Actuator type	SPINDLE
body height	14.1 mm
Body length or diameter	26.2 mm
Contact (AC) maximum rated R load	.15A@250VAC
Maximum contact current (AC)	0.15 A
Maximum contact current (DC)	0.15 A
Contact (DC) maximum rated R load	.15A@250VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	250 V
Electrical life	10000 Cycle(s)
Graduation angle	30 deg
Manufacturer's serial number	PLR
Installation features	PANEL MOUNT
Number of positions	3
Number of switching segments	1
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
surface mount	NO
Switch action	LATCHED
switch function	4P3T
Switch type	ROTARY SWITCH
Termination type	SOLDER

Preview

Download Datasheet

View All

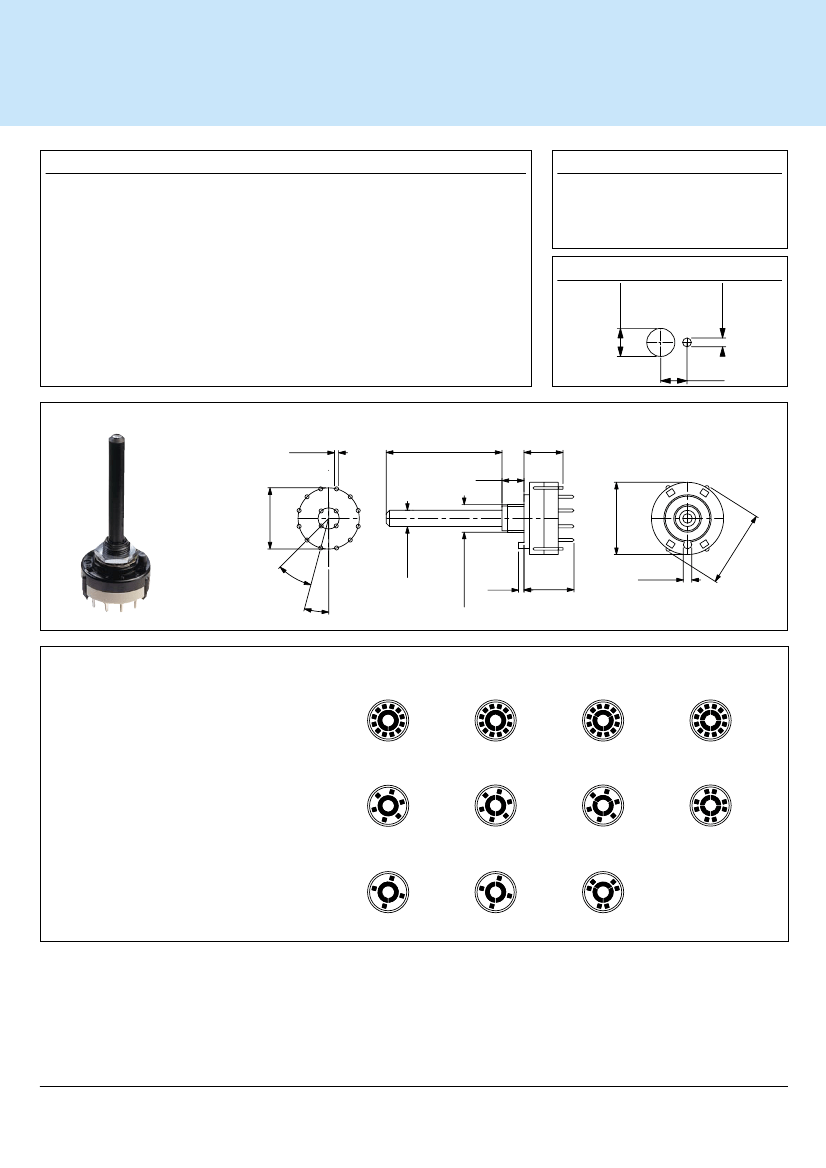

PLR SERIES

PROFESSIONAL MINIATURE ROTARY SWITCHES

GENERAL SPECIFICATIONS

MATERIALS

• Max. voltage (resistive) : 250V AC/DC

• Max. current : 150mA

• Initial contact resistance : 20 mΩ max.

• Insulation resistance: 1.000 MΩ min.

• Dielectric stregth : 1.000 Vrms

• Life : 10.000 cycles

• Operating torque : 8,6 Ncm

±2

• End stop torque : 1,13 Ncm min.

• Fixing torque : 1,1 Ncm max.

• Operating temperature : -30°C to +85°C

• Standard hardware supplied : 1 hex nut and 1 locking ring

Special accessories (buttons) : see page 7

• Moulded parts : PA 6/6, glass

filled

• Contacts : brass, gold or silver

plated, depending on version

PANEL CUT

-

OUT

Ø10.20

(.401 DIA)

Ø 3.20

(.125 DIA)

9.50

(.374)

9

Dimensions

Ø1.50

(.059 DIA)

42.00

(1.653)

8.00

(.314)

6

5

Ø22.20

(.874 DIA)

4

3

2

1

30

.00

°

14.10

(.555)

7

8

Ø26.20

(1.031 DIA)

8

10

11

A

Ø5.90

(.232 DIA )

12

Ø10.00X0.75SI

(.393 DIA X0.75IS)

2.00

(.078)

18.10

(.712)

Ø3.05

(.120 DIA)

15.00°

Available configurations (top view)

6

5

4

7

8

9

10

11

5

4

3

2

1

12

6

7

8

9

10

11

5

4

3

2

1

12

6

7

8

9

10

11

5

4

3

2

1

12

6

7

8

9

10

11

30° INDEXING (standard)

(models listed opposite)

3

2

1

12

1 pole, 12 pos.

6

7

8

9

10

11

2 poles, 6 pos.

6

5

4

3

2

1

12

7

8

9

10

11

3 poles, 4 pos.

6

5

4

3

2

1

12

7

8

9

10

11

4 poles, 3 pos.

6

5

4

3

2

1

12

7

8

9

10

11

60° INDEXING

(on request)

5

4

3

2

1

12

1 pole, 6 pos.

6

7

8

9

10

11

2 poles, 3 pos.

6

5

4

3

2

1

12

7

8

9

10

11

3 poles, 2 pos.

6

5

4

3

2

1

12

7

8

9

10

11

4 poles, 2 pos.

90° INDEXING

(on request)

5

4

3

2

1

12

1 pole, 4 pos.

2 poles, 2 pos.

3 poles, 2 pos.

4

A P E M

3

4

11

(1. Ø 27

09 .90

8D

IA

)

D

10

6

7

B

C

9

2

5
