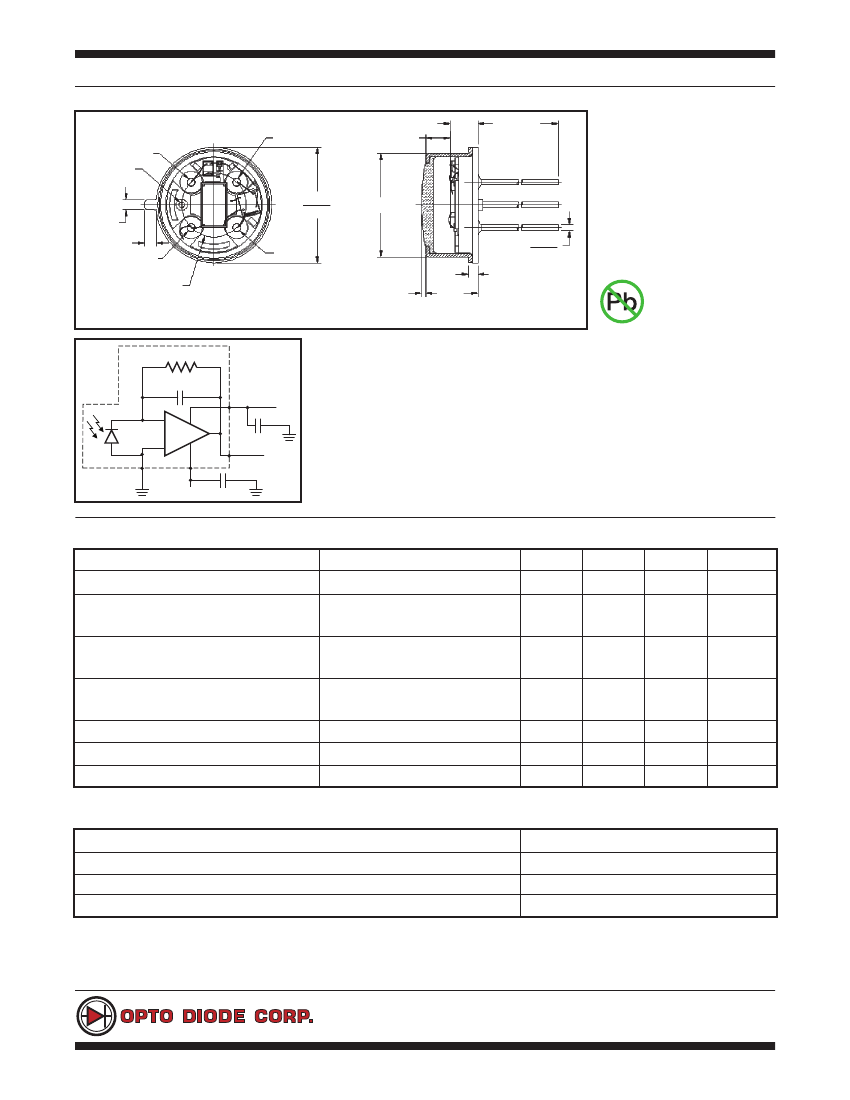

BLUE/GREEN ENHANCED 6 mm
2
PHOTODIODE-PREAMPLIFIER
.085
.050 MIN
ODA-6WB-100M
FEATURES
• Large active area
• Low noise
• High sensitivity
V
out
CASE
+V
.078
.031
.035
GND
(∅.200 PIN CTRS)
–V
∅.370
∅.358
(∅.325)
∅.016
∅.019
.028
(.012 MAX)
.163
• Custom gains available
• Hermetically sealed TO-39
• Blue enhanced detector
SHOWN WITH CAP REMOVED FOR CLARITY
R1
C1
3
RoHS
IN
D1
–
U1
4
2
0.1 ufd
+V
IN +
1
V OUT
–V
0.1 ufd
ELECTRO-OPTICAL CHARACTERISTICS AT 23°C
PARAMETERS
Dark Offset
TEST CONDITIONS
V
s
= ± 5 V
BW = 0.1 to 1000 Hz
λ = 450 nm
λ = 940 nm
λ = 940 nm
V
s
= ± 5 V
V
s
= ± 5 V
V
s
= ± 5
MIN
TYP
198
1.2
MAX
250
±2
UNITS
µV rms
V/µW
Hz
pW/√Hz
mV
Dark Offset Noise
Sensitivity
Frequency Response (-3 db)
NEP
20
900
28
1000
0.08
100
850
950
Transimpedence Gain
Supply Current
MΩ
µA
THERMAL PARAMETERS
Power Dissipation
Voltage Supplies
± 5 to ± 15V
–25° to +100° C
+260° C
30 mW
Storage and Operating Temperature
Soldering Temperature (1/16" from case for 3 secconds max)
750 Mitchell Road, Newbury Park, California 91320
Phone: (805) 499-0335, Fax: (805) 499-8108
Email: sales@optodiode.com, Website: www.optodiode.com
Revision February 26, 2013
BLUE/GREEN ENHANCED 6 mm
2
PHOTODIODE-PREAMPLIFIER
TYPICAL SPECTRAL RESPONSE
ODA-6WB-100M
70
60
RESPONSIVITY (V/µW)
50
40
30
20
10
0
200
300
400
500
600
700
800
900 1000 1100 1200
WAVELENGTH (nm)
750 Mitchell Road, Newbury Park, California 91320
Phone: (805) 499-0335, Fax: (805) 499-8108
Email: sales@optodiode.com, Website: www.optodiode.com
Revision February 26, 2013
