ECWU4392V17: DescriptionCAPACITOR, METALLIZED FILM, POLYETHYLENE NAPHTHALATE, 250 V, 0.01 uF, SURFACE MOUNT, 1913; CategoryPassive components capacitor; File Size73KB，2 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance; Related ProductsFound19parts with similar functions to ECWU4392V17

Download Datasheet Parametric View All

ECWU4392V17 Overview

CAPACITOR, METALLIZED FILM, POLYETHYLENE NAPHTHALATE, 250 V, 0.01 uF, SURFACE MOUNT, 1913

ECWU4392V17 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Panasonic
package instruction	, 1913
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	16 weeks
capacitance	0.0039 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYETHYLENE NAPHTHALATE
JESD-609 code	e1
Manufacturer's serial number	ECWU(C)
Installation features	SURFACE MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR
positive tolerance	5%
Rated (DC) voltage (URdc)	400 V
size code	1913
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal shape	WRAPAROUND

Preview

Download Datasheet

View All

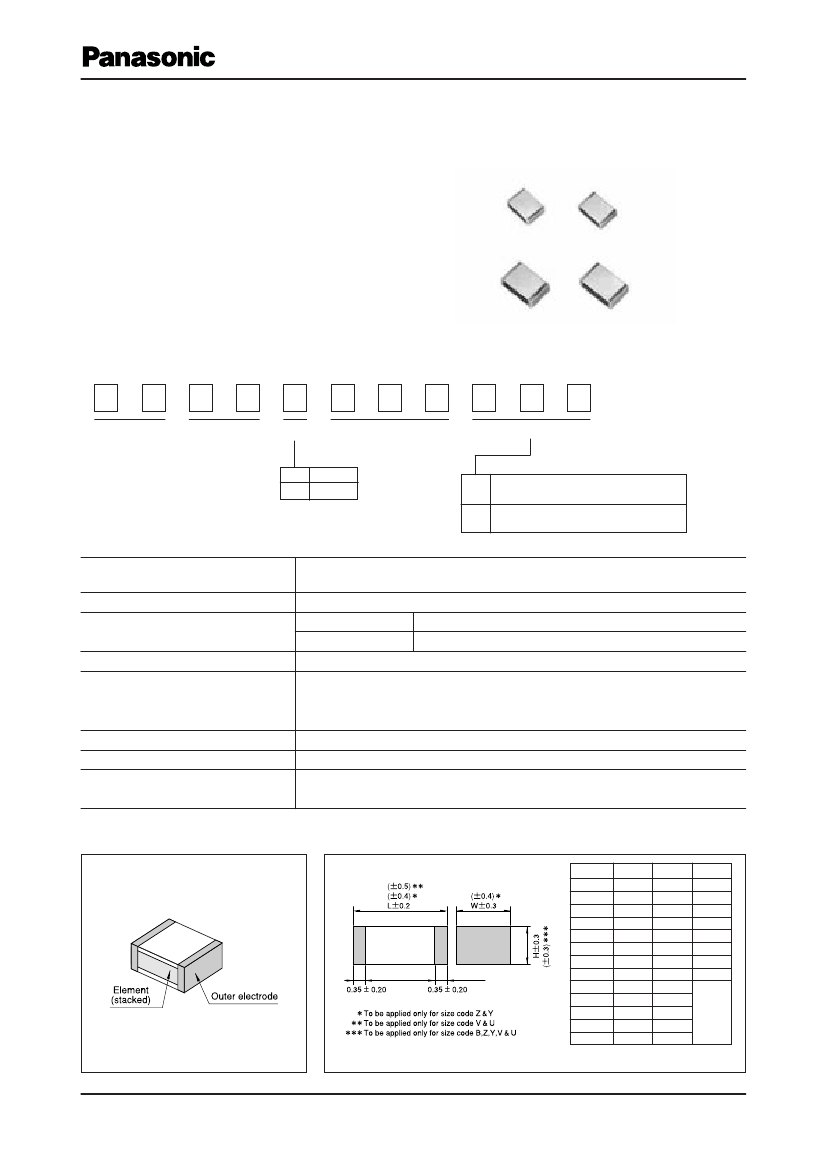

Film Chip Capacitor

Type:

ECWU(C)

Stacked metallized PEN film dielectric with simple

mold-less construction

sFeatures

•

Small in size

•

For reflow soldering

sRecommended

Applications

•

DC Blockiing for xDSL

sExplanation

of Part Numbers

Rated voltage

Capacitance

Suffix

Product code

Dielectric

construction

250VDC

400VDC

V16

for xDSL,Withstand voltage:400VDC

Cap.tol

±5%

for xDSL,Withstand voltage:600VDC

V17

Cap.tol

±5%

sSpecifications

Category temp.range

(Including temperature-rise on unit surface)

Rated voltage

Capacitance range

Capacitance tolerance

Withstand voltage

Dissipation factor

Insulation resistance

Soldering conditions

–55 to +85˚C

250VDC, (V16), 400VDC, (V17)

250VDC(V16)

0.001 to 0.12 µF (E12)

400VDC(V17)

±5%(J)

0.001 to 0.15 µF (E12)

Between terminals

250VDC(V16) : 400VDC

400VDC(V17) : 600VDC

1.0%(20˚C,1kHz)

60s

3000MΩ(20˚C,100VDC, 60s)

Reflow soldering

240˚C max. and 60 sec max. at more than 220˚C (Temp. at cap. surface)

sConstruction

sDimensions

in mm (not to scale)

Size code

E3a

4.8

6.0

7.1

9.8

3.3

4.1

5.0

6.3

8.0

1.4

2.0

2.4

2.8

2.0

2.4

2.8

3.2

gRefer

to the column “Rating, Dimensions

& Quantity”.

Design, Specifications are subject to change without notice.

Ask factory for technical specifications before purchase and/or use.

Whenever a doubt about safety arises from this product, please inform us immediately for technical consultation without fail.

Mar. 2005
