TrueNet
®
Category 5e Specialty Patch Cords
Impedance matched for use in TrueNet® structured cabling systems; these specialty patch cords
exceed all performance requirements for Category 5e. The plug is designed with integrated strain
relievers that prevent the cable from moving at the termination point when the cable is flexed,
safeguarding circuit integrity and guaranteeing maximum performance. The strain relievers also
ensure that proper bend radii are maintained throughout the network. These cords are available
in plenum or riser versions to meet all requirements within the LAN and Data Center environment.

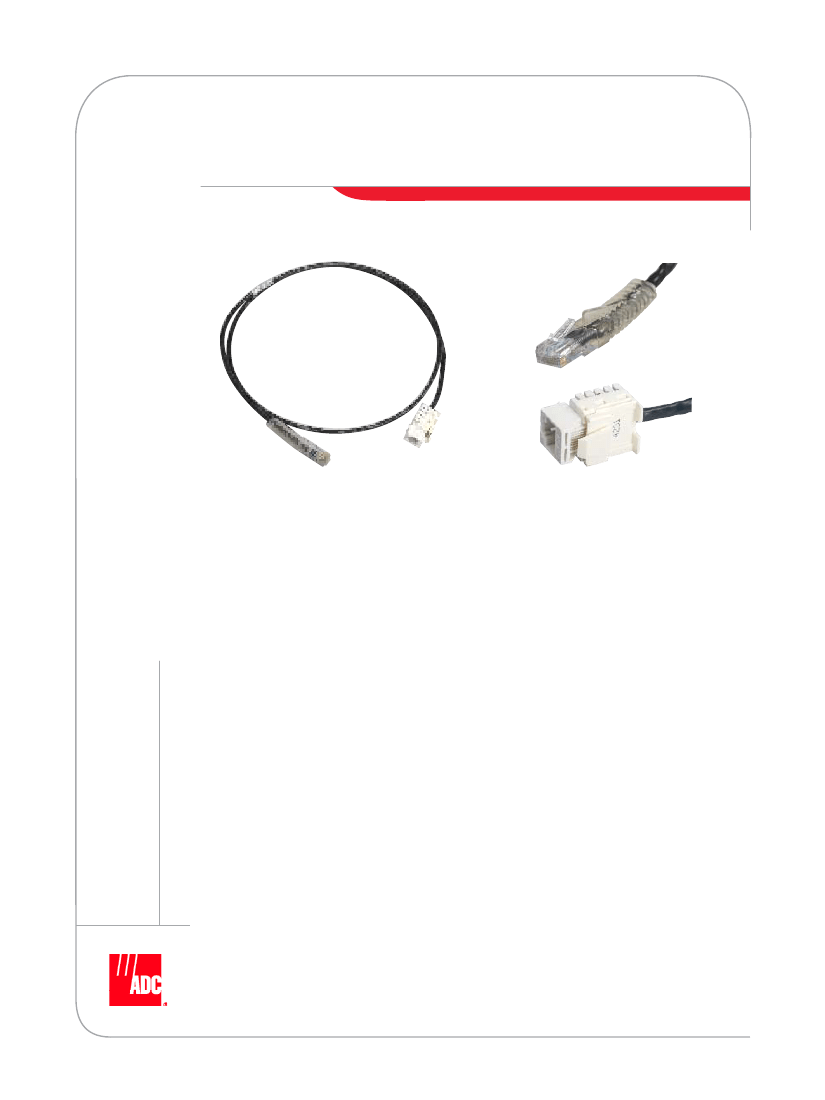

The specialty cable assemblies are available in plug to plug or jack to plug configuration for ease of
installation in a data center or a zone cabling application.
Features:
• Exceeds TIA/EIA Category 5e requirements
Spec Sheet
• Cable assemblies are available in riser or plenum solid horizontal cable versions
• Durable design to be in operation beyond 20-year product warranty
• Impedance matched patch cord for maximum throughput
• Flexible strain relief boot maintains proper bend radius to ensure peak performance
• Plug to jack cable assemblies utilizes ADC’s K610 5e jack and LSA-PLUS 45 degree angle IDC design
• Up to 28 percent smaller outer diameter than other patch cords
• UL 1863 listed and Category 5e performance verified
ww w. ad c . co m
•
+ 1- 95 2 -9 38 -80 8 0
•
1 -8 0 0 -3 6 6 - 3 8 9 1
Specifications
Operating Temperature Range:
RJ45 Plug Interface According to:
Transmission Performance and Reliability:
Number of Plug Insertion Cycles:
Conductor:
Nominal Outer Diameter:
Safety Rating:
Flammability Rating:
-10º to 60 ºC (14º to 140 ºF)
IEC 60603-7
≥
TIA/EIA 568-B.2-1 Category 5e
≥
ISO 11801 Class D standard
≥
750 (IEC/EN 60603-7)
24 AWG
4.57mm (.180”) Plenum and 4.7mm (.185”) Riser
UL 1863
UL 94 V-0
Note: See TrueNet Category 5e Plenum and Riser data sheets for additional detail for cable specifications.
Ordering Information
Description
Ordering Number
Patch Cords R45 Plug to RJ45 Plug
C5e UTP RJ45 plug to RJ45 568A plug Riser Patch Cord
C5e UTP RJ45 plug to RJ45 568B plug Riser Patch Cord
C5e UTP RJ45 plug to RJ45 568A plug Plenum Patch Cord
C5e UTP RJ45 plug to RJ45 568B plug Plenum Patch Cord
Sub XX for color: BL=Blue, BK=Black, GY=Gray, RD=Red, GN=Green, YL=Yellow, WT=White
Sub YY for length: 04= 4 feet, 07= 7 feet, 10=10 feet, 15=15 Feet, 25=25 feet, 50=50 feet
Call ADC for additional colors and lengths
TP5ETAR0XXYY
TP5ETAR-XXYY
TP5ETAP0XXYY
TP5ETAP-XXYY
Ordering Information
Description
Ordering Number
Patch Cords R45 Plug to RJ45 Jack
Spec Sheet
C5e UTP RJ45 plug to RJ45 jack 568A Riser Patch
C5e UTP RJ45 plug to RJ45 jack 568B Riser Patch
C5e UTP RJ45 plug to RJ45 jack 568A Plenum Patch Cord
C5e UTP RJ45 plug to RJ45 jack 568B Plenum Patch Cord
TP5ETAJ0XXYY
TP5ETAJ-XXYY
TP5ETAJP0XXYY
TP5ETAJP-XXYY
Sub XX for color: BL=Blue, BK=Black, GY=Gray, GN=Green, IV=Ivory, RD=Red, YL=Yellow, WT=White, OR=Orange, VT= Violet
Sub YY for length: 07= 7 feet, 15=15 Feet, 25=25 feet, 30= 30 feet, 35= 35 feet 50=50 feet
Call ADC for additional lengths
Plenum cable assemblies use blue cable and riser cable assemblies use white cable. Only the K610 jack color will change
.
Web Site: www.adc.com
From North America, Call Toll Free: 1-800-366-3891 • Outside of North America: +1-952-938-8080
Fax: +1-952-917-3237 • For a listing of ADC’s global sales office locations, please refer to our Web site.
ADC Telecommunications, Inc., P.O. Box 1101, Minneapolis, Minnesota USA 55440-1101
Specifications published here are current as of the date of publication of this document. Because we are continuously
improving our products, ADC reserves the right to change specifications without prior notice. At any time, you may
verify product specifications by contacting our headquarters office in Minneapolis. ADC Telecommunications, Inc.
views its patent portfolio as an important corporate asset and vigorously enforces its patents. Products or features
contained herein may be covered by one or more U.S. or foreign patents. An Equal Opportunity Employer
104640AE 5/07 Original © 2007 ADC Telecommunications, Inc. All Rights Reserved
