HTWF
HALL EFFECT
THUMBWHEEL
PROPORTIONAL OUTPUT THUMBWHEEL
FRICTION ACTUATION STYLE THUMBWHEEL
Standard Characteristics/Ratings:
MECHANICAL:
Mechanical Life:
250,000 full forward to full back with center detent
Initial Operating Force at Top of Roller:
2 oz min to 6 oz max @ 25°C
Max Allowable Radial Load:
30.0 lbs.

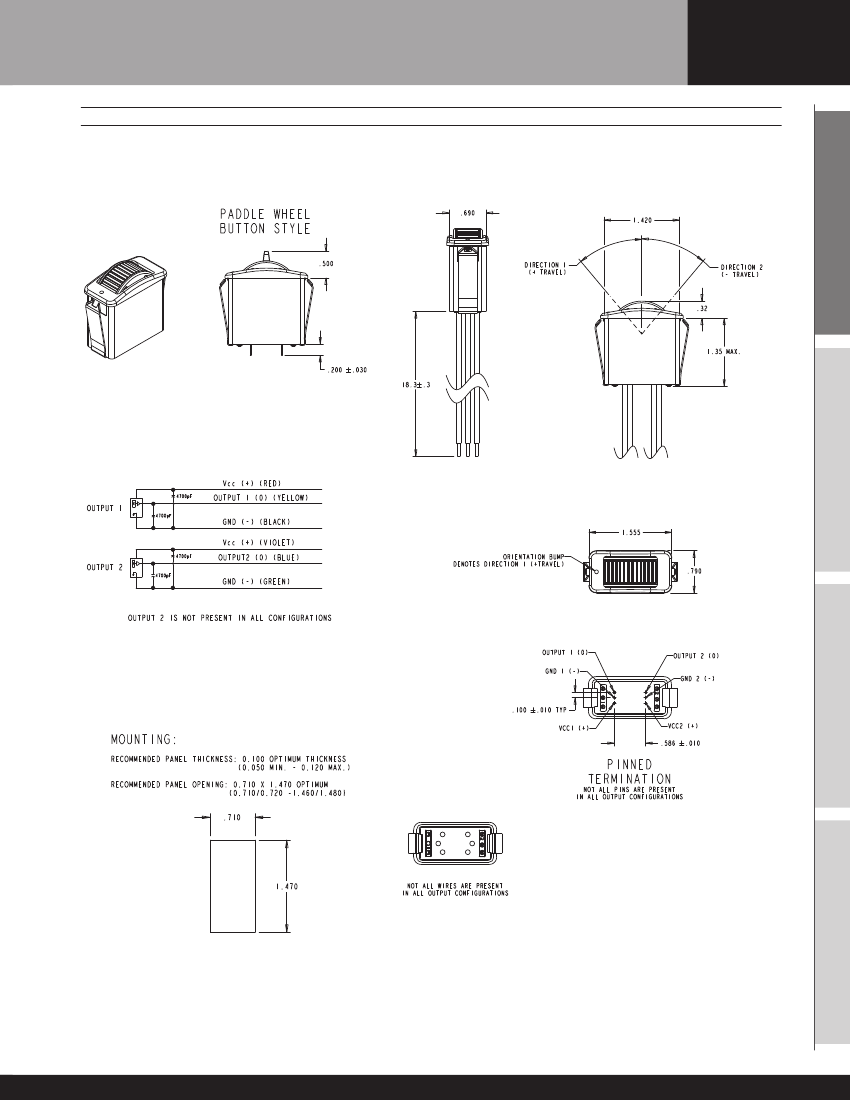

Paddle
Wheel Style
Knurled
Wheel Style
Drop:
3 feet max to concrete
ELECTRICAL RATINGS: Rated at Vcc = 5V @ 25°C
Load = 1mA (4–7KΩ)
Electrical
Supply Voltage
Output Voltage Tolerance
at Center

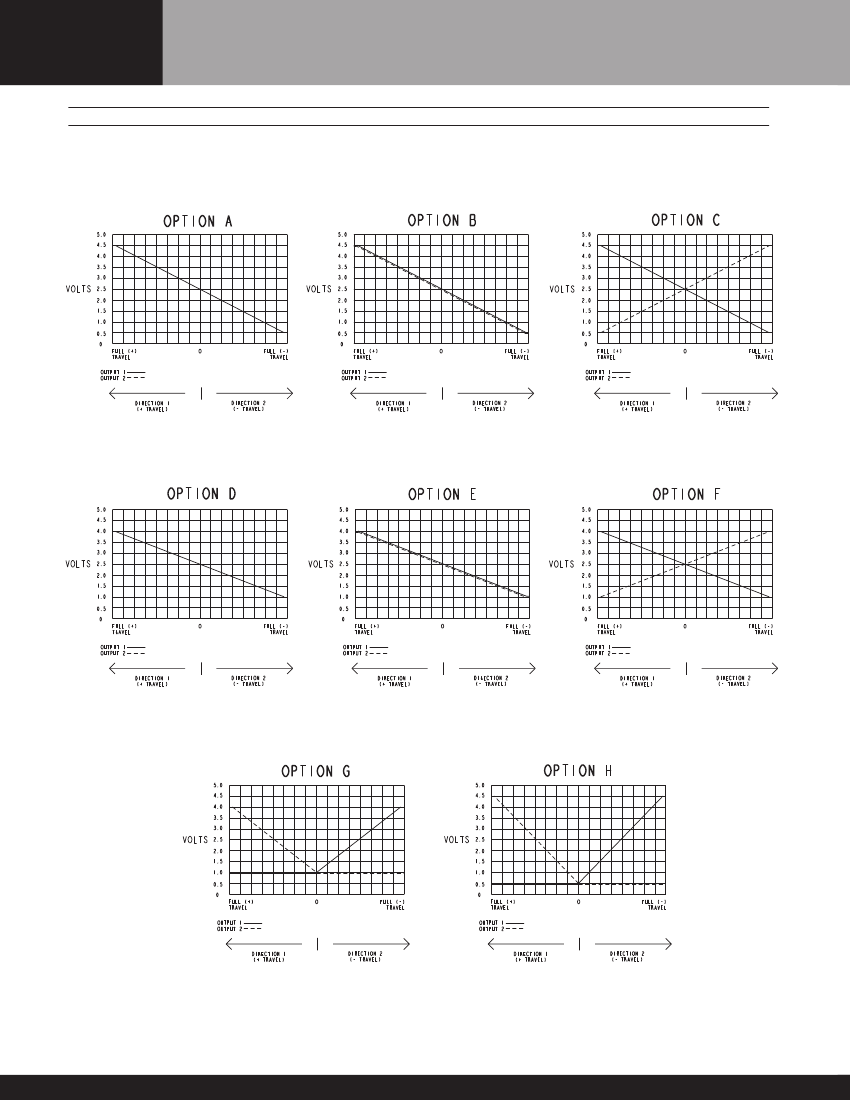

(see graph for output values)
Output Voltage Tolerance
Full Travel
(see graph for output values)
Supply Current Per Sensor
Units
VDC
VDC
@ 5V Vcc
VDC
@ 5V Vcc
mA
Min
4.5
-0.15
-0.25
N/A
Typ
5
N/A
N/A
N/A
Max
5.5
+0.15
+0.25
10

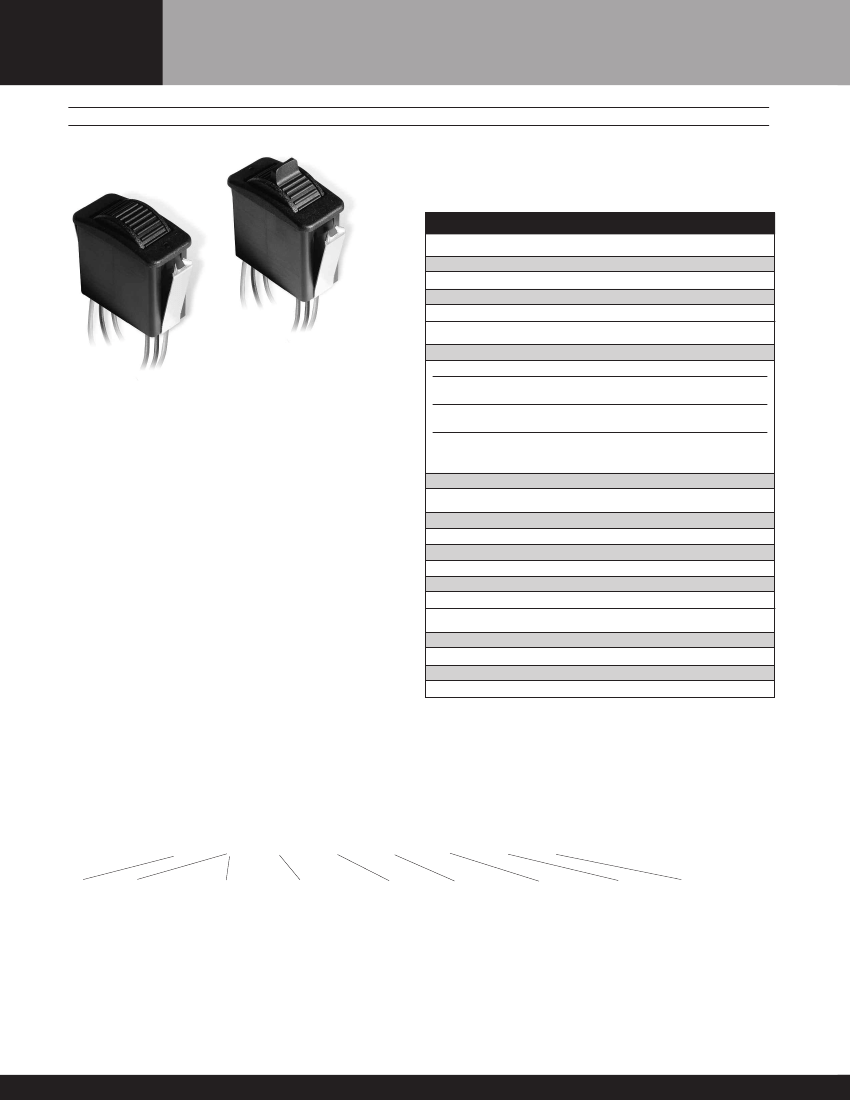

The HTWF Friction Thumbwheel offers a maintained position,
single axis thumbwheel actuator that provides a linear change
in voltage output in either direction from center. Options include
increasing or decreasing voltage output from the center position
to the full travel position, and single or dual (redundant) outputs
per axis. The HTWF Thumbwheel has a rocker style snap-in
mounting feature to accommodate a 1.47” x 0.710” panel opening.
The HTWF provides 250,000 cycle life, full forward/full backward,
is sealed to IP68S and offers excellent EMI/RFI immunity and
a flow through design. Ideal for heavy equipment, industrial
machines or remote control applications.
ELECTRONICS:
Seal Integrity:
Electronics IP68S
ENVIRONMENTAL:
Operating Temp Range:
-40°C to +85°C
Humidity:
Vibration:
Sand/Dust:
EMI:
RFI:
96% RH, 70°C, 96 hours
Per MIL-810F minimum integrity
Per SAE J1455
Withstand per MIL-STD-461D/SAE J1113-22
Withstand 100V/M 14Hz to 1GHz
Features:
• 250,000 cycle life, full forward/full backward with
center detent
• Maintained control positioning, no return to center
• Hall Effect contactless sensing technology
• Number of output options
• Choice of bezel & button colors
• Snaps into 1.47” x 0.710” panel opening
• Electronics sealed to IP68S
• Excellent EMI/RFI immunity
MATERIALS:
Button:
Bezel:
Snap Arms:
Mounting Hardware:
Thermoplastic
Thermoplastic
Stainless steel
None provided
HTWF PART NUMBER CODE
HTWF
Travel
1.
+/- 30°
–
X
X
Output 2
NONE
2.5 +/- 2.0VDC
2.5 -/+ 2.0VDC
NONE
2.5 +/- 1.5VDC
2.5 -/+ 1.5VDC
1.0 - 4.0VDC
0.5 - 4.5VDC
X
X
X
Button Style
1.
Knurled Wheel
2.
Paddle Wheel
X
Termination
X
X
Bezel Color
1.
Red
2.
Black
3.
Orange
4.
Yellow
5.
Green
6.
Blue
7.
Violet
8.
Gray
9.
White
Output 1
A.
2.5 +/- 2.0VDC
B.
2.5 +/- 2.0VDC
C.
2.5 +/- 2.0VDC
D.
2.5 +/- 1.5VDC
E.
2.5 +/- 1.5VDC
F.
2.5 +/- 1.5VDC
G.
1.0 - 4.0VDC
H.
0.5 - 4.5VDC
Operating Force
1.
4 oz
Button Color
1.
Red
2.
Black
3.
Orange
4.
Yellow
5.
Green
6.
Blue
7.
Violet
8.
Gray
9.
White
Detent (if required)
A.
Detent 2 oz increase
out of center in
both directions*
* Output options A–F do not
have a tolerance on the
center outputs unless
a center detent is selected.
Output options G & H are
only available with
center detent.
A.
18 AWG Wires,
18.3” Long,
Stripped Ends
B.
0.025” SQ. Pins
32
OTTO Full Line Catalog
Specifications Subject To Change Without Notice
