UPD750104CUA-XXX datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> UPD750104CUA-XXX

PDF

UPD750104CUA-XXX: DescriptionMicrocontroller, 4-Bit, MROM, 2MHz, MOS, PDIP42, 0.600 INCH, 1.778 MM PITCH, SHRINK, PLASTIC, DIP-42; CategoryThe embedded processor and controller Microcontrollers and processors; File Size188KB，12 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

UPD750104CUA-XXX Overview

Microcontroller, 4-Bit, MROM, 2MHz, MOS, PDIP42, 0.600 INCH, 1.778 MM PITCH, SHRINK, PLASTIC, DIP-42

UPD750104CUA-XXX Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NEC Electronics
Parts packaging code	DIP
package instruction	SDIP,
Contacts	42
Reach Compliance Code	compliant
Has ADC	NO
Address bus width
bit size	4
maximum clock frequency	2 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T42
JESD-609 code	e0
Number of I/O lines	34
Number of terminals	42
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
ROM programmability	MROM
Maximum seat height	5.08 mm
speed	2 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	1.8 V
surface mount	NO
technology	MOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

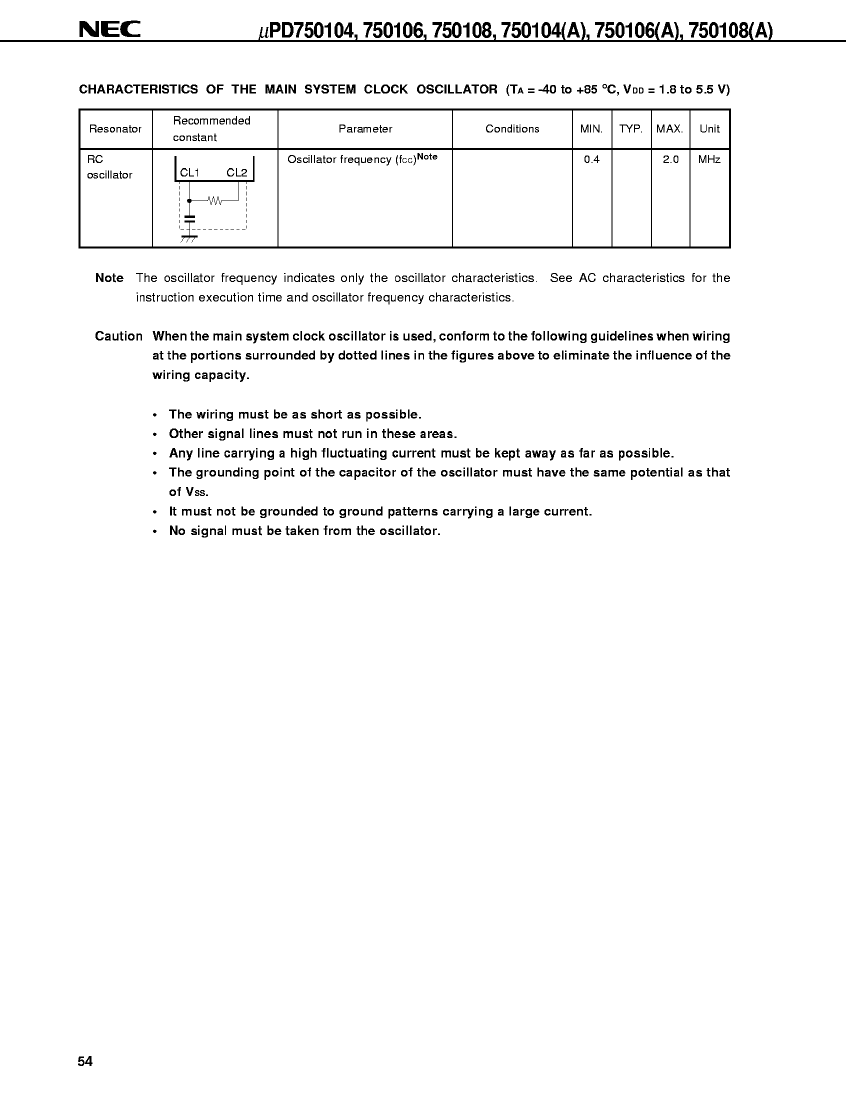

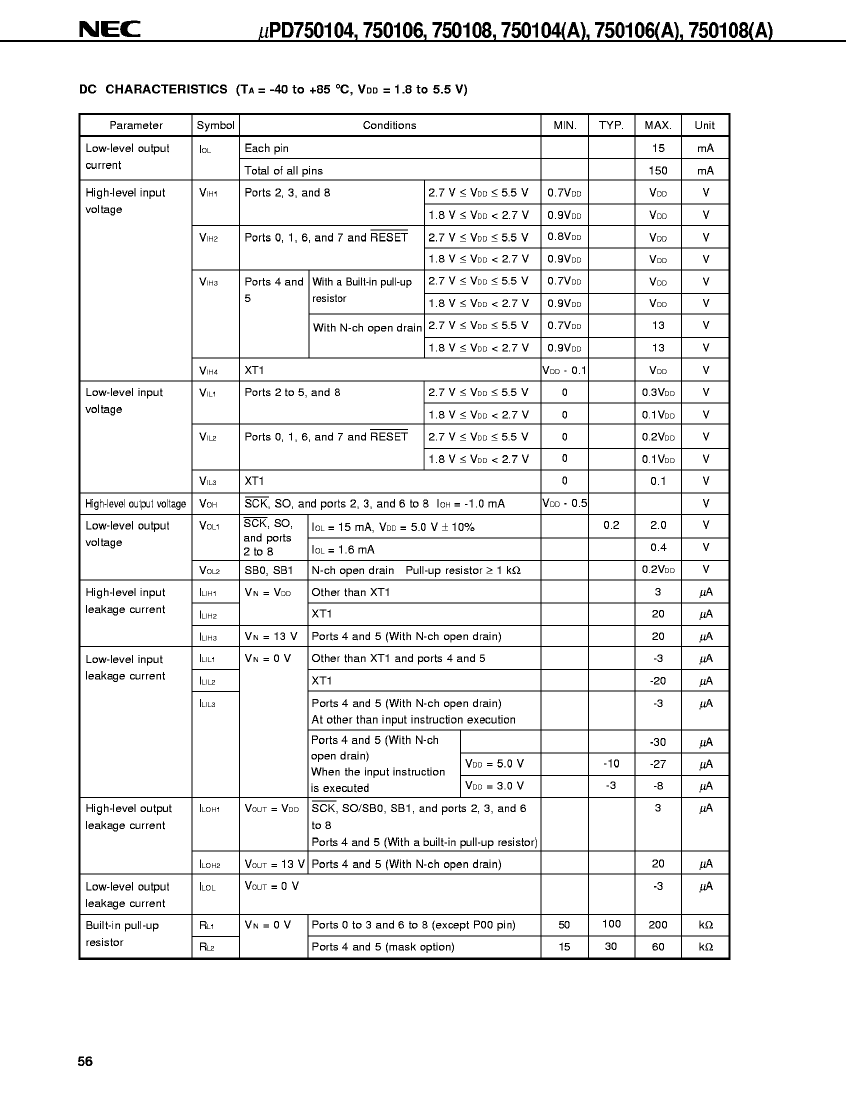

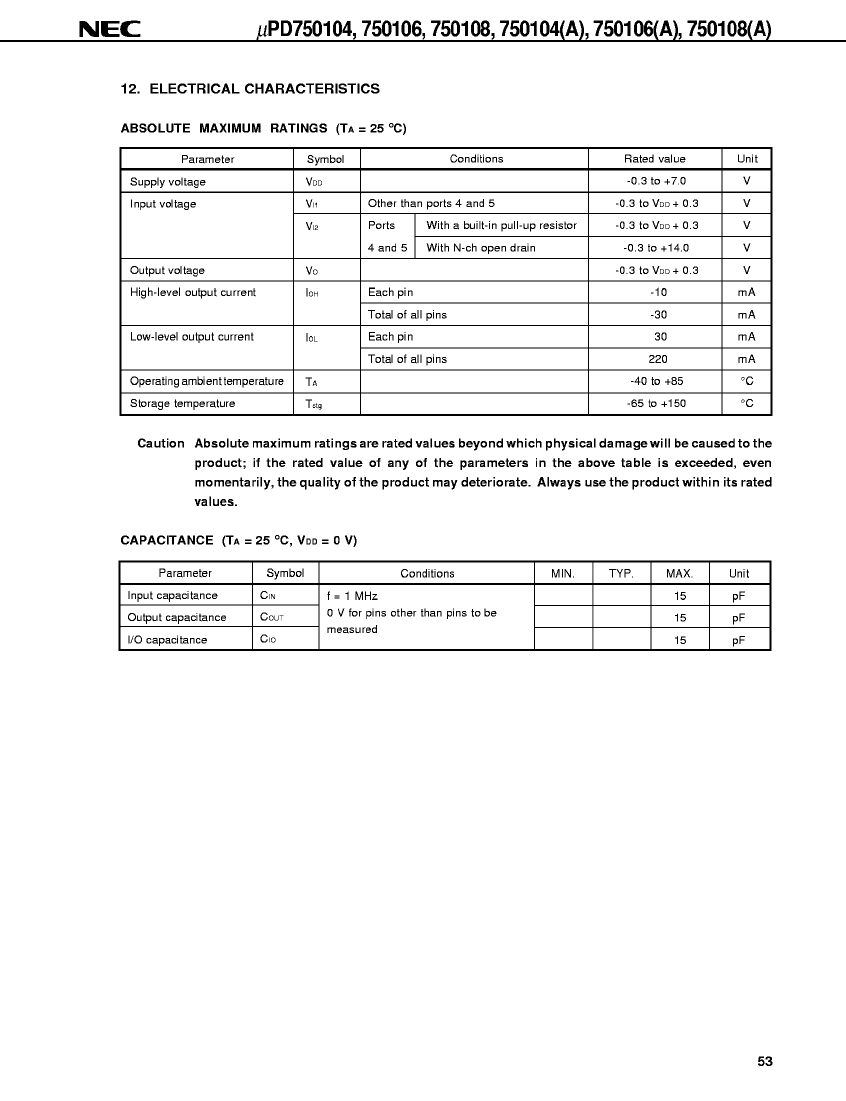

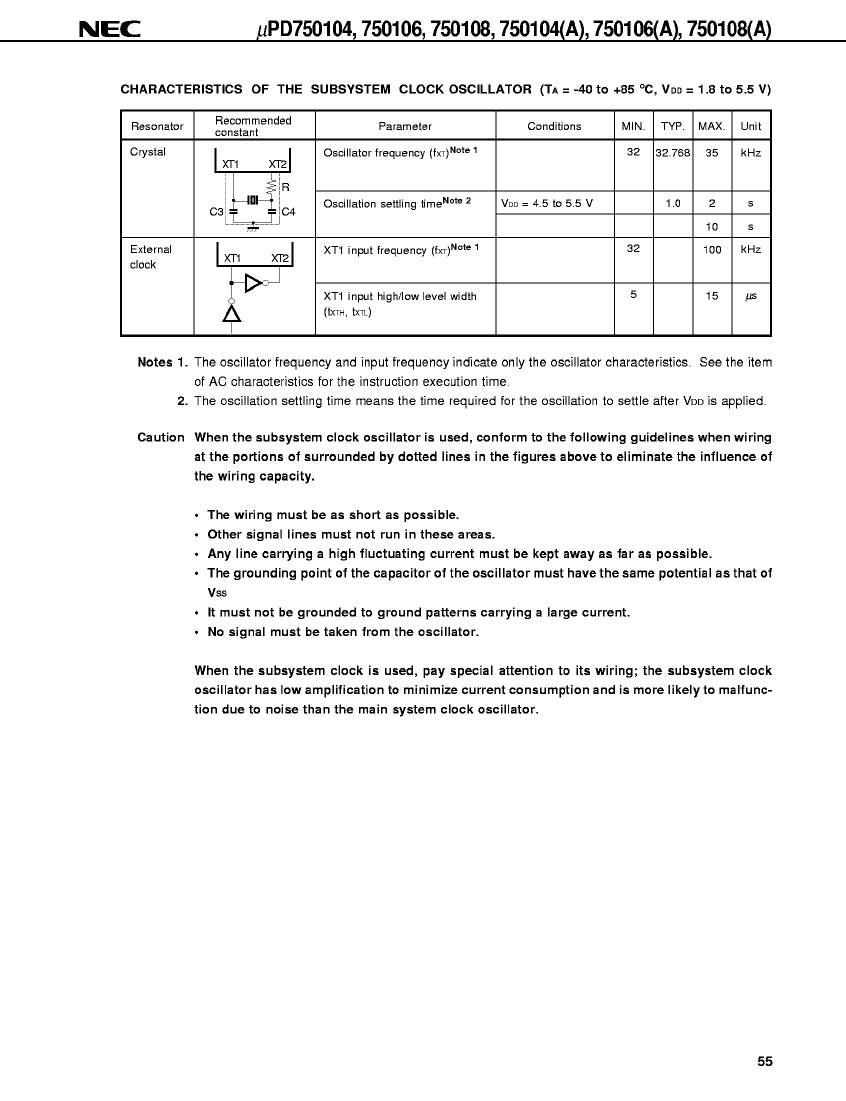

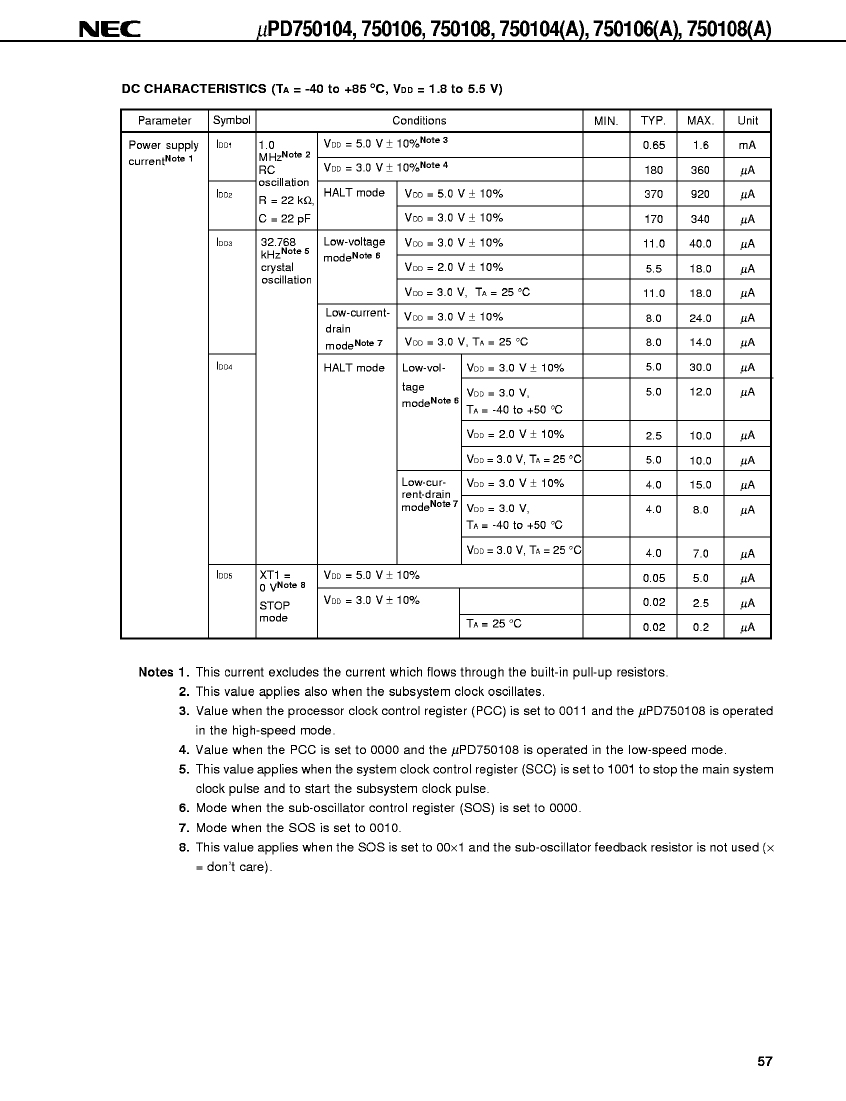

Preview

Download Datasheet

UPD750104CUA-XXX Related Products

	UPD750104CUA-XXX	UPD750108CUA-XXX	UPD750106GBA-XXX-3BS-MTX	UPD750104GBA-XXX-3BS-MTX	UPD750108GBA-XXX-3BS-MTX	UPD750106CUA-XXX
Description	Microcontroller, 4-Bit, MROM, 2MHz, MOS, PDIP42, 0.600 INCH, 1.778 MM PITCH, SHRINK, PLASTIC, DIP-42	Microcontroller, 4-Bit, MROM, 2MHz, MOS, PDIP42, 0.600 INCH, 1.778 MM PITCH, SHRINK, PLASTIC, DIP-42	Microcontroller, 4-Bit, MROM, 2MHz, MOS, PQFP44, 10 X 10 MM, 0.80 MM PITCH, PLASTIC, QFP-44	Microcontroller, 4-Bit, MROM, 2MHz, MOS, PQFP44, 10 X 10 MM, 0.80 MM PITCH, PLASTIC, QFP-44	Microcontroller, 4-Bit, MROM, 2MHz, MOS, PQFP44, 10 X 10 MM, 0.80 MM PITCH, PLASTIC, QFP-44	Microcontroller, 4-Bit, MROM, 2MHz, MOS, PDIP42, 0.600 INCH, 1.778 MM PITCH, SHRINK, PLASTIC, DIP-42
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	DIP	QFP	QFP	QFP	DIP
package instruction	SDIP,	SDIP,	QFP,	QFP,	QFP,	SDIP,
Contacts	42	42	44	44	44	42
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Has ADC	NO	NO	NO	NO	NO	NO
bit size	4	4	4	4	4	4
maximum clock frequency	2 MHz	2 MHz	2 MHz	2 MHz	2 MHz	2 MHz
DAC channel	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO
JESD-30 code	R-PDIP-T42	R-PDIP-T42	S-PQFP-G44	S-PQFP-G44	S-PQFP-G44	R-PDIP-T42
JESD-609 code	e0	e0	e0	e0	e0	e0
Number of I/O lines	34	34	34	34	34	34
Number of terminals	42	42	44	44	44	42
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PWM channel	NO	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SDIP	SDIP	QFP	QFP	QFP	SDIP
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	SQUARE	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH	IN-LINE, SHRINK PITCH	FLATPACK	FLATPACK	FLATPACK	IN-LINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
ROM programmability	MROM	MROM	MROM	MROM	MROM	MROM
Maximum seat height	5.08 mm	5.08 mm	3 mm	3 mm	3 mm	5.08 mm
speed	2 MHz	2 MHz	2 MHz	2 MHz	2 MHz	2 MHz
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V
surface mount	NO	NO	YES	YES	YES	NO
technology	MOS	MOS	MOS	MOS	MOS	MOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	1.778 mm	1.778 mm	0.8 mm	0.8 mm	0.8 mm	1.778 mm
Terminal location	DUAL	DUAL	QUAD	QUAD	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	15.24 mm	10 mm	10 mm	10 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maker	NEC Electronics	-	NEC Electronics	-	NEC Electronics	NEC Electronics
