UPD71054L-10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> UPD71054L-10

UPD71054L-10: DescriptionProgrammable Timer, 3 Timer(s), CMOS, PQCC28, PLASTIC, LCC-28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size4MB，44 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

UPD71054L-10 Overview

Programmable Timer, 3 Timer(s), CMOS, PQCC28, PLASTIC, LCC-28

UPD71054L-10 Parametric

Parameter Name	Attribute value
Maker	NEC Electronics
Parts packaging code	QLCC
package instruction	QCCJ,
Contacts	28
Reach Compliance Code	unknown
ECCN code	EAR99
maximum clock frequency	10 MHz
External data bus width	8
Information access methods	PARALLEL, DIRECT ADDRESS
JESD-30 code	S-PQCC-J28
length	11.5 mm
Number of digits	16
Number of terminals	28
Number of timers	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Maximum seat height	4.6 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.5 mm
uPs/uCs/peripheral integrated circuit type	TIMER, PROGRAMMABLE

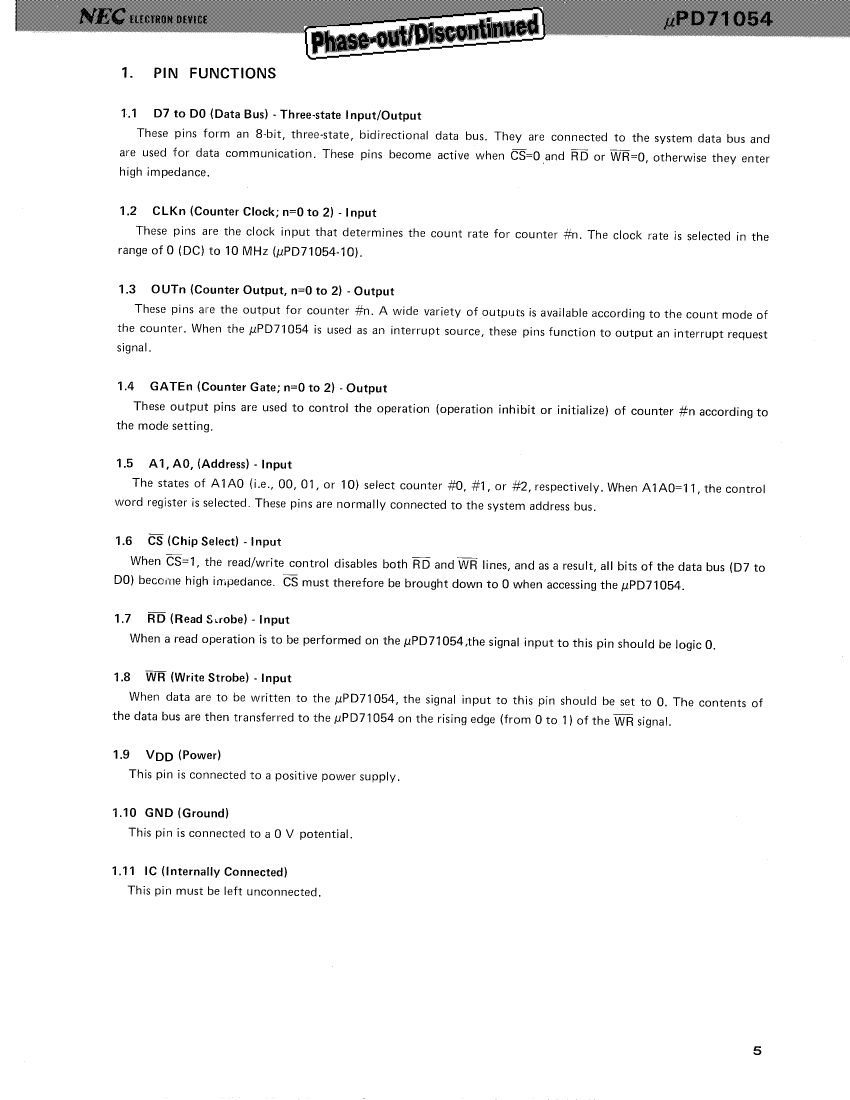

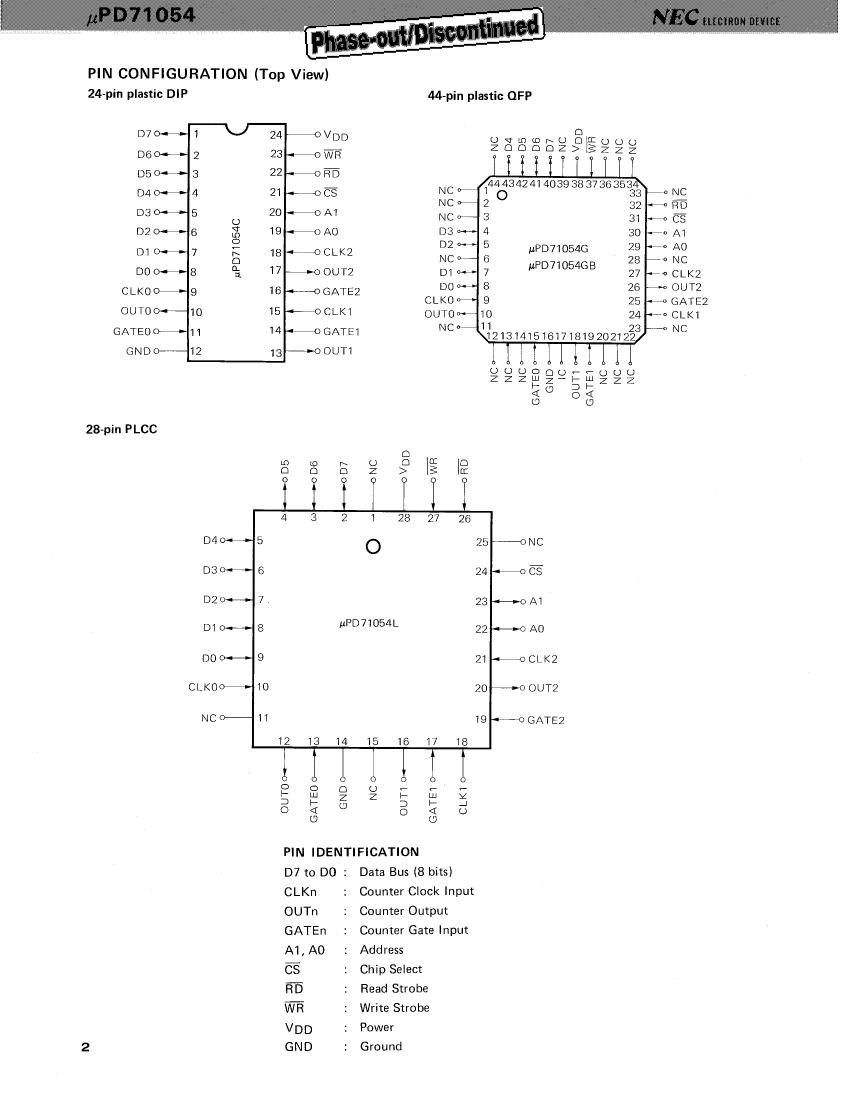

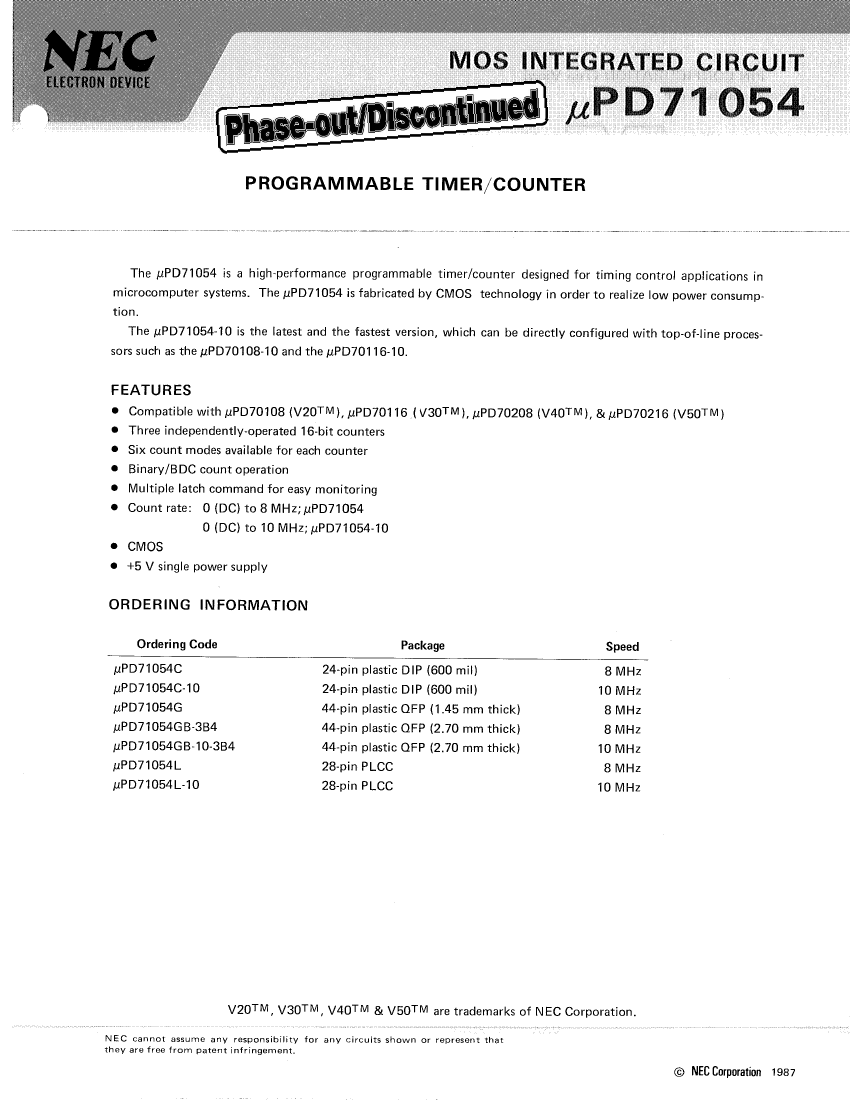

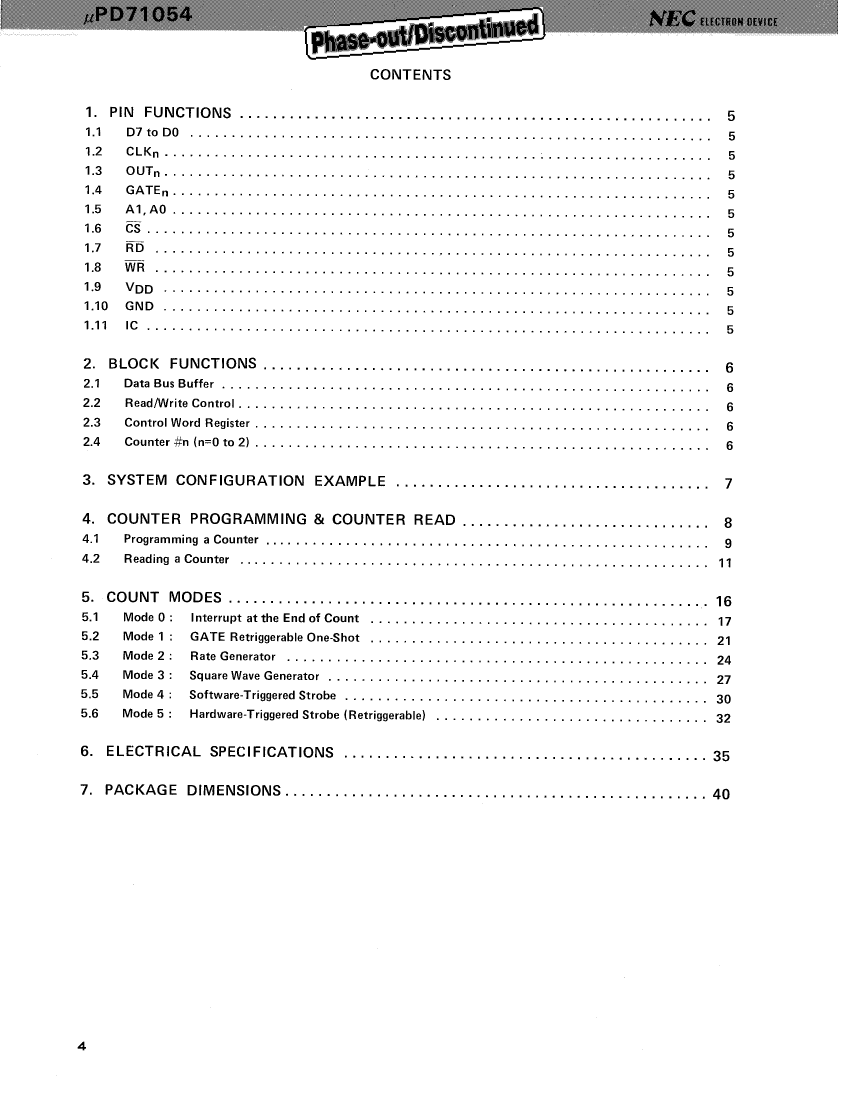

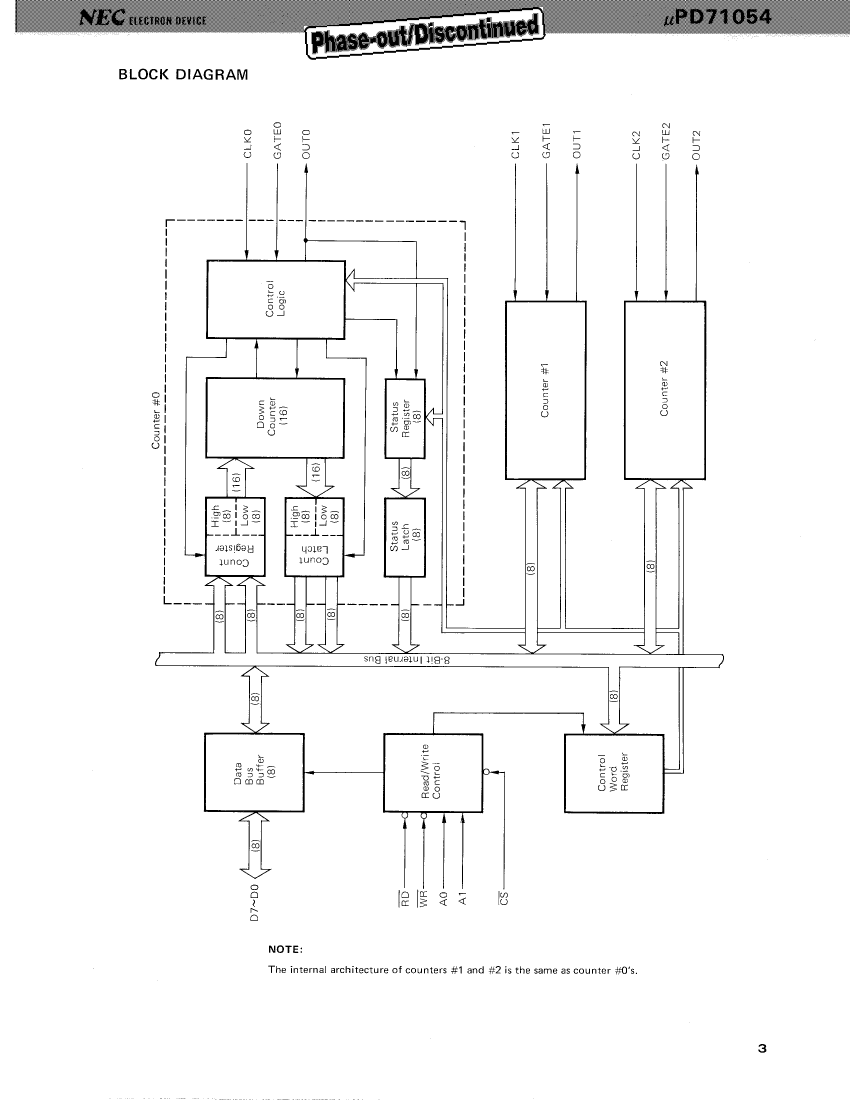

UPD71054L-10 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

UPD71054L-10 Related Products

	UPD71054L-10	UPD71054C-10	UPD71054L	UPD71054G	UPD71054GB-3B4	UPD71054GB-10-3B4
Description	Programmable Timer, 3 Timer(s), CMOS, PQCC28, PLASTIC, LCC-28	Programmable Timer, 3 Timer(s), CMOS, PDIP24, 0.600 INCH, PLASTIC, DIP-24	Programmable Timer, 3 Timer(s), CMOS, PQCC28, PLASTIC, LCC-28	Programmable Timer, 3 Timer(s), CMOS, PQFP44, PLASTIC, QFP-44	Programmable Timer, 3 Timer(s), CMOS, PQFP44, PLASTIC, QFP-44	Programmable Timer, 3 Timer(s), CMOS, PQFP44, PLASTIC, QFP-44
Maker	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics
Parts packaging code	QLCC	DIP	QLCC	QFP	QFP	QFP
package instruction	QCCJ,	DIP,	QCCJ,	LQFP,	QFP,	QFP,
Contacts	28	24	28	44	44	44
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
maximum clock frequency	10 MHz	10 MHz	8 MHz	8 MHz	8 MHz	10 MHz
External data bus width	8	8	8	8	8	8
Information access methods	PARALLEL, DIRECT ADDRESS	PARALLEL, DIRECT ADDRESS	PARALLEL, DIRECT ADDRESS	PARALLEL, DIRECT ADDRESS	PARALLEL, DIRECT ADDRESS	PARALLEL, DIRECT ADDRESS
JESD-30 code	S-PQCC-J28	R-PDIP-T24	S-PQCC-J28	S-PQFP-G44	S-PQFP-G44	S-PQFP-G44
Number of digits	16	16	16	16	16	16
Number of terminals	28	24	28	44	44	44
Number of timers	3	3	3	3	3	3
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	DIP	QCCJ	LQFP	QFP	QFP
Package shape	SQUARE	RECTANGULAR	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	IN-LINE	CHIP CARRIER	FLATPACK, LOW PROFILE	FLATPACK	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.6 mm	5.72 mm	4.6 mm	1.65 mm	3 mm	3 mm
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	J BEND	THROUGH-HOLE	J BEND	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	0.8 mm	0.8 mm	0.8 mm
Terminal location	QUAD	DUAL	QUAD	QUAD	QUAD	QUAD
width	11.5 mm	15.24 mm	11.5 mm	10 mm	10 mm	10 mm
uPs/uCs/peripheral integrated circuit type	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99
length	11.5 mm	-	11.5 mm	10 mm	10 mm	10 mm
