T-11-2500-P-S(M)FC datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Optical fiber> T-11-2500-P-S(M)FC

T-11-2500-P-S(M)FC: DescriptionReceiver, 1100nm Min, 1650nm Max, 2500Mbps, FC Connector, Panel Mount; CategoryWireless rf/communication Optical fiber; File Size1014KB，4 Pages; ManufacturerSource Photonics

Download Datasheet Parametric Compare View All

T-11-2500-P-S(M)FC Overview

Receiver, 1100nm Min, 1650nm Max, 2500Mbps, FC Connector, Panel Mount

T-11-2500-P-S(M)FC Parametric

Parameter Name	Attribute value
Maker	Source Photonics
Reach Compliance Code	unknown
body height	13.5 mm
Body length or diameter	8 mm
Built-in features	AMPLIFIER
Communication standards	ATM, SDH, SONET
Connection Type	FC CONNECTOR
data rate	2500 Mbps
Emitter/Detector Type	PIN PHOTODIODE
Fiber optic equipment types	RECEIVER
Fiber type	9/125, MMF, SMF
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum operating wavelength	1650 nm
Minimum operating wavelength	1100 nm
Nominal operating wavelength	1310 nm
Receive type	DIGITAL
Sensitivity	-21 dBm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO

Preview

Download Datasheet

View All

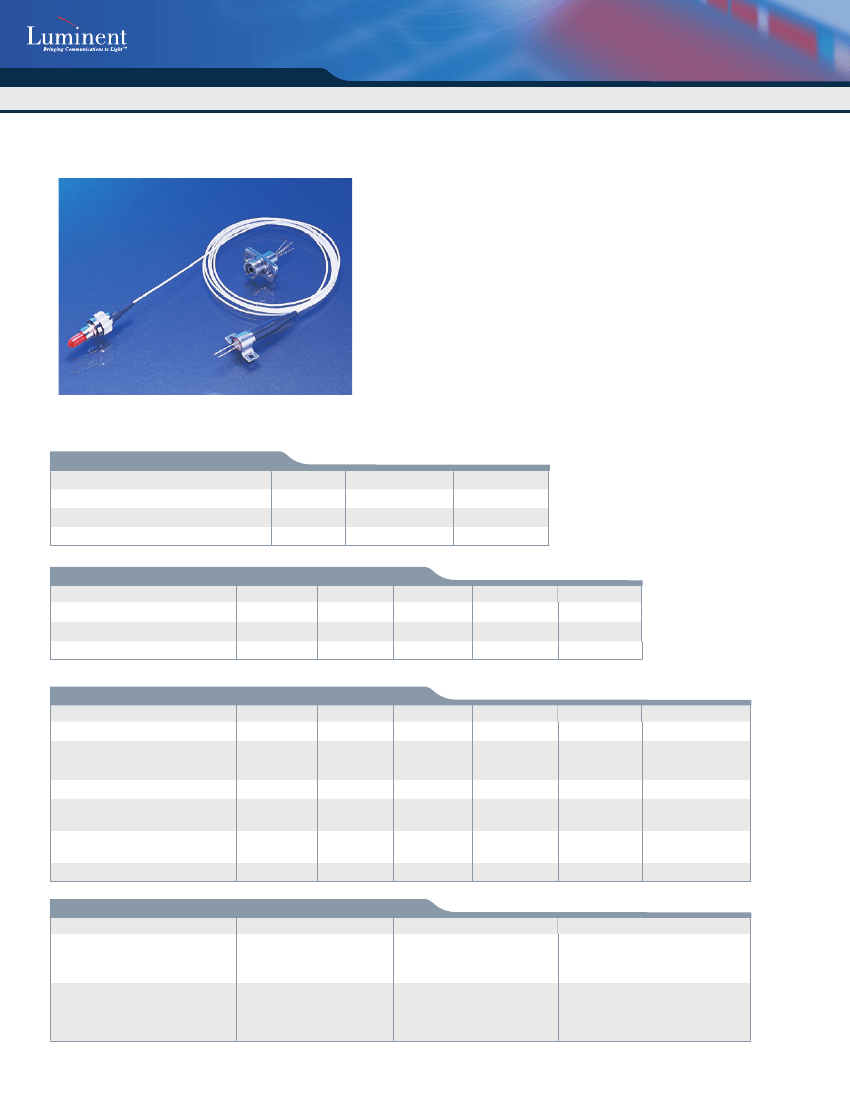

2.5Gbps PIN-TIA Receiver Modules-

Receptacle & Pigtailed (5V)

T-11-2500-R/P-XXX

Features

• InGaAs/InP PIN Photodiode with transimpedance amplifier

• High sensitivity with AGC*

• Differential ended output

• Single+5V operation

• -40 to 85ºC operating temperature

• FC/ST/SC receptacle package

• SM/MM fiber pigtailed package with optional FC/ST/SC

connector

• 2.5Gbps SDH/SONET/ATM receivers application

Absolute Maximum Rating (Tc=25ºC )

Parameter

Supply Voltage

Operating Temperature

Storage Temperature

DC Electrical Characteristics( Tc=25ºC )

Parameter

Power Supply

Differential Output Voltage

Supply Current (no load)

Symbol

Min

4.5

0.22

Typical

0.38

Max

5.5

0.57

Unit

Symbol

opr

stg

Value

-40 to +85

Unit

ºC

(Operating at V

=5V, Tc=25ºC,

λ=1310nm,

9/125µm SM fiber)

AC/Optical and Electrical Characteristics( Tc=25ºC )

Parameter

Detection Range

Gain @ 10Mbps Differential

Bandwidth ( to -3dB point)

Saturation Power

Sensitivity

Output Resistance

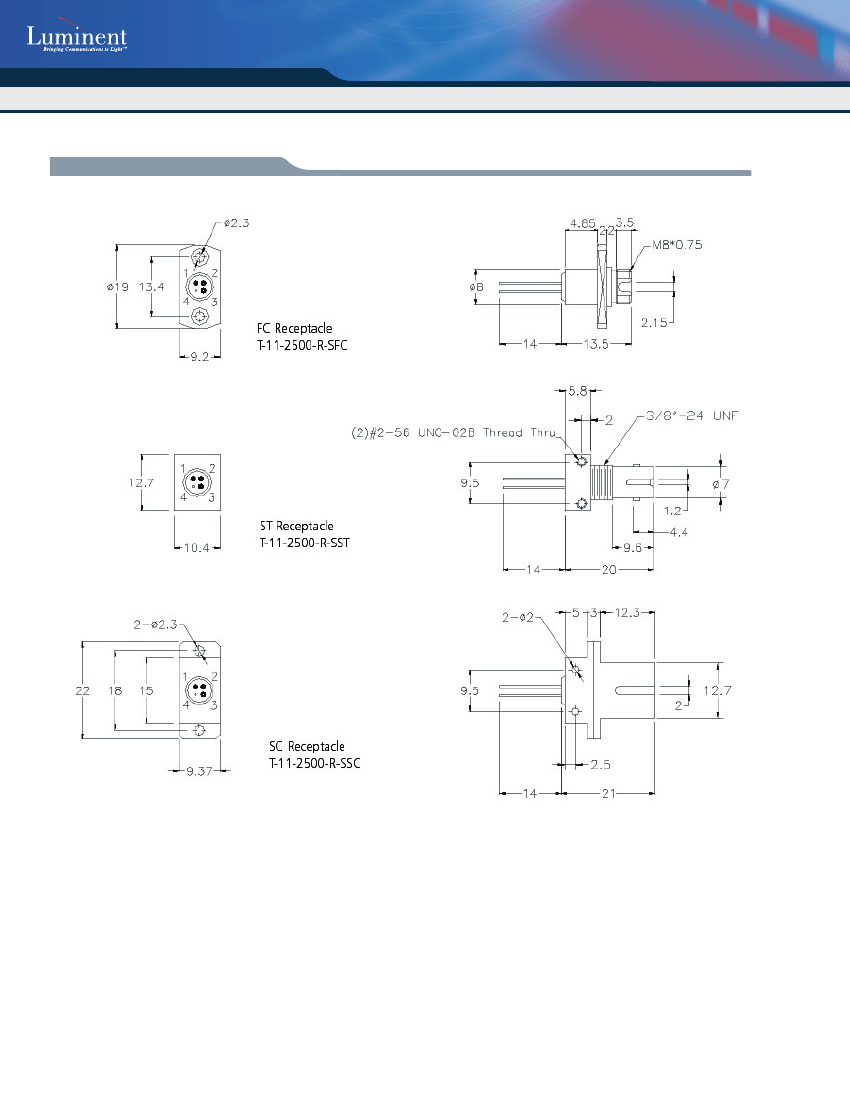

Connector Options

Model

T-11-2500-R-SFC

T-11-2500-R-SST

T-11-2500-R-SSC

T-11-2500-P-S(M)FC

T-11-2500-P-S(M)ST

T-11-2500-P-S(M)SC

T-11-2500-P-S(M)

Package

Receptacle

Fiber

Connector

sat

Sens

out

Symbol

Min

1100

1.5

1500

-3

Typical

1310

2.3

2000

-21

Max

1650

3.2

-18

Unit

V/mW

MHz

dBm

ohm

Test Condition

Measure differentially

AC coupled R

=50Ω

BER=10

-10

@2.5Gbps,

PRBS23

BER=10

-10

@2.5Gbps,

PRBS23

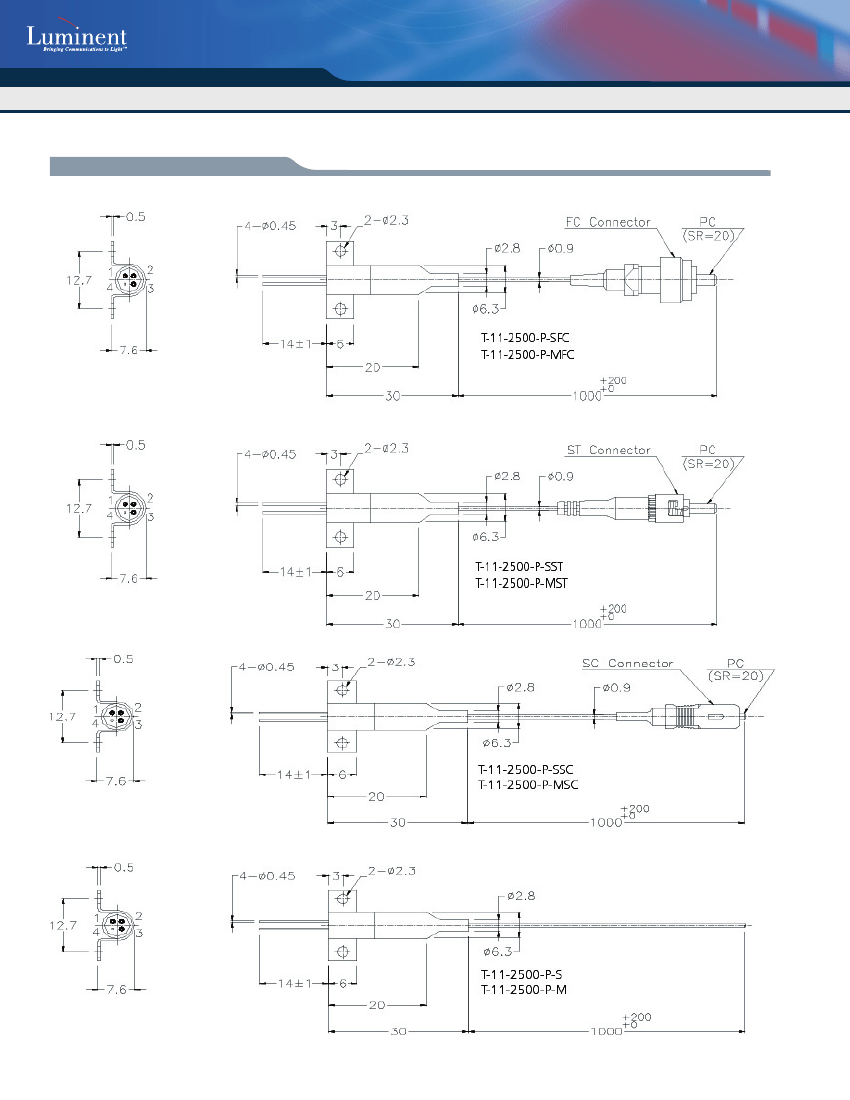

Pigtailed

SM (MM)

2.5Gbps PIN-TIA Receiver Modules-

Receptacle & Pigtailed (5V)

T-11-2500-R/P-XXX

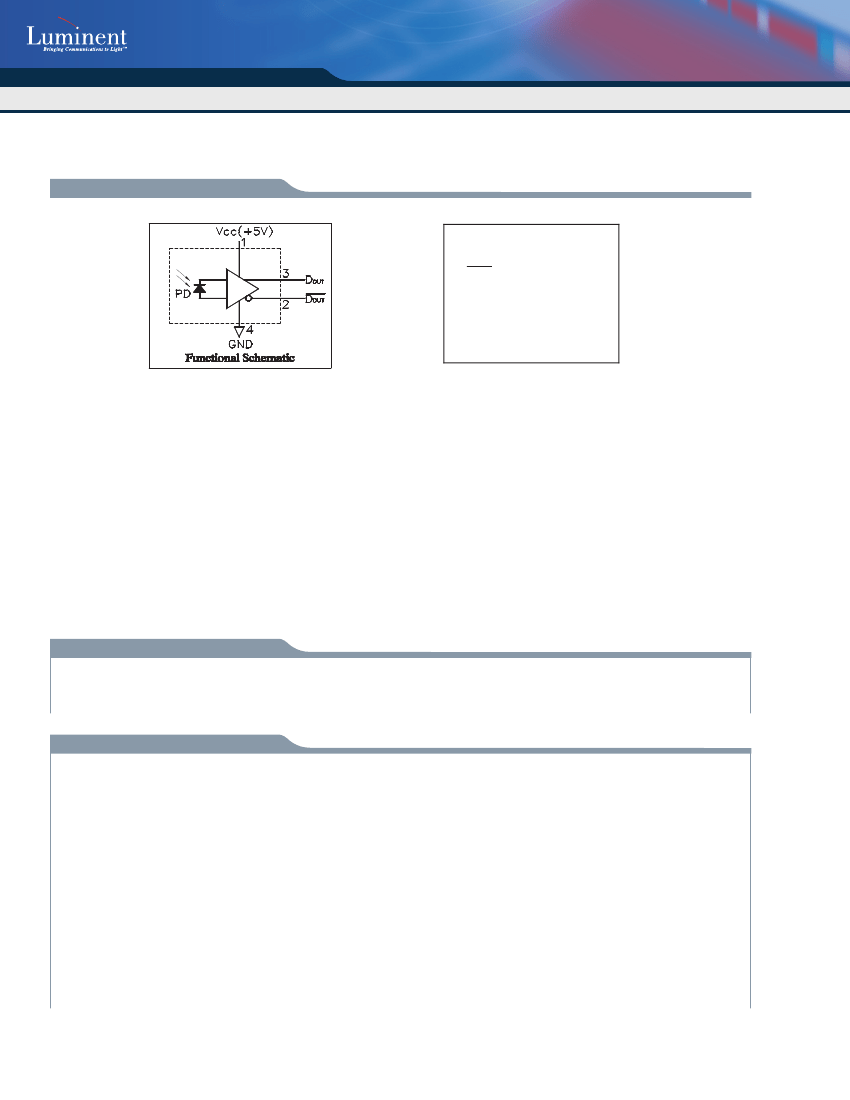

Pin Assignment

Pin assignment

1~Vc c

2~D out

3~D out

4~G ND (CASE)

Warnings

Handling Precautions:

This device is susceptible to damage as a result of electrostatic discharge (ESD). A static free environment is highly recommended. Follow

guidelines according to proper ESD procedures.

Laser Safety:

Radiation emitted by laser devices can be dangerous to human eyes. Avoid eye exposure to direct or indirect radiation.

Legal Notice

IMPORTANT NOTICE!

All information contained in this document is subject to change without notice, at Luminentʼs sole and absolute discretion. Luminent warrants performance of its

products to current specifications only in accordance with the companyʼs standard one-year warranty; however, specifications designated as “preliminary” are given to

describe components only, and Luminent expressly disclaims any and all warranties for said products, including express, implied, and statutory warranties, warranties

of merchantability, fitness for a particular purpose, and non-infringement of proprietary rights. Please refer to the companyʼs Terms and Conditions of Sale for further

warranty information.

Luminent assumes no liability for applications assistance, customer product design, software performance, or infringement of patents, services, or intellectual property

described herein. No license, either express or implied, is granted under any patent right, copyright, or intellectual property right, and Luminent makes no representa-

tions or warranties that the product(s) described herein are free from patent, copyright, or intellectual property rights. Products described in this document are NOT

intended for use in implantation or other life support applications where malfunction may result in injury or death to persons. Luminent customers using or selling

products for use in such applications do so at their own risk and agree to fully defend and indemnify Luminent for any damages resulting from such use or sale.

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROVIDED ON AN “AS IS” BASIS. Customer agrees that Luminent is not liable for any actual,

consequential, exemplary, or other damages arising directly or indirectly from any use of the information contained in this document. Customer must contact Lumi-

nent to obtain the latest version of this publication to verify, before placing any order, that the information contained herein is current.

20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486 • LUMINENT.COM

LUMNDS558-0803

T-11-2500-P-S(M)FC Related Products

	T-11-2500-P-S(M)FC	T-11-2500-P-S(M)SC	T-11-2500-P-S(M)	T-11-2500-P-S(M)ST
Description	Receiver, 1100nm Min, 1650nm Max, 2500Mbps, FC Connector, Panel Mount	Receiver, 1100nm Min, 1650nm Max, 2500Mbps, SC Connector, Board/panel Mount	Receiver, 1100nm Min, 1650nm Max, 2500Mbps	Receiver, 1100nm Min, 1650nm Max, 2500Mbps, ST Connector, Board/panel Mount
Maker	Source Photonics	Source Photonics	Source Photonics	Source Photonics
Reach Compliance Code	unknown	unknown	unknown	unknow
Built-in features	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Communication standards	ATM, SDH, SONET	ATM, SDH, SONET	ATM, SDH, SONET	ATM, SDH, SONET
data rate	2500 Mbps	2500 Mbps	2500 Mbps	2500 Mbps
Emitter/Detector Type	PIN PHOTODIODE	PIN PHOTODIODE	PIN PHOTODIODE	PIN PHOTODIODE
Fiber optic equipment types	RECEIVER	RECEIVER	RECEIVER	RECEIVER
Fiber type	9/125, MMF, SMF	9/125, MMF, SMF	9/125, MMF, SMF	9/125, MMF, SMF
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Maximum operating wavelength	1650 nm	1650 nm	1650 nm	1650 nm
Minimum operating wavelength	1100 nm	1100 nm	1100 nm	1100 nm
Nominal operating wavelength	1310 nm	1310 nm	1310 nm	1310 nm
Receive type	DIGITAL	DIGITAL	DIGITAL	DIGITAL
Sensitivity	-21 dBm	-21 dBm	-21 dBm	-21 dBm
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V
body height	13.5 mm	9.37 mm	-	20 mm
Body length or diameter	8 mm	21 mm	-	20 mm
Connection Type	FC CONNECTOR	SC CONNECTOR	-	ST CONNECTOR
Installation features	PANEL MOUNT	BOARD/PANEL MOUNT	-	BOARD/PANEL MOUNT
surface mount	NO	NO	-	NO
