CP-BNCPC-011 Overview

RF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal, Receptacle

Parameter Name	Attribute value
Maker	Vertiv
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SHIELDED, LOW PROFILE
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	ACETAL/POLYMETHYLPENTENE
MIL compliance	NO
Manufacturer's serial number	BNC
Installation method	RIGHT ANGLE
Installation type	BOARD
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	SOLDER

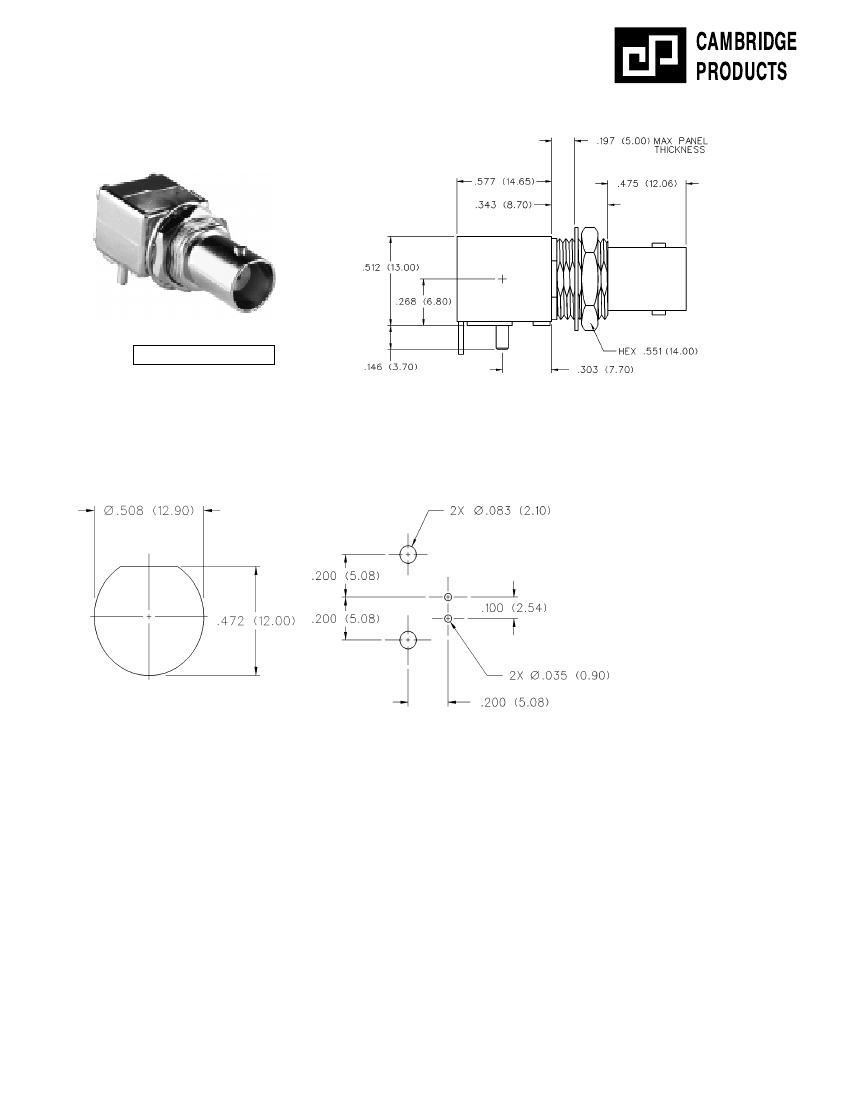

50 Ohm BNC Right Angle Bulkhead

PC Mount Jack Receptacle -

Shielded, Low Profile

INCHES (MILLIMETERS)

CUSTOMER DRAWINGS AVAILABLE UPON REQUEST

CP-BNCPC-011

Mounting hole layouts

Cambridge Products, P.O. Box 1732, Waseca, MN 56093-0832 • 1-800-243.8814 • Fax: 507-833-6287 • www.cambridgeproducts.com

	CP-BNCPC-011
Description	RF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal, Receptacle
Maker	Vertiv
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SHIELDED, LOW PROFILE
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	ACETAL/POLYMETHYLPENTENE
MIL compliance	NO
Manufacturer's serial number	BNC
Installation method	RIGHT ANGLE
Installation type	BOARD
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	SOLDER
