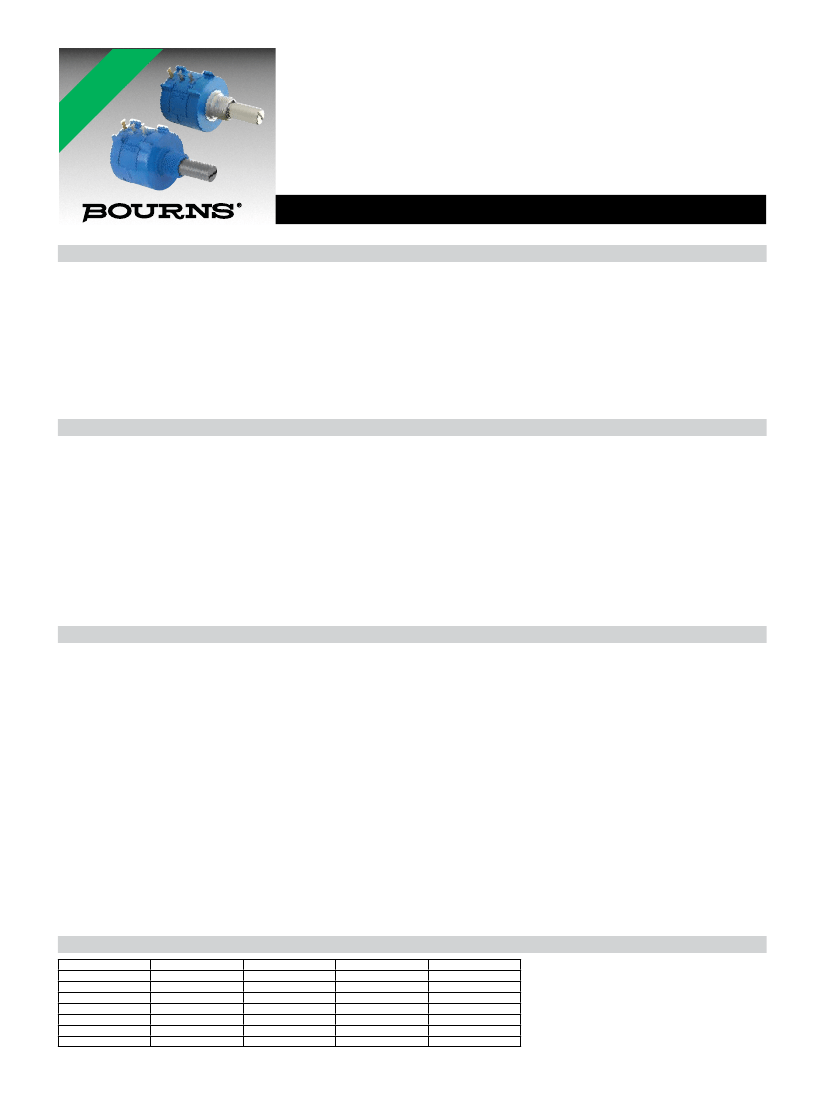

Features
■
Bushing mount
■
Optional AR pin feature
■
Plastic or metal shaft and bushings
■
Wirewound
■
Solder lugs or PC pins
■
Sealable (Full body seal)
■
Designed for use in HMI applications
■
RoHS compliant*
*R
oH
S
CO
M
3590 - Precision Potentiometer
Electrical Characteristics
1
Standard Resistance Range........................................................................................................................................................................ 200 to 100 K ohms
Total Resistance Tolerance................................................................................................................................................................................................ ±5 %
Independent Linearity ................................................................................................................................................................................................... ±0.25 %
Effective Electrical Angle ................................................................................................................................................................................3600 ° +10 °, -0 °
Absolute Minimum Resistance ......................................................................................................................1 ohm or 0.1 % maximum (whichever is greater)
Noise ................................................................................................................................................................................................ 100 ohms ENR maximum
Dielectric Withstanding Voltage (MIL-STD-202, Method 301)
Sea Level ...............................................................................................................................................................................................1,500 VAC minimum
Power Rating (Voltage Limited By Power Dissipation or 450 VAC, Whichever is Less)
+40 °C.........................................................................................................................................................................................................................2 watts
+125 °C.........................................................................................................................................................................................................................0 watt
Insulation Resistance (500 VDC) ..................................................................................................................................................... 1,000 megohms minimum
Resolution..............................................................................................................................................................................See recommended part numbers
Environmental Characteristics
1
Operating Temperature Range ...................................................................................................................................................................... -40 °C to +125 °C
Storage Temperature Range ......................................................................................................................................................................... -55 °C to +125 °C
Temperature Coefficient Over Storage Temperature Range
2
.........................................................................................................±50 ppm/°C maximum/unit
Vibration .............................................................................................................................................................................................................................15 G
Wiper Bounce ................................................................................................................................................................................0.1 millisecond maximum
Shock..................................................................................................................................................................................................................................50 G
Wiper Bounce ................................................................................................................................................................................0.1 millisecond maximum
Load Life ....................................................................................................................................................................................................1,000 hours, 2 watts
Total Resistance Shift ....................................................................................................................................................................................±2 % maximum
Rotational Life (No Load)................................................................................................................................................................ 1,000,000 shaft revolutions
Total Resistance Shift ....................................................................................................................................................................................±5 % maximum
Moisture Resistance (MIL-STD-202, Method 103, Condition B)
Total Resistance Shift ....................................................................................................................................................................................±2 % maximum
IP Rating
Sealed Versions (-3, -4, -7, and -8) ............................................................................................................................................................................... IP 65
Unsealed Versions (-1 -2, -5, and -6) ............................................................................................................................................................................ IP 40
Mechanical Characteristics
1
Stop Strength.............................................................................................................................................................................. 45 N-cm (64 oz.-in.) minimum
Mechanical Angle ...........................................................................................................................................................................................3600 ° +10 °, -0 °
Torque (Starting & Running) ................................................................................................................................ 0.35 N-cm (0.5 oz.-in.) maximum (unsealed)
1.1 N-cm (1.5 oz.-in.) maximum (sealed)
Mounting ..............................................................................................................................................................................55-80 N-cm (5-7 lb.-in.) (plastic)
90-113 N-cm (8-10 in.-lb.) (metal)
Shaft Runout......................................................................................................................................................................................0.13 mm (0.005 in.) T.I.R.
Lateral Runout ...................................................................................................................................................................................0.20 mm (0.008 in.) T.I.R.
Shaft End Play ...................................................................................................................................................................................0.25 mm (0.010 in.) T.I.R.
Shaft Radial Play ...............................................................................................................................................................................0.13 mm (0.005 in.) T.I.R.
Pilot Diameter Runout .......................................................................................................................................................................0.08 mm (0.003 in.) T.I.R.
Backlash ............................................................................................................................................................................................................ 1.0 ° maximum
Weight ........................................................................................................................................................................................................Approximately 19 G
Terminals ................................................................................................................................................................................................Solder lugs or PC pins
Soldering Condition
Manual Soldering........................................................... 96.5Sn/3.0Ag/0.5Cu solid wire or no-clean rosin cored wire; 370 °C (700 °F) max. for 3 seconds
Wave Soldering ...................................................................................96.5Sn/3.0Ag/0.5Cu solder with no-clean flux; 260 °C (500 °F) max. for 5 seconds
Wash processes .......................................................................................................................................................................................Not recommended
Marking ..................................... Manufacturer’s name and part number, resistance value and tolerance, linearity tolerance, wiring diagram, and date code.
Ganging (Multiple Section Potentiometers) ...................................................................................................................................................... 1 cup maximum
Hardware ............................................................................................................ One lockwasher and one mounting nut is shipped with each potentiometer.
NOTE: For Anti-rotation pin add 91 after configuration dash number. Example: -2 becomes -291 to add AR pin.
1
At room ambient: +25 °C nominal and 50 % relative humidity nominal, except as noted.
2
Consult manufacturer for complete specification details for resistances below 1k ohms.
Recommended Part Numbers
(Printed Circuit)
3590P-2-102L
3590P-2-202L
3590P-2-502L
3590P-2-103L
3590P-2-203L
3590P-2-503L
3590P-2-104L
(Solder Lug)
3590S-2-102L
3590S-2-202L
3590S-2-502L
3590S-2-103L
3590S-2-203L
3590S-2-503L
3590S-2-104L
(Solder Lug)
3590S-1-102L
3590S-1-202L
3590S-1-502L
3590S-1-103L
3590S-1-203L
3590S-1-503L
3590S-1-104L
Resistance (Ω)
1,000
2,000
5,000
10,000
20,000
50,000
100,000
Resolution (%)
.029
.023
.025
.020
.019
.013
.009
BOLDFACE
LISTINGS ARE IN STOCK AND READILY AVAILABLE
THROUGH DISTRIBUTION. FOR OTHER OPTIONS CONSULT FACTORY.
ROHS IDENTIFIER:
L = COMPLIANT
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
3590 - Precision Potentiometer

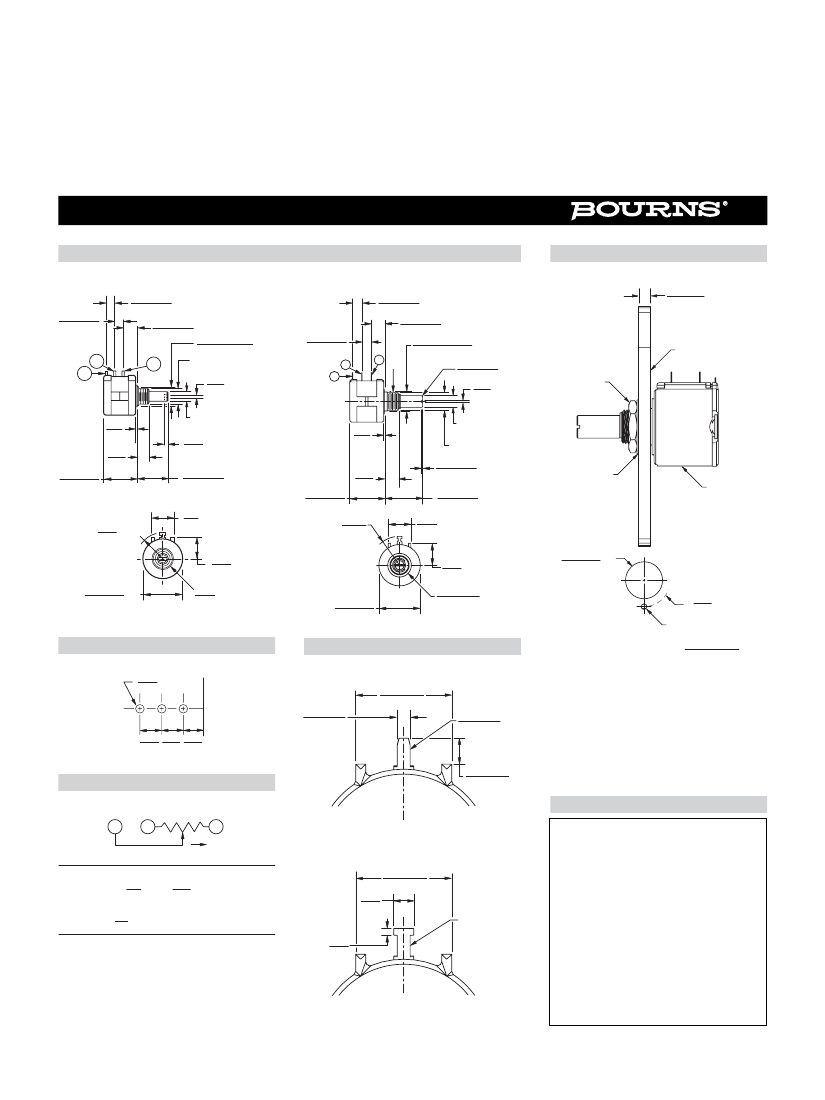

Product Dimensions
-1, -3, -5, -7 Configurations
5.08 ± .38
(.200 ± .015)
5.08 ± .38
(.200 ± .015)
6.99 ± .38
(.275 ± .015)
Panel Thickness Dimensions
-2, -4, -6, -8 Configurations
5.08 ± .38
(.200 ± .015)
6.99 ± .38
(.275 ± .015)
10.31 +.00/-.10
(.406 +.000/-.004)
3
(For Bushing Mount Only)
2.46 - 3.81
(.097 - .150)
1
2
3
10.31 + .00/- .13
(.406+.000/-.005)
BUSHING DIAMETER
(SEE PART NUMBERS)
.81
(.032)
SHAFT DIAMETER
(SEE PART NUMBERS)
5.08 ± .38
(.200 ± .015)
1
2
PANEL
3/8-32
UNEF
.76 ± .25
R
.030 ± .010
.81
(.032)
SHAFT DIA. (SEE
PART NUMBERS)
BUSHING DIA. (SEE
PART NUMBERS)
.81 ± .25
(.032 ± .010)
20.63 ± .81
(.812 ± .032)
12.2
(.480)
HEX NUT
.25
(.010)
7.92
(.312)
18.6 ± .4
(.732 ± .015)
1.19
(.047)
20.62 ± .81
(.812 ± .032)
18.59 ± .38
(.732 ± .015)
.25
(.010)
7.93
(.312)
LOCKWASHER
POT
15.54
R MAX.
(.612)
12.2
(.48)
15.54
(.612)
R MAX.
11.81
(.465)
11.81
(.465)
DIA.
22.22 ± .38
(.875 ±.015)
10.44 ± .07
DIA.
(.411 ± .003)
22.22 ± .38
DIA.
(.875 ±.015)
12.70
DIA.
(.500)
MOUNTING SURFACE
12.70 ±0.25
(.500 ± .010)
DIA.
MOUNTING SURFACE
R
7.42
(.292)
Recommended PCB Layout
HOLE DIAMETER
2.08
(.082)
FMS
Terminal Styles
“P” Terminal Style
12.19 ± 0.51
(.480 ± .020)
1.63 ± 0.38
(.064 ± .015)
PC PIN
TERMINAL
THICKNESS
.305 ± .003
(.012 ± .0001)
ADDITIONAL HOLE FOR
ANTI-ROTATION PIN
1.60 +.08/-.03
DIA.
(.063 +.003/-.001)
Anti-rotation pin hole is shown at six o'clock
position for reference only. The actual location is
determined by the customer's application. Refer
to the front view of the potentiometer to see the
location of the optional A/R pin.
Panel thickness and hole diameters are
recommended for best fit. However, customers
may adjust the dimensions to suit their specific
application.
5.08 5.08 6.99
(.200) (.200) (.275)
Schematic
CCW
2
1
CW
3
CW
3.30 ± 0.38
(.130 ± .015)
Shaft & Bushing Configurations
(Bushing - DxL, Shaft - D):
(-1) Plastic Bushing (3/8 ” x 5/16 ”)
and Shaft (.2480 + .001, - .002)
(-2) Metal Bushing (3/8 ” x 5/16 ”)
and Shaft (.2497 + .0000, - .0009)
(-3) Sealed, Plastic Bushing (3/8 ” x 5/16 ”)
and Shaft (.2480 + .001, - .002)
(-4) Sealed, Metal Bushing (3/8 ” x 5/16 ”)
and Shaft (.2497 + .0000, - .0009)
(-5) Metric, Plastic Bushing (9 mm x 7.94 mm)
and Shaft (6 mm + 0, - .076 mm)
(-6) Metric, Metal Bushing (9 mm x 7.94 mm)
and Shaft (6 mm + 0, - .023 mm)
(-7) Metric, Sealed, Plastic Bushing (9 mm x
7.94 mm) and Shaft (6 mm + 0, - .076 mm)
(-8) Metric, Sealed, Metal Bushing (9 mm x
7.94 mm) and Shaft (6 mm + 0, - .023 mm)
“S” Terminal Style
12.19 ± 0.51
(.480 ± .020)
2.54
(.100)
3 PLCS.
0.86
(.034)
3 PLCS.
TOLERANCES: EXCEPT WHERE NOTED
.508
.127
DECIMALS: .XX ±
.XXX ±
(.02),
(.005)
FRACTIONS: ±1/64
MM
DIMENSIONS:
(IN.)
SOLDER LUG
TERMINAL
REV. 06/12
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
