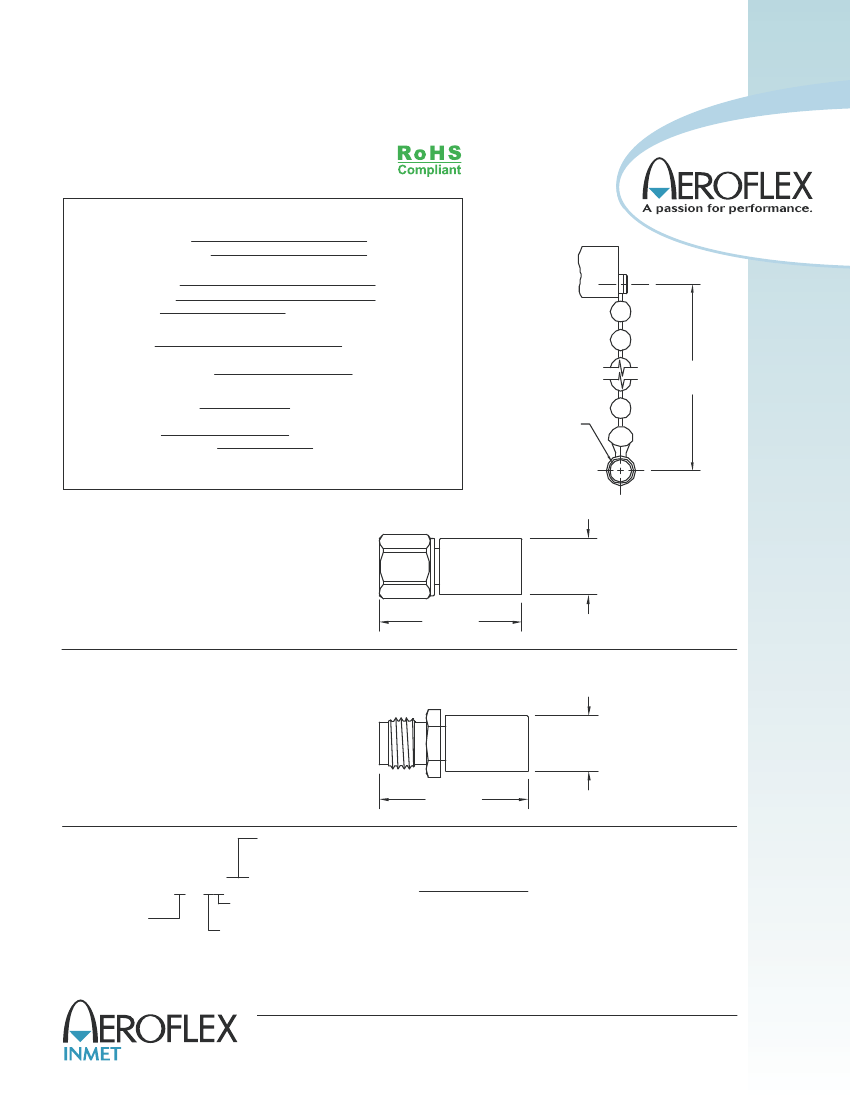

TERMINATIONS
2.4mm, up to 50 GHz, 0.5 Watt
SPECIFICATIONS:
Models: TE400M, TE400F, TE500M , TE500F, TE400MC, TE400FC, TE500MC, TE500FC
Electrical:
Frequency Range
Standard Freq. Values
VSWR:
DC - 40 GHz
40 - 50 GHz
Input Power
Impedance
Operating Temp. Range
DC - 50 GHz
40 & 50 GHz
1.40:1 Max.
1.60:1 Max.
0.5 Watt Avg. at 25°C derated
linearly to 0. Watts at 85°C
1
50 Ohms Nominal
-45°C to +85°C
Gold Plated Beryllium Copper
Gold Plated Beryllium Copper
Passivated Stainless Steel
Ø.13[3.3]
Thru
3.5 [89] Long
Bead Chain
Mechanical:
2.4mm Connectors
Mates with 1.85mm & V* Connectors
Conductors
Barrel & Coupling Nut**
** For a Gold Plated Barrel & Coupling Nut add /AU to the Model Number
* V is a Trademark of Anritsu Corp.
CHAIN DETAIL
Model Number:
TE400M
2.4mm Male Connector
DC - 40 GHz
Ø.30 [7.62]
Model Number:
TE500M
2.4mm Male Connector
DC - 50 GHz
.76 ±.05
[19.3±1.3]
Model Number:
TE400F
2.4mm Female Connector
DC - 40 GHz
Ø.30 [7.62]
Model Number:
TE500F
2.4mm Female Connector
DC - 50 GHz
.79 ±.05
[20.1±1.3]
Finish
= Passivated Barrel & Coupling Nut
/AU = Gold Plated Barrel & Coupling Nut
= No Chain
C = Chain Included
Ordering Examples:
Model Number:
TE400F
DC - 40 GHz, 2.4mm Female CONN.
Model Number:
TE500MC
DC - 50 GHz, 2.4mm Male CONN.; Chain Included
TE500: REV F
HOW TO ORDER:
Model Number:
TEX00XY/FF
Freq. Range
4 = DC - 40 GHz
5 = DC - 50 GHz
Connector Configuration
F = Female
M = Male
Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.
Aeroflex / Inmet, Inc.
• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.
888-244-6638 or 734-426-5553 • FAX: 734-426-5557
www.aeroflex.com/inmet • inmetsales@aeroflex.com
