Features
■
■
■
■
NT
Requires 64 % less space than 0402-
size resistor
RoHS compliant*
Power rating at 70 °C = 1/20 W
Three layer termination process with
nickel barrier prevents leaching and
provides excellent solderability
*R
oH
S
CO
M
■
■
Suitable for most types of soldering
processes
Standard packaging on paper tape and
reel

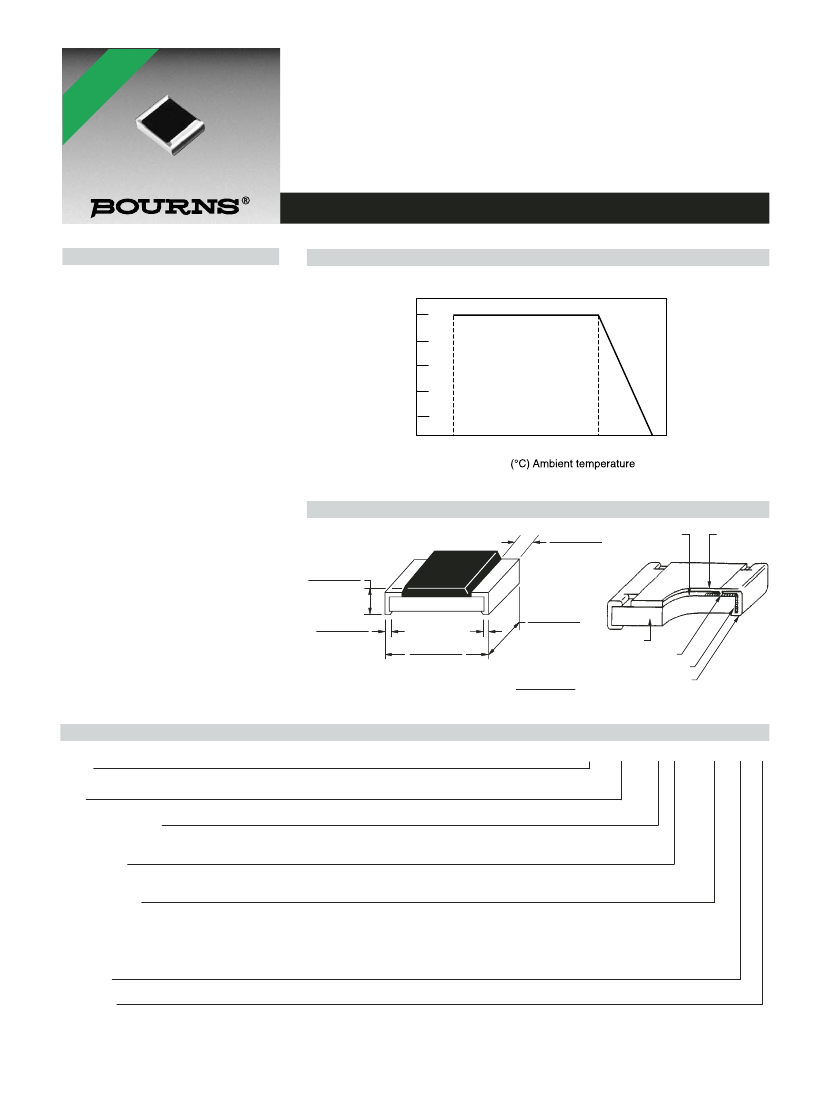

CR0201 - Chip Resistor
Electrical Characteristics
Power Rating @ 70 °C.................1/20 W
Operating Temperature Range
.................................-55 °C to +125 °C
Derated to 0 Load at .................+125 °C
Maximum Working Voltage ..............25 V
Maximum Overload Voltage ............50 V
Resistance Range
1 %, E-96 and E-24
..........................10 ohms to 1 megohm
5 %, E-24
..........................10 ohms to 1 megohm
Zero Ohm Jumper..............<0.05 ohms
Temperature Coefficient
1 % and 5 % ...................±250 ppm/°C
.................................Zero Ohm Jumper
..............-200 ppm/°C to +500 ppm/°C
For Standard Values Used in Capacitors,
Inductors, and Resistors,
click here.
Derating Curve
Rated power in percentage (%)
100
80
60
40
20
0
-55
0
70
125
Dimensional Drawings
0.12
±
0.05
(0.005
±
0.002)
0.23
±
0.03
(0.009
±
0.001)
Resistor (Ru0
2
)
(Jumper chip is
a conductor)
Overcoat
0.15
±
0.05
(0.006
±
0.002)
0.60
±
0.03
(0.024
±
0.001)
0.30
±
0.03
(0.012
±
0.001)
Alumina Substrate
Internal Electrode
Secondary Electrode (Nickel Plated)
DIMENSIONS ARE:
MM
(INCHES)
External Electrode (Sn)
How To Order
CR 0201 - F W - 8252 G LF
Model
(CR = Chip Resistor)
Size
• 0201
Resistance Tolerance
F = ±1 % ............For values from 10 ohms through 1 megohm.
J = ±5 % ..............For values from 10 ohms through 1 megohm, and for zero ohm jumper.
TCR (ppm/°C)
W = ±250 ..............Used with “F” and “J” Resistance Tolerance code for all values except zero ohm jumper.
/ = -250 to +500 ..Used with zero ohm jumper only.
Resistance Value
For 1 % Tolerance:
<100 ohms..............“R” designates decimal point (example: 24R3 = 24.3 ohms)
≥100
ohms ..............First three digits are significant, fourth digit represents number of zeros to follow (example: 8252 = 82.5k ohms).
For 5 % Tolerance:
≥10
ohms ................First two digits are significant, third digit represents number of zeros to follow (example: 474 = 470k ohms; 000 = Jumper).

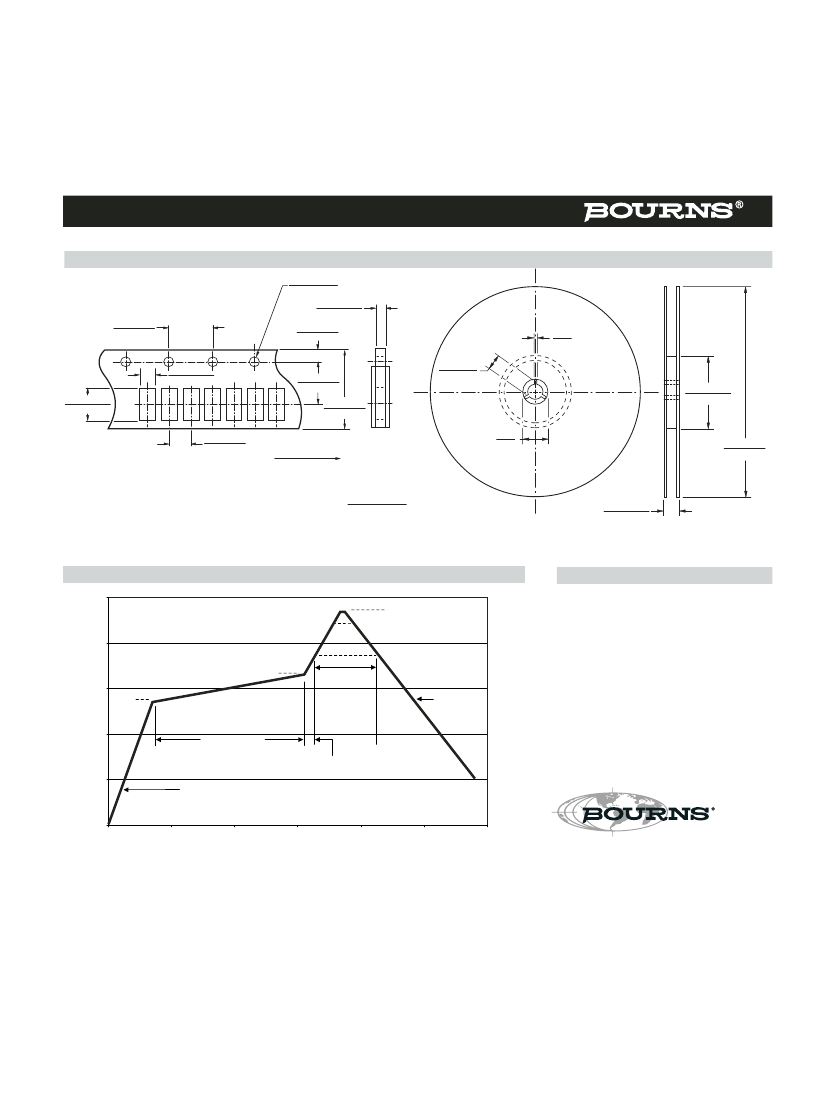

Packaging
G = Paper Tape (10,000 pcs.) on 7 “ Plastic Reel
Termination
LF = Tin-plated (RoHS compliant)
*RoHS Directive 2002/95/EC Jan 27 2003 including Annex
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
