Technical Data Sheet

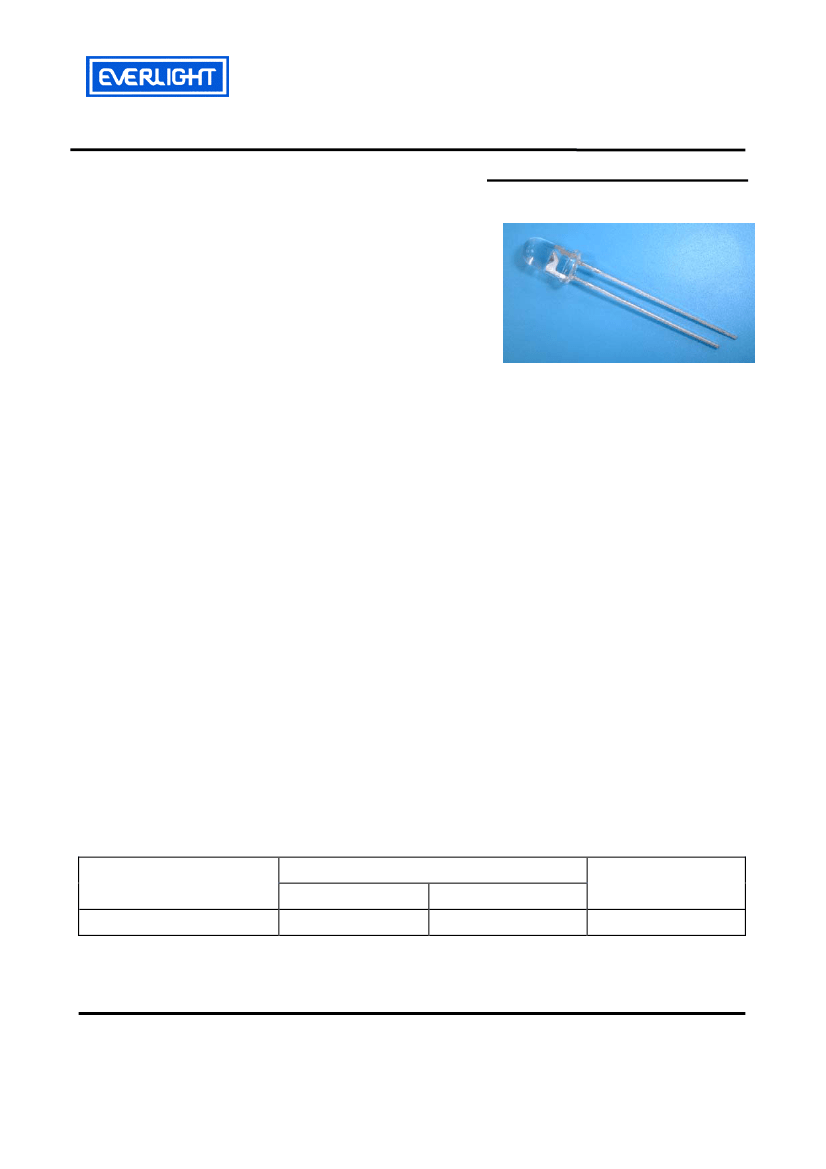

333-2UYC/H3/S400-A9/MS
Features
․Popular
T-1 3/4package.
․High
efficiency.
․General
purpose leads.
․Selected
minimum intensities.
․Available
on tape and reel.
․Pb
free .
Descriptions
․The
series is specially designed for applications
requiring higher brightness.
․The
LED lamps are available with different
colors, intensities, epoxy colors ,etc.
․Superior
performance in outdoor environment.
Applications
․Status
indicators.
․Commercial
use.
․Advertising
Signs.
Device Selection Guide
LED Part No.
333-2UYC/H3/S400-A9/MS
Chip
Material
AlGaInP
Emitted Color
Super Yellow
Lens Color
Water Clear
Everlight Electronics Co., Ltd.
Device Number : DLE-033-Y11
http\\:www.everlight.com
Prepared date:2004/08/13
Rev 1.0
Page: 1 of 5
Prepared by: M.T CHANG
333-2UYC/H3/S400-A9/MS

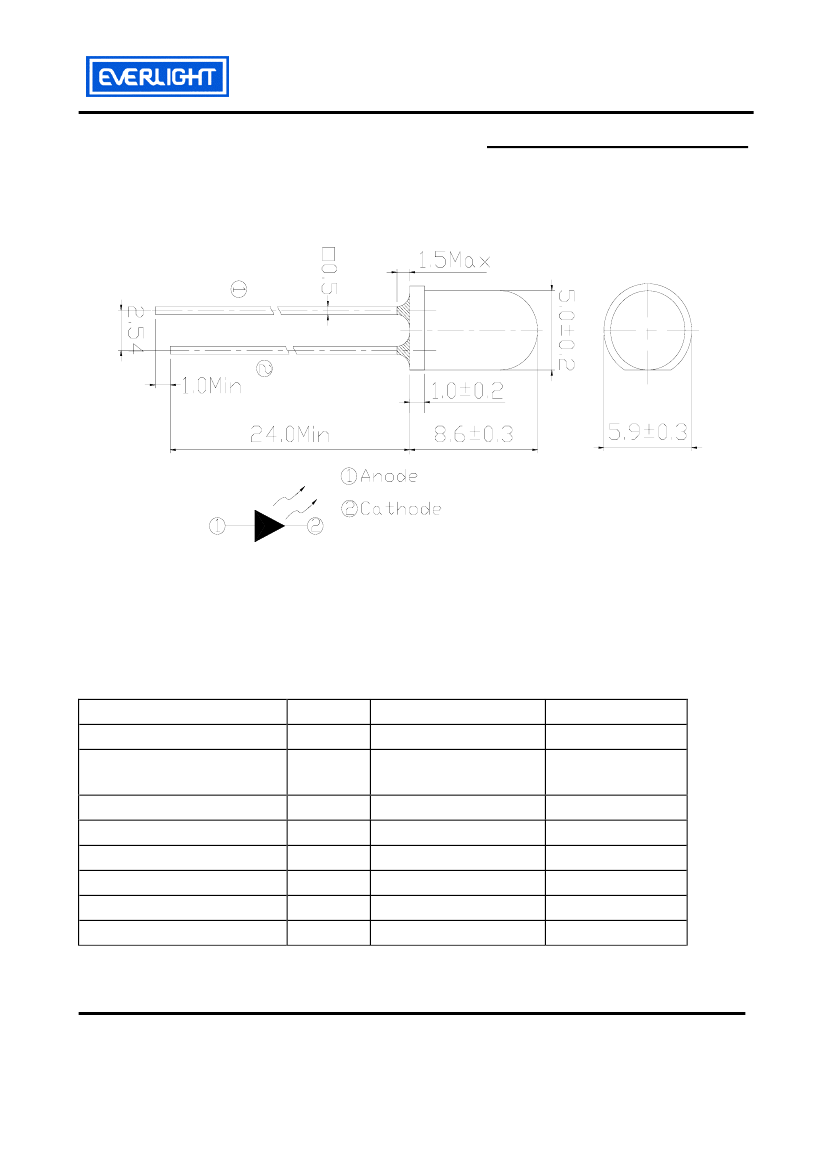

Package Dimensions
Notes:
․All
dimensions are in millimeters, tolerance is 0.25mm except being specified.
․Lead
spacing is measured where the lead emerges from the package.
․Protruded
resin under flange is 1.5mm Max LED.
Absolute Maximum Ratings (Ta=25℃)
Parameter
Forward Current
Pulse Forward Current
(Duty1/10@ 1KHz)
Operating Temperature
Storage Temperature
Electrostatic
Discharge
Soldering Temperature
Power Dissipation
Reverse Voltage
Notes: Soldering time≦5 seconds.
Symbol
I
F
I
FP
T
opr
T
stg
ESD
T
sol
P
d
V
R
Rating
50
100
-40 ~ +85
-40 ~ +100
2000
260
±5
120
5
Units
mA
mA
℃
℃
V
℃
mW
V
Everlight Electronics Co., Ltd.
Device Number : DLE-033-Y11
http\\:www.everlight.com
Prepared date:2004/08/13
Rev 1.0
Page: 2 of 5
Prepared by: M.T CHANG
333-2UYC/H3/S400-A9/MS
Electro-Optical Characteristics (Ta=25℃)
Parameter
Luminous
Intensity
Viewing Angle
Peak Wavelength
Dominant
Wavelength
Spectrum
Radiation
Bandwidth
Forward Voltage
Reverse Current
V
F
I
R
-----
-----
-----
-----
2.0
-----
2.4
10
V
μA
V
R
=5V
△λ
-----
-----
15
-----
nm
λ
d
Symbol
Chip
Rank
A9
-----
-----
-----
Min.
Typ.
Max.
Unit
Condition
I
V
2θ
1/2
λp
3000
-----
-----
-----
6000
15
591
589
-----
-----
-----
-----
mcd
deg
nm
nm
I
F
=20mA
333-2UYC/H3/S400-A9/MS
Chip Rank
Everlight Electronics Co., Ltd.
Device Number : DLE-033-Y11
http\\:www.everlight.com
Prepared date:2004/08/13
Rev 1.0
Page: 3 of 5
Prepared by: M.T CHANG
333-2UYC/H3/S400-A9/MS

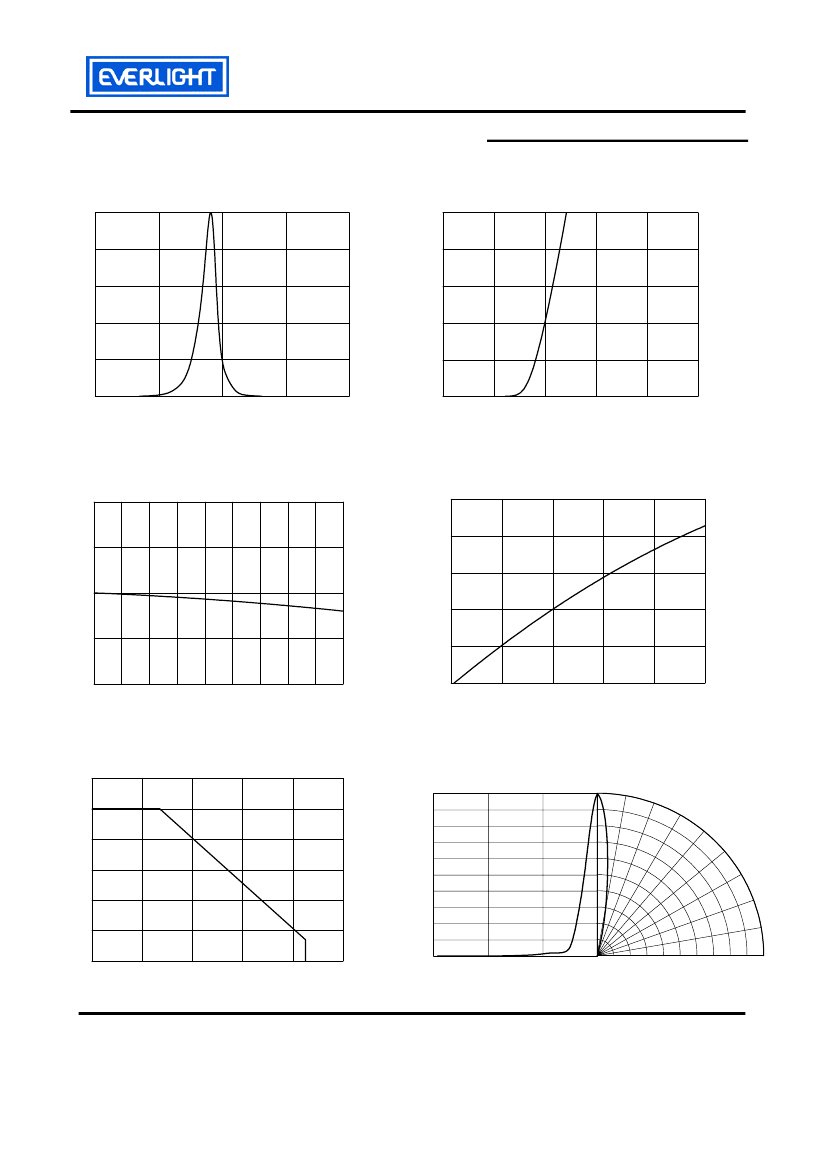

Typical Electro-Optical Characteristics Curves
Relative Intensity vs. Wavelength
1.0
Forward Current vs. Forward Voltage
50
Relative Intensity(a.u.)
0.8
Forward Current(mA)
550
600
650
700
40
0.6
30
0.4
20
0.2
10
0.0
500
0
1.0
1.5
2.0
2.5
3.0
3.5
Wavelength(nm)
Forward Voltage(V)
Relative Intensity vs. Ambient Temp
Relative Luminous Intensity(a.u.)
2.0
Forward Current vs. Relative Intensity
2.5
Relative Intensity(a.u.)
2.0
1.5
1.5
1.0
1.0
0.5
0.5
0.0
25
0.0
30
35
40
45
50
55
60
O
65
70
0
10
20
30
40
50
Ambient Temperature Ta( C)
Forward Current(mA)
Forward Current vs. Ambient Temp.
60
Radiation Characteristics
90
1.0
O
60
O
30
O
0
O
10
O
20
O
Forward Current(mA)
Relative Luminusity
50
40
30
20
10
0
30
O
40
O
O
50
0.5
60
O
70
O
80
0
O
0
20
40
60
80
O
100
0
0.5
90
1.0
O
Ambient Temperature Ta( C)
Radiation Angle
Everlight Electronics Co., Ltd.
Device Number : DLE-033-Y11
http\\:www.everlight.com
Prepared date:2004/08/13
Rev 1.0
Page: 4 of 5
Prepared by: M.T CHANG
333-2UYC/H3/S400-A9/MS
Packing Quantity Specification
1. 500 PCS/1 Anti ESD Bag
2. 5 Anti ESD Bags /1 Box
3. 10 Boxes/1 Carton
Label Form Specification
EVERLIGHT
CPN:
P/N:
333-2UYC/H3/S400-A9/MS
QTY：
CAT:
LOT NO：
HUE:
REF:
CPN: Customer’s Production Number
P/N : Production Number
333-2UYC/H3/S400-A9/MS:Production name
QTY: Packing Quantity
CAT: Ranks of Luminous and Forward Voltage
HUE: Ranks of Dominant Wavelength
REF: Reference
LOT No: Lot Number
MADE IN TAIWAN: Production Place
MADE IN TAIWAN
Notes
1. Above specification may be changed without notice. EVERLIGHT will reserve authority on
material change for above specification.
2. When using this product, please observe the absolute maximum ratings and the instructions
for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for
any damage resulting from use of the product which does not comply with the absolute
maximum ratings and the instructions included in these specification sheets.
3. These specification sheets include materials protected under copyright of EVERLIGHT
corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s
consent.
EVERLIGHT ELECTRONICS CO., LTD.
Office: No 25, Lane 76, Sec 3, Chung Yang Rd,
Tucheng, Taipei 236, Taiwan, R.O.C
Tel: 886-2-2267-2000, 2267-9936
Fax: 886-2267-6244, 2267-6189, 2267-6306
http:\\www.everlight.com
Everlight Electronics Co., Ltd.
Device Number : DLE-033-Y11
http\\:www.everlight.com
Prepared date:2004/08/13
Rev 1.0
Page: 5 of 5
Prepared by: M.T CHANG
