UMP Models
25-40W, Single Output, DC/DC Converters
Features
■
■
■
Higher operating temperatures
Fully potted
Designed to meet UL1950 and
EN60950-1 (basic insulation)
mark available (75V-input models)
Fully isolated, 1500Vdc guaranteed
25/30/35/40W output power
Standard pinout! Smaller size!
New 2" x 3" package fits 3" x 3" footprint
5V, 12V or 15V outputs
Four input voltage ranges:
10-36V, 18-36V
18-75V, 36-75V
■
■
■
■
■
■
■
■
■
■
■
High efficiency (to 85%)
Input under and overvoltage lockout
V
OUT
trim and on/off control
Modifications and customs for OEM's
DATEL’s UMP Models are fully potted, 25-40 Watt DC/DC converters designed to
meet UL1950 and EN60950-1 safety standards. The combination of the UMP's higher
efficiencies and thermally conductive potting compound enables these devices to
achieve higher operating temperatures without derating. The 2" x 3" UMP "footprint"
conforms with the standard pinout and pin geometries of most 3" x 3" devices (a
33% space savings) while delivering as much as 60% more power (40W vs. 25W).
Applicable to a wide range of telecom, computer and other OEM applications,
UMP Model DC/DC’s operate from four input voltage ranges (10-36V for "Q12"
models, 18-36V for "D24" models, 18-75V for "Q48" models, and 36-75V for "D48"
models). Available output voltages are 5, 12 and 15 Volts.
For reliability and affordability, DATEL exploits contemporary, high-speed,
automatic assembly to construct the UMP’s traditional, field-proven, SMT-on-pcb
designs. Devices employ corrosion-resistant metal cases with plastic headers. Heat
generating transformer cores and power semiconductors are mounted directly to the
cases, which have threaded inserts for add-on heat sinks or pcb mounting. Devices
are specified for –40 to +100°C operation and derating information is provided for
operation with/without heat sinks and forced air flow.
All devices feature input pi filters, input undervoltage and overvoltage shutdown,
output overvoltage protection, output current limiting, and thermal shutdown. UL,
CSA, EN and IEC compliance testing is currently in progress (75V-input devices will
be CE marked) as are full EMI/EMC characterizations. Contact DATEL for the latest
available information.
+V
IN
+V
OUT
COMMON
–V
IN
PWM
CONTROLLER
UVLO & OVLO
COMPARATORS
ON/OFF
CONTROL
ISOLATION
REFERENCE &
ERROR AMP
TRIM
CASE

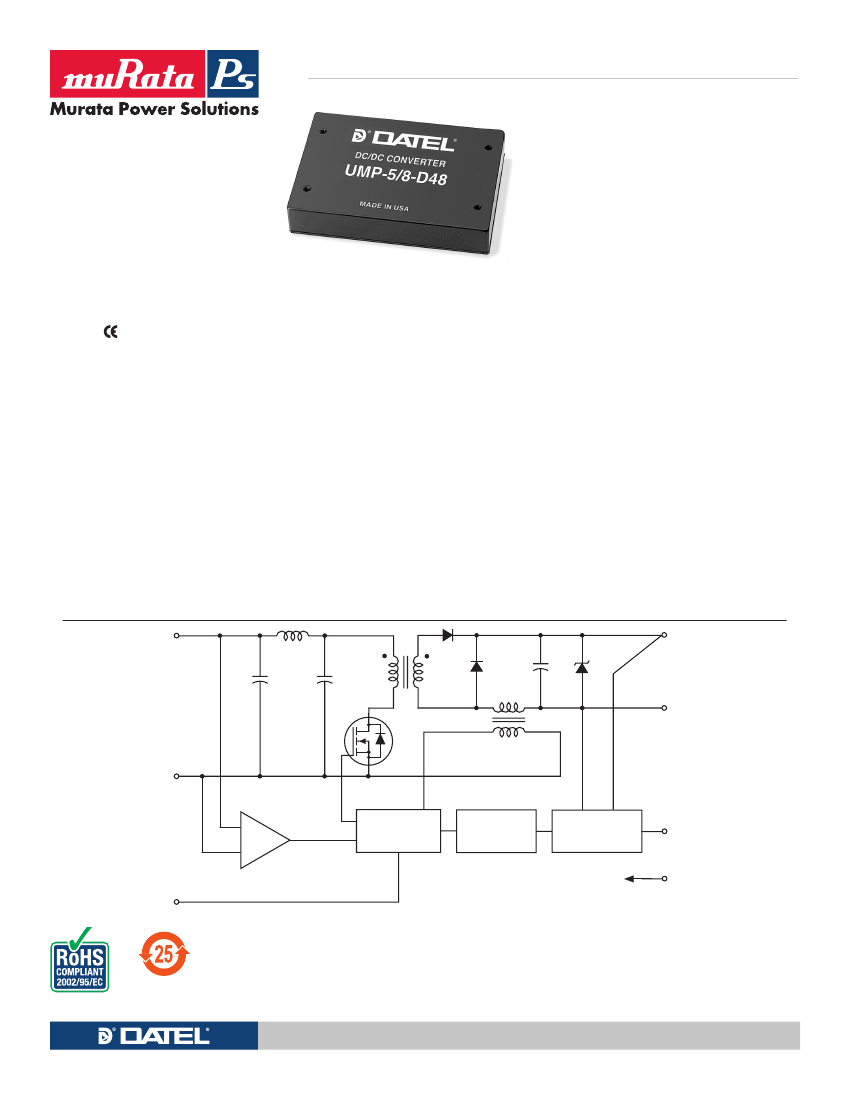

Figure 1. Simplified Schematic
Typical topology is shown
For full details go to
www.murata-ps.com/rohs
www.murata-ps.com
Technical enquiries
email: sales@murata-ps.com, tel:
+1 508 339 3000
MDC_UMP25-40W_B01
Page 1 of 9
UMP Models
25-40W, Single Output, DC/DC Converters
Performance Specifications and Ordering Guide
➀
Output
Model
UMP-5/5-Q12
UMP-5/6-Q48
UMP-5/7-D24
UMP-5/8-D48
UMP-12/2.1-Q12
UMP-12/2.5-Q48
UMP-12/3-D24
UMP-12/3.3-D48
UMP-15/1.7-Q12
UMP-15/2-Q48
UMP-15/2.5-D24
UMP-15/2.65-D48
➀
➁
➂
➃
Input
Regulation (Max.)
Load
➂
Line
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
V
OUT
(Volts)
5
5
5
5
12
12
12
12
15
15
15
15
I
OUT
(amps)
5
6
7
8
2.1
2.5
3
3.3
1.7
2
2.5
2.65
R/N (mVp-p)
➁
Typ.
Max.
75
80
75
75
100
100
100
100
100
100
100
100
100
110
100
100
150
150
150
150
150
150
150
150
V
IN
Nom.
(Volts)
24
48
24
48
24
48
24
48
24
48
24
48
Range
(Volts)
10-36
18-75
18-36
36-75
10-36
18-75
18-36
36-75
10-36
18-75
18-36
36-75
I
IN
➃
(ma)
50/1366
25/799
25/1796
25/1026
50/1326
30/770
25/1825
25/1004
50/1341
30/770
25/1879
25/1008
Efficiency
Min.
Typ.
77%
79%
82%
82%
80%
82%
82%
83%
80%
82%
83%
83%
79%
80%
83%
84%
82%
83%
84%
85%
82%
83%
84%
85%
Package
(Case,
Pinout)
C11, P14
C11, P14
C11, P14
C11, P14
C11, P14
C11, P14
C11, P14
C11, P14
C11, P14
C11, P14
C11, P14
C11, P14
Typical at T
A
= +25°C under nominal line voltage and full-load conditions unless otherwise noted.
Ripple/Noise (R/N) measured over a 20MHz bandwidth.
10 to 100% load.
Nominal line voltage, no-load/full-load conditions.
N U M b E R
S T R U C T U R E
O U T P U T
P O W E R
C O N S I D E R a T I O N S
P a R T
U MP
-
5
/
8
-
D48
-
C
Output Configuration:
U
= Unipolar
Fully Potted Metal Package
Nominal Output Voltage:
5, 12 or 15 Volts
Maximum Output Current
in Amps
M E C H a N I C a L
RoHS-6
compliant*
I N P U T VO LTag E R a N g E :
Q12
= 10-36 Volts (24V nominal)
D24
= 18-36 Volts (24V nominal)
Q48
= 18-75 Volts (48V nominal)
D48
= 36-75 Volts (48V nominal)
*
Contact Murata Power Solutions
(Datel) for availability.
UMP Model DC/DC Converters are classified, by output power, into 25,
30, 35 and 40 Watt devices. For the single-output devices listed above, the
maximum available output power is the product of the nominal output voltage
and the maximum allowable output current indicated within the part number
(see Part Number Structure). A UMP-5/6-Q48, for example, can source
6 Amps from its 5V output (over its entire 18-75V input voltage range) deliv-
ering an output power of 30 Watts. A UMP-5/8-D48 can deliver
40 Watts.

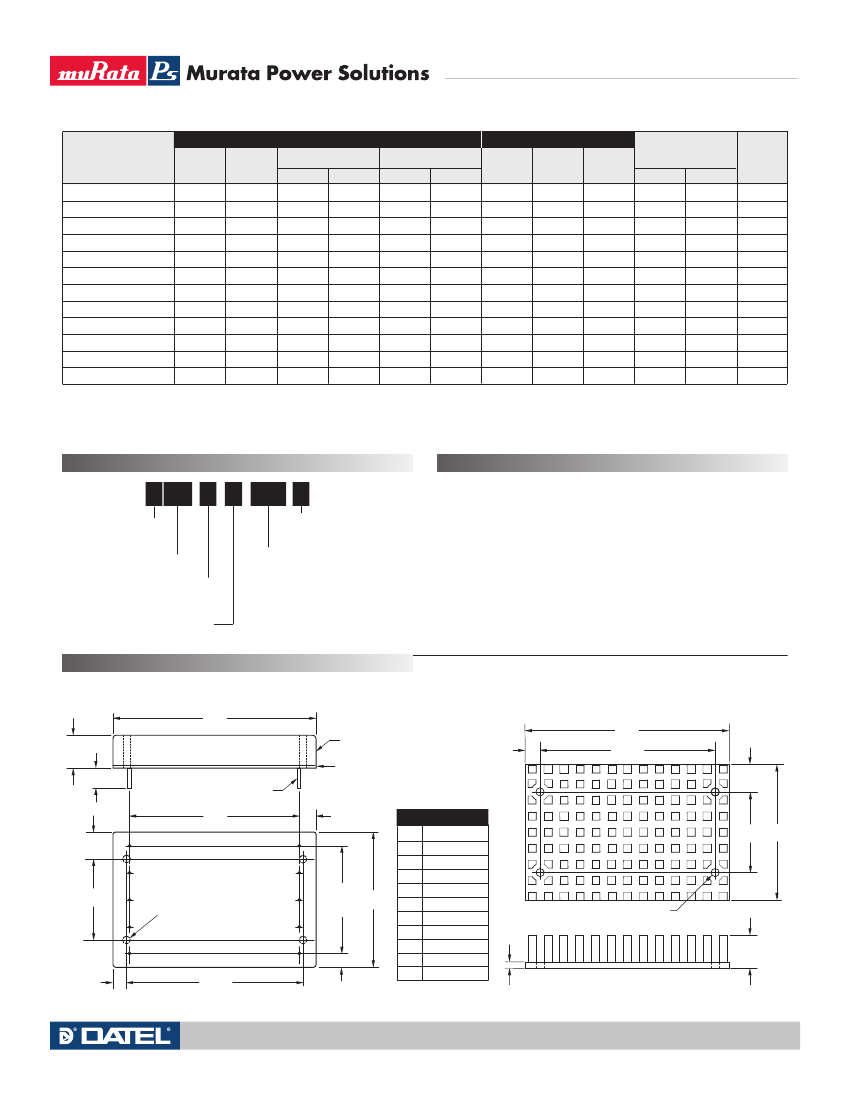

S P E C I F I C a T I O N S
3.04
(77.22)
METAL
CASE
INSULATED
BASE
0.040 ±0.002 DIA.
(1.016 ±0.051)
2.500
(63.50)
0.42
(10.67)
0.27
(6.86)
Optional Heat Sink Kit
(Part Number HS-23 <non-RoHS> or HS-23-C <RoHS>)
3.00
(76.20)
0.20
(5.08)
2.600
(66.04)
0.40
(10.16)
0.55
(13.97)
0.20 MIN
(5.08)
Case C11
I/O Connections
Pin Function P14
1
No Pin
2
–Input
3
+Input
4
Case
5 On/Off Control*
6
No Pin
7
No Pin
8
Common
9
+V
OUT
10
Trim
* See note 3 on next page.
1.200
(30.48)
2.00
(50.80)
1
2
6
7
1.600
2.04
(40.64)
4 EQ. SP. @ (51.82)
0.400 (10.16)
1.200
(30.48)
3
(4) THREADED INSERTS
#4-40 THD THRU
8
TOP VIEW
0.10
(2.54)
4
0.120 DIA. (3.048)
(4 PLACES)
9
10
5
BOTTOM VIEW
0.22
(5.59)
2.600
(66.04)
DIMENSIONS ARE IN INCHES (MM)
0.50
(12.70)
MATERIAL: BLACK ANODIZED ALUMINUM
4 MOUNTING SCREWS AND 0.009 (0.229) THERMAL PAD INCLUDED
0.22
(5.59)
www.murata-ps.com
Technical enquiries
email: sales@murata-ps.com, tel:
+1 508 339 3000
MDC_UMP25-40W_B01
Page 2 of 9
UMP Models
Typical @ T
A
= +25°C under nominal line voltage and full-load conditions, unless noted.
➀
Performance/Functional Specifications
Input
Input Voltage Range:
Q12 Models
D24 Models
Q48 Models
D48 Models
Undervoltage Lockout:
Q12 Models
D24 Models
Q48 Models
D48 Models
Input Current
Input Filter Type
➁
Overvoltage Shutdown:
D24 and Q12 Models
D48 and Q48 Models
Reverse-Polarity Protection
On/Off Control
(Pin 5)
➂
V
OUT
accuracy
(50% load)
Temperature Coefficient
Ripple/Noise
(20MHz BW)
➁
Line/Load Regulation
Efficiency
Isolation Voltage
Isolation Capacitance
Current Limiting
Overvoltage Protection
Transient Response
(50% load step)
Switching Frequency
Operating Temperature
(ambient):
Without Derating
With Derating
Maximum Case Temperature
Storage Temperature
Relative Humidity
Safety
Dimensions
Shielding
Case Connection
Case Material
Flammability Rating
Pin Material
Weight
25-40W, Single Output, DC/DC Converters
absolute Maximum Ratings
Input Voltage:
Q12/D24 Models
Q48/D48 Models
Input Reverse-Polarity Protection
Output Overvoltage Protection
5V Outputs
12V Outputs
15V Outputs
Output Current
44 Volts
88 Volts
Current must be <6A. Brief
duration only. Fusing recommended.
6.8 Volts, limited duration
15 Volts, limited duration
18 Volts, limited duration
Current limited. Max. current and
short-circuit duration are model
dependent.
–40 to +105°C
+300°C
10-36 Volts (24V nominal)
18-36 Volts (24V nominal)
18-75 Volts (48V nominal)
36-75 Volts (48V nominal)
9 Volts
17 Volts
17 Volts
34 Volts
See Ordering Guide
Pi
40 Volts
80 Volts
Yes (Instantaneous, 6A maximum)
TTL high (or open) = on, low = off
Storage Temperature
Lead Temperature
(soldering, 10 sec.)
Output
±1%, maximum
±0.02% per °C
See Ordering Guide
See Ordering Guide
See Ordering Guide
1500Vdc, minimum
130pF
Continuous, auto-recovery
Zener/transorb clamp, magnetic feedback
These are stress ratings. Exposure of devices to any of these conditions may ad-
versely affect long-term reliability. Proper operation under conditions other than
those listed in the Performance/Functional Specifications Table is not implied.
T E C H N I C a L
N O T E S
Floating Outputs
Since these are isolated DC/DC converters, their outputs are "floating." Us-
ers may ground either the Common (pin 8) for normal usage or the positive
side (+Output, pin 9) to effectively reverse the output polarity.
Filtering and Noise Reduction
All UMP 25-40 Watt DC/DC Converters achieve their rated ripple and noise
specifications without the use of external input/output capacitors. In critical
applications, input/output ripple and noise may be further reduced by install-
ing electrolytic capacitors across the input terminals and/or low-ESR tanta-
lum or electrolytic capacitors across the output terminals. The caps should
be located as close to the power converters as possible. Typical values are
listed in the tables below. In many applications, using values greater than
those listed will yield better results.
To Reduce Input Ripple
Q12/D24 Models
Q48/D48 Models
To Reduce Output Ripple
5V Outputs
12/15V Outputs
47µF, 50V
10µF, 100V
47µF, 10V, Low ESR
22µF, 20V, Low ESR
Dynamic Characteristics
200µsec max. to ±1.5% of final value
165kHz (±10%)
Environmental
–40 to +50°C (model dependent)
to +100°C (See Derating Curves)
+100°C
–40 to +105°C
To 85°C /85% RH, non-condensing
Physical
UL/cUL/EN/IEC 60950-1
2.04" x 3.04" x 0.55" (51.8 x 77.2 x 14mm)
5-sided
Pin 4
Aluminum, black anodized finish
with plastic header
UL94V-0
Gold-plated copper alloy with nickel
underplate
6 ounces (170 grams)
In critical, space-sensitive applications, DATEL may be able to tailor the inter-
nal input/output filtering of these devices to meet your specific require-ments.
Contact our Applications Engineering Group for additional details.
Input Fusing
Certain applications and/or safety agencies may require the installation of
fuses at the inputs of power conversion components. For DATEL UMP
DC/DC Converters, you should use slow-blow type fuses with values no
greater than the following:
V
IN
Range
Q12
D24
Q48
D48
Fuse Value
4A
4A
3A
2A
➀
These converters require a minimum 10% output loading to maintain specified regulation.
Operation under no-load conditions will not damage these devices; however they may not
meet all listed specifications.
➁
Application-specific input/output filtering can recommended or perhaps added
internally upon request. Contact DATEL Applications Engineering for details.
➂
Applying voltage to the Control pin with no input power applied can damage the converter.
➃
Listed spec is for input-to-output. Input-to-case and output-to-case isolation is 1000Vdc min.
www.murata-ps.com
Technical enquiries
email: sales@murata-ps.com, tel:
+1 508 339 3000
MDC_UMP25-40W_B01
Page 3 of 9
UMP Models
25-40W, Single Output, DC/DC Converters
Temperature Derating and Electrical Performance Curves

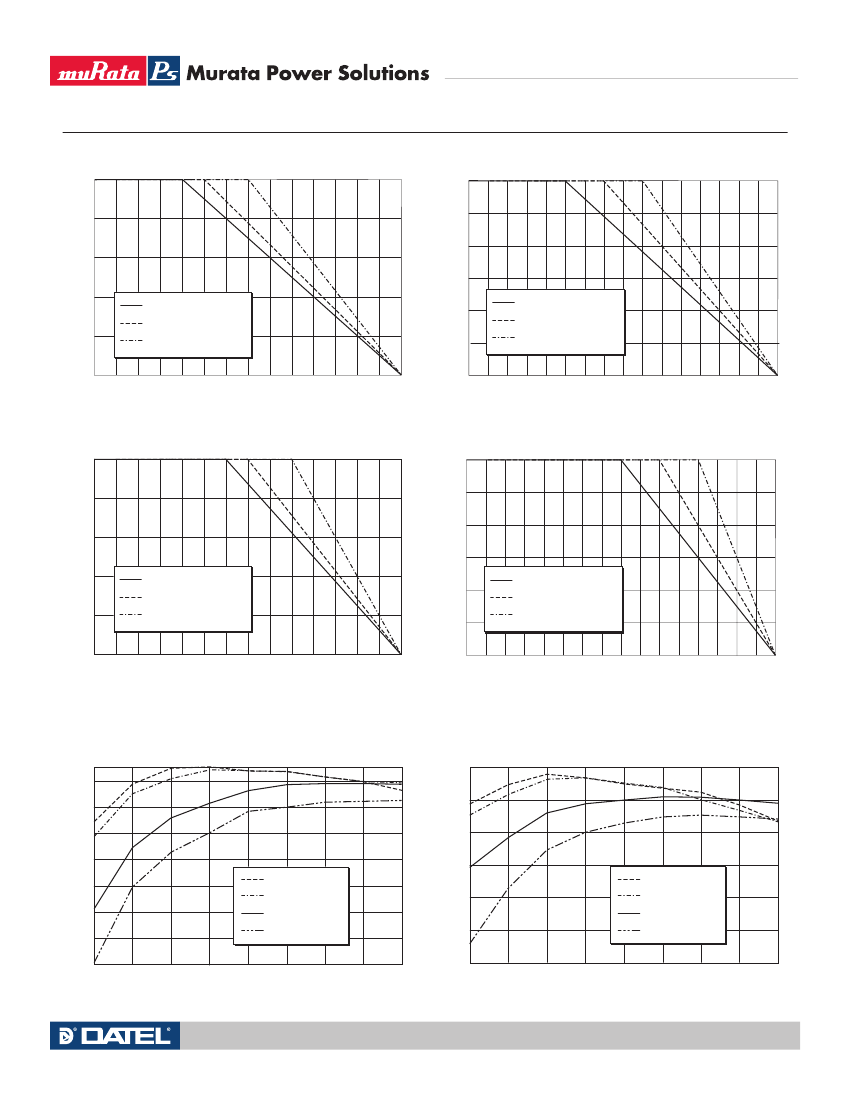

Q12 Models (25 Watts)
25
30
Q48 Models (30 Watts)
20
25
Output Power (Watts)
Output Power (Watts)
20
15
15
Natural Convection Cooling
150 Linear Feet Per Minute
5
300 Linear Feet Per Minute
10
Natural Convection Cooling
150 Linear Feet Per Minute
5
300 Linear Feet Per Minute
10
0
–40
0
0
40
45
50
55
60
65
70
75
80
85
90
95
100
–40
0
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
Ambient Temperature (°C)
Ambient Temperature (°C)
Figure 2a. Temperature Derating Without Heat Sink
25
Figure 3a. Temperature Derating Without Heat Sink
30
20
25
Output Power (Watts)
Output Power (Watts)
20
15
15
Natural Convection Cooling
10
150 Linear Feet Per Minute
300 Linear Feet Per Minute
10
Natural Convection Cooling
150 Linear Feet Per Minute
5
300 Linear Feet Per Minute
5
0
–40
0
0
40
45
50
55
60
65
70
75
80
85
90
95
100
–40
0
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
Ambient Temperature (°C)
Ambient Temperature (°C)
Figure 2b. Temperature Derating With Heat Sink
Figure 3b. Temperature Derating With Heat Sink
Model UMP-5/5-Q12
82.5
80
75
70
82
86
Model UMP-5/6-Q48
78
Efficiency (%)
65
60
55
50
45
Efficiency @ 10V
IN
Efficiency @ 12V
IN
Efficiency @ 24V
IN
Efficiency @ 36V
IN
Efficiency (%)
74
Efficiency @ 18V
IN
70
Efficiency @ 24V
IN
Efficiency @ 48V
IN
66
Efficiency @ 72V
IN
62
0.56
1.11
1.67
2.22
2.78
3.33
3.89
4.44
5
0.67
1.33
2
2.67
3.33
4
4.67
5.33
6
Output Current (Amps)
Output Current (Amps)
Figure 2c. Efficiency vs. Output Current and Input Voltage
Figure 3c. Efficiency vs. Output Current and Input Voltage
Technical enquiries
email: sales@murata-ps.com, tel:
+1 508 339 3000
www.murata-ps.com
MDC_UMP25-40W_B01
Page 4 of 9
UMP Models
25-40W, Single Output, DC/DC Converters
Temperature Derating and Electrical Performance Curves

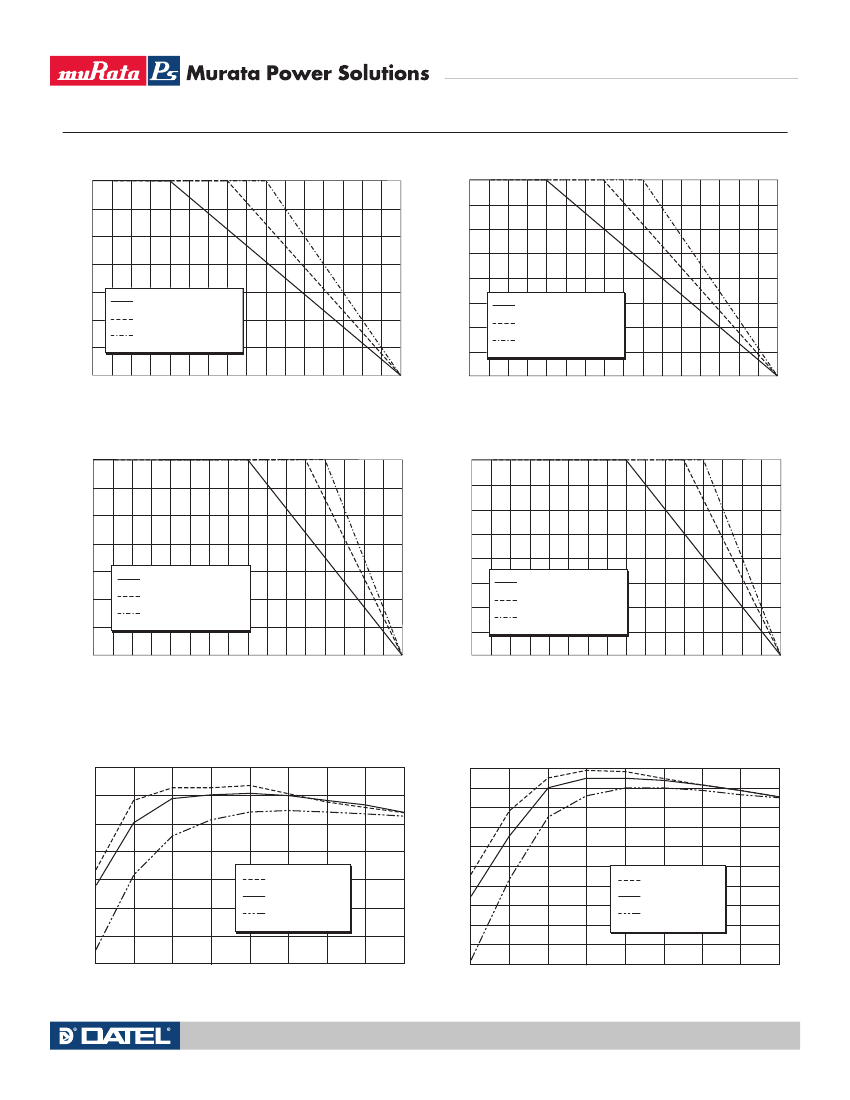

D24 Models (35 Watts)
35
D48 Models (40Watts)
40
35
30
30
Output Power (Watts)
Output Power (Watts)
25
25
20
15
10
5
0
–40 0
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
20
15
Natural Convection Cooling
10
150 Linear Feet Per Minute
300 Linear Feet Per Minute
5
Natural Convection Cooling
150 Linear Feet Per Minute
300 Linear Feet Per Minute
0
–40
0
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
Ambient Temperature (°C)
Ambient Temperature (°C)
Figure 4a. Temperature Derating Without Heat Sink
35
40
35
30
Figure 5a. Temperature Derating Without Heat Sink
30
Output Power (Watts)
Output Power (Watts)
25
25
20
15
10
5
0
Natural Convection Cooling
150 Linear Feet Per Minute
300 Linear Feet Per Minute
20
15
Natural Convection Cooling
150 Linear Feet Per Minute
300 Linear Feet Per Minute
10
5
0
–40
0
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
–40
0
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
Ambient Temperature (°C)
Ambient Temperature (°C)
Figure 4b. Temperature Derating With Heat Sink
Figure 5b. Temperature Derating With Heat Sink
Model UMP-5/7-D24
88
88
86
84
84
82
Model UMP-5/8-D48
86
Efficiency (%)
Efficiency (%)
82
80
78
76
74
72
Efficiency @ 36V
IN
Efficiency @ 48V
IN
Efficiency @ 72V
IN
80
Efficiency @ 18V
IN
Efficiency @ 24V
IN
78
Efficiency @ 36V
IN
76
70
74
0.77
1.56
2.33
3.11
3.89
4.67
5.44
6.22
7
68
0.5
1
2
3
4
5
6
7
8
Output Current (Amps)
Output Current (Amps)
Figure 4c. Efficiency vs. Output Current and Input Voltage
Figure 5c. Efficiency vs. Output Current and Input Voltage
Technical enquiries
email: sales@murata-ps.com, tel:
+1 508 339 3000
www.murata-ps.com
MDC_UMP25-40W_B01
Page 5 of 9
京公网安备 11010802033920号
EEWORLD
