SZN5105CSM

Description
Zener Diode, 220V V(Z), 2%, 3W, Silicon, Unidirectional, HERMETIC SEALED, GLASS, SM, 2 PIN
CategoryDiscrete semiconductor    diode
File Size166KB,3 Pages
ManufacturerSSDI
Websitehttp://www.ssdi-power.com/
Download Datasheet Parametric View All

SZN5105CSM Overview

Zener Diode, 220V V(Z), 2%, 3W, Silicon, Unidirectional, HERMETIC SEALED, GLASS, SM, 2 PIN

SZN5105CSM Parametric

Parameter NameAttribute value
MakerSSDI
package instructionO-LELF-R2
Contacts2
Reach Compliance Codecompliant
ECCN codeEAR99
Shell connectionISOLATED
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeZENER DIODE
JESD-30 codeO-LELF-R2
Number of components1
Number of terminals2
Maximum operating temperature175 °C
Minimum operating temperature-65 °C
Package body materialGLASS
Package shapeROUND
Package formLONG FORM
polarityUNIDIRECTIONAL
Maximum power dissipation3 W
Nominal reference voltage220 V
surface mountYES
technologyZENER
Terminal formWRAP AROUND
Terminal locationEND
Maximum voltage tolerance2%
Working test current3 mA
Solid State Devices, Inc.
14701 Firestone Blvd * La Mirada, Ca 90638
Phone: (562) 404-4474 * Fax: (562) 404-1773
ssdi@ssdi-power.com * www.ssdi-power.com

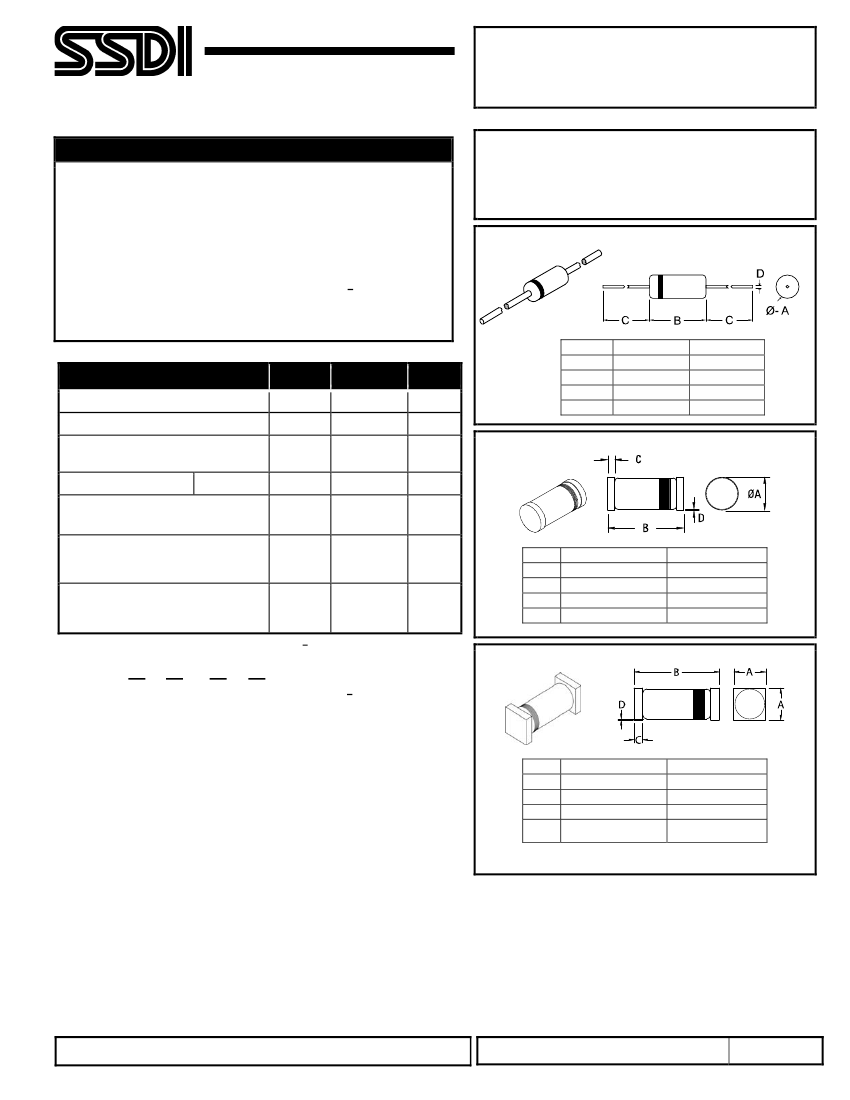

SZN5063 thru SZN5117 Series
DESIGNER’S DATA SHEET
FEATURES:
Hermetically Sealed in Glass
(
Available in Frit Glass see SSDI datasheet # Z00004)
Rated at 3.0 W
Available in Axial, Round Tab Surface Mount (SM) and
Square Tab Surface Mount (SMS) version
Available to TX, TXV, and Space Levels
7/
Zener Voltage, 10%, 5%, 2% or 1% Tolerance
Replacement for 1N5063 thru 5117
Maximum Ratings
Nominal Zener Voltage
Maximum Zener Current
Forward Surge Current
(8.3 msec Puls)
Continuous Power
Operating and Storage Temp.
Thermal Resistance,
Junction to Lead
L=3/8” (Axial)
3.0 WATT
6.8 – 400 VOLTS
ZENER DIODES
AXIAL (__)
Symbol
Value
Units
V
Z
I
ZM
I
FSM
P
D
Top
Tstg
R
θJL
R
θJE
6.8 - 400
7.0 - 440
.06 – 10
3.0
-65 to +175
-65 to +200
65
30
V
mA
A
W
ºC
ºC/W
ºC/W
DIM
A
B
C
D
DIM
A
B
C
D
MIN.
.055”
.130”
1.00”
.028”
MAX
.085”
.175”
---
.034”
ROUND TAB (SM)
Thermal Resistance,
Junction to End Cap
(SM / SMS)
MIN.
.077”
.130”
.010”
+.000”
MAX.
.083”
.146”
.022”
---
Part Number/Ordering Information
6/
SZN
__
__
__
__
SQUARE TAB (SMS)
Screening
7/
__
= Not Screened
TX = TX Level
TXV = TXV
S = S Level
Package Type
__
= Axial Leaded
SM = Surface Mount Round Tab
SMS = Surface Mount Square Tab
Tolerance
A = 10%
B = 5% ( JEDEC Registration)
C=2%
D = 1%
Voltage/Family
5063 thru 5117
DIM
A
B
C
D
MIN.
.090”
.175”
.022”
Body to Tab
Clearance: .001”
MAX.
.100”
.215”
.028”
All dimensions are prior to soldering
NOTE:
All specifications are subject to change without notification.
SCD's for these devices should be reviewed by SSDI prior to release.
