EWS50-6: DescriptionAC-DC Regulated Power Supply Module, 1 Output, 50.4W, Hybrid, PACKAGE-7; CategoryPower/power management The power supply circuit; File Size382KB，4 Pages; ManufacturerTDK-LAMBDA

Download Datasheet Parametric Compare View All

EWS50-6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EWS50-6	-	-	View	Buy Now

EWS50-6 Overview

AC-DC Regulated Power Supply Module, 1 Output, 50.4W, Hybrid, PACKAGE-7

EWS50-6 Parametric

Parameter Name	Attribute value
Maker	TDK-LAMBDA
package instruction	PACKAGE-7
Reach Compliance Code	compliant
Other features	ALSO OPERATE WITH 110-330VDC
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	265 V
Minimum input voltage	85 V
JESD-30 code	R-XXMA-X7
Number of functions	1
Output times	1
Number of terminals	7
Maximum operating temperature	50 °C
Minimum operating temperature
Maximum output voltage	6.6 V
Minimum output voltage	5.4 V
Nominal output voltage	6 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Maximum total power output	50.4 W
Fine-tuning/adjustable output	YES

Preview

Download Datasheet

View All

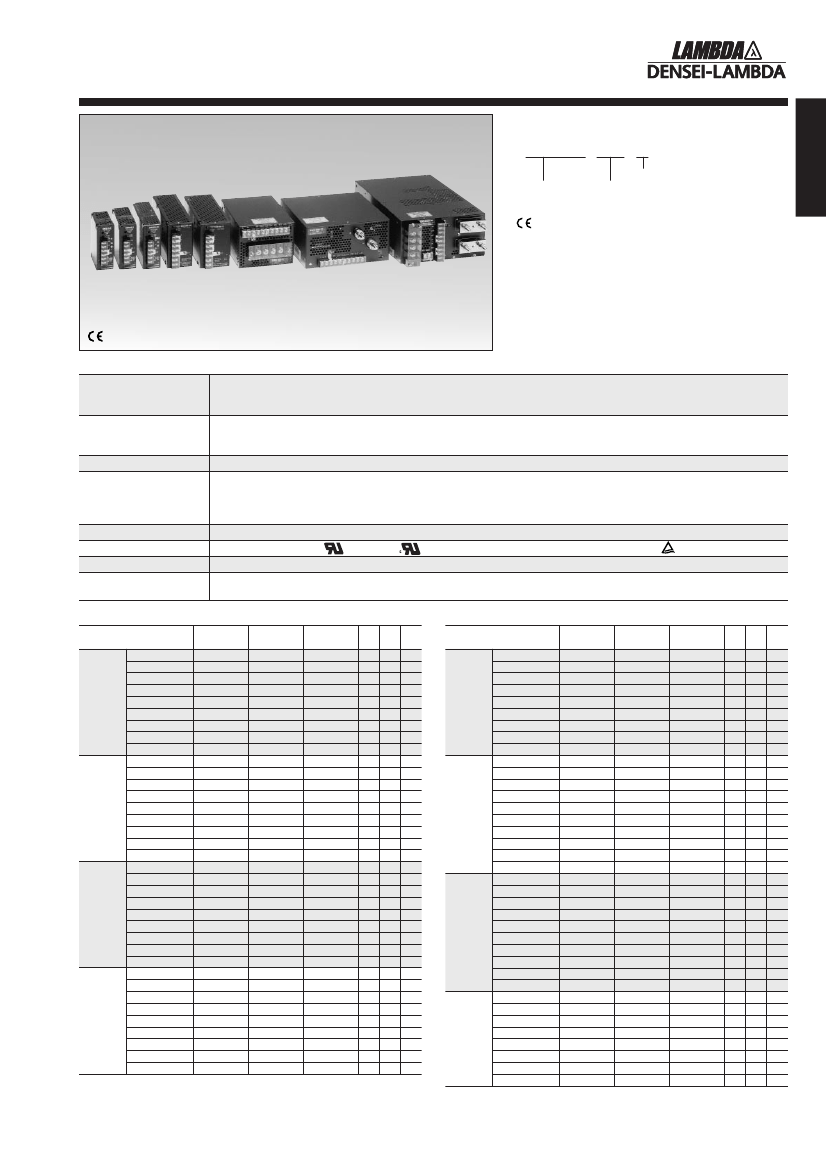

EWS

-SERIES

Single output 15W ~ 1500W

Unit Type Power Supply

Model name

EWS 15-5

Nominal output voltage

Name of series

Output power

Features

marking (Low Voltage Directive)

74 models, 15 ~ 1500W

Wide input voltage range

EWS15, 25, 50: 85 ~ 265VAC universal input

EWS100, 150, 300, 600: 100/200VAC auto-selectable

EWS1500: 100/200VAC user-selectable

Wide output voltage range: 20% (EWS300, 600, 1500)

Output voltage programmable (EWS1500):

0V to nominal output voltage by external control

3 year warranty

EWS15 EWS25 EWS50

EWS100

EWS150

EWS300

EWS600

EWS1500

(Low Voltage Directive)

3 year warranty

Specifications

1. Input voltage range

EWS15, 25, 50: 85 ~ 265VAC (47 ~ 440Hz), DC110 ~ 330V universal input

EWS100, 150, 300, 600: 85 ~ 132VAC/170 ~ 265VAC (47 ~ 63Hz) auto-selectable

EWS1500: 85 ~ 132VAC/170 ~ 265VAC (47 ~ 63Hz) user-selectable

2. Output voltage

EWS15, 25, 50, 100, 150: 10%

range

EWS300, 600, 1500: 20% (2V: –10 ~ +20%)

EWS1500: 20% or 0V to nominal output voltage

120% by external control

3. Cooling

EWS15, 25, 50, 100, 150: Convection cooling, EWS300, 600, 1500: Forced air cooling by internal fan

4. Operating ambient

–10 ~ +60°C (Output derating)

temperature

EWS15, 25, 50/–10°C: 70%, 0 ~ + 50°C: 100%, +60°C: 50%

(Standard mounting)

EWS100,150/–10°C: 72%, 0 ~ +40°C: 120%, +50°C: 100%, +60°C: 48%

EWS300, 600, 1500/–10°C: 70%, 0 ~ +50°C: 100%, +60°C: 70%

5. Withstand voltage

Input–output: 3.75kVAC, Input–FG: 2.5kVAC, Output–FG: 500VAC for 1 min.

6. Safety standard

Approved by UL1950

, CSA950

(EWS300: approved by CSA234) and EN60950

7. EMI

Conforms to VCCI-class A and FCC class A

8. Functions

Over voltage protection, Over current protection, Remote sensing (EWS100 ~ 1500), Remote on/off control

(EWS300 ~ 1500), Output current balancing (EWS300 ~ 1500)

Product lineup

Model name

EWS15-5

EWS15-6

EWS15-9

EWS15-12

EWS15-15

EWS15-18

EWS15-24

EWS15-28

EWS15-48

EWS25-5

EWS25-6

EWS25-9

EWS25-12

EWS25-15

EWS25-18

EWS25-24

EWS25-28

EWS25-48

EWS50-5

EWS50-6

EWS50-9

EWS50-12

EWS50-15

EWS50-18

EWS50-24

EWS50-28

EWS50-48

EWS100-5

EWS100-6

EWS100-9

EWS100-12

EWS100-15

EWS100-18

EWS100-24

EWS100-28

EWS100-48

Nominal

Max.

output voltage output current output power

15W

3.0A

15W

2.5A

15.3W

1.7A

16.8W

12V

1.4A

16.5W

15V

1.1A

16.2W

18V

0.9A

16.8W

24V

0.7A

16.8W

28V

0.6A

16.8W

48V

0.35A

25.0W

5.0A

25.2W

4.2A

25.2W

2.8A

26.4W

12V

2.2A

27W

15V

1.8A

27W

18V

1.5A

28.8W

24V

1.2A

28W

28V

1.0A

28.8W

48V

0.6A

50.0W

10.0A

50.4W

8.4A

50.4W

5.6A

52.8W

12V

4.4A

54.0W

15V

3.6A

57.6W

18V

3.2A

57.6W

24V

2.4A

56.0W

28V

2.0A

57.6W

48V

1.2A

100W

20A

100.2W

16.7A

100.8W

11.2A

100.8W

12V

8.4A

100.5W

15V

6.7A

100.8W

18V

5.6A

100.8W

24V

4.2A

28V

100.8W

3.6A

48V

100.8W

2.1A

UL CSA EN

Model name

EWS150-5

EWS150-6

EWS150-9

EWS150-12

EWS150-15

EWS150-18

EWS150-24

EWS150-28

EWS150-48

EWS300-2

EWS300-5

EWS300-6

EWS300-9

EWS300-12

EWS300-15

EWS300-18

EWS300-24

EWS300-28

EWS300-48

EWS600-2

EWS600-5

EWS600-6

EWS600-9

EWS600-12

EWS600-15

EWS600-18

EWS600-24

EWS600-28

EWS600-48

EWS1500-2

EWS1500-3.3

EWS1500-5

EWS1500-10

EWS1500-12

EWS1500-15

EWS1500-24

EWS1500-48

Nominal

Max.

output voltage output current output power

150W

30A

150W

25A

150.3W

16.7A

12V

150W

12.5A

15V

150W

10A

18V

151.2W

8.4A

24V

151.2W

6.3A

28V

151.2W

5.4A

48V

151.2W

3.15A

120W

60A

300W

60A

300W

50A

306W

34A

12V

324W

27A

15V

330W

22A

18V

324W

18A

24V

336W

14A

28V

336W

12A

48V

336W

240W

120A

600W

120A

600W

100A

612W

68A

12V

636W

53A

15V

645W

43A

18V

630W

35A

24V

648W

27A

28V

644W

23A

48V

624W

13A

600W

300A

3.3V

990W

300A

1500W

300A

10V

1500W

150A

12V

1500W

125A

15V

1500W

100A

24V

1512W

63A

48V

1536W

32A

UL CSA EN

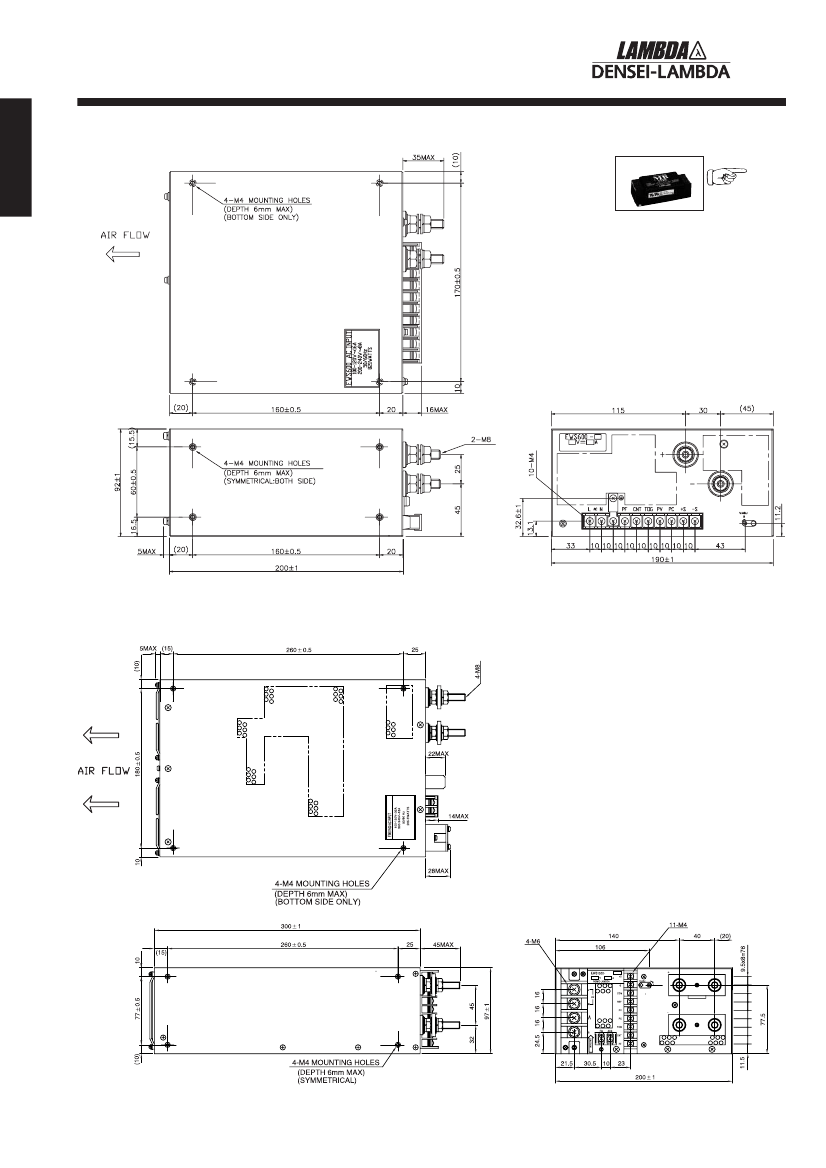

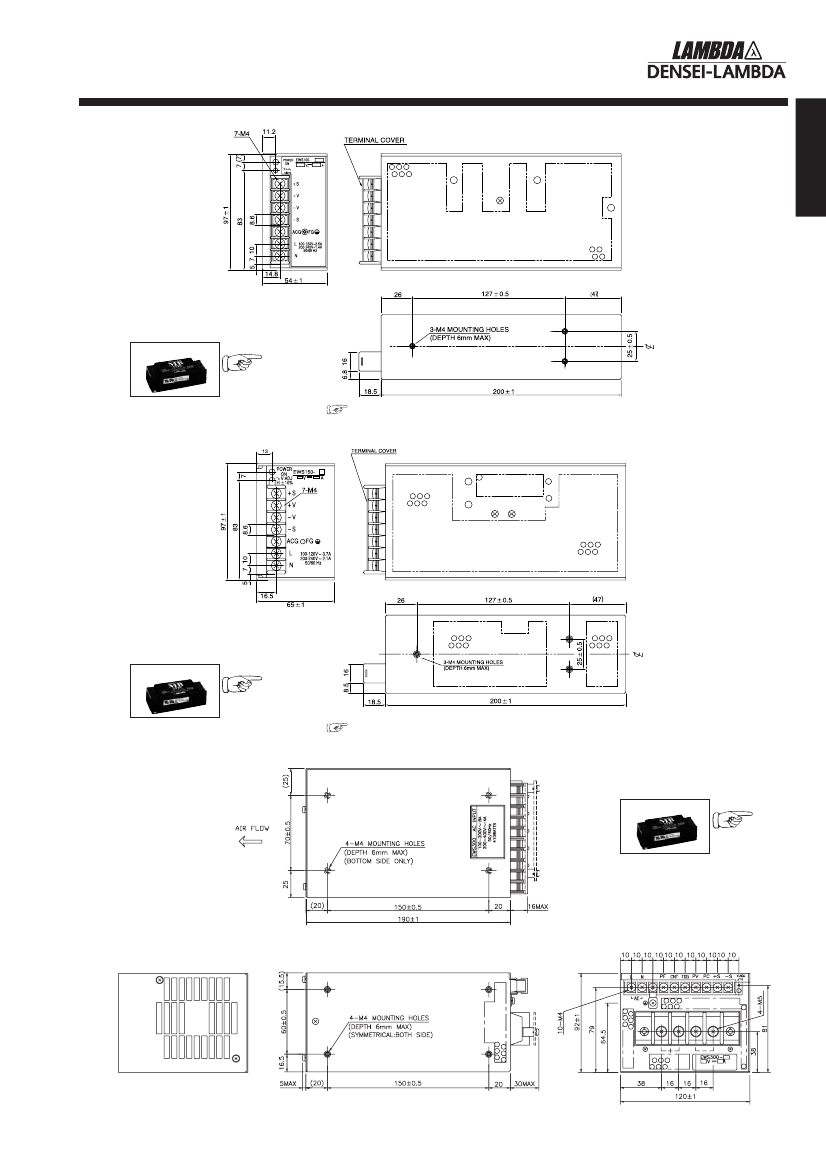

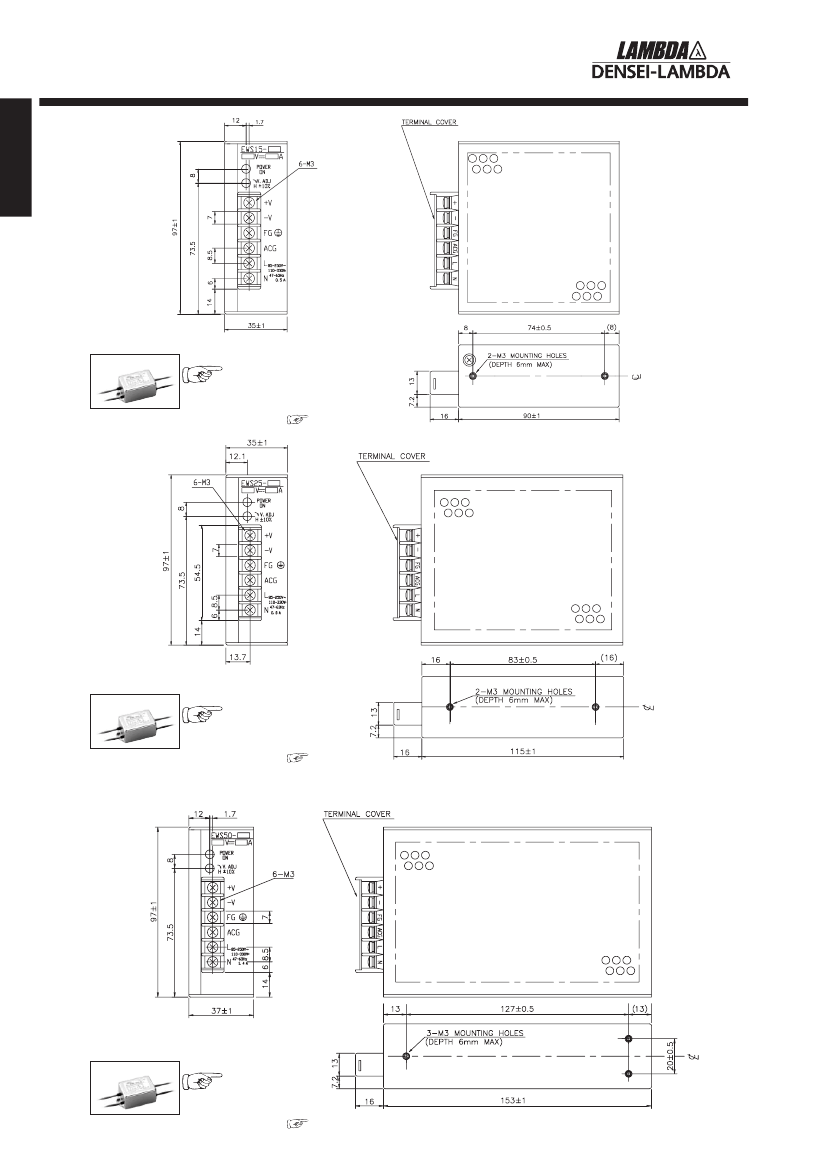

EWS15

EWS150

∆

EWS25

EWS300

∆

EWS50

EWS600

EWS100

EWS1500

Request customer specification for further details of specifications, outline, characteristics, etc.

Read the instruction manual before usage.

: Safety standard approved

∆

: Conforms to safety standard
