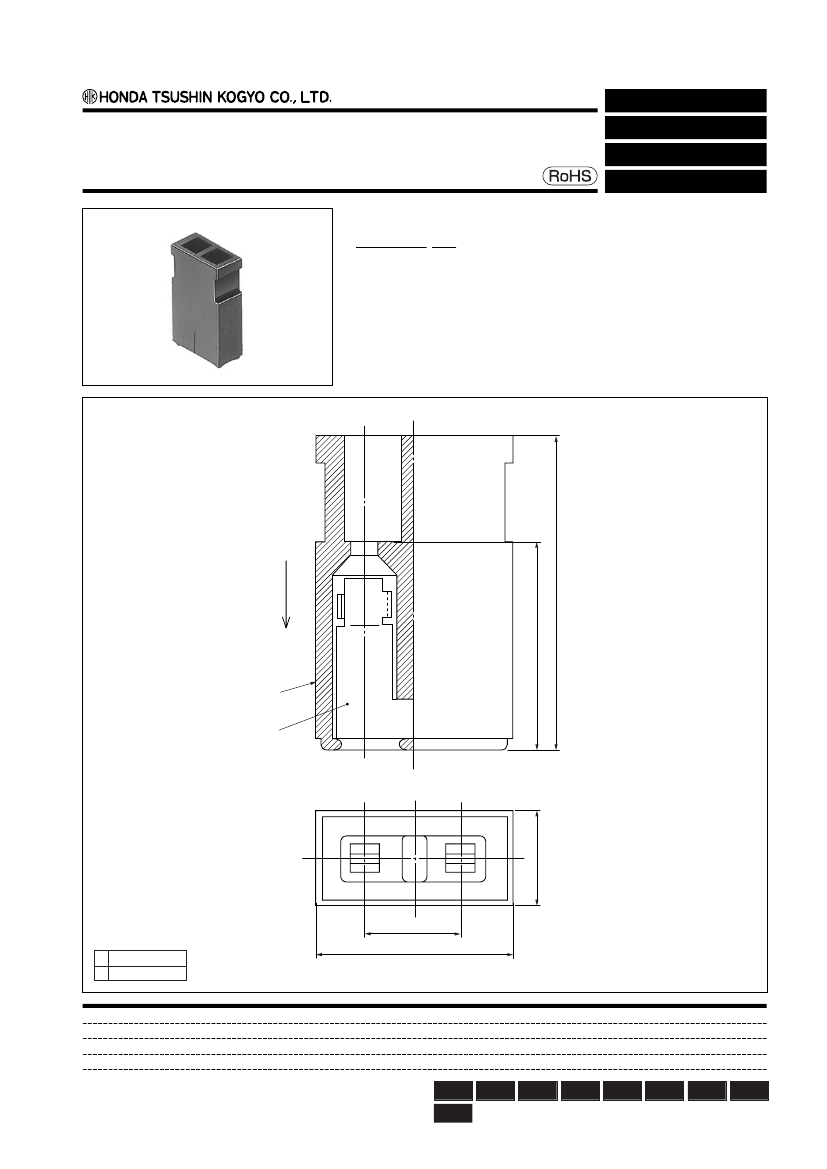

2.54 mm pitch connectors
Shunt plug for 0.635✕0.635 mm square contacts
or 0.64 mm diameter round contacts (High profile type)
DIC-208( )[Z-208( )]
●
Configuration of product Part No.
For shunt
For 0.635✕0.635 mm square contacts
or 0.64 mm diameter round contacts
DIC-208 ( )
➀
➁
➀
Series name
➁
Contact plating and Insulator color
Blank: Min. 0.7
μm
Gold plate, Black
A
: Min. 0.4
μm
Gold plate, Black
B
: Min. 0.2
μm
Gold plate, Black
Bu : Min. 0.7
μm
Gold plate, Blue
Mating
direction
➀
➁
2.54
●
Components
➀
Insulator
➁
Contact
5
Mating connectors:
FFC series or HKP series connector
Others
Wire
wrapping Crimping Soldering
2.45
5.4 REF.
8.6 REF.
IDC
Press-in
SMT
Through
hole
