FST16212MTDX

Description
Bus Exchanger, CBT/FST/QS/5C/B Series, 1-Func, 12-Bit, True Output, CMOS, PDSO56, 6.10 MM, MO-153, TSSOP-56
Categorylogic    logic
File Size855KB，6 Pages
ManufacturerRochester Electronics
Websitehttps://www.rocelec.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

FST16212MTDX Online Shopping

Suppliers Part Number Price MOQ In stock
FST16212MTDX - - View Buy Now

FST16212MTDX Overview

Bus Exchanger, CBT/FST/QS/5C/B Series, 1-Func, 12-Bit, True Output, CMOS, PDSO56, 6.10 MM, MO-153, TSSOP-56

FST16212MTDX Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerRochester Electronics
Parts packaging codeTSSOP
package instructionTSSOP,
Contacts56
Reach Compliance Codeunknown
Other featuresTTL COMPATIBLE BUS SWITCH
seriesCBT/FST/QS/5C/B
JESD-30 codeR-PDSO-G56
JESD-609 codee3
length14 mm
Logic integrated circuit typeBUS EXCHANGER
Number of digits12
Number of functions1
Number of ports4
Number of terminals56
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Output characteristics3-STATE
Output polarityTRUE
Package body materialPLASTIC/EPOXY
encapsulated codeTSSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)NOT SPECIFIED
propagation delay (tpd)0.25 ns
Certification statusNot Qualified
Maximum seat height1.1 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4 V
Nominal supply voltage (Vsup)4.5 V
surface mountYES
technologyCMOS
Temperature levelINDUSTRIAL
Terminal surfaceTin (Sn)
Terminal formGULL WING
Terminal pitch0.5 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width6.1 mm

FST16212MTDX Preview

D ts e t
aa h e
R c e t r lc r nc
o h se Ee to is
Ma u a t r dCo o e t
n fc u e
mp n n s
R c e tr b a d d c mp n ns ae
o h se rn e
o oet r
ma ua trd u ig ete dewaes
n fcue sn i r i/ fr
h
p rh s d f m te oiia s p l r
uc a e r
o h r n l u pi s
g
e
o R c e tr waes rce td f m
r o h se
fr e rae r
o
te oiia I. Al rce t n ae
h
r nl P
g
l e rai s r
o
d n wi tea p o a o teOC
o e t h p rv l f h
h
M.
P r aetse u igoiia fcoy
at r e td sn r n la tr
s
g
ts p o rmso R c e tr e eo e
e t rga
r o h se d v lp d
ts s lt n t g aa te p o u t
e t oui s o u rne
o
rd c
me t o e c e teOC d t s e t
es r x e d h
M aa h e.
Qu l yOv riw
ai
t
e ve
• IO- 0 1
S 90
•A 92 cr ct n
S 1 0 et ai
i
o
• Qu l e Ma ua trr Ls (
ai d
n fcues it QML MI- R -
) LP F
385
53
•C a sQ Mitr
ls
lay
i
•C a sVS a eL v l
ls
p c ee
• Qu l e S p l r Ls o D sr uos( L )
ai d u pi s it f it b tr QS D
e
i
•R c e trsacic l u pir oD A a d
o h se i
r ia s p l t L n
t
e
me t aln u t a dD A sa d r s
es lid sr n L tn ad .
y
R c e tr lcrnc , L i c mmi e t
o h se Ee t is L C s o
o
tdo
t
s p ligp o u t ta s t f c so r x e t-
u pyn rd cs h t ai y u tme e p ca
s
t n fr u lya daee u loto eoiial
i s o q ai n r q a t h s r n l
o
t
g
y
s p l db id sr ma ua trr.
u pi
e yn ut
y n fcues
T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e
h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c
g
s
o
a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n
n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -
o
o
isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -
c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a
o
s
g
t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g
i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu
o
a
r xmu ai s
n
ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig
y e a e n rd c c aa tr t , e in smuai , r a l e t .
z o
o
n
© 2 1 R cetr l t n s LC Al i t R sre 0 1 2 1
0 3 ohs E cr i , L . lRg s eevd 7 1 0 3
e e oc
h
T l r m r, l s v iw wrcl . m
o e n oe p ae it w . e c o
a
e
s
o ec
FST16212 24-Bit Bus Exchange Switch
July 1997
Revised April 2005
FST16212
24-Bit Bus Exchange Switch
General Description
The Fairchild Switch FST16212 provides 24-bits of high-
speed CMOS TTL-compatible bus switching or exchang-
ing. The low on resistance of the switch allows inputs to be
connected to outputs without adding propagation delay or
generating additional ground bounce noise.
The device operates as a 24-bit bus switch or a 12-bit bus
exchanger, which allows data exchange between the four
signal ports via the data-select terminals.
Features
s
4
:
switch connection between two ports.
s
Minimal propagation delay through the switch.
s
Low l
CC
.
s
Zero bounce in flow-through mode.
s
Control inputs compatible with TTL level.
Ordering Code:
Order Number
FST16212MEA
FST16212MTD
Package Number
MS56A
MTD56
Package Description
56-Lead Shrink Small Outline Package (SSOP), JEDEC MO-118, 0.300" Wide
56-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.

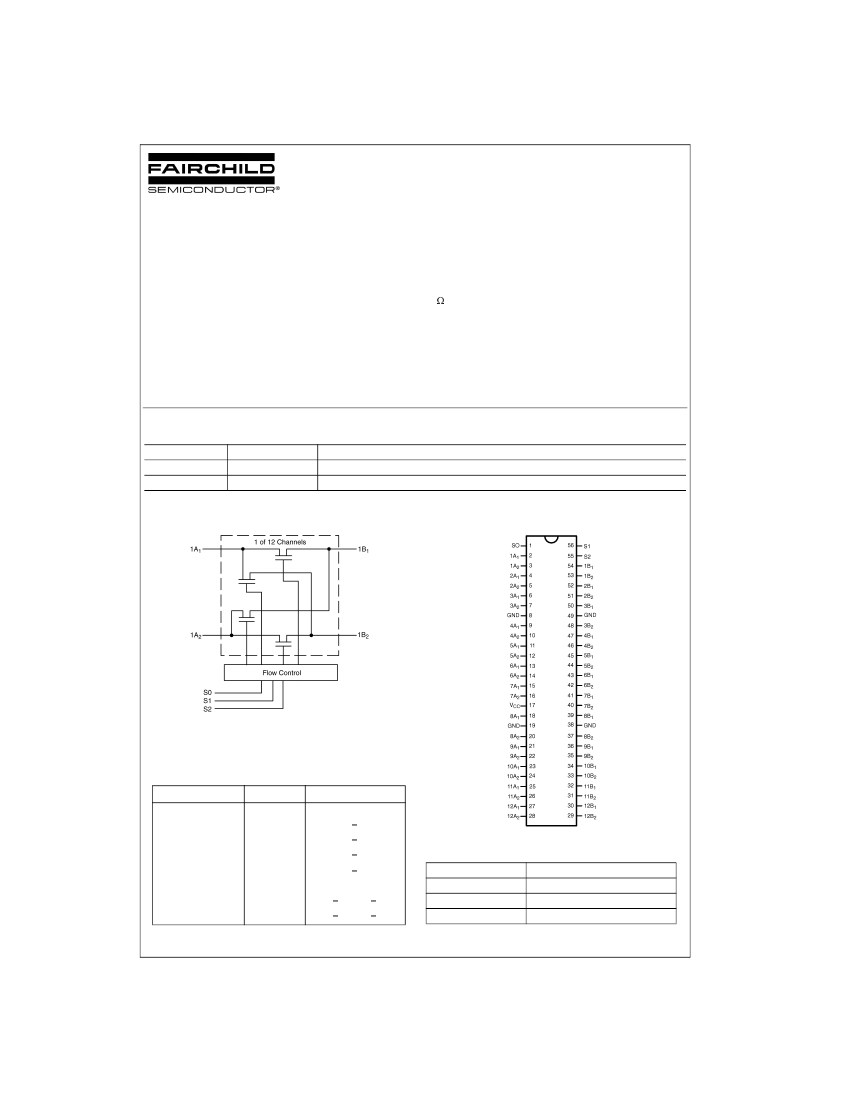

Logic Diagram
Connection Diagram
Truth Table
S2
L
L
L
L
H
H
H
H
S1
L
L
H
H
L
L
H
H
S0
L
H
L
H
L
H
L
H
A
1
Z
B
1
B
2
Z
Z
Z
B
1
B
2
A
2
Z
Z
Z
B
1
B
2
Z
B
2
B
1
A
1
A
1
Function
Disconnect
A
1
A
1
A
2
A
2
B
1
B
2
B
1
B
2
B
2
B
1
Pin Descriptions
Pin Name
S2, S1, S0
A
1
, A
2
B
1
, B
2
Description
Data-select inputs
Bus A
Bus B
Disconnect
B
1
, A
2
B
2
, A
2
© 2005 Fairchild Semiconductor Corporation
DS500038
www.fairchildsemi.com
FST16212
Absolute Maximum Ratings
(Note 1)
Supply Voltage (V
CC
)
DC Switch Voltage (V
S
)
DC Input Voltage (V
IN
) (Note 2)
DC Input Diode Current (l
IK
) V
IN

0V
DC Output (I
OUT
) Sink Current
DC V
CC
/GND Current (I
CC
/I
GND
)
Storage Temperature Range (T
STG
)

0.5V to

7.0V

0.5V to

7.0V

0.5V to

7.0V

50mA
128mA
Recommended Operating
Conditions
(Note 3)
Power Supply Operating (V
CC
)
Input Voltage (V
IN
)
Output Voltage (V
OUT
)
Input Rise and Fall Time (t
r
, t
f
)
Switch Control Input
Switch I/O
Free Air Operating Temperature (T
A
)
0nS/V to 5nS/V
0nS/V to DC
4.0V to 5.5V
0V to 5.5V
0V to 5.5V

/

100mA

65
q
C to

150
q
C

40
q
C to

85
q
C
Note 1:
The “Absolute Maximum Ratings” are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum rating.
The “Recommended Operating Conditions” table will define the conditions
for actual device operation.
Note 2:
The input and output negative voltage ratings may be exceeded if
the input and output diode current ratings are observed.
Note 3:
Unused control inputs must be held high or low. They may not float.
DC Electrical Characteristics
Symbol
V
IK
V
IH
V
IL
I
I
I
OZ
R
ON
Parameter
Clamp Diode Voltage
HIGH Level Input Voltage
LOW Level Input Voltage
Input Leakage Current
OFF-STATE Leakage Current
Switch On Resistance
(Note 5)
V
CC
(V)
4.5
4.0–5.5
4.0–5.5
5.5
0
5.5
4.5
4.5
4.5
4.0
I
CC
Quiescent Supply Current
Increase in I
CC
per Input
5.0V and T
A

25
q
C
T
A
Min

40
q
C to

85
q
C
Typ
(Note 4)
Max
Units
V
V
0.8
V
I
IN
Conditions

1.2
2.0

18mA
r
1.0
10
P
A
P
A
P
A
:
:
:
:
P
A
mA
0
d
V
IN
d
5.5V
V
IN
V
IN
V
IN
V
IN
V
IN
V
IN
5.5V
0V, I
IN
0V, I
IN
2.4V, I
IN
2.4V, I
IN
64mA
30mA
15mA
15mA
0
0
d
A, B
d
V
CC
r
1.0
4
4
8
14
7
7
12
20
3
2.5
5.5
5.5
V
CC
or GND, I
OUT
'
I
CC
One input at 3.4V
Other inputs at V
CC
or GND
Note 4:
Typical values are at V
CC
Note 5:
Measured by the voltage drop between A and B pins at the indicated current through the switch. On resistance is determined by the lower of the
voltages on the two (A or B) pins.
www.fairchildsemi.com
2
FST16212
AC Electrical Characteristics
T
A
Symbol
Parameter
V
CC
Min
t
PHL
,t
PLH
t
PHL
,t
PLH
t
PZH
, t
PZL
t
PHZ
, t
PLZ
BW
Prop Delay Bus to Bus (Note 6)
Prop Delay S to Bus
Output Enable Time, S to A or B
Output Disable Time S to A or B
1.5
1.5
1.0
250
C
L

40
q
C to

85
q
C,
RD
500
:
4.0V
Max
0.25
7.5
8.0
9.0
ns
ns
ns
ns
MHz
V
I
V
I
V
I
V
I
8.5
V
I
V
I
R
L
OPEN
OPEN
7V for t
PZL
OPEN for t
PZH
7V for t
PLZ
OPEN for t
PHZ
50
:
Figures
1, 2
Figures
1, 2
Figures
1, 2
Figures
1, 2
Units
Conditions
V
CC
Min
Figure
No.
50pF, RU
4.5 – 5.5V
Max
0.25
7.0
7.5

3dB Bandwidth
Note 6:
This parameter is guaranteed by design but is not tested. The bus switch contributes no propagation delay other than the RC delay of the typical On
resistance of the switch and the 50pF load capacitance, when driven by an ideal voltage source (zero output impedance).
Capacitance
Symbol
C
IN
C
I/O
Note 7:
T
A
(Note 7)
Parameter
Typ
3
10
Max
Units
pF
pF
V
CC
V
CC
5.0V
5.0V, S0, S1, or S2 GND
Conditions
Control pin Input Capacitance
Input/Output Capacitance

25
q
C, f
1 MHz, Capacitance is characterized but not tested.

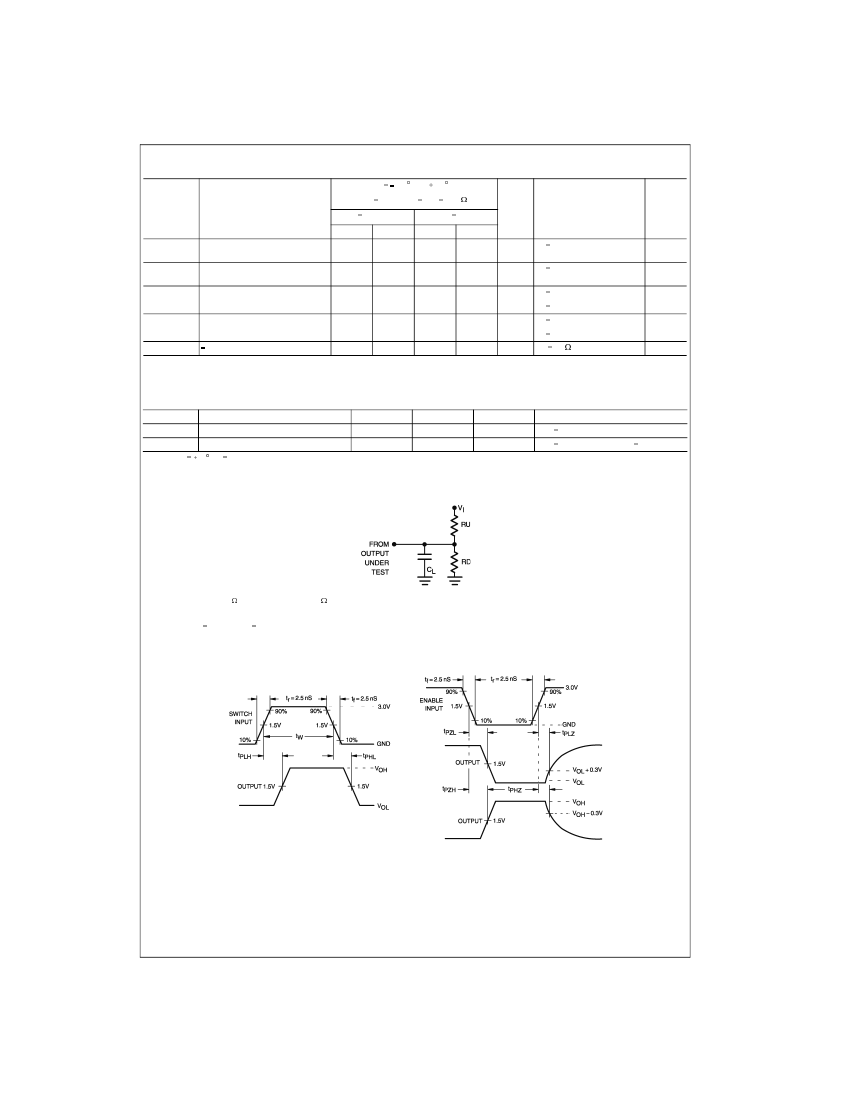

AC Loading and Waveforms
Note: Input driven by 50
:
source terminated in 50
:
Note: C
L
includes load and stray capacitance
Note Input PRR
1.0 MHz, t
W
500 ns
FIGURE 1. AC Test Circuit
FIGURE 2. AC Waveforms
3
www.fairchildsemi.com
FST16212

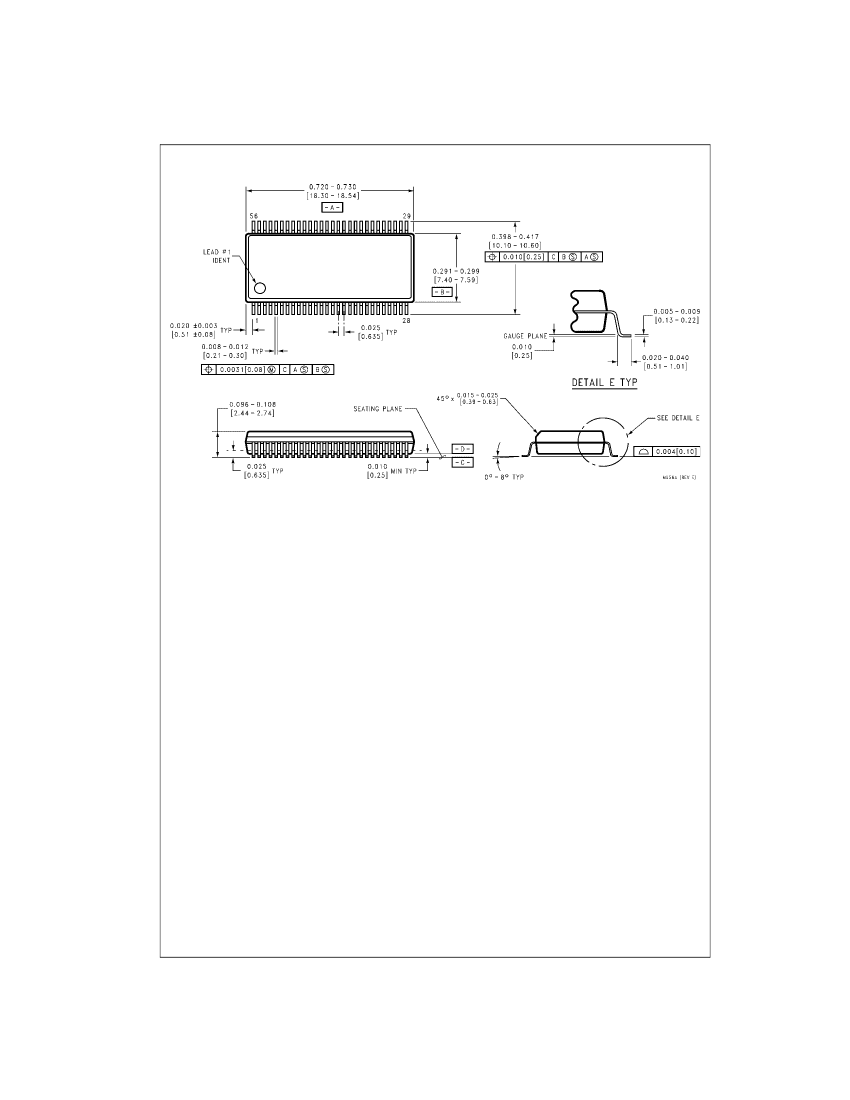

Physical Dimensions
inches (millimeters) unless otherwise noted
56-Lead Shrink Small Outline Package (SSOP), JEDEC MO-118, 0.300" Wide
Package Number MS56A
www.fairchildsemi.com
4
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

FST16212MTDX Related Products

FST16212MTDX FST16212MEAX FST16212MTD FST16212MTDX_NL
Description Bus Exchanger, CBT/FST/QS/5C/B Series, 1-Func, 12-Bit, True Output, CMOS, PDSO56, 6.10 MM, MO-153, TSSOP-56 Bus Exchanger, CBT/FST/QS/5C/B Series, 1-Func, 12-Bit, True Output, CMOS, PDSO56, 0.300 INCH, MO-118, SSOP-56 Bus Exchanger, CBT/FST/QS/5C/B Series, 1-Func, 12-Bit, True Output, CMOS, PDSO56, 6.10 MM, MO-153, TSSOP-56 CBT/FST/QS/5C/B SERIES, 12-BIT EXCHANGER, TRUE OUTPUT, PDSO56, 6.10 MM, LEAD FREE, MO-153, TSSOP-56
Maker Rochester Electronics Rochester Electronics Rochester Electronics Rochester Electronics
Parts packaging code TSSOP SSOP TSSOP TSSOP
package instruction TSSOP, SSOP, TSSOP, TSSOP,
Contacts 56 56 56 56
Reach Compliance Code unknown unknown unknown unknown
Other features TTL COMPATIBLE BUS SWITCH TTL COMPATIBLE BUS SWITCH TTL COMPATIBLE BUS SWITCH TTL COMPATIBLE BUS SWITCH
series CBT/FST/QS/5C/B CBT/FST/QS/5C/B CBT/FST/QS/5C/B CBT/FST/QS/5C/B
JESD-30 code R-PDSO-G56 R-PDSO-G56 R-PDSO-G56 R-PDSO-G56
length 14 mm 18.42 mm 14 mm 14 mm
Logic integrated circuit type BUS EXCHANGER BUS EXCHANGER BUS EXCHANGER BUS EXCHANGER
Number of digits 12 12 12 12
Number of functions 1 1 1 1
Number of ports 4 4 4 4
Number of terminals 56 56 56 56
Maximum operating temperature 85 °C 85 °C 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C
Output characteristics 3-STATE 3-STATE 3-STATE 3-STATE
Output polarity TRUE TRUE TRUE TRUE
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code TSSOP SSOP TSSOP TSSOP
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE, THIN PROFILE, SHRINK PITCH SMALL OUTLINE, SHRINK PITCH SMALL OUTLINE, THIN PROFILE, SHRINK PITCH SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd) 0.25 ns 0.25 ns 0.25 ns 0.25 ns
Certification status Not Qualified Not Qualified Not Qualified COMMERCIAL
Maximum seat height 1.1 mm 2.74 mm 1.1 mm 1.1 mm
Maximum supply voltage (Vsup) 5.5 V 5.5 V 5.5 V 5.5 V
Minimum supply voltage (Vsup) 4 V 4 V 4 V 4 V
Nominal supply voltage (Vsup) 4.5 V 4.5 V 4.5 V 4.5 V
surface mount YES YES YES YES
technology CMOS CMOS CMOS CMOS
Temperature level INDUSTRIAL INDUSTRIAL INDUSTRIAL INDUSTRIAL
Terminal form GULL WING GULL WING GULL WING GULL WING
Terminal pitch 0.5 mm 0.635 mm 0.5 mm 0.5 mm
Terminal location DUAL DUAL DUAL DUAL
width 6.1 mm 7.5 mm 6.1 mm 6.1 mm
Is it lead-free? Lead free Lead free Lead free -
Is it Rohs certified? conform to conform to conform to -
JESD-609 code e3 - e3 e3/e4
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED -
Terminal surface Tin (Sn) - Tin (Sn) MATTE TIN/NICKEL PALLADIUM GOLD
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED -

Recommended Resources

OP113 wide range precision temperature measurement circuit

RC audio oscillator circuit diagram using 555

Digital exposure timer circuit diagram

555 multi-channel anti-theft wireless alarm circuit

Novel and practical multi-channel infrared remote control switch circuit

SOS SOS 485 Multi-channel Communication
Requirements: Use the serial port inside the MCU to convert the 485 protocol, communicate with the remote sensor through the program, and realize the gas concentration alarm CPU: LPC2292 connects the ...
robber200011 Embedded System
Wireless remote control circuit
The remote control information contains many different controls, including multiple channels. [[i] This post was last edited by linming123 on 2011-8-22 23:14 [/i]]...
linming123 RF/Wirelessly
The development trend of DAS
At present, some DAS technologies have relatively mature products and have been applied, such as ABS, ESP, etc. Some other technologies are in the early stages of development or are about to be develo...
frozenviolet Automotive Electronics
STM32F103B8T6 controls brushless DC motor
Now I need to use STM32F103B8T6 microcontroller to control DC brushless motor. The control method is required to be PWM control, which can adjust the motor speed by controlling the duty cycle. I need ...
哦吼吼 stm32/stm8
New uses for old mobile phones (7) - Automatically start the server when the phone is turned on
By default, termux will not run automatically, so the programs in termux will not run either. You need to run them manually, which is very inconvenient. In order to run the server automatically after ...
dcexpert DIY/Open Source Hardware
DIP package
DIP packageDIP package (Dual In-line Package), also known as dual in-line packaging technology, is the simplest packaging method. It refers to integrated circuit chips packaged in dual in-line form. M...
小赛跑跑 Analog electronics
Shortcut:   S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 SA SB SC SD SE SF SG SH SI SJ SK SL SM SN SO SP SQ SR SS ST SU SV SW SX SY SZ T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 TA TB TC TD TE TF TG TH TI TJ TK TL TM TN TO TP TQ TR TS TT TU TV TW TX TY TZ U0 U1 U2 U3 U4 U6 U7 U8 UA UB UC UD UE UF UG UH UI UJ UK UL UM UN UP UQ UR US UT UU UV UW UX UZ V0 V1 V2 V3 V4 V5 V6 V7 V8 V9 VA VB VC VD VE VF VG VH VI VJ VK VL VM VN VO VP VQ VR VS VT VU VV VW VX VY VZ W0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WR WS WT WU WV WW WY X0 X1 X2 X3 X4 X5 X7 X8 X9 XA XB XC XD XE XF XG XH XK XL XM XN XO XP XQ XR XS XT XU XV XW XX XY XZ Y0 Y1 Y2 Y4 Y5 Y6 Y9 YA YB YC YD YE YF YG YH YK YL YM YN YP YQ YR YS YT YX Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z8 ZA ZB ZC ZD ZE ZF ZG ZH ZJ ZL ZM ZN ZP ZR ZS ZT ZU ZV ZW ZX ZY

Popular Components

  1. AQV410
  2. BC557C
  3. PSLJ1A335M
  4. HM-381064-10-8A
  5. 6QDPS-016-12.0-TED-SBR-4
  6. M55342H08B232ART0
  7. P-0505H2233BBTF
  8. AOU3N60
  9. AME385DEHSY
  10. AME5249
  11. TR0805F3322P
  12. CR2512F2K10E04Z

Popular Articles

  1. Fastems automation helps sustainable manufacturing
  2. The third generation of Moto Razr foldable phone uses the "star track hinge design" in its development
  3. 智能驾驶技术迈出的一大步-奔驰L3智能驾驶技术
  4. Artificial Intelligence (AI) and Machine Learning (ML): How the Traditional Automotive Control Field is Affected
  5. Digital Oscilloscope 54621A Application Tutorial
  6. SGT MOSFET capacity at full capacity after receiving IDM transfer to 6-inch wafer fab
  7. Talking about human-computer interaction in intelligent driving
  8. OnePlus Nord 2T with Dimensity 1300 processor exposed: rear asymmetric triple camera
  9. 51 microcontroller HC05 Bluetooth module learning
  10. s3c2416 naked running environment configuration

Technical ResourceMore

  1. Inverted Pendulum and Automatic Control Principle Experiment
  2. Some examples of electronic simulation based on labview
  3. Performance comparison of classic spatial spectrum estimation algorithms
  4. High Frequency Transformer Introduction
  5. Smart ways to maintain your vehicle
  6. Circuit Analysis Methods
  7. Introduction to resistance temperature sensor (PPT)
  8. CD4017 controls the running light in practice
  9. 100G Optical Module Application
  10. Several wireless communication standards

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 5  2431  2385  154  1361  1  49  4  28  7
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
