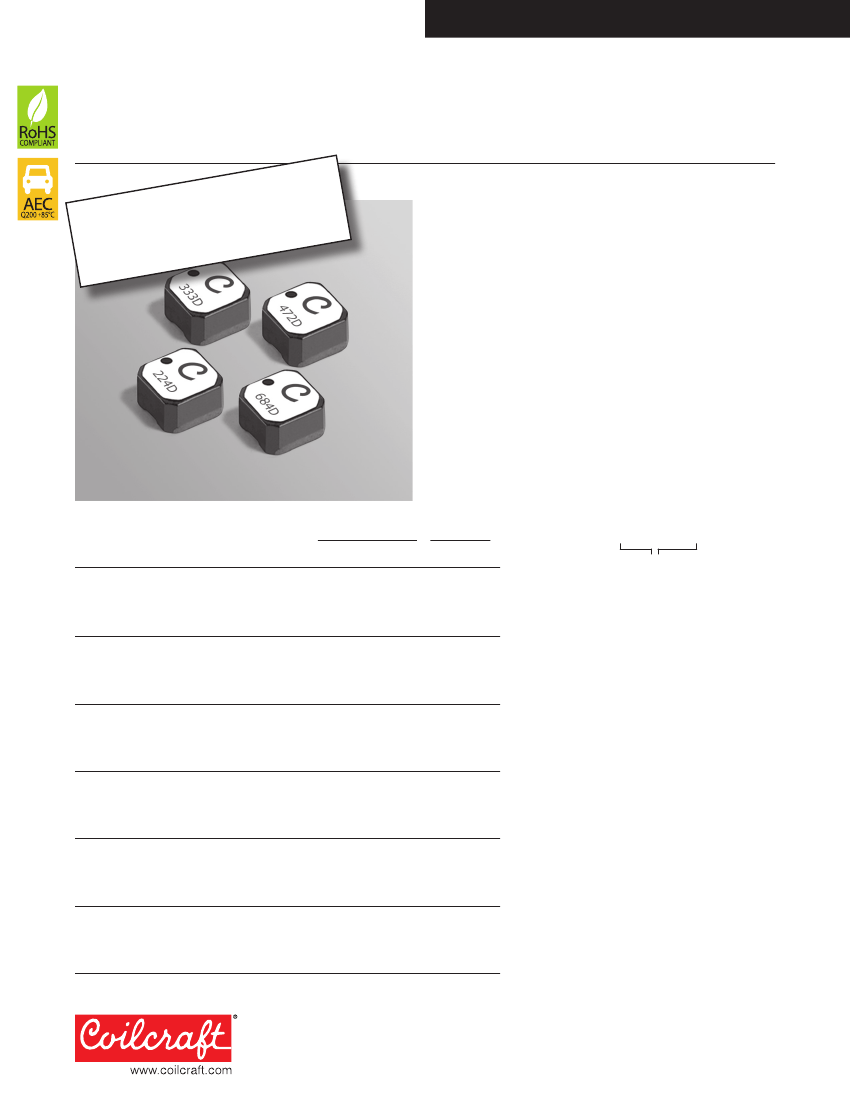

Shielded Power Inductors – LPS5030
n
re
d
par ts a d by new lea
t and fu
These
form, fi
cfm.
e
c
0.
ntical in
re repla
They a which are ide
ft.com/lps503
ra
ns
w.coilc
versio
See
ww
s
ded for
ed ver
en free
mprov
not recommen free and halog ction.
I
lable
.
w avai
ew designs.
ion no
n
• Very low DCR; excellent current handling
• 4.9 × 4.9 mm footprint; less than 3 mm tall
Core material
Ferrite
Terminations
RoHS compliant silver-palladium-platinum-glass frit.
Other terminations available at additional cost.
Weight
226 – 244 mg
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+125°C with derated current
Storage temperature
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
750/7″ reel; 2500/13″ reel Plastic tape: 12 mm wide,
0.32 mm thick, 8 mm pocket spacing, 3.1 mm pocket depth
(Refer to dimensional drawing for part orientation in tape.)
Recommended pick and place nozzle
OD: 5 mm; ID:
≤
2.5 mm
PCB washing
Tested with pure water or alcohol only. For other solvents,
see Doc787_PCB_Washing.pdf.
5
Part number
1
LPS5030-901ML_
LPS5030-122ML_
LPS5030-172ML_
LPS5030-222ML_
LPS5030-332ML_
LPS5030-472ML_
LPS5030-562ML_
LPS5030-682ML_
LPS5030-822ML_
LPS5030-103ML_
LPS5030-123ML_
LPS5030-153ML_
LPS5030-183ML_
LPS5030-223ML_
LPS5030-333ML_
LPS5030-473ML_
LPS5030-683ML_
LPS5030-823ML_
LPS5030-104ML_
LPS5030-124ML_
LPS5030-154ML_
LPS5030-224ML_
LPS5030-334ML_
LPS5030-474ML_
LPS5030-564ML_
LPS5030-684ML_
LPS5030-105ML_
LPS5030-155ML_
LPS5030-185ML_
LPS5030-225ML_
LPS5030-335ML_
LPS5030-475ML_
Isat
(A)
DCR SRF
2
max
3
4
Inductance
typ
10% 20% 30%
±20% (µH) (Ohms) (MHz) drop drop drop
0.90
1.2
1.7
2.2
3.3
4.7
5.6
6.8
8.2
10.0
12.0
15.0
18.0
22.0
33.0
47.0
68.0
82.0
100
120
150
220
330
470
560
680
1000
1500
1800
2200
3300
4700
0.040
0.043
0.051
0.057
0.066
0.083
0.089
0.099
0.125
0.127
0.155
0.160
0.170
0.190
0.260
0.330
0.440
0.470
0.600
0.800
0.860
1.35
1.80
2.80
3.20
3.80
5.10
7.60
10.0
11.0
19.5
26.0
250
210
190
168
125
84
70
56
45
30
24
32
27
24
19
16
12
11
10
9
7.5
6.0
5.0
4.0
3.6
3.0
2.5
2.0
1.8
1.6
1.3
1.1
3.8
3.5
3.0
2.9
2.3
1.9
1.8
1.6
1.6
1.4
1.3
0.80
0.80
0.70
0.60
0.50
0.40
0.38
0.27
0.26
0.22
0.21
0.155
0.117
0.110
0.100
0.100
0.068
0.069
0.063
0.056
0.049
4.0
3.6
3.2
3.1
2.5
2.0
1.8
1.7
1.7
1.4
1.4
0.90
0.82
0.75
0.63
0.53
0.43
0.40
0.31
0.29
0.25
0.235
0.155
0.134
0.130
0.120
0.110
0.080
0.081
0.074
0.063
0.056
4.1
3.7
3.3
3.2
2.6
2.0
1.9
1.7
1.7
1.4
1.4
0.90
0.87
0.78
0.64
0.55
0.44
0.40
0.32
0.30
0.263
0.245
0.200
0.146
0.140
0.126
0.110
0.089
0.086
0.080
0.067
0.059
Irms
(A)
6
20°C 40°C
rise rise
2.10
2.00
1.90
1.60
1.40
1.30
1.25
1.20
1.10
1.00
0.95
0.92
0.90
0.88
0.85
0.75
0.65
0.60
0.55
0.45
0.42
0.36
0.32
0.28
0.23
0.20
0.18
0.15
0.13
0.10
0.090
0.080
2.80
2.65
2.50
2.15
1.80
1.75
1.65
1.60
1.55
1.50
1.40
1.40
1.30
1.25
1.20
1.00
0.900
0.830
0.750
0.660
0.570
0.500
0.420
0.370
0.320
0.290
0.250
0.210
0.170
0.150
0.125
0.110
1. Please specify
termination
and
packaging
codes:
LPS5030-105MLC
Termination: L
= RoHS compliant silver-palladium-
platinum-glass frit.
Special order:
T
= RoHS tin-silver-copper
(95.5/4/0.5) or
S
= non-RoHS tin-
lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481
embossed plastic tape (750 parts
per full reel).
B
= Less than full reel. In tape, but not
machine ready.
To have a leader and trailer added
($25 charge), use code letter C
instead.
D
= 13″ machine-ready reel. EIA-481
embossed plastic tape. Factory
order only, not stocked (2500 parts
per full reel).
2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc using an
Agilent/HP 4192A impedance analyzer or equivalent.
3. DCR measured on a micro-ohmmeter.
4. SRF measured using Agilent/HP 8753ES or equivalent.
5. DC current at which the inductance drops the specified
amount from its value without current.
6. Current that causes the specified temperature rise from
25°C ambient.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components”
before soldering.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 581NR-1
Revised 01/23/12
© Coilcraft Inc. 2014
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 581NR-2

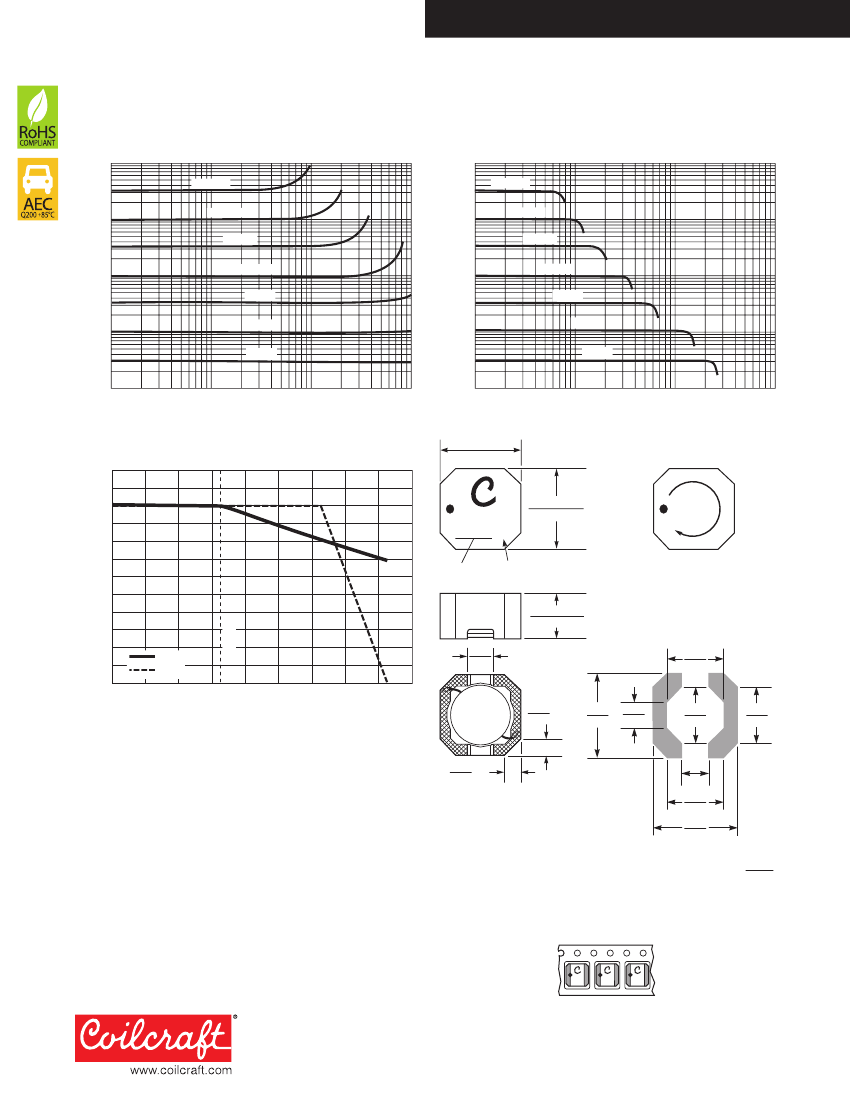

Shielded Power Inductors – LPS5030 Series
Typical L vs Frequency
10000
3300 µH
1000 µH
330 µH
100 µH
33 µH
10 µH
3.3 µH
Typical L vs Current
10000
3300 µH
1000 µH
330 µH
100 µH
33 µH
10 µH
3.3 µH
1000
1000
Inductance (µH)
100
Inductance (µH)
1
10
100
10
10
1
0.01
0.1
1
Frequency (MHz)
0.01
0.1
Current (A)
1
10
Typical Current Derating
120
110
0.189 ±0.003
*
4,80 ±0,076
Percent of rated current
100
90
80
70
60
50
40
20
10
0
XXX X
Dash
number
Internal
code
0.189 ±0.003
*
4,80 ±0,076
Winding
direction
25°C
30
Isat
Irms
-40
-20
0
20
0.114 ±0.004
**
2,9 ±0,1
0.060
1,50
Recommended
Land Pattern
0.134
3,40
40
60
80
100
120 140
0.039 typ
1,00
0.217
5,51
0.0665
1,689
0.134
3,40
0.134
3,40
Ambient temperature (°C)
0.039 typ
1,00
0.060
1,52
0.134
3,40
0.217
5,51
*
Dimensions are of the case not
including the termination. For maximum
overall dimensions including the
termination, add 0.005 in / 0,13 mm.
**
For optional tin-lead and tin-silver-copper
terminations, dimensions are for the
mounted part. Dimensions before mounting
can be an additional 0.005 inch (0,13 mm).
Dimensions are in
inches
mm
Packaging
750/7″ reel; 2500/13″ reel Plastic tape: 12 mm wide,
0.32 mm thick, 8 mm pocket spacing, 3.1 mm pocket depth
Orientation of parts in packaging tape
123
123
123
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 581NR-2
Revised 01/23/12
© Coilcraft Inc. 2014
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
