Precision SMA Male to N Male Adapter
TECHNICAL DATA SHEET
Precision SMA Male to N Male Adapter
Configuration
Connector 1
Impedance 1
Connector Specification 1
Connector 2
Impedance 2
Connector Specification 2
Adapter Design
Body Style
SMA Male
50 Ohms
MIL-STD-348
N Male
50 Ohms
MIL-STD-348
Precision
Straight
PE9431
Electrical Specifications
Frequency Range, GHz
Maximum VSWR
DC to 18
1.15:1
Mechanical Specifications
Temperature
Operating Range,deg C

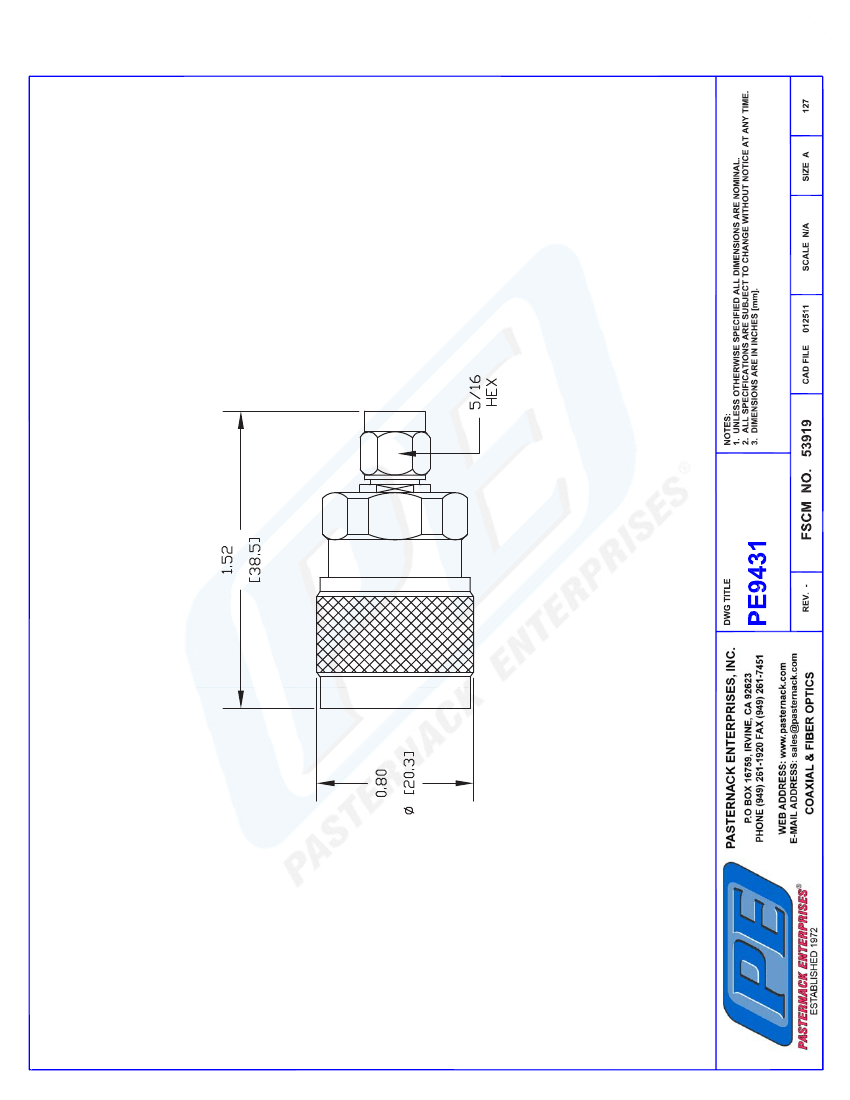

Size
Length, in [mm]
Width/Dia., in [mm]
.
-55 to +100
1.52 [38.61]
0.8 [20.32]
Connector 1
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Coupling Nut Material and Plating
Coupling Nut Plating Specification
Hex Size, in
Torque, in-lbs [Nm]
Body Material and Plating
Body Plating Specification
Dielectric Type
Connector 2
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Coupling Nut Material and Plating
Coupling Nut Plating Specification
Body Material and Plating
Body Plating Specification
SMA Male
Beryllium Copper, Gold
MIL-G-45204, Type II, Class 1
Passivated Stainless Steel
ASTM A380
5/16
8 [0.9]
Passivated Stainless Steel
ASTM A380
PTFE
N Male
Beryllium Copper, Gold
MIL-G-45204, Type II, Class 1
Passivated Stainless Steel
ASTM A380
Passivated Stainless Steel
ASTM A380
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Precision SMA Male to N Male Adapter PE9431
PE9431 REV
1
Precision SMA Male to N Male Adapter
TECHNICAL DATA SHEET
Dielectric Type
PTFE
PE9431
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/sma-male-n-male-straight-adapter-pe9431-p.aspx
Precision SMA Male to N Male Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.
PE9431 REV
2
