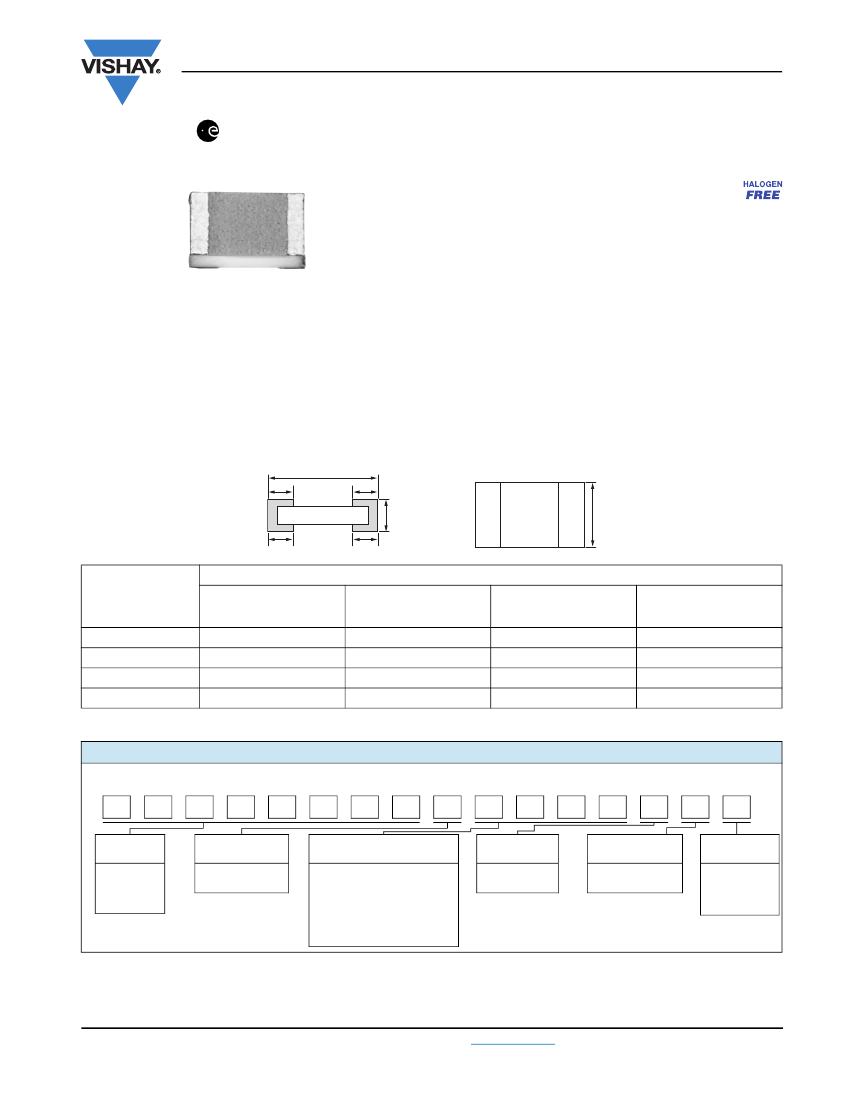

PFRR
Vishay Sfernice
ESCC (
) 4001/023 Qualified R Failure Rate High Precision
(10 ppm/°C, 0.05 %) Thin Film Chip Resistors
FEATURES
•
Load life stability at ± 70 °C for 2000 h: 0.25 %
under Pn
•
Temperature coefficient to: 10 ppm/°C
•
Very low noise (< 35 dB) and voltage coefficient
(< 0.01 ppm/V)
•
Resistance range: 100
Ω
to 3.01 MΩ (depending on size)
•
Tolerances down to 0.05 %
•
SnPb terminations over nickel barrier
•
ESCC 4001 (generic spec)
•
ESCC 4001/023 (detailed spec)
•
ESCC qualified
•
R failure rate (0.01 % per 1000 h)
•
SMD wraparound chip resistor
•
Halogen-free according to IEC 61249-2-21
Vishay Sfernice Thin Film division holds ESCC QML
qualification (ESCC technology flow qualification).
These HiRel components are ideal for low noise and
precision applications, superior stability, low temperature
coefficient of resistance, and low voltage coefficient,
VISHAY SFERNICE’s precision thin film wraparound
resistors exceed requirements of MIL-PRF-55342G
characteristics Y (± 10 ppm/°C).
DIMENSIONS
A
D
D
C
B
E
E
DIMENSIONS in millimeters
CASE SIZE
A
MAX. TOL. + 0.64
MIN. TOL. - 0.13
1.52
1.91
3.00
5.08
B
MAX. TOL. + 0.26
MIN. TOL. - 0.13
0.75
1.27
1.60
2.54
C
MAX. TOL. + 0.64
MIN. TOL. - 0.13
0.38
0.38
0.38
0.38
D/E
MAX. TOL. + 0.13
MIN. TOL. - 0.13
0.38
0.38
0.38
0.58
0603
0805
1206
2010
GLOBAL PART NUMBER INFORMATION
New Global Part Numbering: PFRR0603Y1003BBT (preferred part number format)
P
TYPE
F
R
R
TCR
0
6
0
3
Y
1
0
0
3
B
B
T
PACKAGING
T:
For tape
and reel
(Leave blank
for waffle pack)
PFRR0603
PFRR0805
PFRR1206
PFRR2010
Y
= ± 10 ppm/°C
E
= ± 25 ppm/°C
OHMIC
VALUE
The first three digits are
significant figures and the
last digit specifies the
number of zero to follow.
Example:
3901 = 3900
Ω
1004 = 1 MΩ
TOLERANCE
W
= ± 0.05 %
B
= ± 0.10 %
TERMINATION
B:
SnPb over
nickel barrier
Document Number: 53046
Revision: 21-Jan-10
For technical questions, contact:
sfer@vishay.com
www.vishay.com
1
PFRR
Vishay Sfernice
ESCC ( ) 4001/023 Qualified R Failure Rate High Precision
(10 ppm/°C, 0.05 %) Thin Film Chip Resistors
GLOBAL PART NUMBER INFORMATION
ESCC Code
4
ESCC SPEC
4001023
0
0
VARIANT
0603
= 09
0805
= 10
1206
= 11
2010
= 12
1
0
2
3
0
9
R
1
0
0
3
B
1
TCR
FAILURE RATE
R
OHMIC VALUE
The first three digits are significant figures and the
last digit specifies the number of zero to follow.
Example:
3901 = 3900
Ω
1004 = 1 MΩ
TOLERANCE
W
= ± 0.05 %
B
= ± 0.10 %
1
= ± 10 ppm/°C
2
= ± 25 ppm/°C
Vishay/Sfernice thin film is the first passive manufacturer to
hold the ESCC Technology Flow Qualification, official
certificate is available on ESCIES web site
https://escies.org/ReadArticle?docId=727).
This qualification open the door to a new concept at ESA:
The Failure Rate option (similar to the one offered in the MIL
system), for instance R failure rate: 0.01 % per 1000 h.
New specifications describing this new concept have been
released by the ESA:
2544001: Requirements for the Technology Flow
Qualification of Film Resistors
https://escies.org/escc/specifications/2544001.pdf
26000: Failure Rate Level Sampling Plans and Procedures
https://escies.org/escc/specifications/26000.pdf
21300: Terms, Definitions, Abbreviations, Symbols and Units
https://escies.org/escc/specifications/21300.pdf
21700: General Requirements for the Marking of the ESCC
Components
https://escies.org/escc/specifications/21700.pdf
4001: Generic Specification Resistors Fixed Film
https://escies.org/escc/specifications/4001.pdf
4001023: Resistors, Fixed, Chip, Thin Film, Type PHR and
PFRR
https://escies.org/escc/specifications/4001023.pdf
Parts are delivered with space C.O.C.
Parts undergo 100 % overload at end of production process.
LAND PATTERN
in millimeters
G
min.
Z
max.
CHIP SIZE
0603
0705/0805
1206
2010
Note
• Suggested land pattern: According to IPC-7351
Z
max.
2.37
2.76
3.91
5.93
G
min.
0.35
0.74
1.85
3.71
X
m
ax
.
X
max.
0.98
1.40
1.73
2.67
STANDARD ELECTRICAL SPECIFICATIONS
VISHAY SFERNICE DESIGNATION
ESA specification applied
Variant number
Power rating at + 70 °C (Pn)
Limiting element voltage (UL)
Ohmic value range
Insulation voltage (Ui)
Temperature coefficient
Tolerance
Temperature range
Soldering temperature (T
sol
)
www.vishay.com
2
09
0.1 W
50 V
Min. 100
Ω
Max. 261 kΩ
100 V
10
0.125 W
100 V
Min. 100
Ω
Max. 301 kΩ
200 V
± 0.05 %, ± 0.1 %
- 55 °C to + 155 °C
260 °C, immersion 10 s
PFRR 0603
PFRR 0805
PFRR 1206
ESCC 4001/023
11
0.25 W
150 V
Min. 100
Ω
Max. 1 MΩ
300 V
12
0.50 W
200 V
Min. 100
Ω
Max. 3.01 MΩ
300 V
PFRR 2010
± 10 ppm/°C; ± 25 ppm/°C
For technical questions, contact:
sfer@vishay.com
Document Number: 53046
Revision: 21-Jan-10
PFRR
ESCC ( ) 4001/023 Qualified R Failure Rate High Precision
Vishay Sfernice
(10 ppm/°C, 0.05 %) Thin Film Chip Resistors
MECHANICAL SPECIFICATIONS
Substrate material
Technology
Film
Protection
Terminations
Alumina
Thin Film
Nickel Chromium
with mineral passivation
Epoxy and Silicon
B type:
SnPb over nickel barrier
for solder reflow
125
100
POWER DERATING CURVE
RATED POWER
500
2010
250
1206
0805
0603
PACKAGING
Two types of packaging are available: waffle-pack and tape
and reel.
NUMBER OF PIECES PER PACKAGE
SIZE
WAFFLE
PACK
2" × 2"
100
0805
100
1206
2010
140
60
4000
8 mm
TAPE AND REEL
MIN.
MAX.
TAPE
WIDTH
0
0
70
155
AMBIENT TEMPERATURE IN °C
EXTENDED FEATURES
You may consult VISHAY SFERNICE for chip sizes, ohmic
values and tolerances outside of the qualified range.
0603
PERFORMANCE
REQUIREMENTS
TEST
CONDITIONS
ESA/SCC 4001/023
Short time overload
Rapid temperature
change
Soldering
(thermal shock)
Terminal strength:
Adhesion bend strength
of end plated facing
Climatic sequence
U
= 6.25 x Pn x Rn/2s
U
max.
< 2 UL
- 55 °C/+ 155 °C 5 cycles
CEI 66-2-14 Test Na
± 0.05 % + (0.05
Ω
x 100/Rn)
± 0.05 % + (0.05
Ω
x 100/Rn)
MIL-PRF-55342G
0.10 %
0.1 %
(for 100 cycles)
-
± 0.01 %
± 0.01 %
± 0.015 % (for 500 cycles)
± 0.005 %
TYPICAL
260 °C/10 s
± 0.05 % + (0.05
Ω
x 100/Rn)
CEI 68-2-20 A Test T6 (met. 1A)
CEI 115-1 Clause 4.32
CEI 115-1 Clause 4.33
CEI 67-2-1/CEI 68-2-2
CEI 67-2-13/CEI 68-2-30
2000 h Pn at + 70 °C
90’/30’ cycle
8000 h
2000 h Pn at + 155 °C
CEI 68-2-20A Test B
± 0.05 % + (0.05
Ω
x 100/Rn)
-
± 0.01 %
± 0.10 % + (0.05
Ω
x 100/Rn)
± 0.25 % + (0.05
Ω
x 100/Rn)
1 % + (0.05
Ω
x 100/Rn)
± 0.15 % + (0.05
Ω
x 100/Rn)
-
± 0.02 %
Insulation resistance > 1 GΩ
± 0.05 % (8000 h)
Insulation resistance > 1 GΩ
Load life
0.5 %
High temperature
exposure
± 0.10 %
± 0.05 %
(duration 1000 h) Insulation resistance > 1 GΩ
Document Number: 53046
Revision: 21-Jan-10
For technical questions, contact:
sfer@vishay.com
www.vishay.com
3
