PI3C3126ZJE Overview

CB3Q/3VH/3C/2B SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, PDSO16

PI3C3126ZJE Parametric

Parameter Name	Attribute value
Number of functions	4
Number of terminals	16
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Maximum supply/operating voltage	3.63 V
Minimum supply/operating voltage	2.97 V
Rated supply voltage	3.3 V
Number of ports	2
Processing package description	0.150 INCH, GREEN, PLASTIC, MO-137B/AB, QSOP-16
Lead-free	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	ACTIVE
Craftsmanship	CMOS
packaging shape	RECTANGULAR
Package Size	SMALL OUTLINE, SHRINK PITCH
surface mount	Yes
Terminal form	GULL WING
Terminal spacing	0.6350 mm
terminal coating	MATTE TIN (787)
Terminal location	DUAL
Packaging Materials	PLASTIC/EPOXY
Temperature level	INDUSTRIAL
series	CB3Q/3VH/3C/2B
Output characteristics	3-ST
Logic IC type	DRIVER
Number of digits	1
Output polarity	TRUE
propagation delay TPD	0.2500 ns

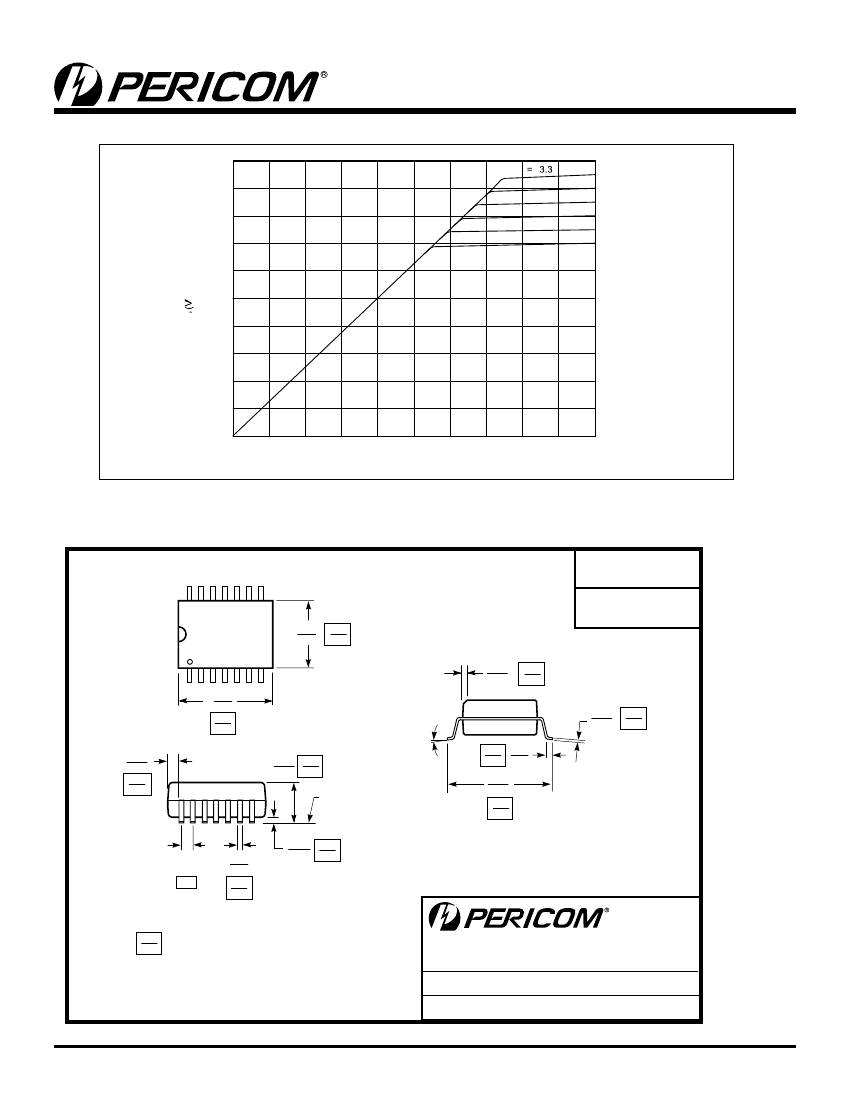

Preview

Download Datasheet

View All

PI3C3126

2.5V/3.3V, High Bandwidth, Hot Insertion,4-Bit,

2-Port Bus Switch with Individual Enables

Features

• Near-Zero propagation delay

• 5-ohm switches connect inputs to outputs

• High Bandwidth (>400 MHz)

• 2.5V/3.3V Supply Voltage Operation

• Rail-to-Rail, or 2.5V or 3.3V Switching

• 5V I/O Tolerant

• Permits Hot Insertion

• Packaging (Pb-free & Green available):

– 14-pin 150-mil wide plastic SOIC (W)

– 14-pin 170-mil wide plastic TSSOP (L)

– 16-pin 150-mil wide plastic QSOP (Q)

– 16-contact TDFN (ZJ)

Description

Pericom Semiconductor’s PI3C3126 is a 2.5 volt or 3.3 volt, 4-bit

bus switch designed with four individual 5-ohm bus switches

with fast indiviual enables in an industry standard 74XX125/126

pinout. When enabled via the associated Bus Enable pin, the “A”

pin is directly connected to the “B” pin for that particular gate.

The bus switch introduces no additional propagation delay or

additional ground bounce noise.

The PI3C3126 has active HIGH enables. It is very useful in

switching signals that have high bandwidth (>400 MHz).

Applications

• High Bandwidth Data Switching

• Hot Docking

Block Diagram

09-0072

PS9087

10/29/09

PI3C3126ZJE Related Products

	PI3C3126ZJE	PI3C3126LE	PI3C3126QE	PI3C3126WE
Description	CB3Q/3VH/3C/2B SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, PDSO16	CB3Q/3VH/3C/2B SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, PDSO16	CB3Q/3VH/3C/2B SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, PDSO16	CB3Q/3VH/3C/2B SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, PDSO16
Number of functions	4	4	4	4
Number of terminals	16	14	16	14
Maximum operating temperature	85 Cel	85 °C	85 °C	85 °C
Minimum operating temperature	-40 Cel	-40 °C	-40 °C	-40 °C
Number of ports	2	2	2	2
surface mount	Yes	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
series	CB3Q/3VH/3C/2B	CB3Q/3VH/3C/2B	CB3Q/3VH/3C/2B	CB3Q/3VH/3C/2B
Output characteristics	3-ST	3-STATE	3-STATE	3-STATE
Number of digits	1	1	1	1
Output polarity	TRUE	TRUE	TRUE	TRUE
Is it Rohs certified?	-	conform to	conform to	conform to
Maker	-	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	-	TSSOP	SSOP	SOIC
package instruction	-	TSSOP, TSSOP14,.25	SSOP, SSOP16,.25	SOP, SOP14,.25
Contacts	-	14	16	14
Reach Compliance Code	-	compliant	compliant	compli
ECCN code	-	EAR99	EAR99	EAR99
JESD-30 code	-	R-PDSO-G14	R-PDSO-G16	R-PDSO-G14
JESD-609 code	-	e3	e3	e3
length	-	5 mm	4.9 mm	8.65 mm
Logic integrated circuit type	-	BUS DRIVER	BUS DRIVER	BUS DRIVER
Humidity sensitivity level	-	1	1	1
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	TSSOP	SSOP	SOP
Encapsulate equivalent code	-	TSSOP14,.25	SSOP16,.25	SOP14,.25
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	-	260	260	260
power supply	-	2.5/3.3 V	2.5/3.3 V	2.5/3.3 V
propagation delay (tpd)	-	0.25 ns	0.25 ns	0.25 ns
Certification status	-	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	-	1.2 mm	1.75 mm	1.75 mm
Maximum supply voltage (Vsup)	-	3.63 V	3.63 V	3.63 V
Minimum supply voltage (Vsup)	-	2.97 V	2.97 V	2.97 V
Nominal supply voltage (Vsup)	-	3.3 V	3.3 V	3.3 V
technology	-	CMOS	CMOS	CMOS
Terminal surface	-	MATTE TIN (787)	MATTE TIN (787)	Matte Tin (Sn)
Terminal pitch	-	0.65 mm	0.635 mm	1.27 mm
Maximum time at peak reflow temperature	-	40	40	40
width	-	4.4 mm	3.9 mm	3.885 mm
