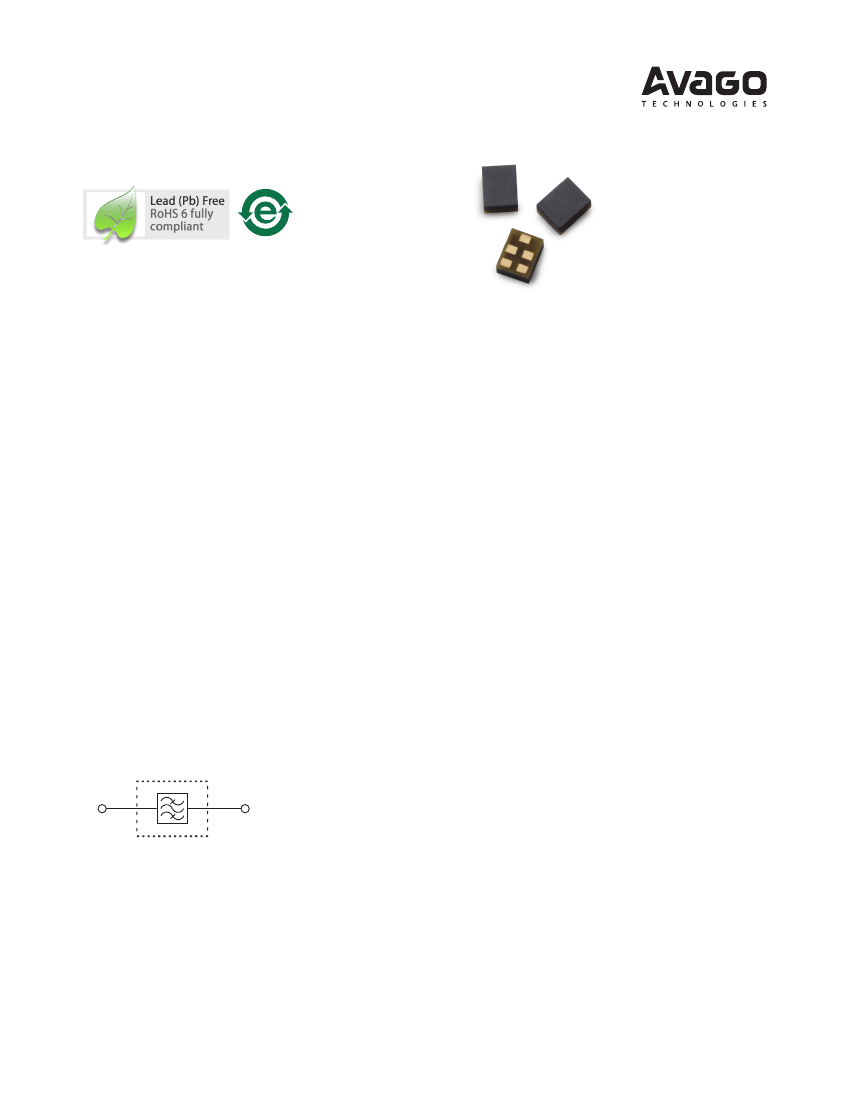

ACPF-7424
Wi-Fi/ISM Bandpass Filter (2401 – 2482 MHz)
Data Sheet
Description
The Avago ACPF-7424 is a miniaturized Bandpass Filter
designed for use in the 2.4 GHz Wi-Fi/ISM bands.
The ACPF-7424 is designed to enable concurrent opera-
tion of Wi-Fi/ISM applications and other wireless stan-
dards, such as 2.5 GHz WiMAX, PCS, and 3GPP Bands 7,
38, 40, without performance degradations due to interfer-
ence.
The ACPF-7424 is designed with Avago Technologies’ in-
novative Film Bulk Acoustic Resonator (FBAR) technology,
which makes possible ultra-small, high-Q filters at a frac-
tion of their usual size.
The ACPF-7424 also utilizes Avago Technologies’ advanced
Microcap bonded-wafer technology. This chip scale min-
iaturization process results in a package size of only 1.4 ×
1.1 mm and maximum height of 0.80 mm.
The ACPF-7424 is compatible with high volume, lead-free
SMT soldering processes and can be direct surface mount-
ed to a PCB or a transfer molded module.
Features
•
50
Ω
Input/Output
•
No external matching required
•
Low Insertion Loss, High Interference Rejection
•
Subminiature Size
– 1.1
×
1.4 mm Footprint
– 0.80 mm Max. Height
•
High Power Rating
– +27 dBm Abs. Max. Input Power
•
Environmental
– RoHS 6 compliant
– Halogen-free
– TBBPA-free
Specifications
•
Performance guaranteed – 30
°C
to +85
°C
•
Low Insertion Loss
– Wi-Fi Channels 1– 13: 0.9 dB Typ.
Functional Block Diagram
Port 1
TX/RX
(Pin 1)
Port 2
ANT
(Pin 4)
Applications
Wi-Fi, 802.11 b/g/n, WLAN, Bluetooth functionality in
handsets, mobile and portable communications devices.
Package Outline Drawing and Marking
1.4
(1.48 MAX)
GND
(5)
ANT
(4)
0.695
±0.10
(4)
0.500
0.500
(5)
TX/RX
(1)
XXXX
GND
(2)
ORIENTATION MARK
TOP VIEW
GND
(3)
TYW
1.1
(1.18 MAX)
(1)
0.575
0.288
(3)
0.100
(2)
0.075
BOTTOM VIEW
Pin Connections:
1
Port 1 (TX/RX)
2, 3, 5
GND
4
Port 2 (ANT)
SIDE VIEW
Notes:
1. Dimensions in millimeters
2. Tolerance, unless otherwise noted:
X.XX ± 0.05
X.XXX ± 0.025
3. Dimensions nominal, unless otherwise noted
4. Contact areas are gold-plated
5. Package marking:
“A” = Avago logo
T = ACPF-7424
Y = Year (last digit)
W = Work Week (See Appendix A)
XXXX = Lot number
0.325
0.250
PAD DETAIL
Ordering Information
Part Number
ACPF-7424-BLK
ACPF-7424-TR1
No. of Devices
100
3000
Container
Tape strip or Gel-Pack
7-inch (178 mm) Reel
For product information and a complete list of distributors, please go to our web site:
www.avagotech.com
Avago, Avago Technologies, and the A logo are trademarks of Avago Technologies in the United States and other countries.
Data subject to change. Copyright © 2005-2014 Avago Technologies. All rights reserved.
AV02-4444EN - February 19, 2014
