EHP-AX08LS/LM01H-P01 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> EHP-AX08LS/LM01H-P01

EHP-AX08LS/LM01H-P01: DescriptionSingle Color LED, White, 5.2mm, ROHS COMPLIANT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size299KB，10 Pages; ManufacturerEVERLIGHT; Websitehttp://www.everlight.com/; Environmental Compliance

Download Datasheet Parametric View All

EHP-AX08LS/LM01H-P01 Overview

Single Color LED, White, 5.2mm, ROHS COMPLIANT PACKAGE-2

EHP-AX08LS/LM01H-P01 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	EVERLIGHT
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant
color	WHITE
Configuration	SINGLE WITH BUILT-IN ZENER DIODE
Maximum forward current	0.5 A
JESD-609 code	e4
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED

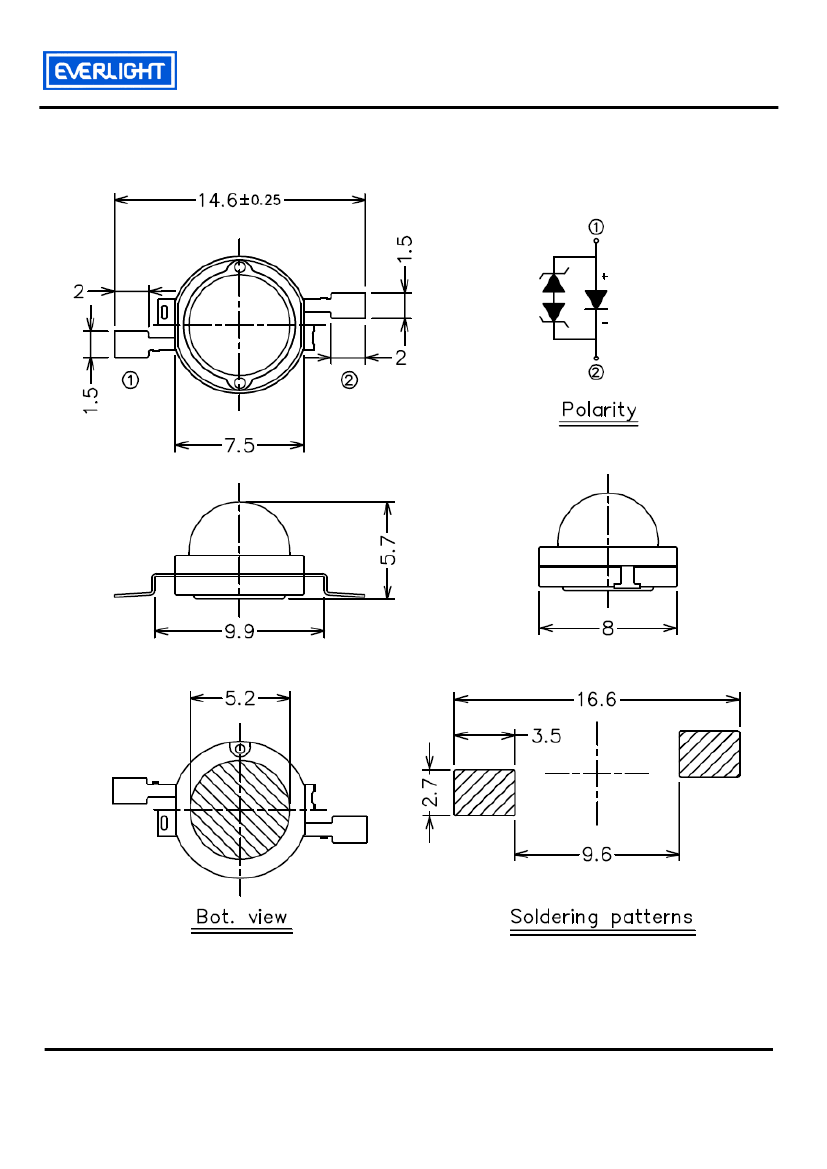

total height	5.7 mm
method of packing	TUBE AND CARTON
shape	ROUND
size	5.2 mm
surface mount	YES
Terminal surface	Silver (Ag)
perspective	120 deg

Preview

Download Datasheet

View All

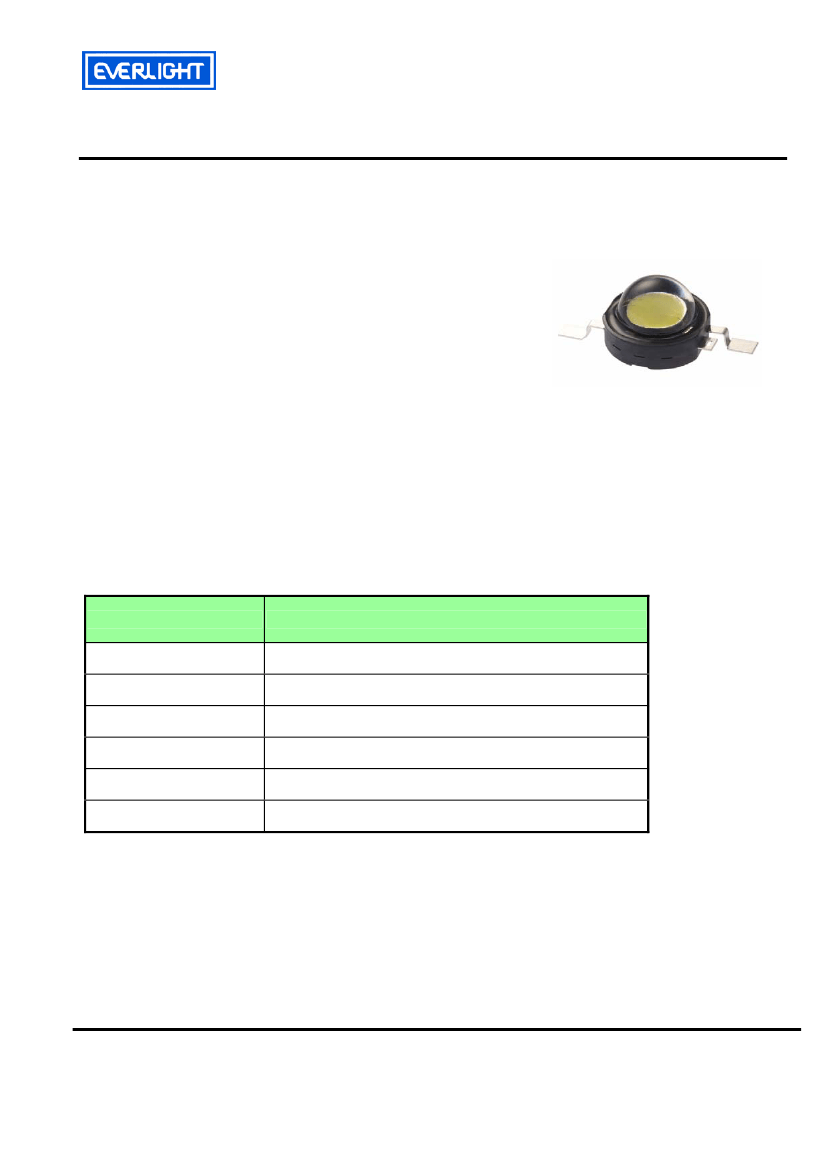

EVERLIGHT ELECTRONICS CO.,LTD.

Technical Data Sheet

High Power LED – 1W

EHP-AX08LS/LM01H-P01

Features

Feature of the device: small package with high efficiency

Typical color temperature: 3500 K.

Typical view angle: 120°.

Typical light flux output: 50lm @ 350mA.

ESD protection.

Soldering methods: SMT.

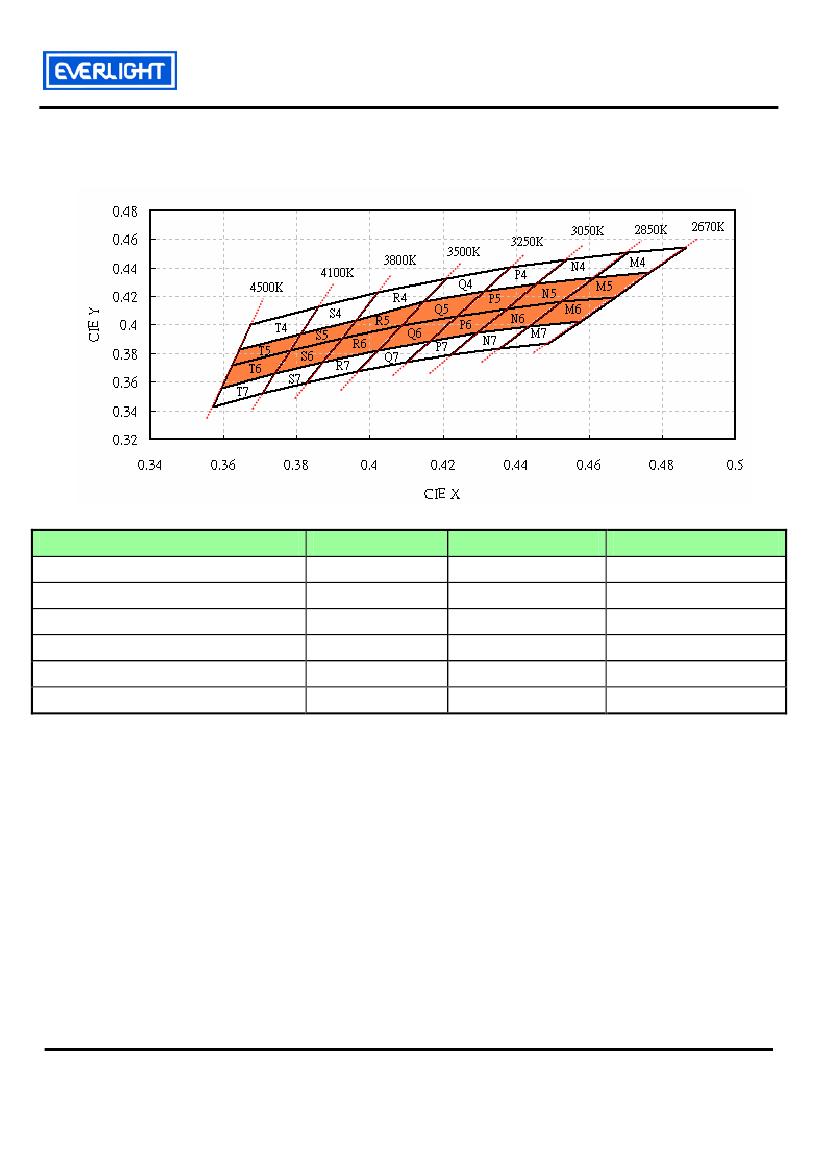

Grouping parameter: total luminous flux, color temperature.

Typical optical efficiency: 40 lm/W.

Thermal resistance (junction to lead): 15 K/W.

The product itself will remain within RoHS compliant version

Applications

TFT LCD display backlight

Decorative and entertainment illumination

Signal and symbol luminaries for orientation marker

lights (e.g. steps, exit ways, etc.)

Exterior and interior automotive illumination

Materials

Items

Housing black body

Encapsulating Resin

Lens

Electrodes

Die attach

Chip

Description

Heat resistant polymer

Silicone resin

Silicone

Ag plating copper alloy

Silver paste

InGaN

Everlight Electronics Co., Ltd.

Device No. : DSE-8LS-X16

http://www.everlight.com

Prepared date: May. 15, 2008

Rev. 1.0

Page: 1 of 10

Prepared by: Jessie Chueh
