Analog 1310 nm MQW-DFB Laser Diode Module
C-13-DFBA-PX-SXXXI/XXX-X
Features
• Laser diode with multi-quantum-well structure
• Un-cooled operation at -20 to +85ºC
• Built-in InGaAs monitor photodiode
• Hermetically sealed active component
• Complies with Telcordia Technologies GR-468-CORE
• Single frequency operation with high SMSR
• Fiber pigtailed package with optional FC/ST/SC/MU/LC connector
• Design for Analog fiber-optics application
Absolute Maximum Rating (Tc=25ºC)
Parameter
Fiber Output Power H&2
Reverse Voltage
PD Reverse Voltage
PD Forward Current
Operating Temperature
Storage Temperature
Symbol
P
f
V
RLD
V
RPD
I
FPD
T
opr
T
stg
Value
2.5(H)/4(2)
2
20
2.0
-20 to +85
-40 to +85
Unit
mW
V
V
mA
ºC
ºC
(All optical data refer to a coupled 9/125µm SM fiber)
Optical and Electrical Characteristics( T=25ºC )
Parameter
Threshold Current
Operating Current
Optical Output Power
H
2
Operating Voltage
Peak Wavelength
Side mode Suppression Ratio
Slope Efficiency
Optical Isolation
Rise Time/Fall Time
Relative Intensity Noise
Second Order Distortion
Third Order Distortion
Monitor Current
Monitor Dark Current
Photodiode Capacitance
Tracking Error
H
2
Symbol
I
th
I
op
P
f
V
F
Min
-
-
1
2
-
1280
30
0.05
0.1
45
30
-
-
-
-
100
-
-
-1.5
Typical
10
20
-
-
1.2
1310
40
-
-
-
-
-
-150
-
-
-
-
6
-
Max
20
40
2
-
1.8
1335
-
0.1
-
-
-
0.5
-145
-40
-50
-
1.0
15
1.5
Unit
mA
mA
mW
V
nm
dB
mW/mA
dB
ns
dB/Hz
dBc
dBc
µA
µA
pF
dB
Test Condition
CW
CW, P
f
=P
f
(Min)
CW,
I
th
+20mA, kink free
CW, P
f
=P
f
(Min)
CW, P
f
=P
f
(Min), RMS(-20dB) TC=-20~85ºC
CW,P
f
=P
f
(Min), -20 to 85ºC
CW, P
f
=P
f
(Min)
-20<T
c
<85ºC
I
bias
=I
th
,10% to 90%
CW
Note 1
Note 1
CW, P
f
=P
f
(Min),V
RPD
=2V
V
RPD
=5V
V
RPD
=5V, f=1MHz
APC, -20 to +85ºC
λ
Sr
Se
OI
t
r/
t
f
RIN
SSO
STO
I
m
I
DARK
C
∆P
f
/P
f
Note1.The laser is modulated with two-carrier tones (f1=13MHz,f2=19MHz) at OMI=15% per carrier tone
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
LUMNDS537-MAY2405
rev. A.2
1
Analog 1310 nm MQW-DFB Laser Diode Module
C-13-DFBA-PX-SXXXI/XXX-X

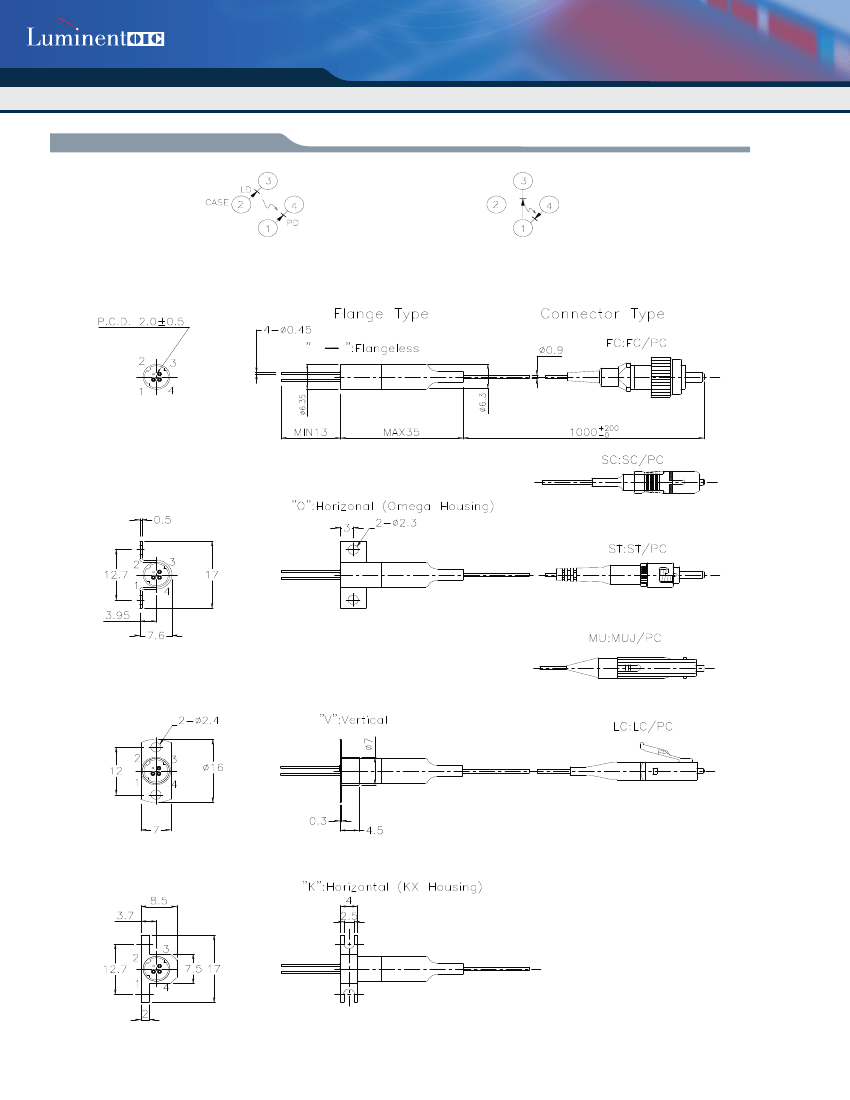

Pin Assignment
Units in mm.
B Type
D Type
CASE
LD
PD
Pin
Pin
Pin
Pin
1
2
3
4
:
:
:
:
Monitor Diode Anode
Laser Anode and Case Gnd
Laser Cathode
Monitor Diode Cathode
Pin
Pin
Pin
Pin
1
2
3
4
:
:
:
:
Laser Anode and Monitor Diode Cathode
Case Gnd
Laser Cathode
Monitor Diode Anode
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
2
LUMNDS537-MAY2405
rev. A.2
Analog 1310 nm MQW-DFB Laser Diode Module
C-13-DFBA-PX-SXXXI/XXX-X
Ordering Information
C-13-DFBA-PX-SXXXI/XXX-X
Wavelength
13=1310nm
Package
B = B Type
D = DType
Analog
Pin Assignment
P=Pigtail
Connector
Fiber Output Power
H&2
"I" = Isolator
FC/ST/SC/MU/LC/-
-
PC Fiber
APC
APC Fiber
Flange type (-;O;V;K)
Warnings
Handling Precautions: This device is susceptible to damage as a result of electrostatic discharge (ESD). A static free environment is highly recommended.
Follow guidelines according to proper ESD procedures.
Laser Safety: Radiation emitted by laser devices can be dangerous to human eyes. Avoid eye exposure to direct or indirect radiation.
