QL3060-2PB256M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Programmable logic devices> Programmable logic> QL3060-2PB256M

QL3060-2PB256M: DescriptionField Programmable Gate Array, 1584 CLBs, 60000 Gates, 225MHz, CMOS, PBGA256, PLASTIC, BGA-256; CategoryProgrammable logic devices Programmable logic; File Size373KB，10 Pages; ManufacturerQuickLogic Corporation; Websitehttps://www.quicklogic.com

Download Datasheet Parametric Compare View All

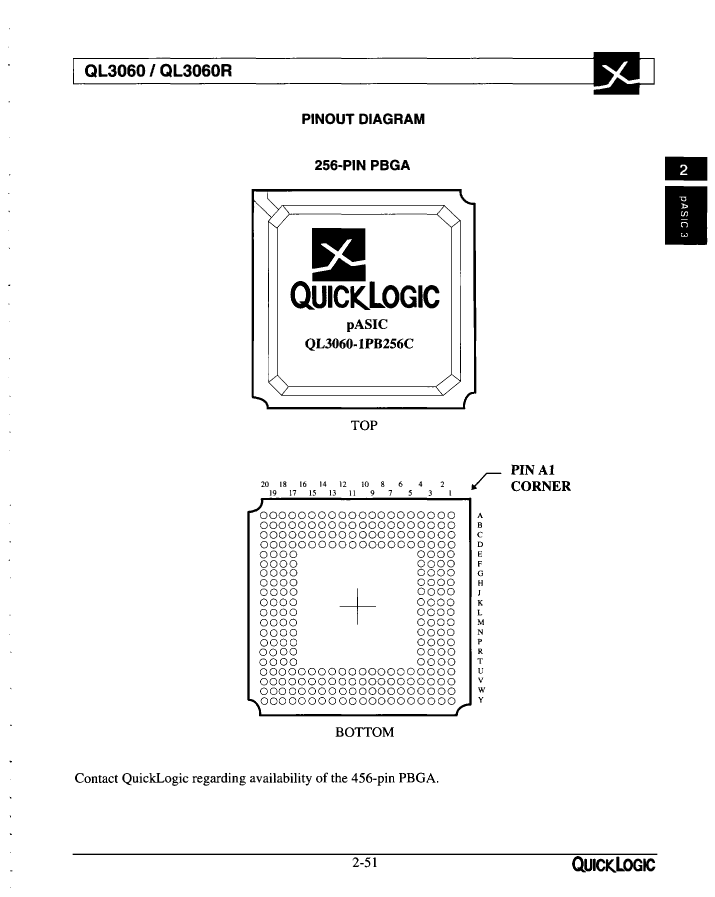

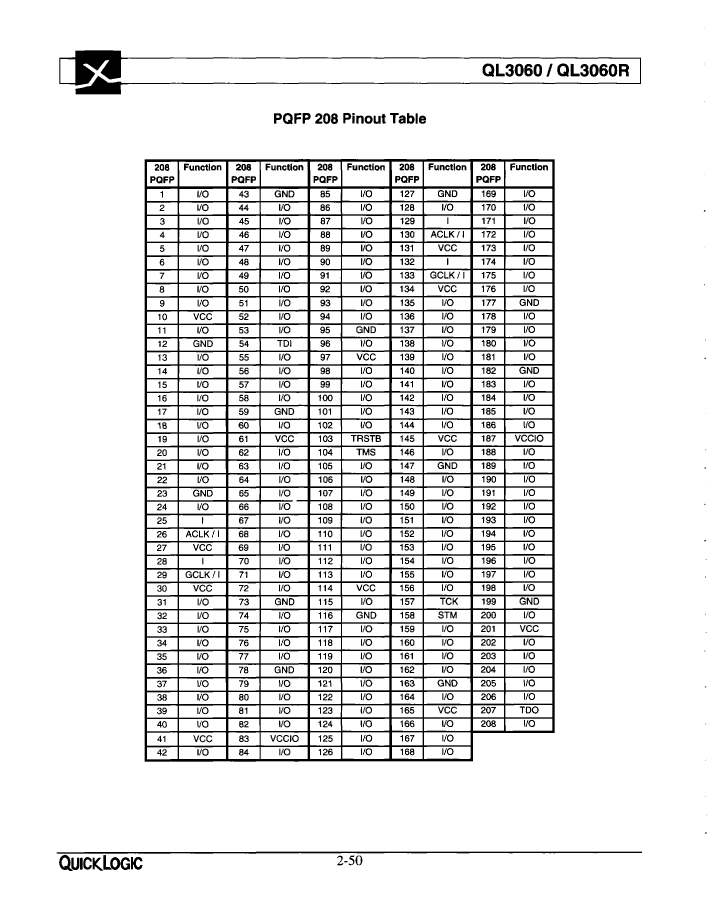

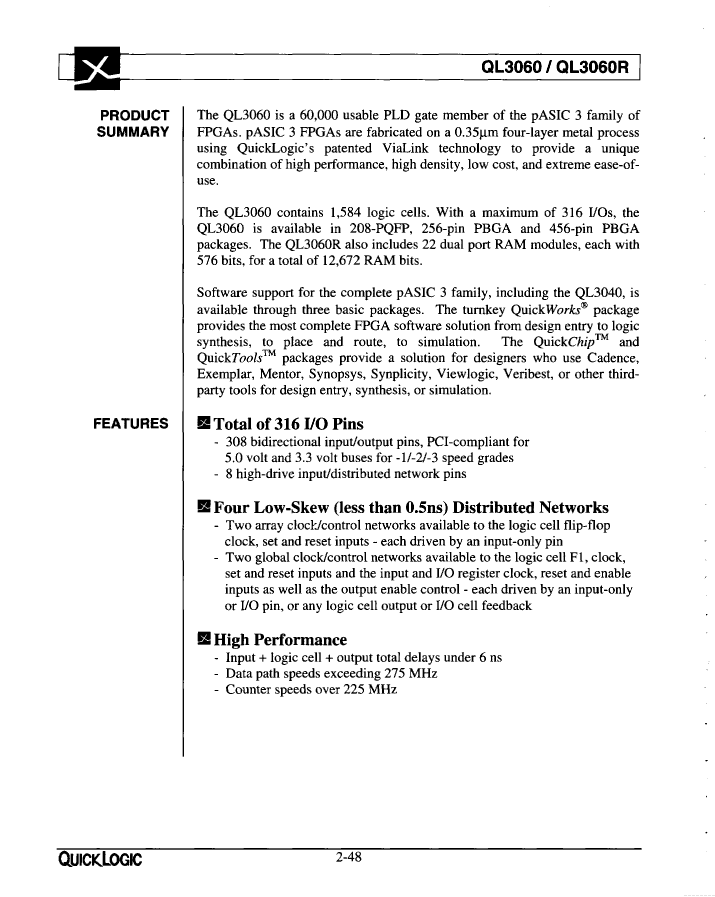

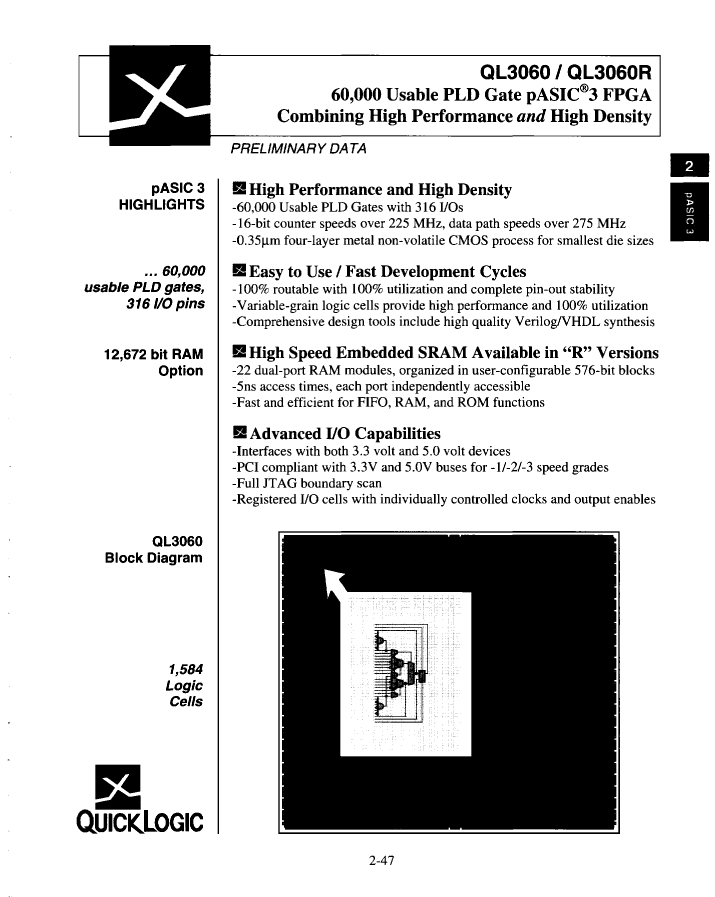

QL3060-2PB256M Overview

Field Programmable Gate Array, 1584 CLBs, 60000 Gates, 225MHz, CMOS, PBGA256, PLASTIC, BGA-256

QL3060-2PB256M Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	QuickLogic Corporation
Parts packaging code	BGA
package instruction	BGA,
Contacts	256
Reach Compliance Code	compliant
ECCN code	3A001.A.2.C
Other features	CAN ALSO BE OPERATED AT 5.0V
maximum clock frequency	225 MHz
Combined latency of CLB-Max	2.397 ns
JESD-30 code	S-PBGA-B256
length	27 mm
Humidity sensitivity level	3
Configurable number of logic blocks	1584
Equivalent number of gates	60000
Number of terminals	256
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	1584 CLBS, 60000 GATES
Package body material	PLASTIC/EPOXY
encapsulated code	BGA
Package shape	SQUARE
Package form	GRID ARRAY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified
Maximum seat height	2.34 mm
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	BALL
Terminal pitch	1.27 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
width	27 mm

Preview

Download Datasheet

View All

QL3060-2PB256M Related Products

	QL3060-2PB256M	QL3060-1PB256I	QL3060-0PB256C	QL3060-1PB256C	QL3060-0PB256I	QL3060-1PB256M	QL3060-3PB256C	QL3060-3PB256I	QL3060-2PB256C	QL3060-2PB256I
Description	Field Programmable Gate Array, 1584 CLBs, 60000 Gates, 225MHz, CMOS, PBGA256, PLASTIC, BGA-256	Field Programmable Gate Array, 1584 CLBs, 60000 Gates, 225MHz, CMOS, PBGA256, PLASTIC, BGA-256	Field Programmable Gate Array, 1584 CLBs, 60000 Gates, 225MHz, CMOS, PBGA256, PLASTIC, BGA-256	Field Programmable Gate Array, 1584 CLBs, 60000 Gates, 225MHz, CMOS, PBGA256, PLASTIC, BGA-256	Field Programmable Gate Array, 1584 CLBs, 60000 Gates, 225MHz, CMOS, PBGA256, PLASTIC, BGA-256	Field Programmable Gate Array, 1584 CLBs, 60000 Gates, 225MHz, CMOS, PBGA256, PLASTIC, BGA-256	Field Programmable Gate Array, 1584 CLBs, 60000 Gates, 225MHz, CMOS, PBGA256, PLASTIC, BGA-256	Field Programmable Gate Array, 1584 CLBs, 60000 Gates, 225MHz, CMOS, PBGA256, PLASTIC, BGA-256	Field Programmable Gate Array, 1584 CLBs, 60000 Gates, 225MHz, CMOS, PBGA256, PLASTIC, BGA-256	Field Programmable Gate Array, 1584 CLBs, 60000 Gates, 225MHz, CMOS, PBGA256, PLASTIC, BGA-256
Maker	QuickLogic Corporation	QuickLogic Corporation	QuickLogic Corporation	QuickLogic Corporation	QuickLogic Corporation	QuickLogic Corporation	QuickLogic Corporation	QuickLogic Corporation	QuickLogic Corporation	QuickLogic Corporation
Parts packaging code	BGA	BGA	BGA	BGA	BGA	BGA	BGA	BGA	BGA	BGA
package instruction	BGA,	BGA,	BGA,	BGA,	BGA,	BGA,	BGA,	BGA,	BGA,	BGA,
Contacts	256	256	256	256	256	256	256	256	256	256
Reach Compliance Code	compliant	unknown	unknown	unknown	compliant	compliant	unknown	unknown	unknown	unknown
Other features	CAN ALSO BE OPERATED AT 5.0V	CAN ALSO BE OPERATED AT 5.0V	CAN ALSO BE OPERATED AT 5.0V	CAN ALSO BE OPERATED AT 5.0V	CAN ALSO BE OPERATED AT 5.0V	CAN ALSO BE OPERATED AT 5.0V	CAN ALSO BE OPERATED AT 5.0V	CAN ALSO BE OPERATED AT 5.0V	CAN ALSO BE OPERATED AT 5.0V	CAN ALSO BE OPERATED AT 5.0V
maximum clock frequency	225 MHz	225 MHz	225 MHz	225 MHz	225 MHz	225 MHz	225 MHz	225 MHz	225 MHz	225 MHz
JESD-30 code	S-PBGA-B256	S-PBGA-B256	S-PBGA-B256	S-PBGA-B256	S-PBGA-B256	S-PBGA-B256	S-PBGA-B256	S-PBGA-B256	S-PBGA-B256	S-PBGA-B256
length	27 mm	27 mm	27 mm	27 mm	27 mm	27 mm	27 mm	27 mm	27 mm	27 mm
Configurable number of logic blocks	1584	1584	1584	1584	1584	1584	1584	1584	1584	1584
Equivalent number of gates	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
Number of terminals	256	256	256	256	256	256	256	256	256	256
Maximum operating temperature	125 °C	85 °C	70 °C	70 °C	85 °C	125 °C	70 °C	85 °C	70 °C	85 °C
Minimum operating temperature	-55 °C	-40 °C	-	-	-40 °C	-55 °C	-	-40 °C	-	-40 °C
organize	1584 CLBS, 60000 GATES	1584 CLBS, 60000 GATES	1584 CLBS, 60000 GATES	1584 CLBS, 60000 GATES	1584 CLBS, 60000 GATES	1584 CLBS, 60000 GATES	1584 CLBS, 60000 GATES	1584 CLBS, 60000 GATES	1584 CLBS, 60000 GATES	1584 CLBS, 60000 GATES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	BGA	BGA	BGA	BGA	BGA	BGA	BGA	BGA	BGA	BGA
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.34 mm	2.34 mm	2.34 mm	2.34 mm	2.34 mm	2.34 mm	2.34 mm	2.34 mm	2.34 mm	2.34 mm
Maximum supply voltage	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	MILITARY	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL
Terminal form	BALL	BALL	BALL	BALL	BALL	BALL	BALL	BALL	BALL	BALL
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
width	27 mm	27 mm	27 mm	27 mm	27 mm	27 mm	27 mm	27 mm	27 mm	27 mm
Combined latency of CLB-Max	2.397 ns	2.17 ns	-	2.1 ns	-	2.366 ns	2.2 ns	2.28 ns	2.125 ns	2.193 ns
