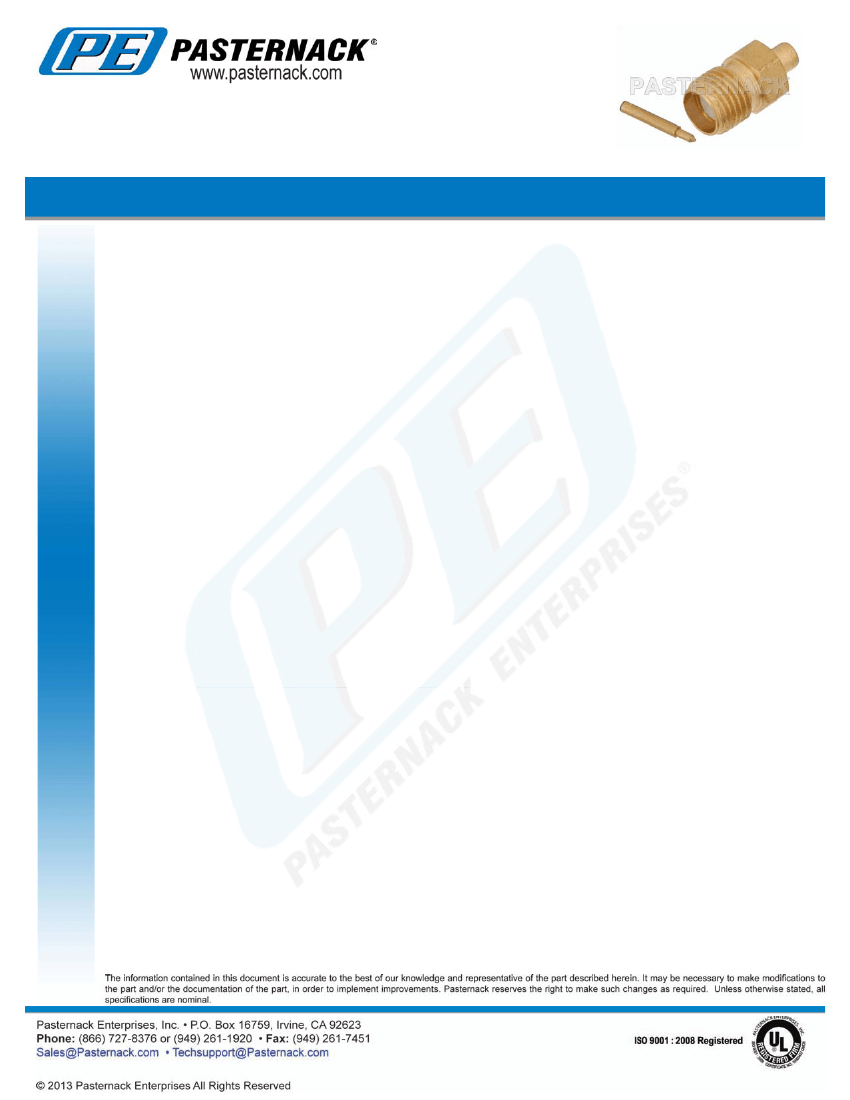

RP SMA Female Connector Solder Attachment

For PE-SR405AL, PE-SR405FL, RG405

TECHNICAL DATA SHEET

RP SMA Female Connector Solder Attachment For PE-SR405AL, PE-SR405FL, RG405

Configuration

Connector

Connector Interface Type

Cable Attachment Method (Shield/Contact)

Body Style

SMA Female Reverse Polarity

PE-SR405AL,PE-SR405FL,RG405

Solder/Solder

Straight

PE4853

Electrical Specifications

Impedance, Ohms

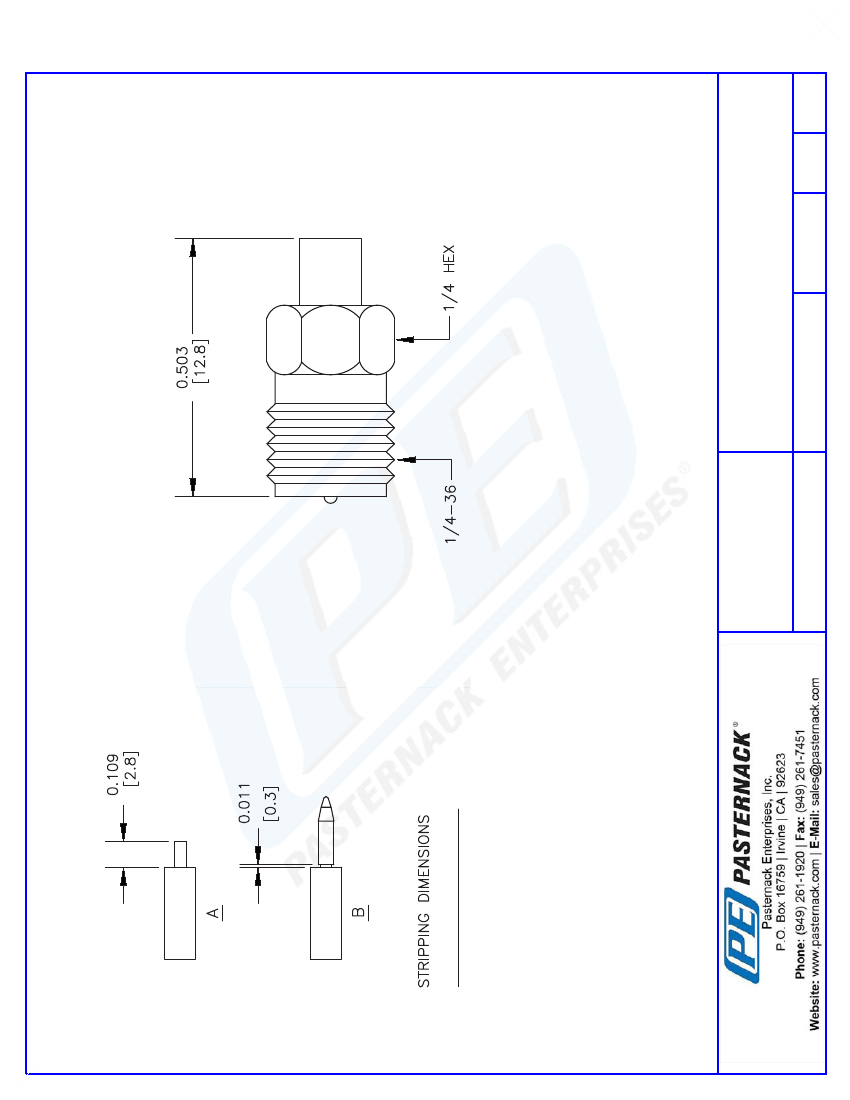

Mechanical Specifications

Size

Length, in [mm]

Width/Dia., in [mm]

0.503 [12.78]

0.25 [6.35]

0.006 [2.72]

Weight, lbs [g]

Connector

Type

Contact Material and Plating

Body Material and Plating

Dielectric Type

SMA Female Reverse Polarity

Gold

Stainless Steel, Gold

PTFE

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Plotted and Other Data

Notes:

Values at 25 °C, sea level

RP SMA Female Connector Solder Attachment For PE-SR405AL, PE-SR405FL, RG405 from Pasternack Enterprises has

same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%

availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications:

RP SMA Female Connector Solder Attachment For PE-SR405AL, PE-SR405FL, RG405 PE4853

URL:

http://www.pasternack.com/sma-female-reverse-polarity-pe-sr405al-pe-sr405fl-rg405-connector-pe4853-p.aspx

PE4853 REV 01
