7/16 DIN Male Connector Clamp/Solder Attachment
For 1/2 inch Annular, 1/2 inch Flexible, PE-1/2FAC
TECHNICAL DATA SHEET
PE44567
7/16 DIN Male Connector Clamp/Solder Attachment For 1/2 inch Annular, 1/2 inch Flexible, PE-1/2FAC
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
7/16 DIN Male
IEC60169-4
1/2 inch Annular,1/2 inch Flexible,PE-1/2FAC
Clamp/Solder
Straight
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum Return Loss, dB
Maximum Operating Voltage, Volts
Frequency 1
Frequency, GHz
Insertion Loss, dB
Power Handling, Watts
DC to 3
50
28
2,700
DC to 2
0.05
400
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
.
-40 to +85
2.41 [61.21]
1.26 [32.00]
0.026 [11.79]
7/16 DIN Male
Beryllium Copper, Silver
5µ in. minimum
Brass, Tri-Metal
2µ in. minimum
32
18.417 [24.97]
Brass, Tri-Metal
2µ in. minimum
TPX
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Coupling Nut Material and Plating
Coupling Nut Plating Specification
Hex Size, mm
Torque, ft-lbs [Nm]
Body Material and Plating
Body Plating Specification
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
7/16 DIN Male Connector Clamp/Solder Attachment For 1/2 inch Annular, 1/2 inch Flexible,
PE-1/2FAC PE44567
PE44567 REV 01
1
7/16 DIN Male Connector Clamp/Solder Attachment
For 1/2 inch Annular, 1/2 inch Flexible, PE-1/2FAC
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE44567
7/16 DIN Male Connector Clamp/Solder Attachment For 1/2 inch Annular, 1/2 inch Flexible, PE-1/2FAC from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products
maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
7/16 DIN Male Connector Clamp/Solder Attachment For 1/2 inch Annular, 1/2 inch Flexible, PE-
1/2FAC PE44567
URL:
http://www.pasternack.com/7-16-male-standard-1-2-inch-annular-connector-pe44567-p.aspx
PE44567 REV 01
2
ASSEMBLY PROCEDURES
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
1. STRIP CABLE AS SHOWN, CHAMFER CENTER CONDUCTOR &
DEBURR CABLE. SLIDE HEAT SHRINK OVER CABLE.
2. GREASE O-RING INSIDE OF CLAMP NUT. INSTALL CLAMP NUT
ONTO CABLE.
3. FLARE THE OUTER CONDUCTOR, SEPARATING THE OUTER
CONDUCTOR FROM THE INSULATOR.
PE44567

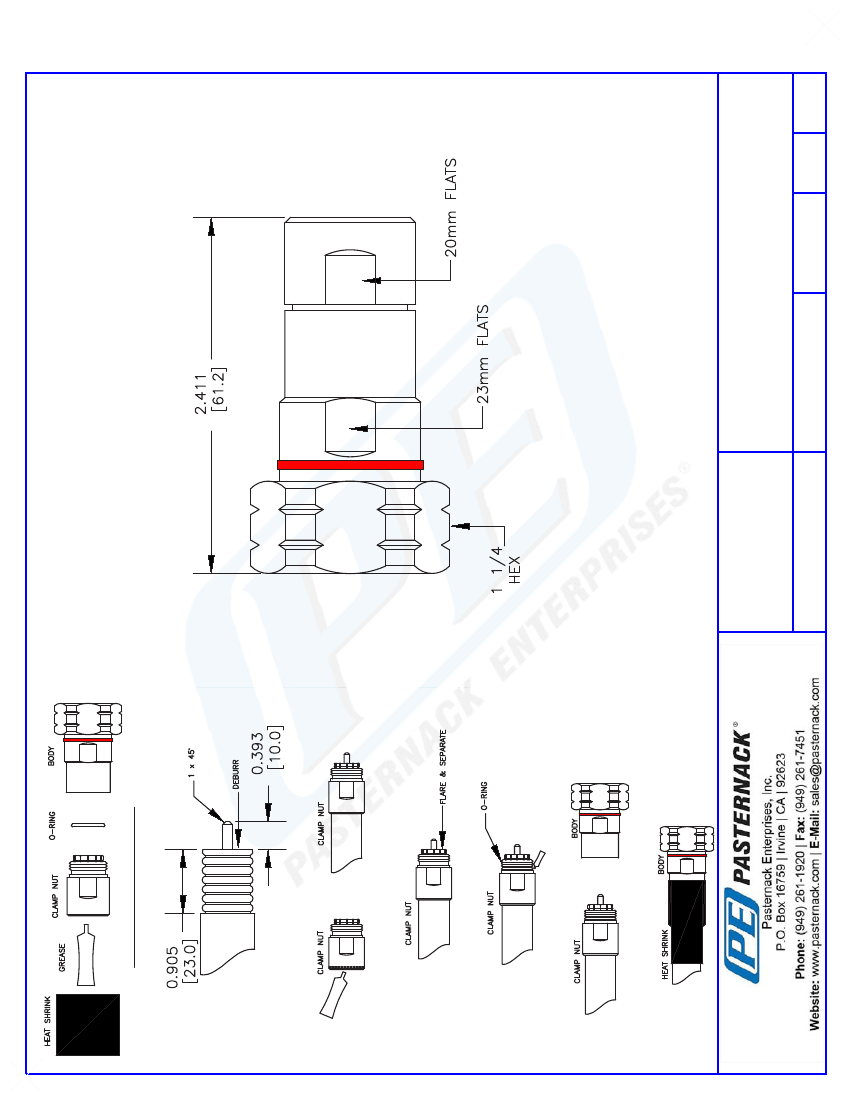

CAD Drawing
7/16 DIN Male Connector Clamp/Solder Attachment For
1/2 inch Annular, 1/2 inch Flexible, PE-1/2FAC
PE44567 REV 01
4. SLIDE O-RING OVER THREAD AND SEAT INTO PLACE. GREASE
O-RING.
5. HOLD CLAMP NUT STEADY & SCREW BODY TIGHTLY ONTO CABLE.
6. HEAT THE SHRINK TUBING UNTIL IT MOLDS OVER THE CABLE, AS
SHOWN BELOW.
PE44567
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
CAD FILE
091008-A
SCALE N/A
SIZE A
XXXX
3
