PE4114: DescriptionN Female Bulkhead Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142, RG223, RG400, .640 inch DD Hole; CategoryThe connector The connector; File Size312KB，2 Pages; ManufacturerPasternack Enterprises; Websitehttps://www.pasternack.com/; Environmental Compliance

Download Datasheet Parametric View All

PE4114 Overview

N Female Bulkhead Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142, RG223, RG400, .640 inch DD Hole

PE4114 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Pasternack Enterprises
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
Other features	APPLICABLE CABLES: RG 58; RG 55; RG 141; RG 142; RG 223; RG 400
Characteristic impedance	50 Ω
Connector type	RF N CONNECTOR
Contact to complete cooperation	GOLD (5)
Contact completed and terminated	GOLD (5)
Contact point gender	FEMALE
Contact material	BRASS
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	PE4114
Installation method	STRAIGHT
Installation type	CABLE
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CLAMP/SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

N Female Bulkhead Connector Clamp/Solder Attachment For

RG58, RG55, RG141, RG142, RG223, RG400, .640 inch DD Hole

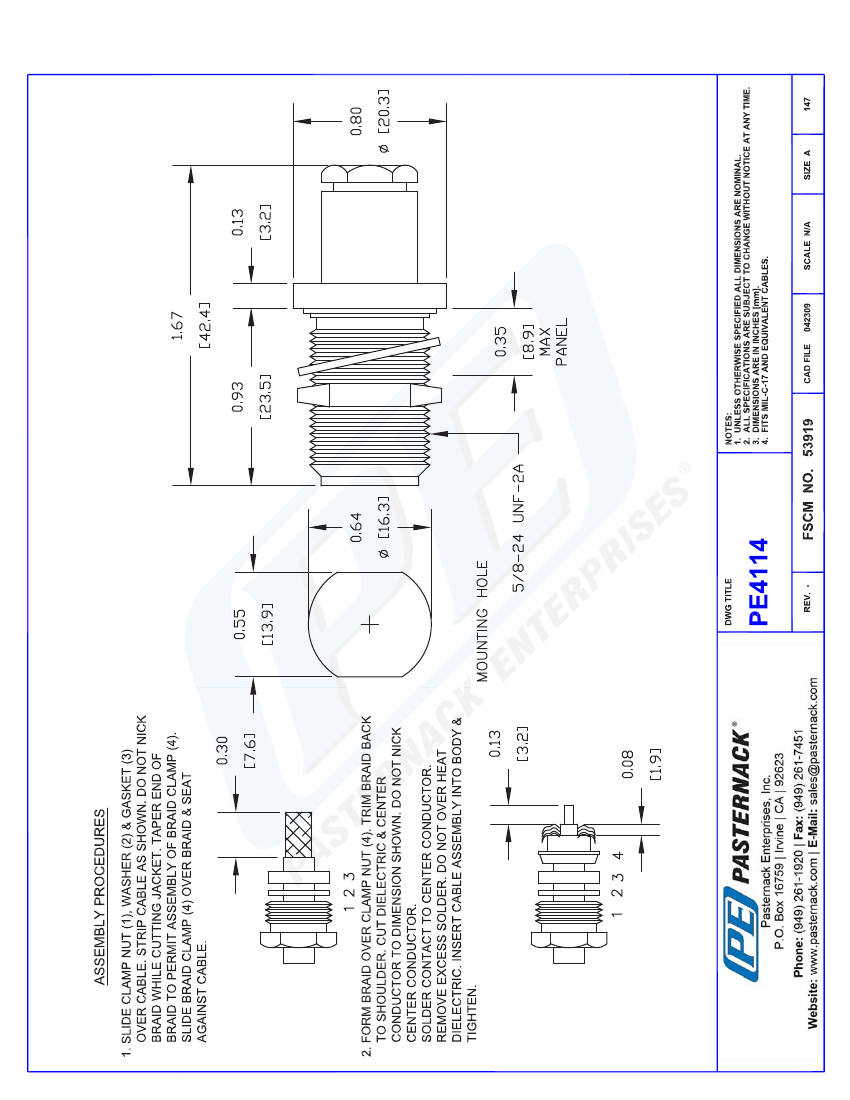

TECHNICAL DATA SHEET

PE4114

N Female Bulkhead Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142, RG223,

RG400, .640 inch DD Hole

Configuration

Connector

Connector Specification

Connector Interface Type

Cable Attachment Method (Shield/Contact)

Body Style

Mount Method

N Female

MIL-C-39012

RG58,RG55,RG141,RG142,RG223,RG400

Clamp/Solder

Straight

Bulkhead

Electrical Specifications

Impedance, Ohms

50

Mechanical Specifications

Size

Length, in [mm]

Width/Dia., in [mm]

.

1.67 [42.42]

0.8 [20]

0.096 [43.54]

N Female

Brass, Gold

3µ - 5µ in. minimum

Brass, Nickel

70µ in. minimum

Teflon

Weight, lbs [g]

Connector

Type

Contact Material and Plating

Contact Plating Specification

Body Material and Plating

Body Plating Specification

Dielectric Type

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Plotted and Other Data

Notes:

Values at 25 °C, sea level

URL:

http://www.pasternack.com/n-female-standard-rg58-rg55-rg141-rg142-rg223-rg400-connector-pe4114-p.aspx

N Female Bulkhead Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142, RG223, RG400, .640 inch DD

Hole from Pasternack Enterprises has same day shipment for domestic and International orders. We maintain 99% availability

of the industry’s broadest selection of RF, microwave and fiber optic products.

PE4114 REV

1
