PE4124: DescriptionSMA Male Connector Solder Attachment 4 Hole Flange Solder Cup Terminal, .340 inch Hole Spacing; CategoryThe connector The connector; File Size221KB，3 Pages; ManufacturerPasternack Enterprises; Websitehttps://www.pasternack.com/

Download Datasheet Parametric View All

PE4124 Overview

SMA Male Connector Solder Attachment 4 Hole Flange Solder Cup Terminal, .340 inch Hole Spacing

PE4124 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Reach Compliance Code	unknow
Connector type	RF SMA CONNECTOR
Base Number Matches	1

Preview

Download Datasheet

View All

SMA Male Connector Solder Attachment 4 Hole Flange

Solder Cup Terminal, .340 inch Hole Spacing

TECHNICAL DATA SHEET

Configuration

Connector

Connector Specification

Connector Interface Type

Cable Attachment Method (Shield/Contact)

Body Style

Mount Method

SMA Male

MIL-STD-348

Solder Cup

Solder

Straight

4 Hole Flange

PE4124

SMA Male Connector Solder Attachment 4 Hole Flange Solder Cup Terminal, .340 inch Hole Spacing

Electrical Specifications

Frequency Range, GHz

Impedance, Ohms

Maximum VSWR

DC to 18

1.25:1

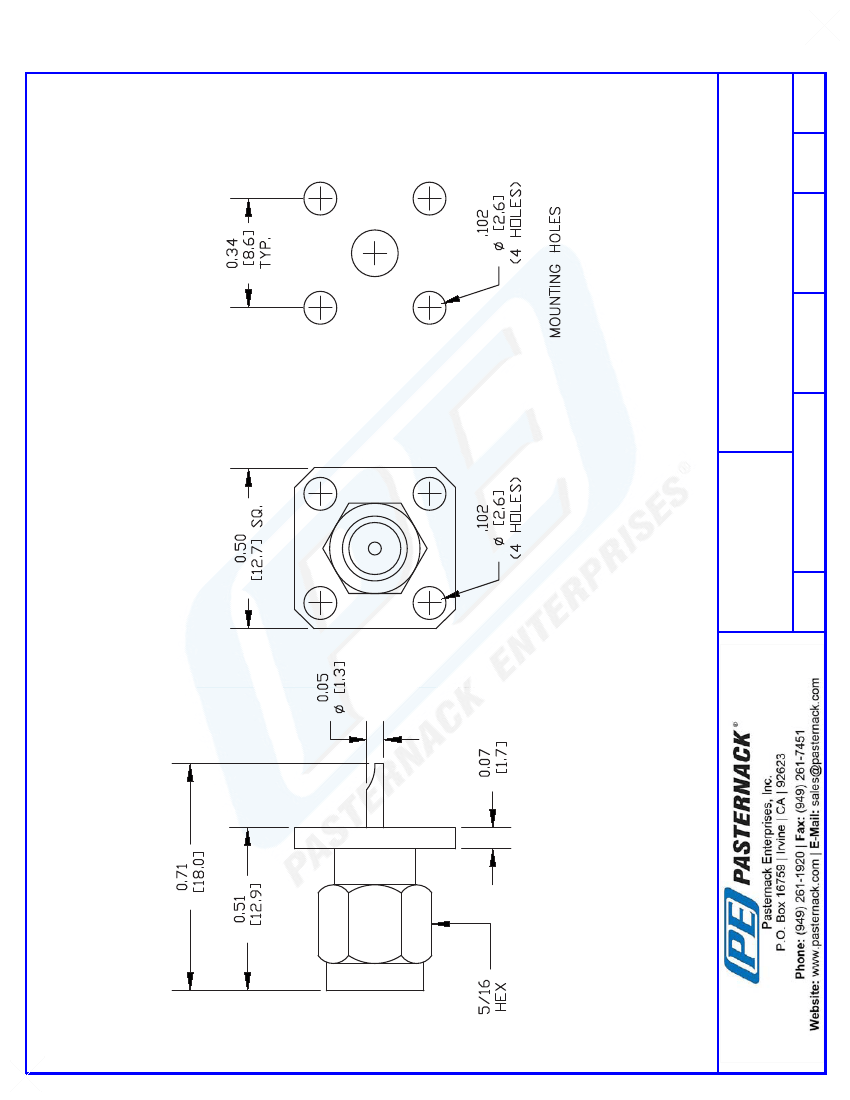

Mechanical Specifications

Size

Length, in [mm]

Width/Dia., in [mm]

Height, in [mm]

0.71 [18.03]

0.5 [13]

0.5 [12.7]

0.013 [5.9]

SMA Male

Beryllium Copper, Gold

MIL-G-45204, Type II, Class 2

Stainless Steel, Gold

MIL-G-45204

5/16

8 [0.9]

Stainless Steel, Gold

MIL-G-45204

Teflon

Weight, lbs [g]

Connector

Type

Contact Material and Plating

Contact Plating Specification

Coupling Nut Material and Plating

Coupling Nut Plating Specification

Hex Size, in.

Torque, in-lbs [Nm]

Body Material and Plating

Body Plating Specification

Dielectric Type

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Plotted and Other Data

Notes:

Values at 25 °C, sea level

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications:

SMA Male Connector Solder Attachment 4 Hole Flange Solder Cup Terminal, .340 inch Hole

Spacing PE4124

PE4124 REV
