PXES-2590
9-Slot 3U PXI Express Chassis with AC – Up to 7 GB/s, All Hybrid
Introduction
The ADLINK PXES-2590 is a 9-slot PXI Express chassis equipped with advanced features and functions.
Compliant with PXI Express and cPCI Express specifications, the PXES-2590 offers one system slot, one system timing slot, and
seven hybrid peripheral slots for versatile test and measurement applications requiring enhanced bandwidth. The hybrid-slot
design accepts installation of CompactPCI, PXI, CompactPCI Express, and PXI Express modules into any peripheral slots in PXES-
2590, maximizing flexibility. The PXES-2590 is built on a four-link PXI express chassis with 7 GB/s system bandwidth, and 2 GB/s
slot bandwidth for all peripheral slots.
The PXES-2590 is implemented with a smart system monitoring controller, reporting full chassis status, including fan speed,
system voltages, and internal temperature.
Equipped with an industrial grade AC power supply, the PXES-2590 still provides 400 W under 55°C, and delivers superior
cooling capacity, from two 120 mm cooling fans on the rear of the chassis. Two BNC connectors for 10 MHz clock input/
output on the rear panel increase chassis flexibility, enabling synchronization with supplementary devices. All in all, PXES-
2590 is the best PXI Express platform choice for testing and measurement requirements.
Features
■
■

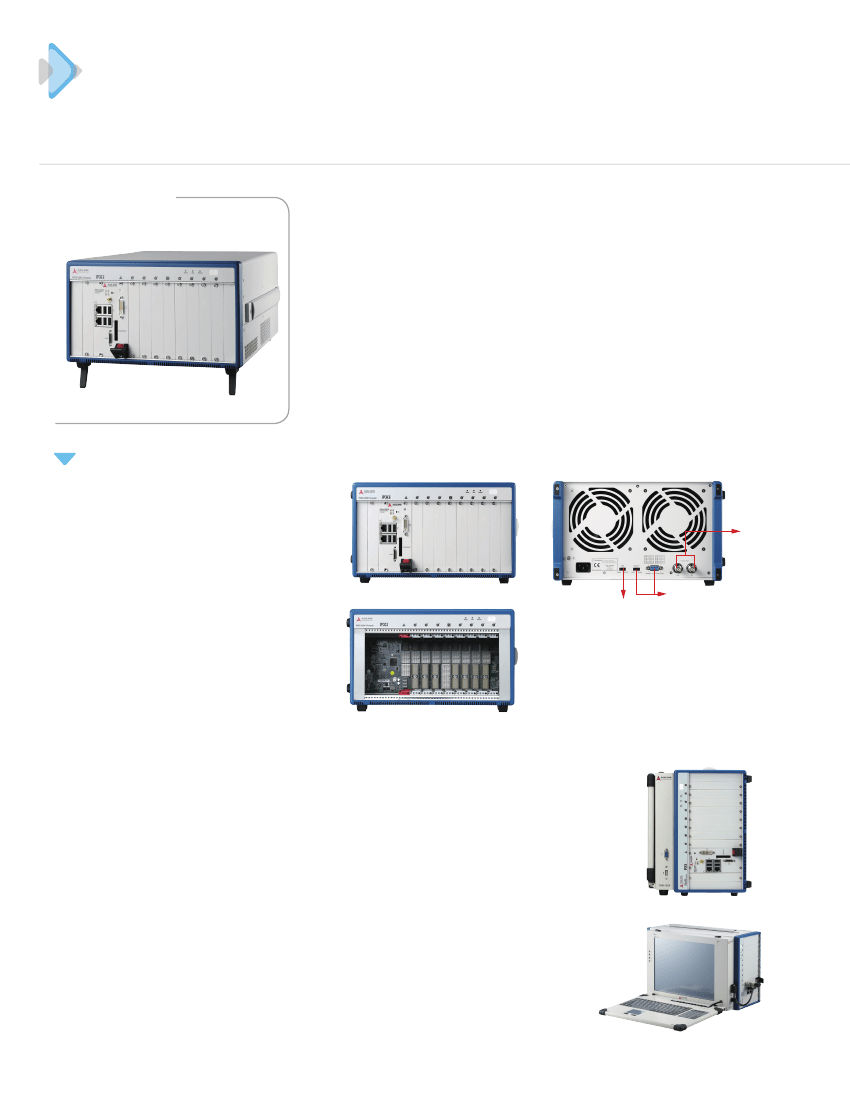

PXES-2590 Front View
PXES-2590 Back View
■
■
■
■
■
■
■
■
PXI -5 PXI Express hardware specification
Rev.1.0 compliant
9-slot PXI Express chassis with one system slot, one
system timing slot, and seven hybrid peripheral slots
Four-link PXI Express chassis
Up to 7 GB/s system bandwidth
Up to 2 GB/s peripheral bandwidth for all slots
0°C to 55°C extended operating temperature range
Intelligent chassis management
•Automatic fan speed control
•Chassis status monitoring and reporting
•Remote chassis power on/off control
BNC connectors for 10 MHz clock input/output
Maximum total usable power is 400 W under 55°C
Power, temperature, and fan monitoring LEDs
TM
10 MHz Ref clock
input/output BNC
connectors
FAN Speed
Control
Switch
Inhibit Enable/Disable
Switch & Power rails
monitoring port
PXES-2590 Hybrid Peripheral Slots
Highlights
■ Portable
LCD Monitor/Keyboard Accessory
In further support of the portability requirements of PXI/PXIe
measurement systems, the PXES-2590 also provides an optional
portable LCD monitor/keyboard accessory kit, allowing rack-cabinet
PXI systems to be easily converted to fully portable PXI systems.
Accessory kit includes:
■
15 in. touch screen LCD monitor with 1024 x 768
resolution
■
English keyboard and touchpad
■
ADLINK factory or user installation
■
VGA video connection
■
No requirement for external power
PXIe Chassis

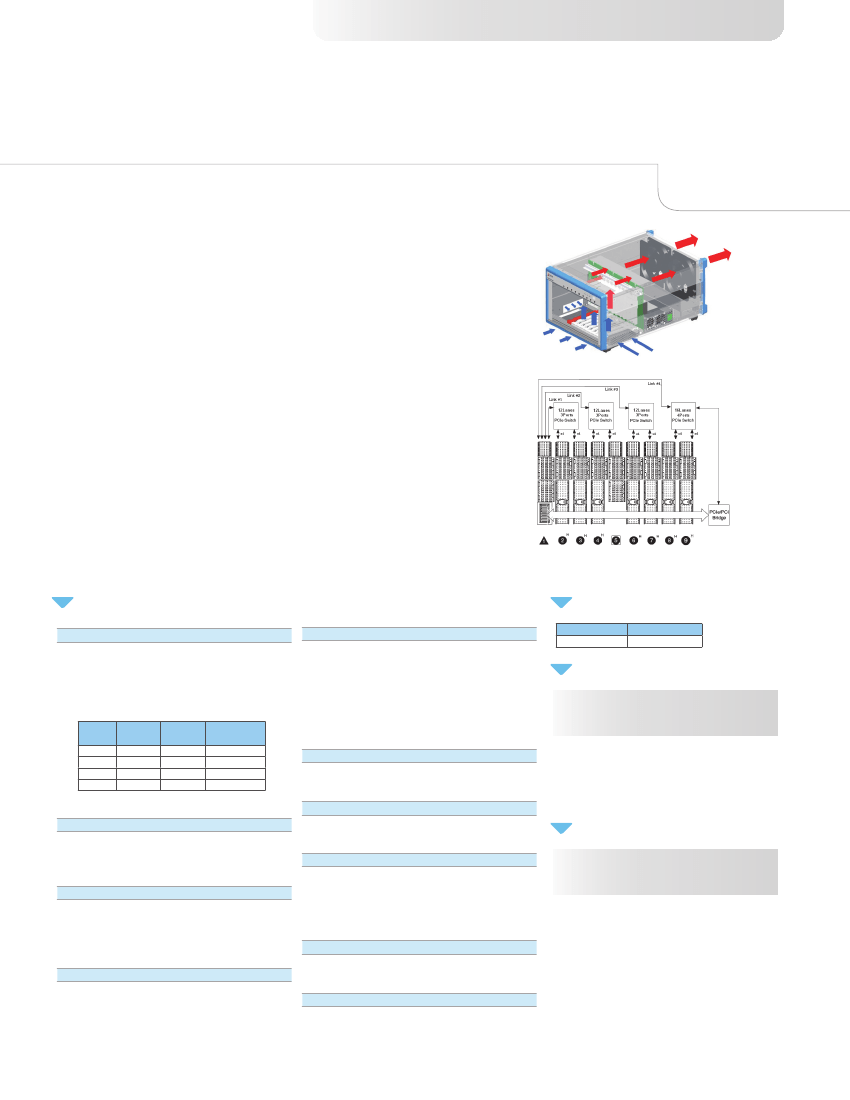

■ Innovative
Cooling Mechanism
The ADLINK PXES-2590 features an innovative heat dissipation solution. Two 185.9CFM cooling fans in the
rear section of the chassis draw cool air through lower apertures, which is then exhausted through the back.
This design generates uniform airflow for each PXI slot, delivering exceptional cooling.
When installed in a rack, the cooling design minimizes intake of hot air from the rear side, separating airflow
for modules and power supplies, while isolating noise source (fan) from modules and maintaining a steady
internal temperature.
■ Intelligent
Chassis Management
The PXES-2590 has a built-in system monitoring controller that monitors and manages full chassis status,
including internal temperature, fan speed, and DC voltages.
■ All
Hybrid Peripheral Slots Design*
The ADLINK PXES-2590 features an all-hybrid peripheral slot design, with PXI Express, cPCI Express, PXI,
and CompactPCI modules compatible with every slot.
Note:
1. ADLINK’s PXI Express chassis accepts hybrid slot-compatible PXI-5 modules (with XJ4 connector).
Legacy PXI-1 boards (with J2 connector) need to be upgraded to hybrid slot-compatible PXI modules.
A detailed list of ADLINK PXI hybrid slot-compatible modules is available online at:
http://www.adlinktech.com/PXI/pxi-breakthrough-bandwidth.php#FAQ
2. Contact your ADLINK sales representative for assistance in upgrading ADLINK legacy PXI modules.
If the PXI modules were purchased from a third party, please contact the original vendor.
•Backplane Link Configuration
Specifications
Power Supply
■
Recommended System Controller
Physical
■
AC Input
Number of slots:
+ 7 peripheral slots
PXIe-3975
PXES-2590
√
• Input
voltage range: 100 to 240 VAC
• Input
voltage frequency: 50 to 60 Hz
■
•1
system slot + 1 system timing hybrid slot
■
Ordering Information
■
PXES-2590
3U 9-slot PXI Express chassis with all-hybrid
peripheral slots and universal AC power supply
■ PXES-2590/PMK-1524 with Trolley Case
3U 9-slot PXI Express chassis with all hybrid
slots with factory-mounted 15” 24-bit monitor/
keyboard kit, pre-installed in trolley case for
shipping.
DC Output
Load
Regulation
Maximum Ripple
& Noise
Dimensions:
• Maximum
total usable power is 400 W
VDC
Maximum
• 322
mm (W) x 190 mm (H) x 456 mm (D) (12.55” x 7.4” x 17.8”)
■
Weight: 9 kg (19.8 lbs)
+5 V
+12 V
+3.3 V
-12 V
23.0 A
27.0 A
33.0 A
1.75 A
±3%
±3%
±3%
±3%
50 mV
50 mV
50 mV
50 mV
Operating Environment
■
■
Ambient temperature: 0˚C to 55˚C (32˚F to 131˚F)
Relative humidity: 10% to 90%, non-condensing
Storage Environment
Bus Interface
■
■
■
■
■
Ambient temperature: -20˚C to 70˚C (-4˚F to 158˚F)
Relative humidity: 10% to 90%, non-condensing
Four-link capacity PXI Express chassis
Up to 7 GB/s system bandwidth
Up to 2 GB/s peripheral bandwidth for all slots
Optional Accessories
■ PMK-1524
Portable LCD monitor/keyboard accessory kit
for PXES-2590
■
Trolley Case
Trolley case for PXES-2590/PMK-1524,
570 x 270 x 390 mm, 5 kg
■ PXES-2590 Rack-mount Kit
Flexible rack-mount kit for PXES-2590
Shock and Vibration
■
■
Functional shock: 30 G, half-sine, 11 ms pulse duration
Random vibration:
IO/Switch on Rear Panel
■
■
■
■
BNC connectors for 10MHz clock input/output
Fan speed selector switch
Inhibit mode selector switch
D-SUB9 for voltage monitoring and remote inhibit
• Operating: 5 to 500 Hz, 0.3 Grms, 3 axes
• Non-operating: 5 to 500 Hz, 2.46 Grms, 3 axes
Emissions Compliance
■
■
EN 61326-1
FCC Class A
Cooling
■
■
Fans: 2 x 185.9 CFM fans
Per-slot cooling capacity: 30 W
CE Compliance
■
■
Safety: EN 61010-1
Immunity: EN 61326-1
Updated January 29, 2013.
©2013
ADLINK Technology, Inc. All Rights Reserved. All specifications are subject to change without further notice.
