AR-112D1: DescriptionElectromechanical Relay, SPDT, 19.2VDC (Coil), 10A (Contact), 28VDC (Contact), Random, AC/DC Output; CategoryMechanical and electronic products relay; File Size210KB，2 Pages; ManufacturerGood Sky Electric Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

AR-112D1 Overview

Electromechanical Relay, SPDT, 19.2VDC (Coil), 10A (Contact), 28VDC (Contact), Random, AC/DC Output

AR-112D1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Good Sky Electric Co., Ltd.
Reach Compliance Code	unknown
body width	13 mm
body height	17.4 mm
Body length or diameter	16.2 mm
Coil operating voltage (DC)	7.2 V
Coil release voltage (DC)	0.6 V
Coil resistance	130 Ω
Maximum coil voltage (DC)	19.2 V
Nominal coil voltage	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	360VA@120VAC
Contact (AC) maximum rated R load	10A@120VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated power R load	120W@28VDC
Contact (DC) maximum rated R load	10A@28VDC
Contact resistance	100 mΩ
Maximum contact voltage (AC)	120 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1000 Vrms
Dielectric strength between breaking contacts	500 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Alloy
Input switching control type	Random
Insulation resistance	100000000 Ω
Number of terminals	5
operating hours	10 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB hole count	5
physical size	16.2mm x 13mm x 17.4mm
Guideline	UL
Relay style	1 FORM C
Relay function	SPDT
release time	10 ms
Terminal length	0.0045 inch
Termination type	SOLDER
weight	10 g

Preview

Download Datasheet

View All

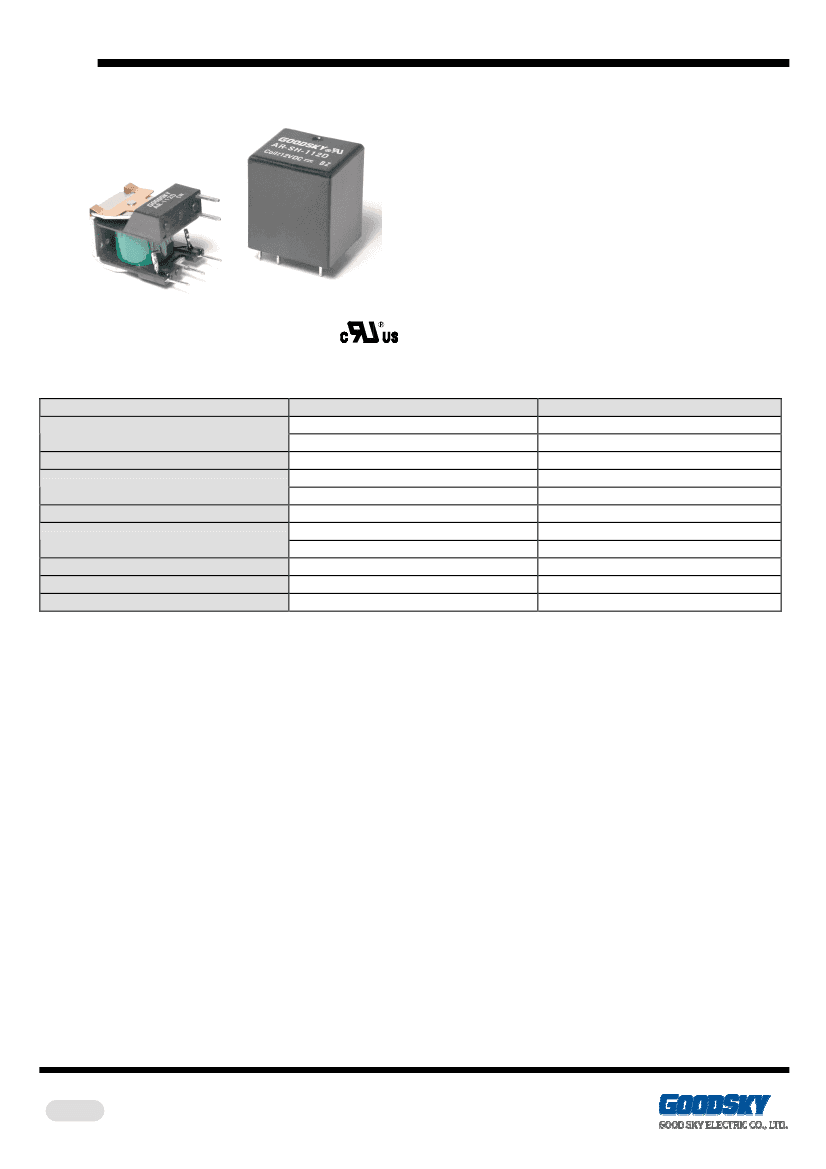

Main Feature

1. Switching capacity 10A in small size for exclusive

automobile control relay switching box use

2. Standard and European Specification available to

comply with various requirements

3. Various selections on types of sealing

4. Ambient temperature range covers from -40ºC to

+85ºC

5. Comply with RoHS, REACH and ELV regulations

Contact Rating

Load Type

Rated Load (Resistive)

Rated Carrying Current

Max. Allowable Voltage

Max. Allowable Current

Max. Allowable Power Force

Min. Switching Load

Contact Material

Contact Form

AR (DM)

3A 120VAC

10A 12VDC

10A

AC 120V

DC 28V

10A

360VA

120W

DC 5V, 10mA

Ag Alloy

SPST

AR (D)

3A 120VAC

10A 12VDC

10A

AC 120V

DC 28V

10A

360VA

120W

DC 5V, 10mA

Ag Alloy

SPDT

Temperature Range ..............-40½+85°C

Humidity Range.....................45½85% RH

Coil Temperature Rise ..........60°C Max.

Vibration:

Endurance.............................10 to 55 Hz dual

amplitude width 1.5mm

Error Operation .....................10 to 55 Hz dual

amplitude width 1.5mm

Shock:

Endurance ...........................1000 m/S

Error Operation .....................100 m/S

Life Expectancy:

Mechanical ..........................10 Operations at No

Load condition

Electrical ..............................10 Operations at Rated

Resistive Load

Weight...................................About 10g

Application

Lighting Control, Door Lock Control, Power Window

Control, Power Door Control, Sunroof Control

Performance (at Initial Value)

Contact Resistance .............. 100mΩMax.@1A,6VDC

Operate Time........................ 10 mSec. Max.

Release Time ....................... 10 mSec. Max.

Dielectric Strength:

Between Coil & Contact........ 1,000VAC at 50/60 Hz

for one minute

Between Contacts ................ 500VAC at 50/60 Hz

for one minute

Surge Strength...................... 2,000V (between coil

& contact 1x40μSec.)

Insulation Resistance............ 100 MegaΩ Min. at

500VDC

Max. On/Off Switching:

Electrical ............................... 20 Cycles per Minute

Mechanical............................ 300 Cycles per Minute

Safety Standard & File Number

UL & C-UL .............................E141060

Recommended Resources

Microcontroller control circuit

Multiple feedback low-pass filter circuit

HZ-1 automatic slide projector circuit

uPC2002H application circuit

CXA1034P-M power amplifier circuit

CXA1191S radio circuit
